FIAC spa

FIAC Spare Parts for Piston Air Compressor ECU 201 HP 1,5 F206

SKU: Fiac ECU201-HP1,5F206
€0.61
VAT included

FIAC Spare Parts for Piston Air Compressor ECU 201 HP 1,5 F206

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Air Compressor ECU 201 HP 1,5 F206.
FIAC Spare Parts for Piston Air Compressor ECU 201 HP 1,5 F206
  • FIAC Spare Parts for Piston Air Compressor ECU 201 HP 1,5 F206
  • FIAC Spare Parts for Piston Air Compressor ECU 201 HP 1,5 F206 - Drawing
FIAC spa

FIAC Spare Parts for Piston Air Compressor ECU 201 HP 1,5 F206

SKU: Fiac ECU201-HP1,5F206 Condition: New
€0.61
VAT included

FIAC Spare Parts for Piston Air Compressor ECU 201 HP 1,5 F206

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Air Compressor ECU 201 HP 1,5 F206.
settings 50 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
45 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

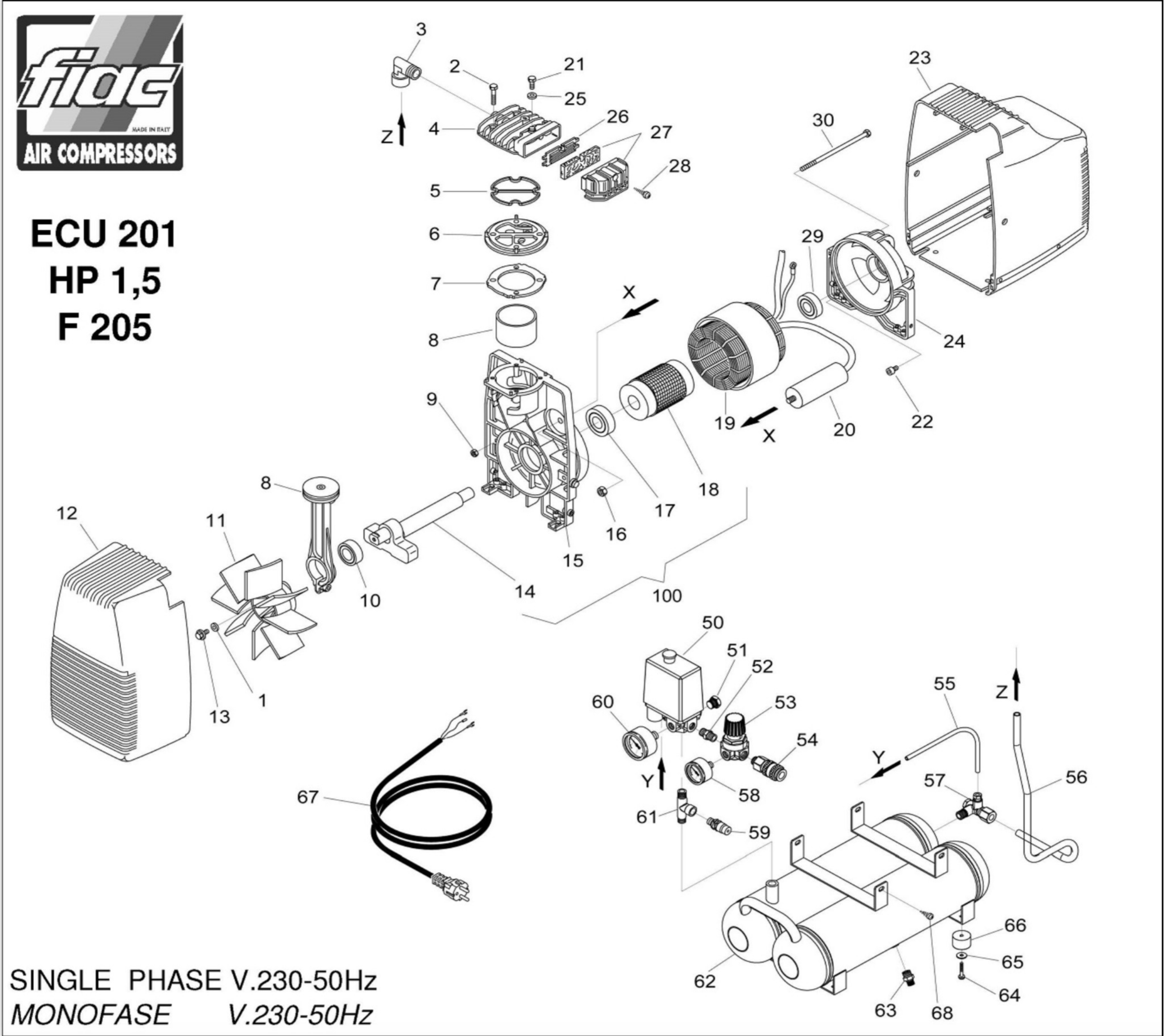

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 7011290000 Screw M6X35 UNI-5739 €1.38
3
 FIAC F204 Fitting L 1/4" 7084080000 FIAC F204 Fitting L 1/4" €10.17
4
 Head for Air Compressors FIAC ECU 201-FB-210-LEONARDO HP 1-FX 95 7570550000 Head for Air Compressors FIAC ECU 201-FB-210-LEONARDO HP 1-FX 95 €33.32
5
 Silicon OR for Head of Air Compressor Fiac ECU201-FB-210 7070600000 Silicon OR for Head of Air Compressor Fiac ECU201-FB-210 €7.89
6
 Valves Plate for Air Compressors FIAC ECU 201-FX 95 4200020000 Valves Plate for Air Compressors FIAC ECU 201-FX 95 €32.09
7
 Head Gasket for Air Compressor Fiac ECU201-FB-210 7078490000 Head Gasket for Air Compressor Fiac ECU201-FB-210 €7.98
8
 Conrod Piston + Cylinder for Air Compressor Fiac ECU201-FB-210 4190270000 Conrod Piston + Cylinder for Air Compressor Fiac ECU201-FB-210 €77.90 Not available for order
9
 photo_cameraImage coming soon 7021010000 Nut M6-7473 UNI €1.52
10
 Conrod Ball Bearing 6004-Z for Air Compressor Fiac LEONARDO HP 1 7060190000 Conrod Ball Bearing 6004-Z for Air Compressor Fiac LEONARDO HP 1 €7.67
11
 Motor Fan for Air Compressor Fiac ECU201-FB-210 7200140000 Motor Fan for Air Compressor Fiac ECU201-FB-210 €8.84
12
 photo_cameraImage coming soon 7150560000 Plastic COVER €20.86
13
 photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
14
 Crankshaft for Air Compressors Fiac ECU 200 - ECU 201 5040670008 Crankshaft for Air Compressors Fiac ECU 200 - ECU 201 €66.56
15
 Motor Support for Air Compressors Fiac ECU 200 - ECU 201 7670010000 Motor Support for Air Compressors Fiac ECU 200 - ECU 201 €58.91
17
 Crank Shaft Ball Bearing 6005-Z for Air Compressor Fiac LEONARDO HP 1 7060280000 Crank Shaft Ball Bearing 6005-Z for Air Compressor Fiac LEONARDO HP 1 €17.41
19
 Field Ass'y for Air Compressors Fiac ECU 200 - ECU 201 4011600000 Field Ass'y for Air Compressors Fiac ECU 200 - ECU 201 €165.96
20
 Capacitor 30 mf for Air Compressors 7310320000 Capacitor 30 mf for Air Compressors €26.02
22
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
23
 Motor Housing for Air Compressors Fiac ECU 200 - ECU 201 7150550000 Motor Housing for Air Compressors Fiac ECU 200 - ECU 201 €35.16
24
 Motor Hood for Pump Unit FIAC GM 145 7640060000 Motor Hood for Pump Unit FIAC GM 145 €27.79
25
 FIAC Air Compressor Ecu 201 Washer 7030780000 FIAC Air Compressor Ecu 201 Washer €0.62
26
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
27
 Set Intake Filter for Pumping Units FIAC GM 201-202-242 4085010000 Set Intake Filter for Pumping Units FIAC GM 201-202-242 €15.65
28
 photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
29
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
30
 photo_cameraImage coming soon 7018010000 Screw M6x139 UNI-5737 €1.73
50
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
51
 photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
52
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
53
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
54
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
55
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
56
 Fiac ECU 201 F206 Feeding Pipe 7234360000 Fiac ECU 201 F206 Feeding Pipe €14.32
57
 Non Return Valve for Air Compressors Fiac ECU 200-201 7190200000 Non Return Valve for Air Compressors Fiac ECU 200-201 €28.91
58
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
59
 Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
60
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
61
 FIAC Air Compressor ECU201 T Joint 7082530000 FIAC Air Compressor ECU201 T Joint €10.20
62
 photo_cameraImage coming soon 5158240008 Tank €223.99
63
 FIAC F205 Drain Tap 1/4" 7130090000 FIAC F205 Drain Tap 1/4" €10.00
64
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
66
 Rubber Holder for Air Compressor Fiac ECU201-FB-210 7360370000 Rubber Holder for Air Compressor Fiac ECU201-FB-210 €3.00
67
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
68
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
100
 photo_cameraImage coming soon 4280530000 CRANKCASE-CRANKSHAFT- ARMATURE-ECU NEW €217.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor ECU 201 HP 1,5 F206

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Air Compressor ECU 201 HP 1,5 F206.

In the following table, look for the type of the air compressor and the respective parts of the code.
Fiac ECU 201 HP 1,5 F206

Air Compressor ECU 201 HP 1,5 F206
# Part Num. Description
1 7030190000 Washer Ø6,4X18X1,5 UNI-6593
2 7011290000 Screw M6X35 UNI-5739
3 7084080000 Fitting "L" 1/4 FIL
4 7570550000 Head
5 7070600000 O-Ring
6 4200020000 Kit valve plate
7 7078490000 Gasket
8 4190270000 Kit rod / piston
9 7021010000 Nut M6 UNI-7473
10 7060190000 Bearing 6004 2Z / C3.QE6
11 7200140000 Cooling fan
12 7150560000 Plastic COVER
13 7011040000 Screw M6X20 UNI-5739
14 5040670008 CRANKSHAFT
15 7670010000 MOTOR SUPPORT
16 7020240000 Nut M8 DIN-6923
17 7060280000 Bearing 6005-2Z
18 7660090000 Armature
19 4011600000 Field Ass'y
20 7310320000 Capacitor MF.30 V450
21 7014300000 Screw M4X12 UNI-8112
22 7013060000 Screw M4X8 UNI-8112
23 7150550000 Motor Housing, Green
24 7640060000 Cover
25 7030780000 Washer
26 7458340000 Filter plate
27 4085010000 Kit Air filter
28 7012010000 Screw Ø3,9X19 UNI-6954
29 7060010000 Bearing 6203 ZZ 17:40:12 QE6
30 7018010000 Screw M6x139 UNI-5737
50 7250740000 Pressure Switch
51 7090070000 Cap M1/4"
52 7081090000 Fitting 1/4"MM
53 7100640000 Pressure reducer
54 7130570000 Universal tap M1/4"
55 7230010000 Rilsan tube Ø6X4
56 7234360000 Tube feeding
57 7190200000 Check valve M1/4-Tube 10
58 7110240000 Pressure Gauge Ø40-1/8"
59 7192020000 Valve Sic. M1/4-8,5Bar
60 7110300000 Manometer Ø50-1/4"
61 7082530000 T fitting 1/4 MFM ZINC
62 5158240008 Tank
63 7130090000 Drain Tap M1/4"
64 7012090000 Screw M5X12 UNI-8112
65 7030020000 Ø6 washer UNI-6592
66 7360370000 Rubber foot Ø25 - 60sh for mounting glass
67 7329070000 Power cable
68 7012290000 Screw M5X20 TAP-TITE
100 4280530000 CRANKCASE-CRANKSHAFT- ARMATURE-ECU NEW
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac ECU201-HP1,5F206
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Fiac ECU 201

Diagram Fiac ECU 201

Download (341.96KB)
