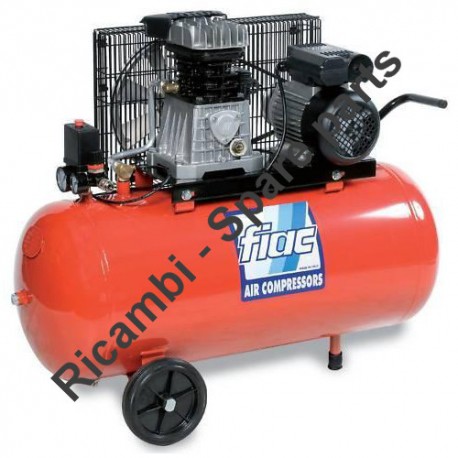

FIAC Spare Parts for Piston Air Compressor AB 50/245 -335

SKU: Fiac AB 50/245 -335M
€230.41
VAT included

FIAC Spare Parts for Piston Air Compressor AB 50/245 -335

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB50/245 -335.
FIAC Spare Parts for Piston Air Compressor AB 50/245 -335
  • FIAC Spare Parts for Piston Air Compressor AB 50/245 -335
  • FIAC Spare Parts for Piston Air Compressor AB 50/245 -335

FIAC Spare Parts for Piston Air Compressor AB 50/245 -335

SKU: Fiac AB 50/245 -335M Condition: New
€230.41
VAT included

FIAC Spare Parts for Piston Air Compressor AB 50/245 -335

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB50/245 -335.
settings 52 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

46 spare parts

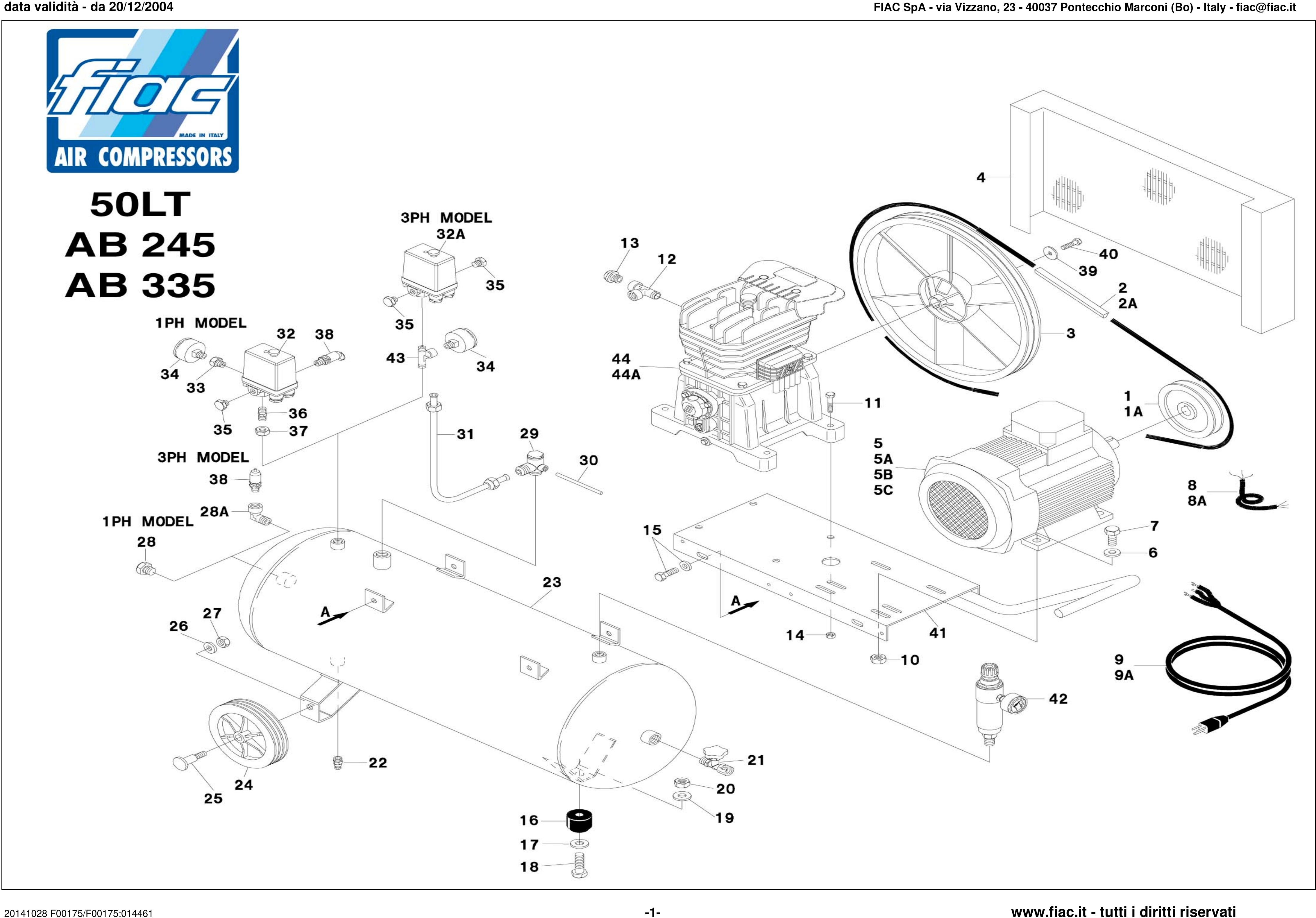

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Motor Pulley Ø 130 1-A F24 for Air Compressor Fiac AB 50/245 -335 7408370000 Motor Pulley Ø 130 1-A F24 for Air Compressor Fiac AB 50/245 -335 €41.69
2
photo_cameraImage coming soon 7370060000 V-Belt A 46 €13.48
3
photo_cameraImage coming soon 7201000000 flywheel €61.75
4
photo_cameraImage coming soon 7240220000 Belt Guard RT 51 AB 200-240-300 DX €81.41
5
photo_cameraImage coming soon 7380570000 Single Phase motor €393.65
6
photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
7
photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
8
photo_cameraImage coming soon 7329160000 Cable Pressure Switch / Motor €33.22
9
photo_cameraImage coming soon 7329070000 Power Cord €29.80
11
photo_cameraImage coming soon 7011120000 Screw M10x45 UNI-5739 €1.44
12
photo_cameraImage coming soon 7082700000 Fitting "T" 3 / 8F-1 / 2M.SV-1 / 2M €13.98
13
Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS 7196010000 Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS €10.13
15
photo_cameraImage coming soon 7011410000 Screw M10x20 DIN 6921 €2.03
16
photo_cameraImage coming soon 7360080000 Rubber Feet €6.65
21
photo_cameraImage coming soon 7130080000 Faucet M1 / 2 " €25.27
22
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
23
photo_cameraImage coming soon 5159140008 50lt tank €440.50
24
photo_cameraImage coming soon 7260050000 Wheel Ø150X30 F15 €7.55
25
Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
26
photo_cameraImage coming soon 7030140000 Washer Ø12 UNI-6592 €4.23
28
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
29
Check Valve MM 1/2"-DX for Air Compressors 7190090000 Check Valve MM 1/2"-DX for Air Compressors €29.61
30
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
31
photo_cameraImage coming soon 7237570000 tube feeding €20.11
32
Single-Phase Pressure Switch with Built-in Start valve 7250240000 Single-Phase Pressure Switch with Built-in Start valve €32.67
33
photo_cameraImage coming soon 7085530000 Fitting 1/4 "-3/8" MF €7.98
34
FIAC Manometer for Air Compressor AB300 7110060000 FIAC Manometer for Air Compressor AB300 €21.31
35
photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
36
FIAC Reduction 3/8"-1/4" 7088060000 FIAC Reduction 3/8"-1/4" €18.30
37
Fiac Locking Nut 3/8" 7023050000 Fiac Locking Nut 3/8" €6.42
38
FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
39
photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
41
photo_cameraImage coming soon 5010990008 basis €99.11
42
photo_cameraImage coming soon 7100700000 Pressure reducer €75.93
43
photo_cameraImage coming soon 7082690000 A fitting "T" 8.3 MFM €13.84
44
photo_cameraImage coming soon 3020431000 Pumping unit AB 245 €207.08

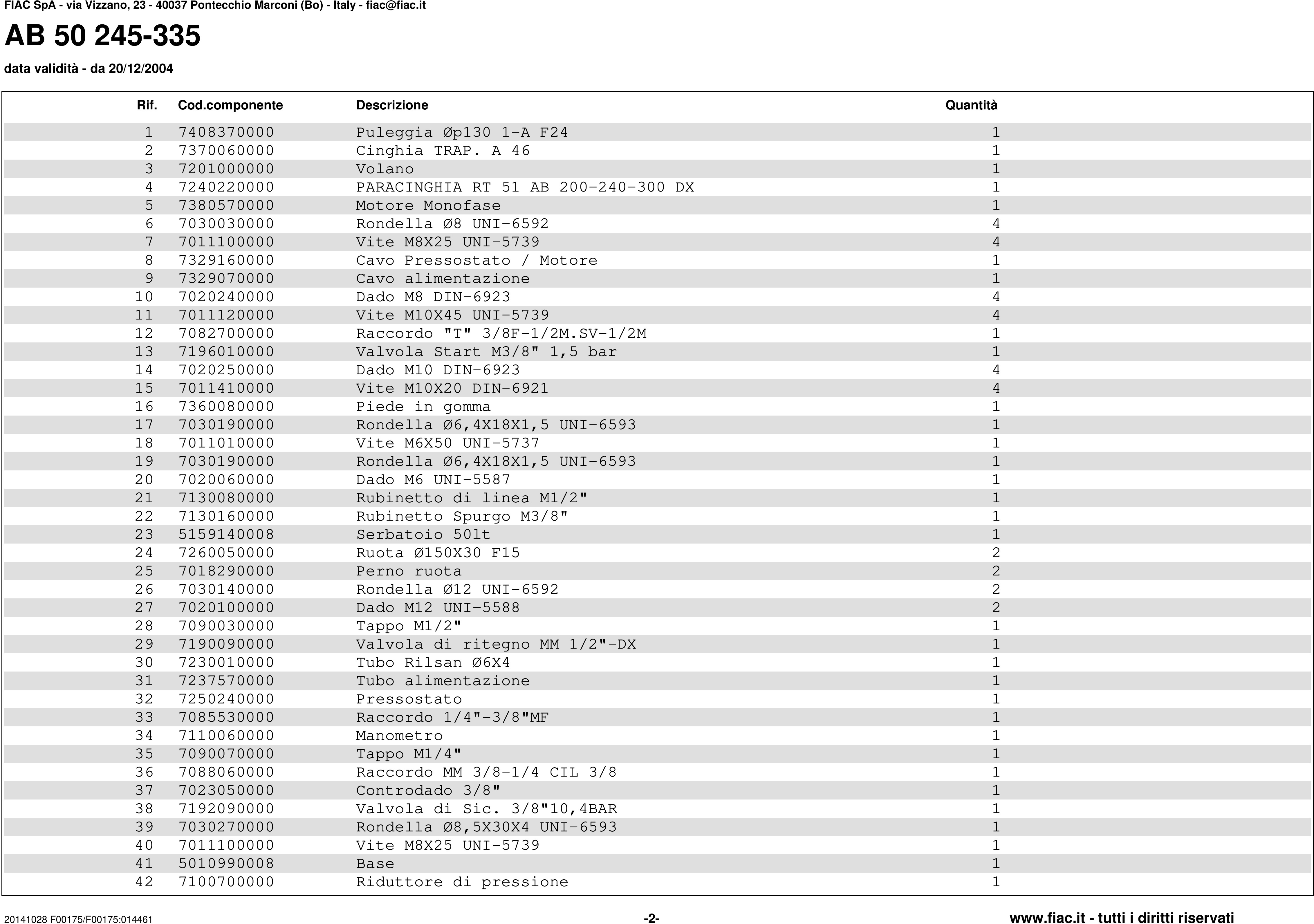

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

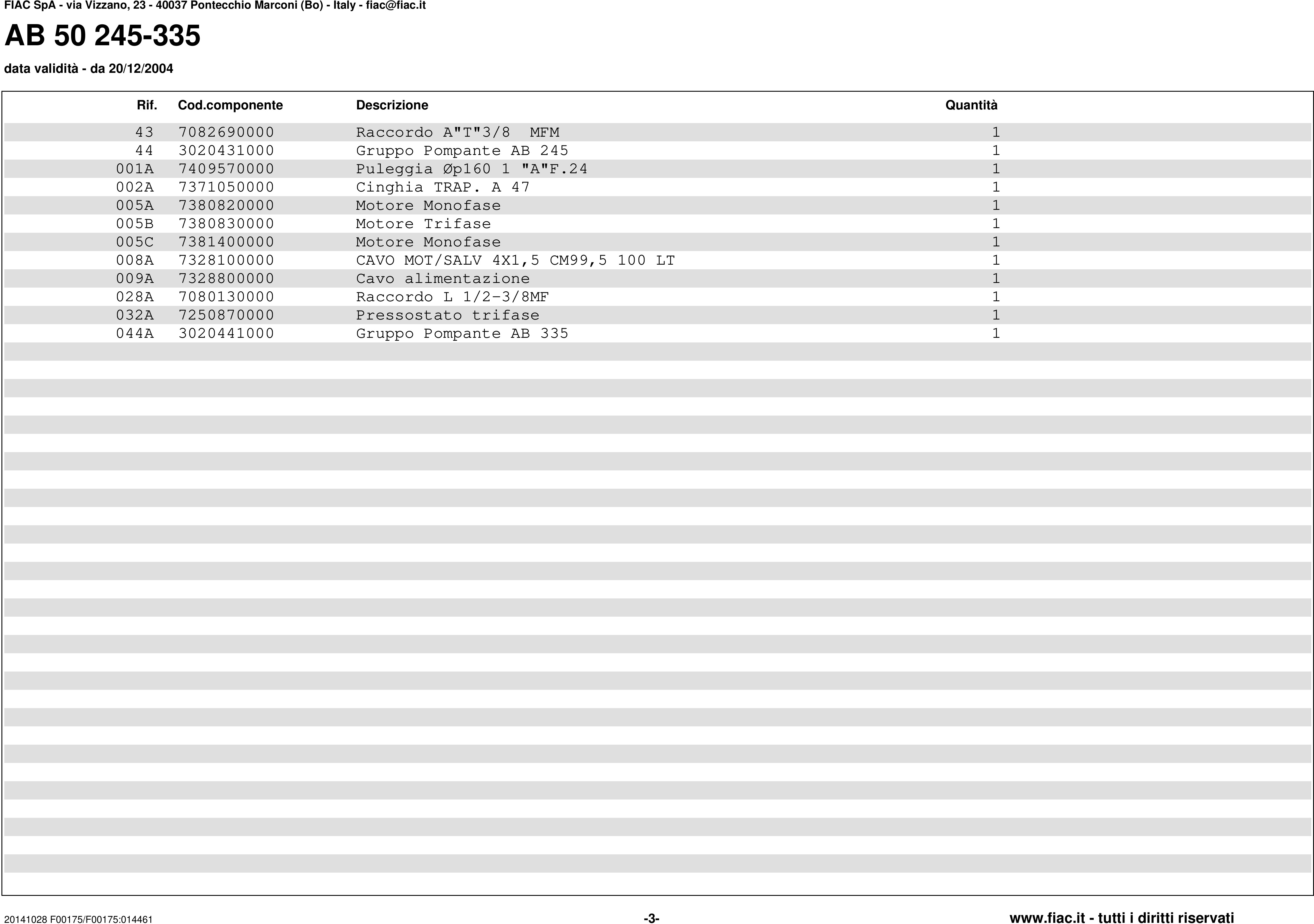

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
001A
photo_cameraImage coming soon 7409570000 Pulley Øp160 1 "A" F.24 €37.22
002A
photo_cameraImage coming soon 7371050000 Strap TRAP. A 47 €16.00
005A
photo_cameraImage coming soon 7380820000 Single Phase motor €325.40
005B
photo_cameraImage coming soon 7380830000 Three-phase motor €489.72
005C
Single Phase Motor for Air Compressor SCS 415-200 7381400000 Single Phase Motor for Air Compressor SCS 415-200 €336.96
008A
photo_cameraImage coming soon 7328100000 CABLE MOT / SAVE 4x1.5 CM99,5 100 LT €25.34
009A
photo_cameraImage coming soon 7328800000 power cable €34.13
028A
FIAC Apollo 100 L Joint 7080130000 FIAC Apollo 100 L Joint €12.86
032A
photo_cameraImage coming soon 7250870000 pressure phase €79.94
044A
photo_cameraImage coming soon 3020441000 Pumping unit AB 335 - AB360 €283.39

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor AB 50/245 -335

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB50/245 -335.

In the following table , look for the type of the air compressor and the respective parts of the code.
Fiac AB 50/245 -335M

AIR COMPRESSOR AB 50 245-335
# Part Num. Description
1 7408370000 Pulley Øp130 1-A F24
2 7370060000 A V-belt 46
3 7201000000 flywheel
4 7240220000 Belt Guard RT 51 AB 200-240-300 DX
5 7380570000 Single Phase motor
6 7030030000 Washer Ø 8 UNI-6592
7 7011100000 Screw M8X25 UNI-5739
8 7329160000 Cable Pressure Switch / Motor
9 7329070000 power cable
10 7020240000 Nut M8 DIN 6923
11 7011120000 Screw M10x45 UNI-5739
12 7082700000 Fitting "T" 3 / 8F-1 / 2M.SV-1 / 2M
13 7196010000 Start valve M3 / 8 "1.5 bar
14 7020250000 M10 nut DIN 6923
15 7011410000 Screw M10x20 DIN 6921
16 7360080000 Rubber Feet
17 7030190000 Washer Ø6,4X18X1,5 UNI-6593
18 7011010000 Screw M6x50 UNI-5737
19 7030190000 Washer Ø6,4X18X1,5 UNI-6593
20 7020060000 M6 nut UNI-5587
21 7130080000 Faucet M1 / 2 "
22 7130160000 Draining tap M3 / 8 "
23 5159140008 50lt tank
24 7260050000 Wheel Ø150X30 F15
25 7018290000 wheel axle
26 7030140000 Washer Ø12 UNI-6592
27 7020100000 Nut M12 UNI-5588
28 7090030000 Cap M1 / 2 "
29 7190090000 Check valve MM 1/2 "-DX
30 7230010000 Tube Rilsan Ø6X4
31 7237570000 tube feeding
32 7250240000 pressure
33 7085530000 Fitting 1/4 "-3/8" MF
34 7110060000 gauge
35 7090070000 Cap M1 / 4 "
36 7088060000 Fitting MM 3 / 8-1 / 4 CYL 3/8
37 7023050000 Nut 3/8 "
38 7192090000 Valve Sic. 3/8 "10,4BAR
39 7030270000 Washer Ø8,5X30X4 UNI-6593
40 7011100000 Screw M8X25 UNI-5739
41 5010990008 basis
42 7100700000 Pressure reducer
43 7082690000 Fitting "T" 3/8 MFM
44 3020431000 Pumping unit AB 245
001A 7409570000 Pulley Øp160 1 "A" F.24
002A 7371050000 Strap TRAP. A 47
005A 7380820000 Single Phase motor
005B 7380830000 Three-phase motor
005C 7381400000 Single Phase motor
008A 7328100000 CABLE MOT / SAVE 4x1.5 CM99,5 100 LT
009A 7328800000 power cable
028A 7080130000 The fitting 1 / 2-3 / 8MF
032A 7250870000 pressure phase
044A 3020441000 Pumping unit AB 335 -> AB360

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Fiac AB 50/245 -335M
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Fiac AB50/245-335

Diagram Fiac AB50/245-335 / 248-338

Download (324.56KB)
