FIAC spa

FIAC Spare Parts for Piston Air Compressor GM25 300

SKU: Fiac GM25 300
€23.09
VAT included

FIAC Spare Parts for Piston Air Compressor GM25 300

FIAC Genuine Replacement Parts for to replace broken parts for to fix for piston Air Compressors GM25 300.

FIAC Spare Parts for Piston Air Compressor GM25-50
  • FIAC Spare Parts for Piston Air Compressor GM25-50
  • FIAC Spare Parts for Piston Air Compressor GM25 300
FIAC spa

FIAC Spare Parts for Piston Air Compressor GM25 300

SKU: Fiac GM25 300 Condition: New
€23.09
VAT included

FIAC Spare Parts for Piston Air Compressor GM25 300

FIAC Genuine Replacement Parts for to replace broken parts for to fix for piston Air Compressors GM25 300.

settings 70 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
65 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

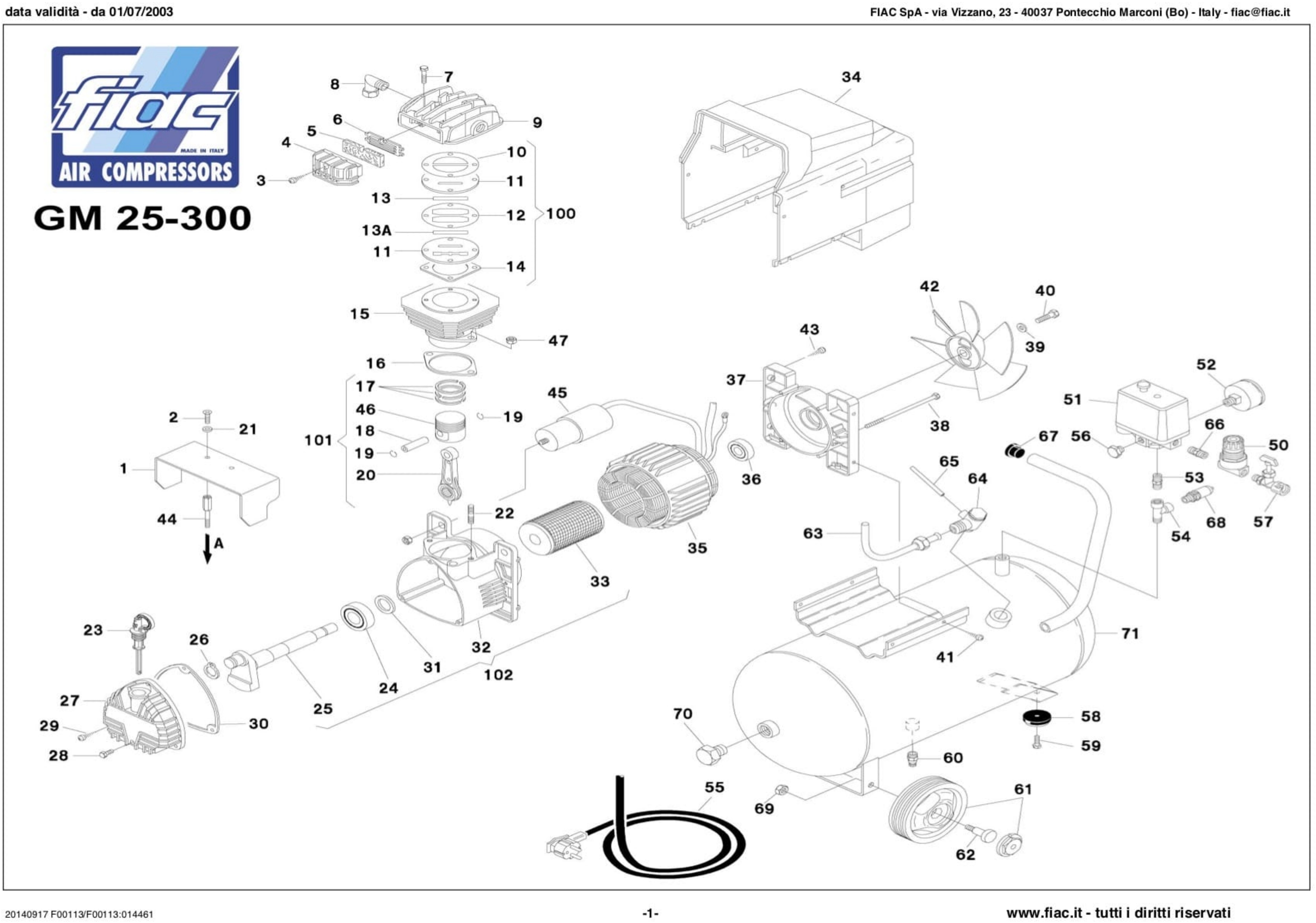

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5165000008 RED AIR DUCT-GM-300 €25.55
3
 photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
4
 Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
5
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
6
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
7
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
8
 photo_cameraImage coming soon 7084190000 Fitting "L" 3/8-1/2 MM €15.30
11
 photo_cameraImage coming soon 7458370000 plate Tool box €16.06
013A
 Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM 4081010000 Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM €10.82
13
 photo_cameraImage coming soon 4081040000 FLAP VALVE KIT TR 255 €23.64
15
 FIAC Pump Unit GM 300 Cylinder 5060160008 FIAC Pump Unit GM 300 Cylinder €128.06
17
 FIAC Pump Unit S15 Piston Ring Kit 4080240000 FIAC Pump Unit S15 Piston Ring Kit €23.10
18
 photo_cameraImage coming soon 7050030000 Pin Ø 13 €5.58
19
 photo_cameraImage coming soon 7041030000 Seeger Ø13 €1.44
20
 Conrod for Pump Unit FIAC S15 5050160008 Conrod for Pump Unit FIAC S15 €27.40
22
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
23
 photo_cameraImage coming soon 7181160000 CAP D.20 C / VENT + ROD €2.31
24
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
25
 photo_cameraImage coming soon 5041190008 crankshaft €69.55
26
 Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 7040040000 Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 €0.62
27
 photo_cameraImage coming soon 7650020000 crankcase cover €17.43
29
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
30
 Motor Cover Gasket for Pumping Units Fiac GM 110-242 7078460000 Motor Cover Gasket for Pumping Units Fiac GM 110-242 €5.16
31
 Oil Seal for Pumping Units FIAC GM 110-191-201-242 7071020000 Oil Seal for Pumping Units FIAC GM 110-191-201-242 €5.38
32
 photo_cameraImage coming soon 5070320008 Sump €60.63
33
 photo_cameraImage coming soon 5090370008 rotor €46.17
34
 photo_cameraImage coming soon 7150361000 Hull in plastic €25.55
35
 photo_cameraImage coming soon 4012930000 Stator €463.16
36
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
37
 photo_cameraImage coming soon 5110061008 Cover €29.96
39
 photo_cameraImage coming soon 7038020000 Washer Ø8X30X3 UNI-6593 €1.52
40
 photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
41
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
42
 photo_cameraImage coming soon 7200060000 fan €12.09
43
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
44
 photo_cameraImage coming soon 7015390000 prisoner €5.75
45
 FIAC CCS245 Capacitor 60Mf 7310550000 FIAC CCS245 Capacitor 60Mf €30.19
46
 Piston for Pumping Unit FIAC AB 335 7220050000 Piston for Pumping Unit FIAC AB 335 €29.18
47
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
50
 photo_cameraImage coming soon 7100540000 Pressure reducer €40.81
51
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
52
 photo_cameraImage coming soon 7110210000 manometer €20.18
53
 photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
54
 photo_cameraImage coming soon 7082050000 Fitting "T" fourth FFM €12.10
55
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
56
 photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
57
 photo_cameraImage coming soon 7130010000 Line Valve M1/4" €12.10
58
 FIAC Rubber Foot D.40X15 F.7 7360140000 FIAC Rubber Foot D.40X15 F.7 €5.17
59
 photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
60
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
61
 Wheel D.125x35x15 for FIAC AIR Compressors 7260160000 Wheel D.125x35x15 for FIAC AIR Compressors €7.50
62
 Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
63
 photo_cameraImage coming soon 7237860000 tube feeding €20.18
64
 Check Valve 1/2" MM - Left for Air Compressors 7190190000 Check Valve 1/2" MM - Left for Air Compressors €27.64
65
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
66
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
67
 photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
68
 FIAC Safety Valve 1/4" 10,5 Bar for Air Compressors SCS 7192010000 FIAC Safety Valve 1/4" 10,5 Bar for Air Compressors SCS €17.32
69
 photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
70
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
71
 photo_cameraImage coming soon 5156030008 Tank 24LT.TR-255 M / WELDED RED CE87404 €245.54
100
 Kit Valves Plate for Air Compressors FIAC GM 300 4082810000 Kit Valves Plate for Air Compressors FIAC GM 300 €48.22
101
 Conrod + Piston + Piston Ring Ass'y Set for Pump Unit Fiac S15 4191040000 Conrod + Piston + Piston Ring Ass'y Set for Pump Unit Fiac S15 €76.79
102
 photo_cameraImage coming soon 4280680000 CRANKCASE+ CRANK SHAFT GM 300 €205.67
103
 photo_cameraImage coming soon 4082940000 GASKET KIT GM 300 €6.43

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor GM25 300

FIAC Genuine Replacement Parts for to replace broken parts for to fix for piston Air Compressors GM25 300.

In the following table , look for the type of the air compressor and the respective parts of the code .
>Fiac GM25 300

GM 25 300 data validità - da 01/07/2003
# Part Num. Description
1 5165000008 RED AIR DUCT-GM-300
2 7012740000 Screw M6 X 20
3 7012010000 Screw Ø3,9X19 UNI-6954
4 7210430000 filter Cover
5 7210010000 filter element
6 7458340000 filter plate
7 7011220000 Screw M6X40 UNI-5737
8 7084190000 Fitting "L" 3/8-1/2 MM
9 7570060000 head - DISCONTINUED
11 7458370000 plate Tool box
13 4081040000 FLAP VALVE KIT TR 255
15 5060160008 cylinder
17 4080240000 Piston Ring Kit
18 7050030000 Pin Ø 13
19 7041030000 Seeger Ø13
20 5050160008 piston COnrod
21 7030320000 Washer Ø6,3 UNI-6594
22 7015020000 prisoner M.8X35X14X16
23 7181160000 CAP D.20 C / VENT + ROD
24 7060060000 bearing 6205
25 5041190008 crankshaft
26 7040040000 Seeger E 20
27 7650020000 crankcase cover
28 7011430000 Screw M6X16 UNI-8112
29 7012100000 screw Ø3,9X16
30 7078460000 gasket
31 7071020000 Oil Seal 2452/10
32 5070320008 sump
33 5090370008 rotor
34 7150361000 Hull in plastic
35 4012930000 stator
36 7060010000 Bearing 6203 ZZ 17:40:12 QE6
37 5110061008 cap
38 7015130000 Tie rod M6X167
39 7038020000 Washer Ø8X30X3 UNI-6593
40 7011090000 Screw M8X20 UNI-5739
41 7012290000 Screw M5X20 TAP-TITE
42 7200060000 fan
43 7013060000 Screw M4X8 UNI-8112
44 7015390000 prisoner
45 7310550000 Capacitor MF.60 V400
46 7220050000 piston
47 7020070000 Nut M8 UNI-5587
50 7100540000 Pressure reducer
51 7250740000 pressure
52 7110210000 manometer
53 7081140000 Fitting 1/4 "MM
54 7082050000 Fitting "T" fourth FFM
55 7329070000 power cable
56 7090070000 Cap M1/4"
57 7130010000 Line cock M1/4"
58 7360140000 Rubber foot
59 7011040000 Screw M6x20 UNI-5739
60 7130160000 Draining tap M3/8"
61 7260160000 Wheel Ø125X35-F15
62 7018290000 wheel axle
63 7237860000 tube feeding
64 7190190000 Check Valve 1/2'' MM - Left
65 7230010000 Rilsan tube Ø6X4
66 7081090000 Fitting 1/4" MM
67 7360020000 Rubber Ø16
68 7192010000 Valve Sic. M1 / 4-10,5Bar
69 7020080000 Nut M10 UNI-5588
70 7090030000 Cap M1/2"
71 5156030008 Tank 24LT.TR-255 M / WELDED RED CE87404
100 4082810000 Valve plate KIT
101 4191040000 CONNECTING ROD KIT-PISTON-SEGM.D.55/VX 304
102 4280680000 CRANKCASE+ CRANK SHAFT GM 300
103 4082940000 GASKET KIT GM 300
013A 4081010000 FLAP VALVE KIT 10 PCS 110-200
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
