FIAC spa

FIAC Spare Parts for Piston Air Compressor Pump VS 204

SKU: Fiac VS204 02/03/2011
€264.61
VAT included

FIAC Spare Parts for Piston Air Compressor Pump Unit VS 204

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 204 data validità - da 02/03/2011.

Fix Your Pump unit, VS 204. All Spares are Ready For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

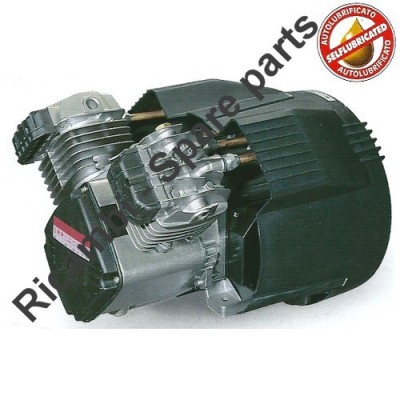

FIAC Spare Parts for Piston Air Compressor Pumps VS
  • FIAC Spare Parts for Piston Air Compressor Pumps VS
  • FIAC Spare Parts for Piston Air Compressor Pumps VS
FIAC spa

FIAC Spare Parts for Piston Air Compressor Pump VS 204

SKU: Fiac VS204 02/03/2011 Condition: New
€264.61
VAT included

FIAC Spare Parts for Piston Air Compressor Pump Unit VS 204

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 204 data validità - da 02/03/2011.

Fix Your Pump unit, VS 204. All Spares are Ready For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 52 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Pump
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
52 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

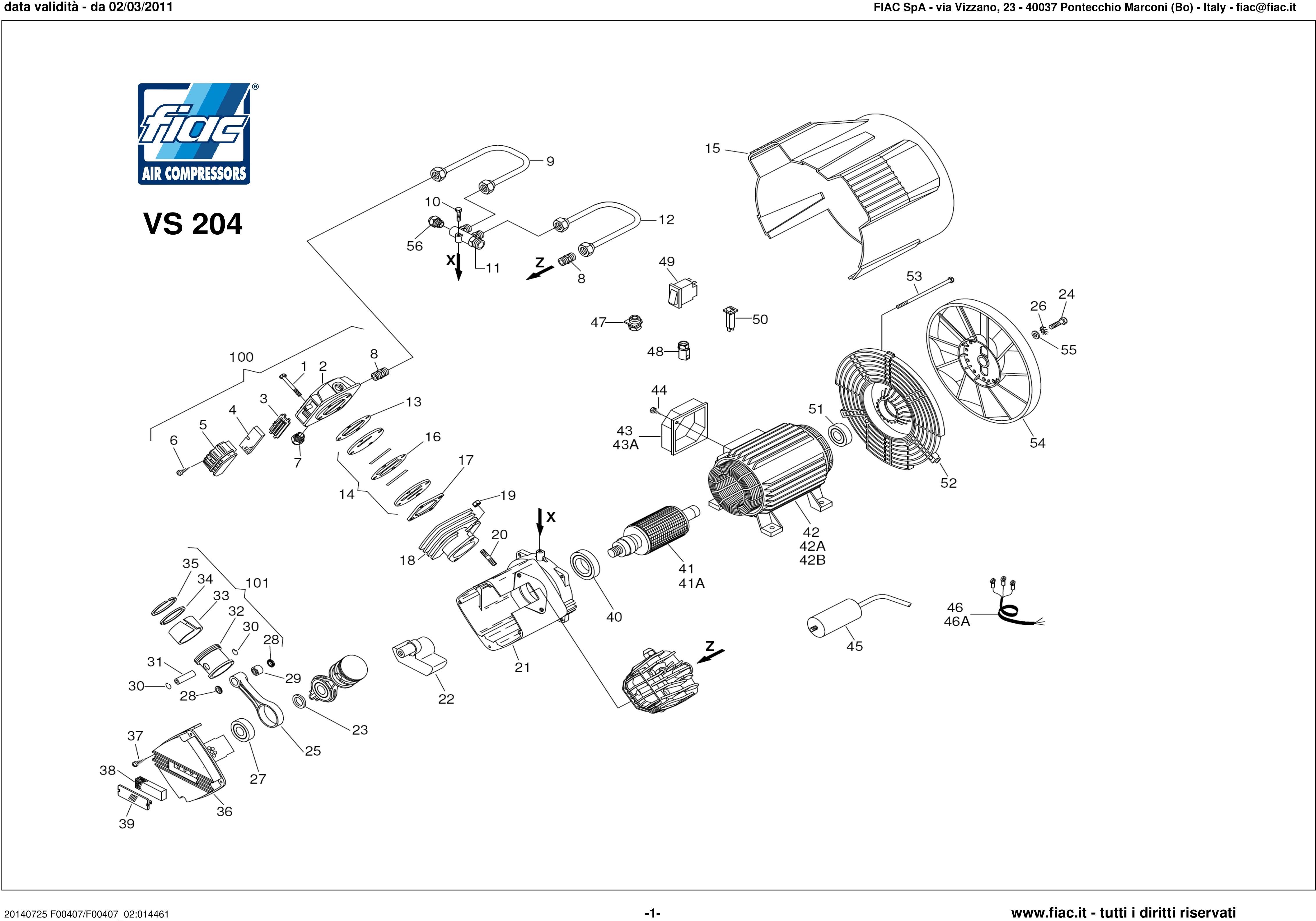

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 7570090000 Head €29.39
3
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
 Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
6
 photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
7
 photo_cameraImage coming soon 7090200000 Cap 3/8 FIL.CILINDR.IN BRASS €3.68
8
 photo_cameraImage coming soon 7081100000 3/8 " €8.35
9
 FIAC Pump Units VS Head Pipe L 7231770000 FIAC Pump Units VS Head Pipe L €25.96
10
 photo_cameraImage coming soon 7010120000 Screw M6X25 UNI-5931 €1.40
11
 photo_cameraImage coming soon 7089950000 Collector €25.04
12
 FIAC Pump Units VS Head Pipe R 7231760000 FIAC Pump Units VS Head Pipe R €25.96
14
 Fiac VS204 Valve Plate Kit 7459510000 Fiac VS204 Valve Plate Kit €77.90
15
 FIAC Motor Cover for Series VS-VX 7150370000 FIAC Motor Cover for Series VS-VX €36.88
18
 Fiac GMS 100 Pump Unit Cylinder 7575030000 Fiac GMS 100 Pump Unit Cylinder €158.15
19
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
20
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
21
 photo_cameraImage coming soon 5070160008 Sump €232.09
22
 photo_cameraImage coming soon 5041360008 Crank €69.32
23
 photo_cameraImage coming soon 7038070000 Washer Ø20,1X26X2 UNI-6593 €3.73
24
 photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
26
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
27
 photo_cameraImage coming soon 7060140000 Bearing 6204-2RS2 / HT-22-C3 SKF €23.84
30
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
31
 photo_cameraImage coming soon 7050050000 Pin Ø12/8,5X46 "GMS" €4.35
32
 photo_cameraImage coming soon 7220300000 Piston €38.56 Not available for order
36
 photo_cameraImage coming soon 7151030000 COVER CARTER GMVS €10.77
37
 photo_cameraImage coming soon 7012020000 Screw Ø3,9X12,7 DIN-7981 €1.52
38
 FIAC GMS 100 Air Filter 7210120000 FIAC GMS 100 Air Filter €3.32
41
 photo_cameraImage coming soon 4280770000 Rotor Kit €206.15
041A
 photo_cameraImage coming soon 4280810000 Rotor Kit €178.31
42
 photo_cameraImage coming soon 4010810000 HOUSING MOT GMVS 200 V220 / 50HZ S / MORS. €249.43
042A
 photo_cameraImage coming soon 4010850000 HOUSING MOT.GMVS 200 V240 / 50HZ S / MORS. €567.00
042B
 photo_cameraImage coming soon 4010980000 HOUSING MOT.GMVS 200 V380 / 50HZ S / MORS. €655.97
43
 photo_cameraImage coming soon 7382340000 Terminal cover €4.34
043A
 photo_cameraImage coming soon 7382350000 COVER Morset MEC90 GMV-E TRIFAS €4.34
44
 photo_cameraImage coming soon 7012020000 Screw Ø3,9X12,7 DIN-7981 €1.52
45
 photo_cameraImage coming soon 7310330000 Condenser MF.30 V450 €30.79
046A
 photo_cameraImage coming soon 7329870000 PR WIRE / MOTGMV25-30 3X1,5 + T PVC90CM €22.13
46
 photo_cameraImage coming soon 7329900000 Cable Pressure / Motor €15.66
47
 photo_cameraImage coming soon 7501060000 Cable locks €1.52
48
 photo_cameraImage coming soon 7501050000 Cable locks €4.48
49
 photo_cameraImage coming soon 7410460000 Prot. Thermal ETA-3120-F521-P7T1-W09D-6A €125.92
50
 photo_cameraImage coming soon 7410470000 Prot. Thermal singl. 10A €7.17
51
 photo_cameraImage coming soon 7060090000 6204-2RS1-bearing SKF €26.97
53
 photo_cameraImage coming soon 7015100000 Guy M6X185 €1.44
54
 FIAC Pump Units VS-VX-GMS Fan 7200340000 FIAC Pump Units VS-VX-GMS Fan €29.81
55
 photo_cameraImage coming soon 7038020000 Washer Ø8X30X3 UNI-6593 €1.52
56
 Start Valve M1/4" 1,5 B for Pump Unit Fiac VS 204 7196020000 Start Valve M1/4" 1,5 B for Pump Unit Fiac VS 204 €10.00
100
 photo_cameraImage coming soon 4020890000 Kit head €44.14
101
 Set Conrod-Piston for Pump Unit Fiac VS 204 4191140000 Set Conrod-Piston for Pump Unit Fiac VS 204 €74.89
103
 Fiac GMS 100 Pump Unit Set of Gaskets 4082090000 Fiac GMS 100 Pump Unit Set of Gaskets €10.74
104
 photo_cameraImage coming soon 4190320000 Kit rod €104.77
105
 Kit Rings for Pistons of Pump Units GMS-VS 4080043000 Kit Rings for Pistons of Pump Units GMS-VS €62.31
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

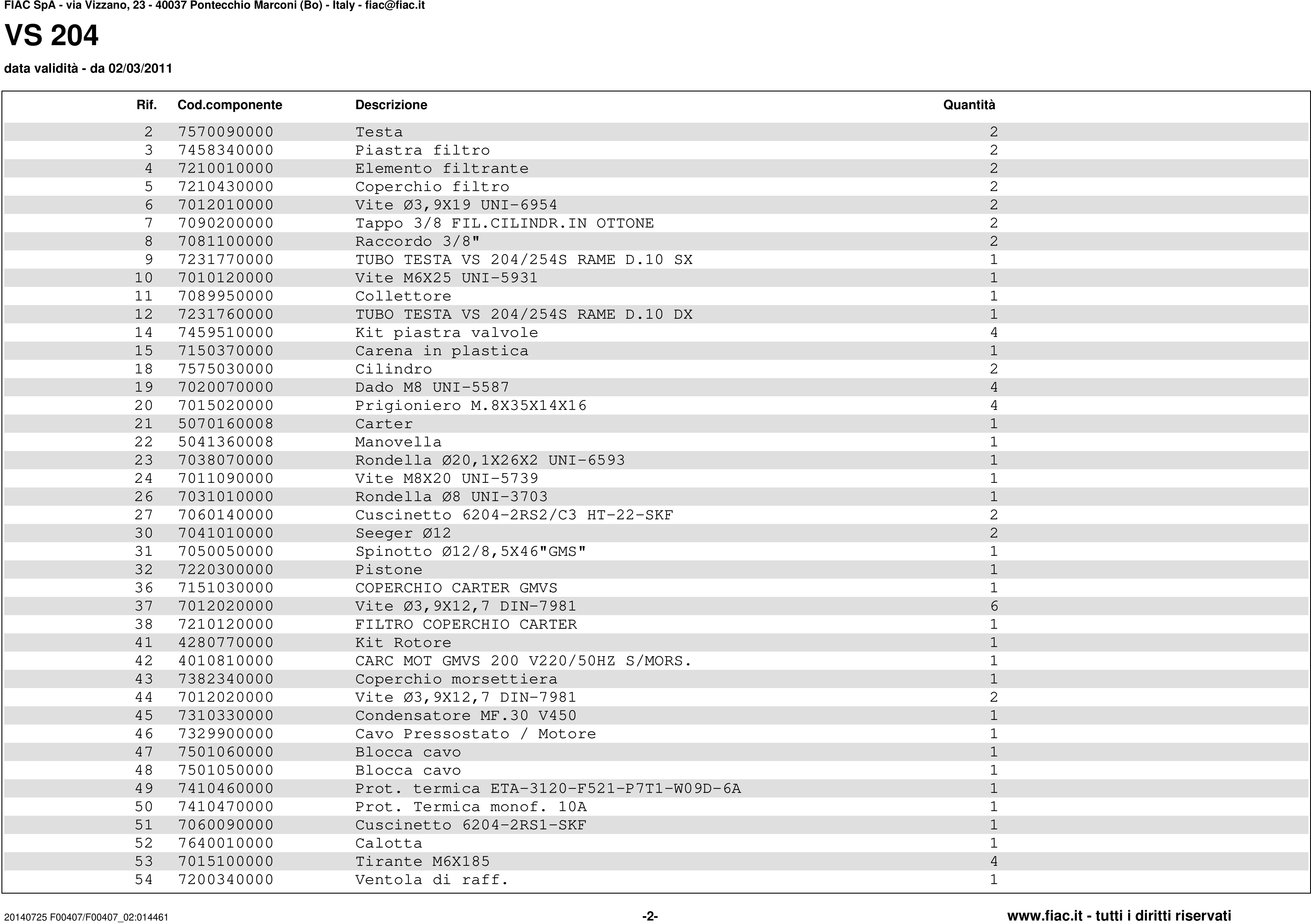

Esploso pagina 2
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

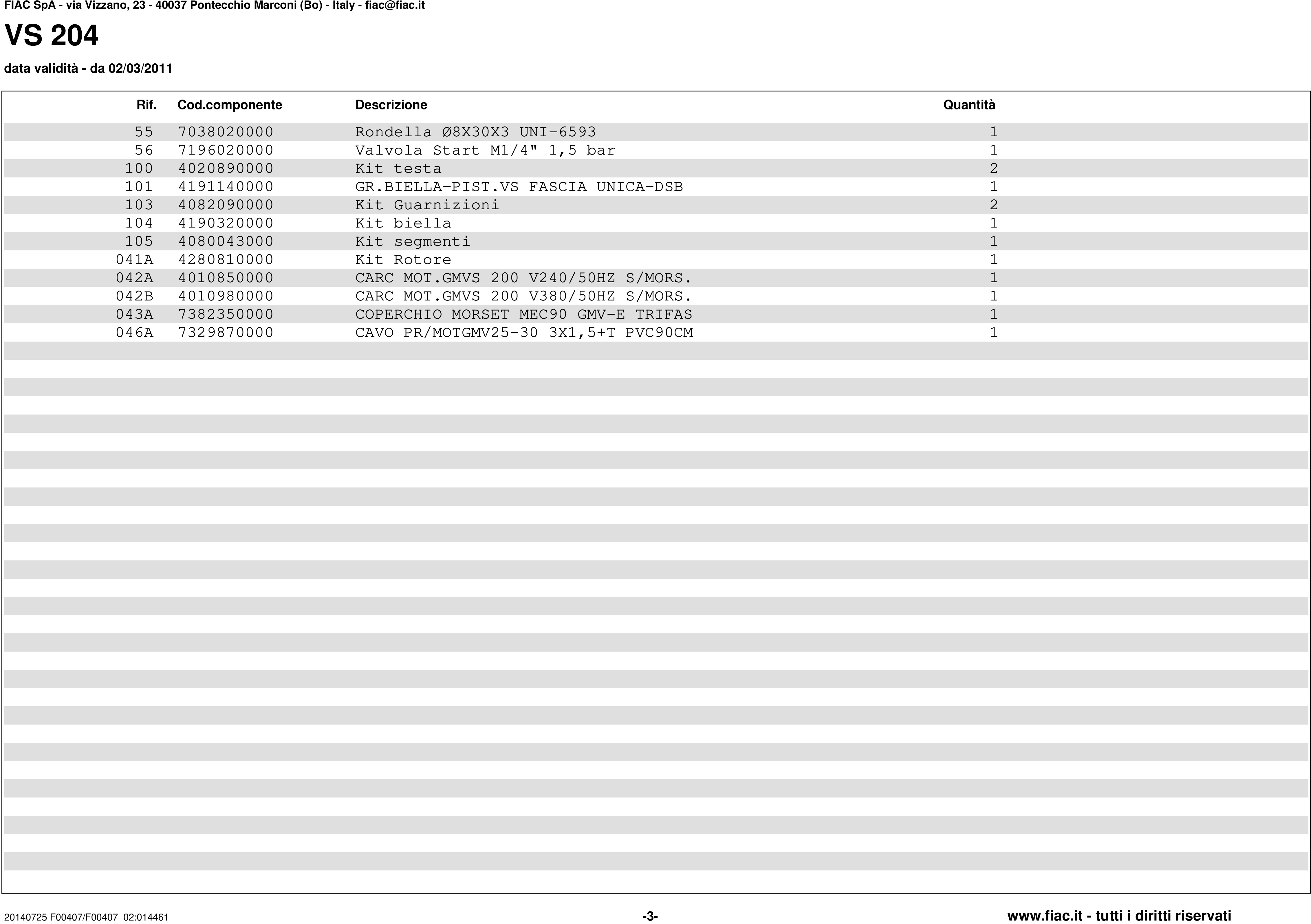

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
041A
 photo_cameraImage coming soon 4280810000 Rotor Kit €178.31
042A
 photo_cameraImage coming soon 4010850000 HOUSING MOT.GMVS 200 V240 / 50HZ S / MORS. €567.00
042B
 photo_cameraImage coming soon 4010980000 HOUSING MOT.GMVS 200 V380 / 50HZ S / MORS. €655.97
043A
 photo_cameraImage coming soon 7382350000 COVER Morset MEC90 GMV-E TRIFAS €4.34
046A
 photo_cameraImage coming soon 7329870000 PR WIRE / MOTGMV25-30 3X1,5 + T PVC90CM €22.13
103
 Fiac GMS 100 Pump Unit Set of Gaskets 4082090000 Fiac GMS 100 Pump Unit Set of Gaskets €10.74
104
 photo_cameraImage coming soon 4190320000 Kit rod €104.77
105
 Kit Rings for Pistons of Pump Units GMS-VS 4080043000 Kit Rings for Pistons of Pump Units GMS-VS €62.31

Shipping and delivery information will be available shortly.

FIAC Spare Parts for Piston Air Compressor Pump Unit VS 204

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS 204 data validità - da 02/03/2011.

In the following table , look for the model of the pumping unit and the respective parts of the code.
Fiac VS 204

VS 204 data validità - da 02/03/2011
# Part Num. Description
2 7570090000 Head
3 7458340000 Filter plate
4 7210010000 Filter element
5 7210430000 Filter cover
6 7012010000 Screw Ø3,9X19 UNI-6954
7 7090200000 Cap 3/8 FIL.CILINDR.IN BRASS
8 7081100000 3/8 "
9 7231770000 PIPE HEAD VS 204 / 254S COPPER D.10 SX
10 7010120000 Screw M6X25 UNI-5931
11 7089950000 Collector
12 7231760000 PIPE HEAD VS 204 / 254S COPPER D.10 DX
14 7459510000 Kit valve plate
15 7150370000 Plastic Hood
18 7575030000 Cylinder
19 7020070000 Nut M8 UNI-5587
20 7015020000 Prisoner M.8X35X14X16
21 5070160008 Sump
22 5041360008 Crank
23 7038070000 Washer Ø20,1X26X2 UNI-6593
24 7011090000 Screw M8x20 UNI-5739
26 7031010000 Washer Ø8 UNI-3703
27 7060140000 Bearing 6204-2RS2 / HT-22-C3 SKF
30 7041010000 Seeger Ø12
31 7050050000 Pin Ø12 / 8,5X46 GMS
32 7220300000 Piston
36 7151030000 COVER CARTER GMVS
37 7012020000 Screw Ø3,9X12,7 DIN-7981
38 7210120000 FILTER HOUSING COVER
41 4280770000 Rotor Kit
42 4010810000 HOUSING MOT GMVS 200 V220 / 50HZ S / MORS.
43 7382340000 Terminal cover
44 7012020000 Screw Ø3,9X12,7 DIN-7981
45 7310330000 Condenser MF.30 V450
46 7329900000 Cable Pressure / Motor
47 7501060000 Cable locks
48 7501050000 Cable locks
49 7410460000 Prot. Thermal ETA-3120-F521-P7T1-W09D-6A
50 7410470000 Prot. Thermal singl. 10A
51 7060090000 6204-2RS1-bearing SKF
52 7640010000 Cover
53 7015100000 Guy M6X185
54 7200340000 Fan
55 7038020000 Washer Ø8X30X3 UNI-6593
56 7196020000 Start valve M1/ ​4 "1.5 bar
100 4020890000 Kit head
101 4191140000 GR.Rod PIST.VS-BAND ONE-DSB
103 4082090000 Set of Gasket
104 4190320000 Rod kit
105 4080043000 Kit Rings
041A 4280810000 Rotor Kit
042A 4010850000 HOUSING MOT.GMVS 200 V240 / 50HZ S / MORS.
042B 4010980000 HOUSING MOT.GMVS 200 V380 / 50HZ S / MORS.
043A 7382350000 COVER Morset MEC90 GMV-E TRIFAS
046A 7329870000 PR WIRE / MOTGMV25-30 3X1,5 + T PVC90CM
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
