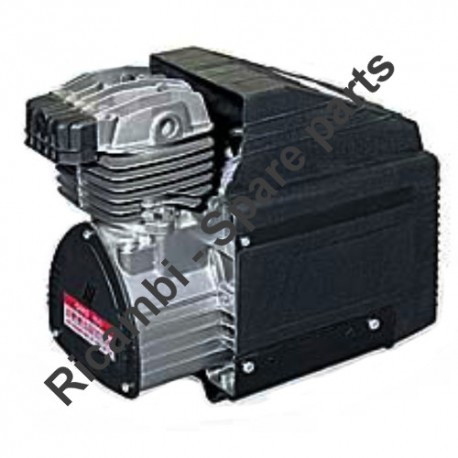

FIAC Spare Parts for Pump Unit GMS 100

SKU: Fiac GMS100 from 02/03/2011
€382.40
VAT included

FIAC Spare Parts for Pump Unit GMS 100

We are Dealers of FIAC original spare parts for piston Air Compressors, at low at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pump Unit GMS 100 validity date - from 02/03/2011.

FIAC Spare Parts for Pump Unit GMS 100
  • FIAC Spare Parts for Pump Unit GMS 100
  • FIAC Spare Parts for Pump Unit GMS 100

FIAC Spare Parts for Pump Unit GMS 100

SKU: Fiac GMS100 from 02/03/2011 Condition: New
€382.40
VAT included

FIAC Spare Parts for Pump Unit GMS 100

We are Dealers of FIAC original spare parts for piston Air Compressors, at low at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pump Unit GMS 100 validity date - from 02/03/2011.

settings 48 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

46 spare parts

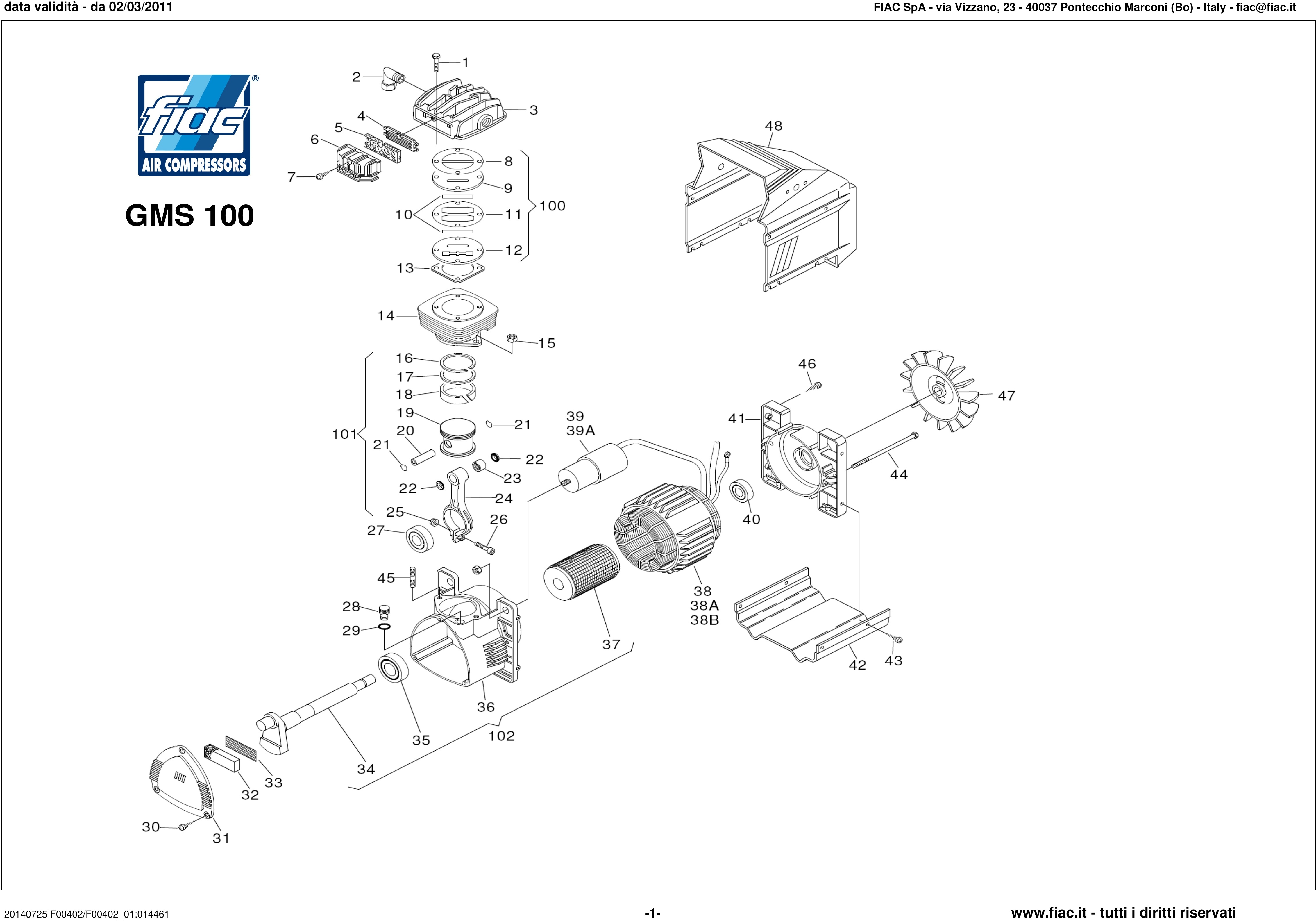

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
photo_cameraImage coming soon 7084040000 Fitting "L" M3 / 8 " €9.84
3
photo_cameraImage coming soon 5030110008 Head €25.07
4
Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
5
Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
6
Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
7
photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
10
photo_cameraImage coming soon 4081030000 VALVE KIT LAMEL.10PZ SP.0,20 INOX €21.15
14
Fiac GMS 100 Pump Unit Cylinder 7575030000 Fiac GMS 100 Pump Unit Cylinder €158.15
15
photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
19
photo_cameraImage coming soon 7220300000 Piston €38.56
20
photo_cameraImage coming soon 7050050000 Pin Ø12/8,5X46 "GMS" €4.35
21
Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
27
photo_cameraImage coming soon 7060140000 Bearing 6204-2RS2 / HT-22-C3 SKF €23.84
28
photo_cameraImage coming soon 7098010000 Cork €10.26
29
photo_cameraImage coming soon 7070070000 O-ring 3187 €3.31
30
photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
31
photo_cameraImage coming soon 7151010000 COVER CARTER GMS €7.02
32
FIAC GMS 100 Air Filter 7210120000 FIAC GMS 100 Air Filter €3.32
33
photo_cameraImage coming soon 7458031000 Filter plate €5.87
34
photo_cameraImage coming soon 5040290008 Tree in Elbow €56.48
35
photo_cameraImage coming soon 7060020000 Bearing 6205 2RS 25.52.15 €19.95
36
photo_cameraImage coming soon 5070320008 Sump €60.63
37
photo_cameraImage coming soon 5090330008 Rotor €78.48
38
photo_cameraImage coming soon 4010080000 HOUSING STATOR GM 110 V230/50HZ-4 POLES €343.10
038B
photo_cameraImage coming soon 4010090000 HOUSING STATOR PHASE GM 110 4P €303.01
038A
photo_cameraImage coming soon 4010150000 HOUSING STATOR GM 4P 110 V 240 €310.86
39
Capacitor 20 mf for Air Compressors 7310100000 Capacitor 20 mf for Air Compressors €22.94
40
photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
41
photo_cameraImage coming soon 5110061008 Cover €29.96
42
photo_cameraImage coming soon 7170370000 BASE ENGINE GM190 €10.82
43
photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
44
photo_cameraImage coming soon 7018010000 Screw M6x139 UNI-5737 €1.73
45
Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
46
photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
47
Motor Fan for Pump Units GM 143-191 7201280000 Motor Fan for Pump Units GM 143-191 €15.06
48
photo_cameraImage coming soon 7150421000 CASING GM-250-BLACK VERSION 96 €22.73
100
photo_cameraImage coming soon 4082640000 Valve plate kit €80.06
101
Set Conrod-Piston for Pump Unit Fiac VS 204 4191140000 Set Conrod-Piston for Pump Unit Fiac VS 204 €111.51
102
photo_cameraImage coming soon 4280160000 CARTER GROUP-SHAFT-ROTOR GMS-100 €216.64
103
Fiac GMS 100 Pump Unit Set of Gaskets 4082090000 Fiac GMS 100 Pump Unit Set of Gaskets €10.74
105
Kit Rings for Pistons of Pump Units GMS-VS 4080043000 Kit Rings for Pistons of Pump Units GMS-VS €82.31
106
photo_cameraImage coming soon 4190320000 Kit rod €104.77

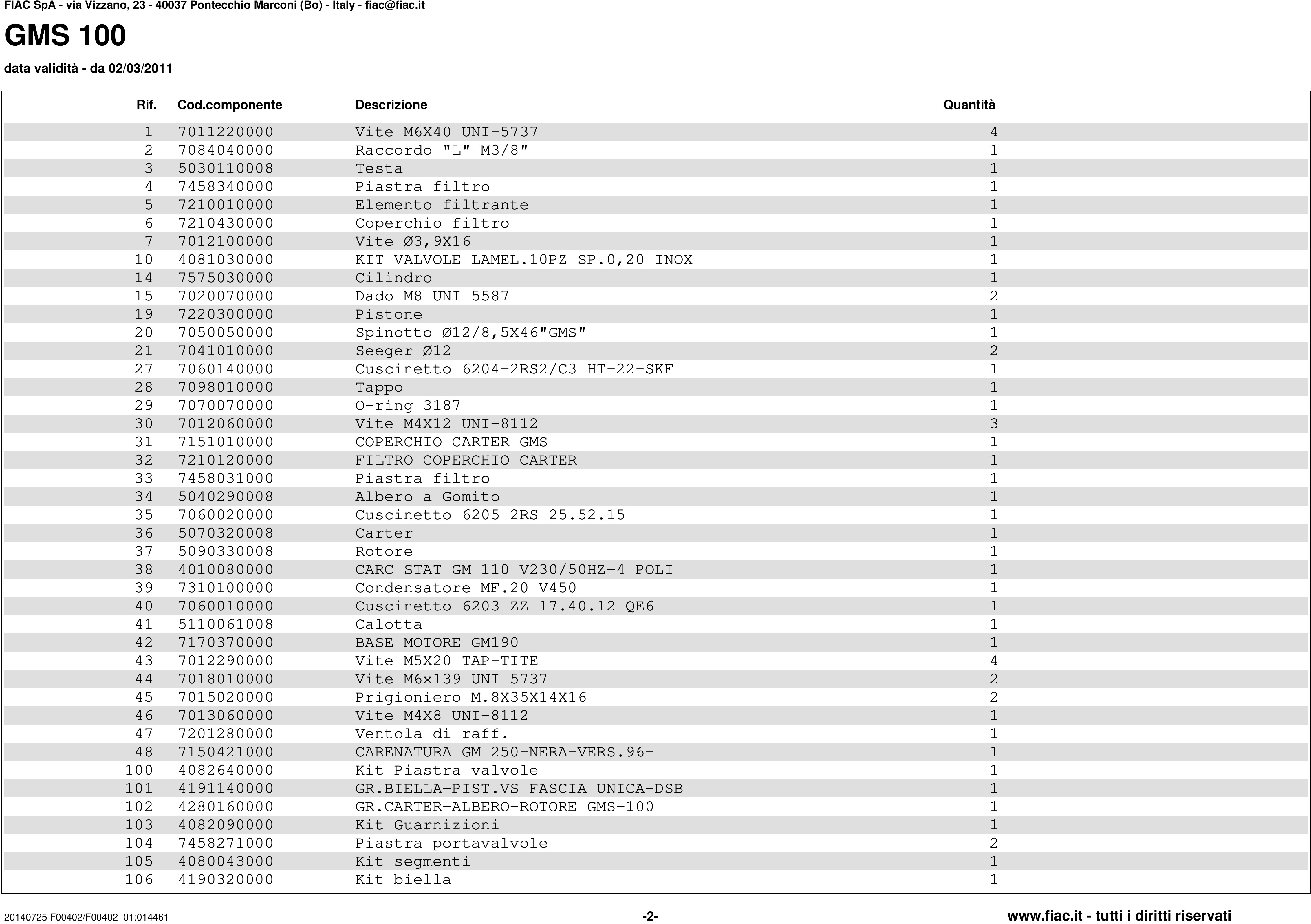

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
103
Fiac GMS 100 Pump Unit Set of Gaskets 4082090000 Fiac GMS 100 Pump Unit Set of Gaskets €10.74
105
Kit Rings for Pistons of Pump Units GMS-VS 4080043000 Kit Rings for Pistons of Pump Units GMS-VS €82.31
106
photo_cameraImage coming soon 4190320000 Kit rod €104.77

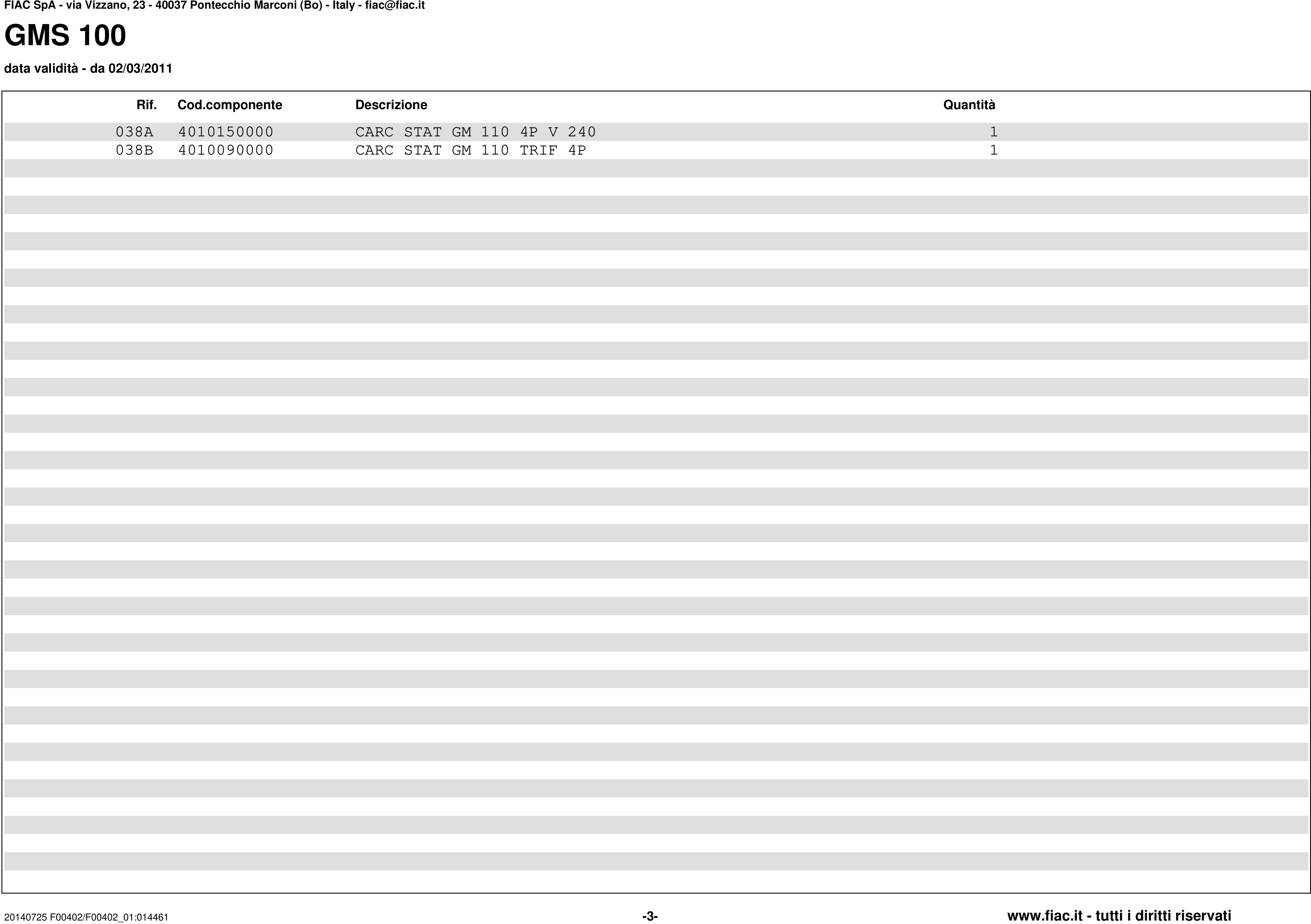

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit GMS 100

We are Dealers of FIAC original spare parts for piston Air Compressors, at low at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pump Unit GMS 100 validity date - from 02/03/2011.

In the following table look for the model of the Pumping Unit and the respective parts of the code.
Fiac GMS 100 from 02/03/2011

GMS 100 validity date - from 02/03/2011
# Part Num. Description
1 7011220000 Screw M6X40 UNI-5737
2 7084040000 Fitting "L" M3 / 8 "
3 5030110008 Head
4 7458340000 Filter plate
5 7210010000 Filter element
6 7210430000 Filter cover
7 7012100000 Screw Ø3,9X16
10 4081030000 VALVE KIT LAMEL.10PZ SP.0,20 INOX
14 7575030000 Cylinder
15 7020070000 Nut M8 UNI-5587
19 7220300000 Piston
20 7050050000 Pin Ø12/8,5X46 "GMS"
21 7041010000 Seeger Ø12
27 7060140000 Bearing 6204-2RS2 / HT-22-C3 SKF
28 7098010000 Cork
29 7070070000 O-ring 3187
30 7012060000 Screw M4X12 UNI-8112
31 7151010000 COVER CARTER GMS
32 7210120000 FILTER COVER CARTER
33 7458031000 Filter plate
34 5040290008 Tree in Elbow
35 7060020000 Bearing 6205 2RS 25.52.15
36 5070320008 Sump
37 5090330008 Rotor
38 4010080000 HOUSING STATOR GM 110 V230/50HZ-4 POLES
39 7310100000 Capacitor MF.20 V450
40 7060010000 Bearing 6203 ZZ 17:40:12 QE6
41 5110061008 Cover
42 7170370000 BASE ENGINE GM190
43 7012290000 Screw M5X20 TAP-TITE
44 7018010000 Screw M6x139 UNI-5737
45 7015020000 STUD M.8X35X14X16
46 7013060000 Screw M4X8 UNI-8112
47 7201280000 Cooling fan
48 7150421000 CASING GM-250-BLACK VERSION 96
100 4082640000 Valve plate kit
101 4191140000 GR.BIELLA-PISTON VS UNIQUE BAND-DSB
102 4280160000 CARTER GROUP-SHAFT-ROTOR GMS-100
103 4082090000 Set of Gaskets
104 7458271000 Plate portavalvole
105 4080043000 Kit segments
106 4190320000 Kit rod
038A  4010150000 HOUSING STATOR GM 4P 110 V 240
038B  4010090000 HOUSING STATOR PHASE GM 110 4P
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
