FIAC Spare Parts for Piston Air Compressor AB150/200-248 -338M

SKU: AB150/200 - 248 - 338M
€98.21
VAT included

FIAC Spare Parts for Piston Air Compressor AB150/200-248 -338M

We are FIAC Air Comressors original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor AB150/200-248 -338M.

FIAC Spare Parts for Piston Air Compressor AB150/200-248 -338M
  • FIAC Spare Parts for Piston Air Compressor AB150/200-248 -338M
  • FIAC Spare Parts for Piston Air Compressor AB150/200-248 -338M
  • FIAC Spare Parts for Piston Air Compressor AB150/200-248 -338M

FIAC Spare Parts for Piston Air Compressor AB150/200-248 -338M

SKU: AB150/200 - 248 - 338M Condition: New
€98.21
VAT included

FIAC Spare Parts for Piston Air Compressor AB150/200-248 -338M

We are FIAC Air Comressors original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor AB150/200-248 -338M.

settings 38 spare parts

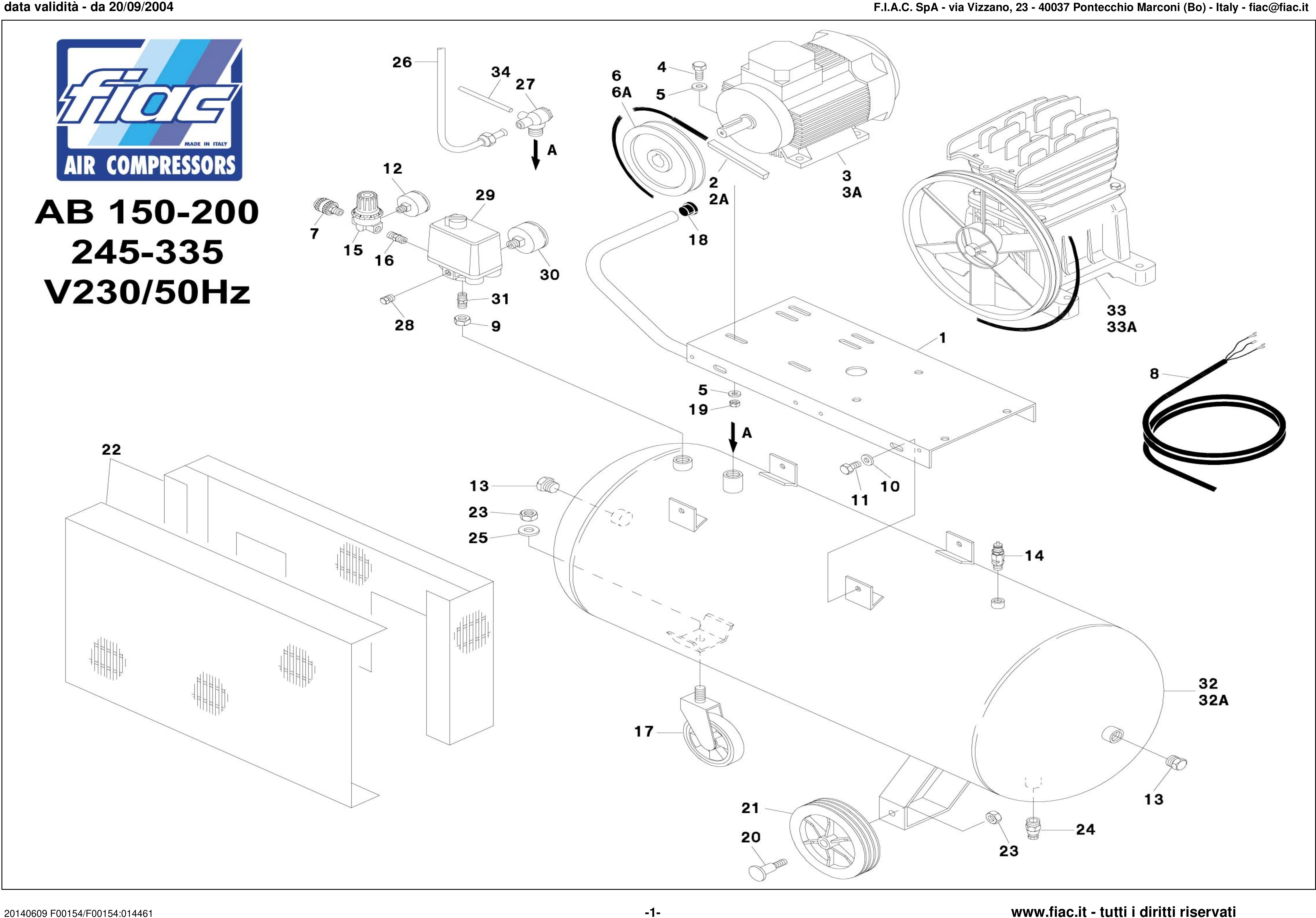

description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

35 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 5011290008 BASE PLATE €98.21
2
 V-Belt for Compressor Fiac AB100/248 - 338M 7370740000 V-Belt for Compressor Fiac AB100/248 - 338M €8.19
3
photo_cameraImage coming soon 7384860000 Single Phase motor €239.30
4
photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
5
photo_cameraImage coming soon 7030040000 Washer Ø10 UNI-6592 €1.45
6
Pulley DP.100 1-A F19 for Air Compressor FIAC AB100/248 7408690000 Pulley DP.100 1-A F19 for Air Compressor FIAC AB100/248 €33.32
7
photo_cameraImage coming soon 7130640000 RUB.RAP.UNIV.1/4M"BCD" ART112 NICKEL €12.82
8
photo_cameraImage coming soon 7329070000 Power Cord €29.80
9
Fiac Locking Nut 3/8" 7023050000 Fiac Locking Nut 3/8" €6.42
11
photo_cameraImage coming soon 7011410000 Screw M10x20 DIN 6921 €2.03
12
Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
13
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
14
photo_cameraImage coming soon 7192050000 Valve Sic. M3/8 to 10.5 Bar €21.10
15
Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
16
photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
17
photo_cameraImage coming soon 7260360000 Pivot €15.25
20
Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
21
Wheel D.125x35x15 for FIAC AIR Compressors 7260160000 Wheel D.125x35x15 for FIAC AIR Compressors €7.50
22
photo_cameraImage coming soon 4170010000 belt guard Kit €82.24
24
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
25
photo_cameraImage coming soon 7030140000 Washer Ø12 UNI-6592 €4.23
26
photo_cameraImage coming soon 7237560000 tube feeding €16.95
27
Check Valve MM 1/2"-DX for Air Compressors 7190090000 Check Valve MM 1/2"-DX for Air Compressors €29.61
28
Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
29
Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
30
Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
31
FIAC Reduction 3/8"-1/4" 7088060000 FIAC Reduction 3/8"-1/4" €18.30
32
photo_cameraImage coming soon 5159670008 Serbatoio 150lt €564.46
33
photo_cameraImage coming soon 3020431000 Pumping unit AB 245 €207.08
34
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
002A
photo_cameraImage coming soon 7370060000 V-Belt A 46 €13.48
003A
Single-Phase Motor KW 2.2 RPM 2770 for Compressors Fiac 7384870000 Single-Phase Motor KW 2.2 RPM 2770 for Compressors Fiac €307.27
006A
photo_cameraImage coming soon 7408390000 Pulley Øp130 1 "A" HOLE 19 €38.95
032A
photo_cameraImage coming soon 5159170008 Serbatoio 200lt €612.66
033A
photo_cameraImage coming soon 3020441000 Pumping unit AB 335 - AB360 €283.39

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor AB150/200-248 -338M

We are FIAC Air Comressors original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor AB150/200-248 -338M.

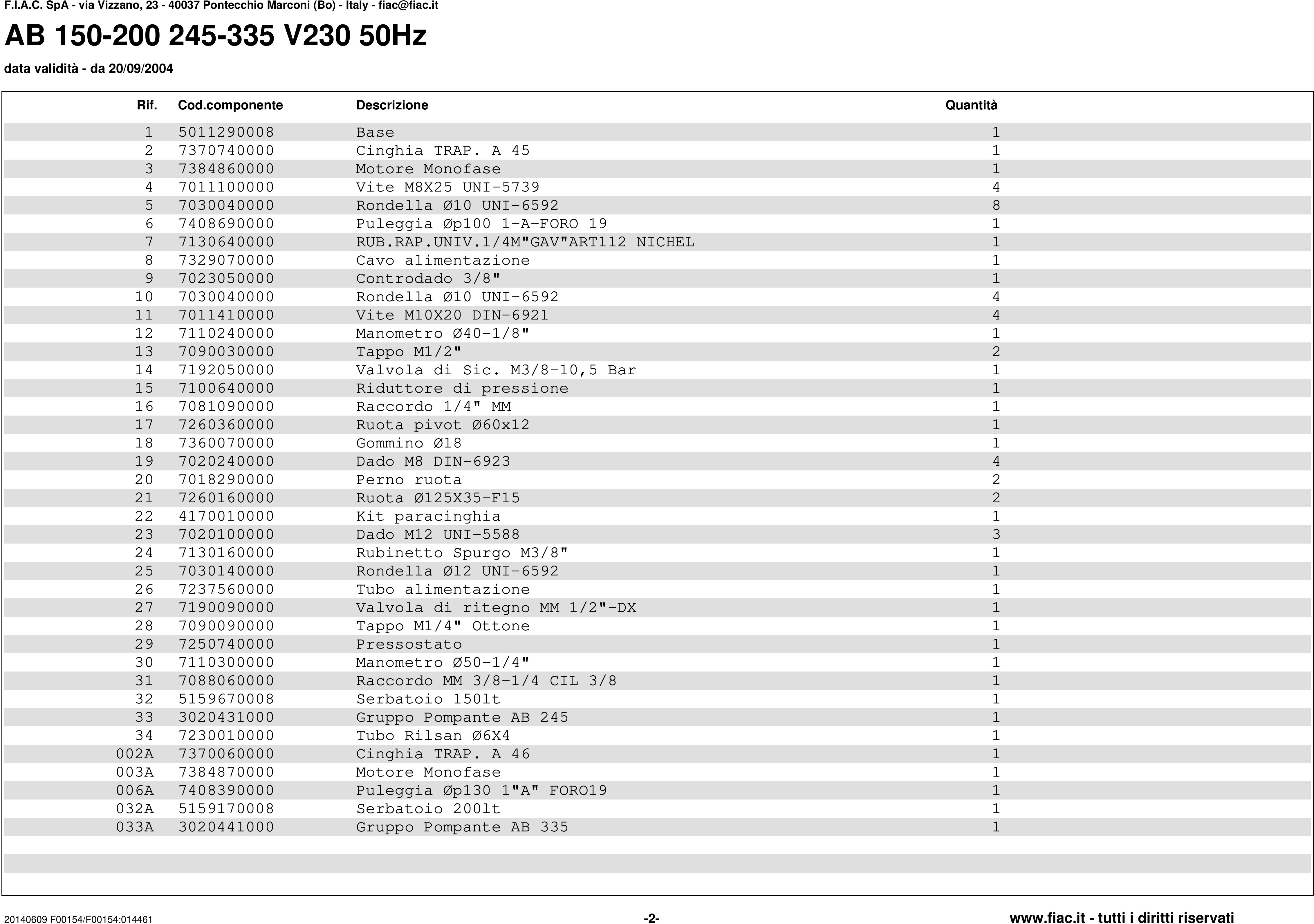

In the following table , look for the type of the air compressor and the respective parts of the code .
Air Compressor AB150/200-248 -338M

AB150/200-248 -338M
# Part Num. Description
1 5011290008 Base
2 7370740000 V-Belt A 45
3 7384860000 Motore Monofase
4 7011100000 Vite M8X25 UNI-5739
5 7030040000 Rondella Ø10 UNI-6592
6 7408690000 Puleggia Øp100 1-A-FORO 19
7 7130640000 RUB.RAP.UNIV.1/4M"GAV"ART112 NICHEL
8 7329070000 Cavo alimentazione
9 7023050000 Controdado 3/8"
10 7030040000 Rondella Ø10 UNI-6592
11 7011410000 Vite M10X20 DIN-6921
12 7110240000 Manometro Ø40-1/8"
13 7090030000 Tappo M1/2"
14 7192050000 Valvola di Sic. M3/8-10,5 Bar
15 7100640000 Riduttore di pressione
16 7081090000 Raccordo 1/4" MM
17 7260360000 Ruota pivot Ø60x12
18 7360070000 Gommino Ø18
19 7020240000 Dado M8 DIN-6923
20 7018290000 Perno ruota
21 7260160000 Ruota Ø125X35-F15
22 4170010000 Kit paracinghia
23 7020100000 Dado M12 UNI-5588
24 7130160000 Rubinetto Spurgo M3/8"
25 7030140000 Rondella Ø12 UNI-6592
26 7237560000 Tubo alimentazione
27 7190090000 Valvola di ritegno MM 1/2"-DX
28 7090090000 Tappo M1/4" Ottone
29 7250740000 Pressostato
30 7110300000 Manometro Ø50-1/4"
31 7088060000 Raccordo MM 3/8-1/4 CIL 3/8
32 5159670008 Serbatoio 150lt
33 3020431000 Gruppo Pompante AB 245
34 7230010000 Tubo Rilsan Ø6X4
002A 7370060000 Cinghia TRAP. A 46
003A 7384870000 Motore Monofase
006A 7408390000 Puleggia Øp130 1"A" FORO19
032A 5159170008 Serbatoio 200lt
033A 3020441000 Gruppo Pompante AB 335 --> Substituited by AB360
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AB150/200 - 248 - 338M
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Fiac AB150/200-248-338

Diagram Fiac AB150/200-248-338
