FIAC Spare Parts for Piston Air Compressor Cosmos 50

SKU: Fiac Cosmos 50
€443.38
VAT included

FIAC Spare Parts for Piston Air Compressor Cosmos 50

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type COSMOS 50.

FIAC Spare Parts for Piston Air Compressor Cosmos 50
  • FIAC Spare Parts for Piston Air Compressor Cosmos 50
  • FIAC Spare Parts for Piston Air Compressor Cosmos 50
  • FIAC Spare Parts for Piston Air Compressor Cosmos 50

FIAC Spare Parts for Piston Air Compressor Cosmos 50

SKU: Fiac Cosmos 50 Condition: New
€443.38
VAT included

FIAC Spare Parts for Piston Air Compressor Cosmos 50

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type COSMOS 50.

settings 26 spare parts

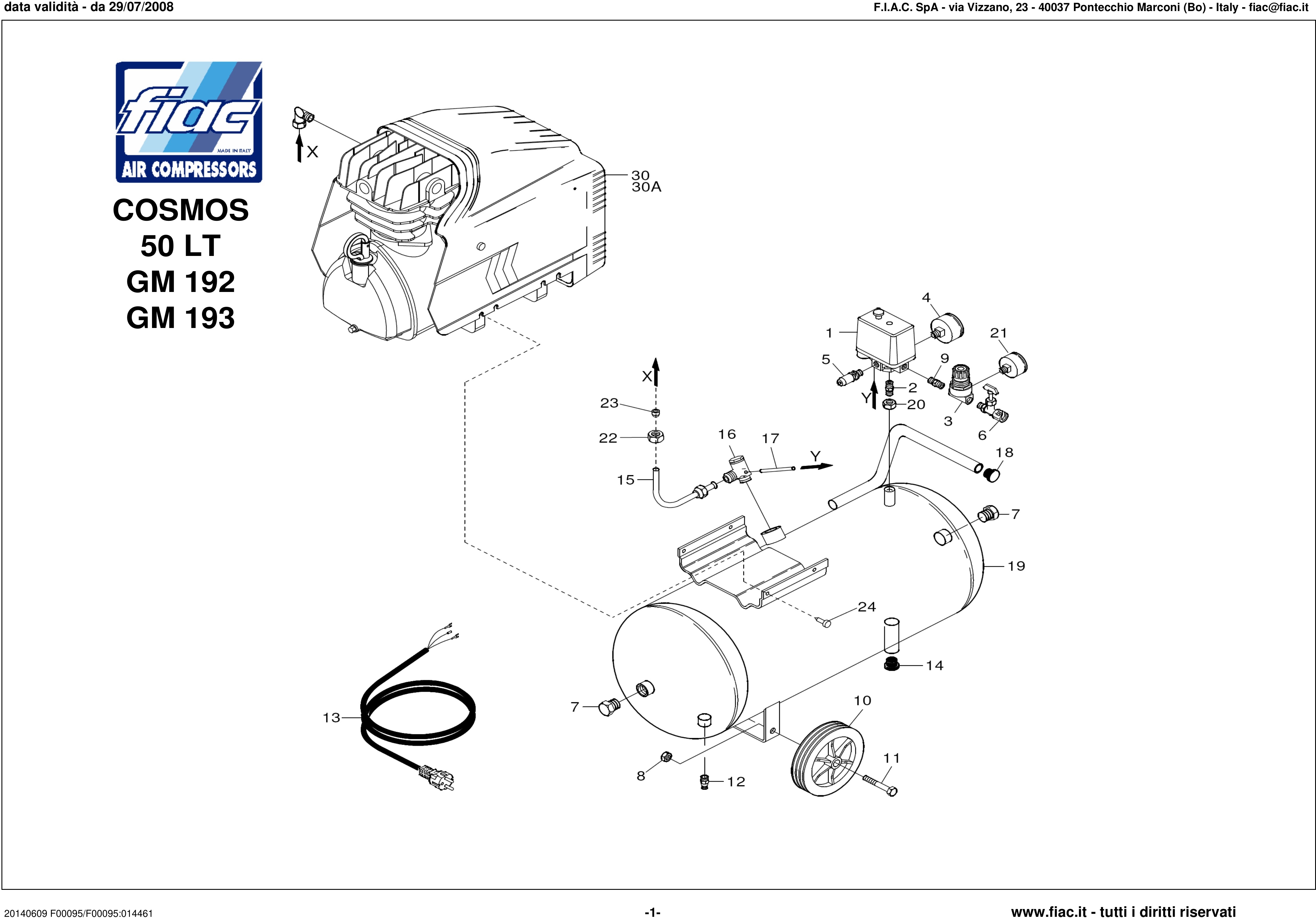

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

24 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
5158750008
photo_cameraImage coming soon 5158750008 Tank €409.75
7012290000
photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
7018290000
Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
7023040000
photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
7024140000
photo_cameraImage coming soon 7024140000 Nut 3/8 " €4.11
7041070000
Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 7041070000 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 €4.37
7081090000
photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
7081140000
photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
7090030000
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
7100640000
Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
7110240000
Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
7110300000
Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
7130010000
photo_cameraImage coming soon 7130010000 Line Valve M1/4" €12.10
7130160000
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
7190180000
Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
7192430000
Safety Valve M1/4"-8,5 Bar for Air Compressors Fiac 7192430000 Safety Valve M1/4"-8,5 Bar for Air Compressors Fiac €11.70
7230010000
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
7231700000
photo_cameraImage coming soon 7231700000 Tube feeding €15.17
7250740000
Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
7260160000
Wheel D.125x35x15 for FIAC AIR Compressors 7260160000 Wheel D.125x35x15 for FIAC AIR Compressors €7.50
7329070000
photo_cameraImage coming soon 7329070000 Power Cord €29.80
7360040000
Rubber Foot for Air Compressor FIAC Cosmos 50 7360040000 Rubber Foot for Air Compressor FIAC Cosmos 50 €4.34
9100010000
photo_cameraImage coming soon 9100010000 Pump Unit GM192 €236.97
9100020000
photo_cameraImage coming soon 9100020000 Pump Unit GM193 €252.54

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor Cosmos 50

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type COSMOS 50.

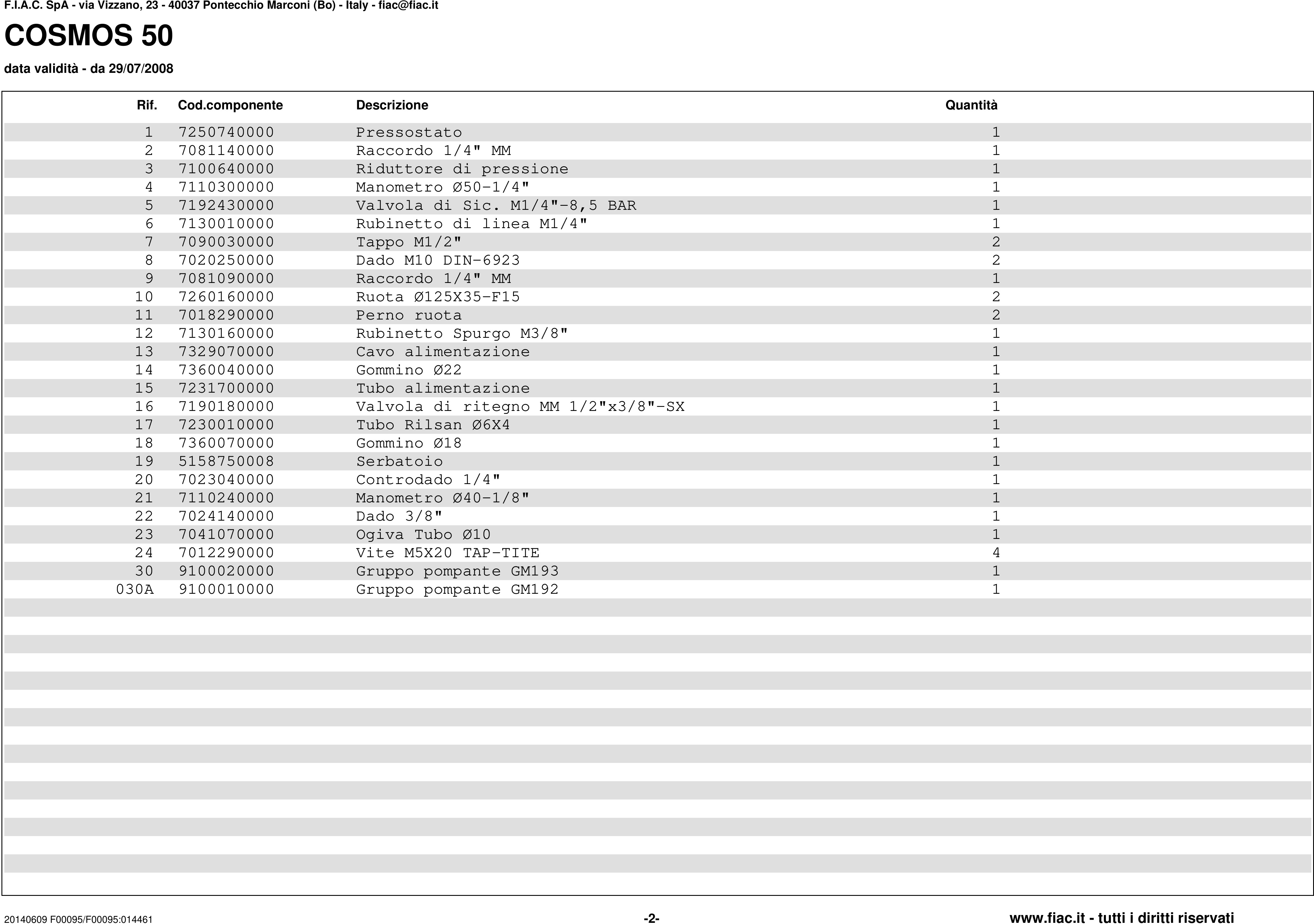

In the following table , look for the type of the air compressor and the respective parts of the code .
Fiac Cosmos 50

AIR COMPRESSORS COSMOS 50
Rif. Cod. Description
1 7250740000 Pressure Switch
2 7081140000 Fitting 1/4 "MM
3 7100640000 Pressure reducer
4 7110300000 Gauge Ø50-1 / 4 "
5 7192430000 Safety Valve M1 / 4 "-8.5 BAR
6 7130010000 Line cock M1 / 4 "
7 7090030000 Cap M1 / 2 "
8 7020250000 Nut M10 DIN-6923
9 7081090000 Fitting 1/4 "MM
10 7260160000 Wheel Ø125X35-F15
11 7018290000 wheel axle
12 7130160000 Drain tap M3 / 8 "
13 7329070000 Power cable
14 7360040000 Rubber Ø22
15 7231700000 Tube feeding
16 7190180000 Check valve MM 1/2 "x3/8"-sX
17 7230010000 Tube Rilsan Ø6X4
18 7360070000 Rubber Ø18
19 5158750008 Tank
20 7023040000 Nut 1/4 "
21 7110240000 Gauge Ø40-1 / 8 "
22 7024140000 Nut 3/8 "
23 7041070000 Spinner tube Ø10
24 7012290000 Screw M5X20 TAP-TITE
30 9100020000 Pump unit GM193
030A 9100010000 Pump unit GM192
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
