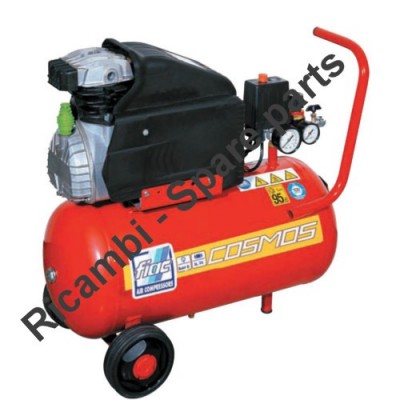

FIAC Spare Parts for Piston Air Compressor Cosmos 24

SKU: Fiac COSMOS-24
€298.69
VAT included

FIAC Spare Parts for Piston Air Compressor Cosmos 24

FIAC authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Air Compressor COSMOS 24.

FIAC Spare Parts for Piston Air Compressor Cosmos 24
  • FIAC Spare Parts for Piston Air Compressor Cosmos 24
  • FIAC Spare Parts for Piston Air Compressor Cosmos 24
  • FIAC Spare Parts for Piston Air Compressor Cosmos 24

FIAC Spare Parts for Piston Air Compressor Cosmos 24

SKU: Fiac COSMOS-24 Condition: New
€298.69
VAT included

FIAC Spare Parts for Piston Air Compressor Cosmos 24

FIAC authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Air Compressor COSMOS 24.

settings 25 spare parts

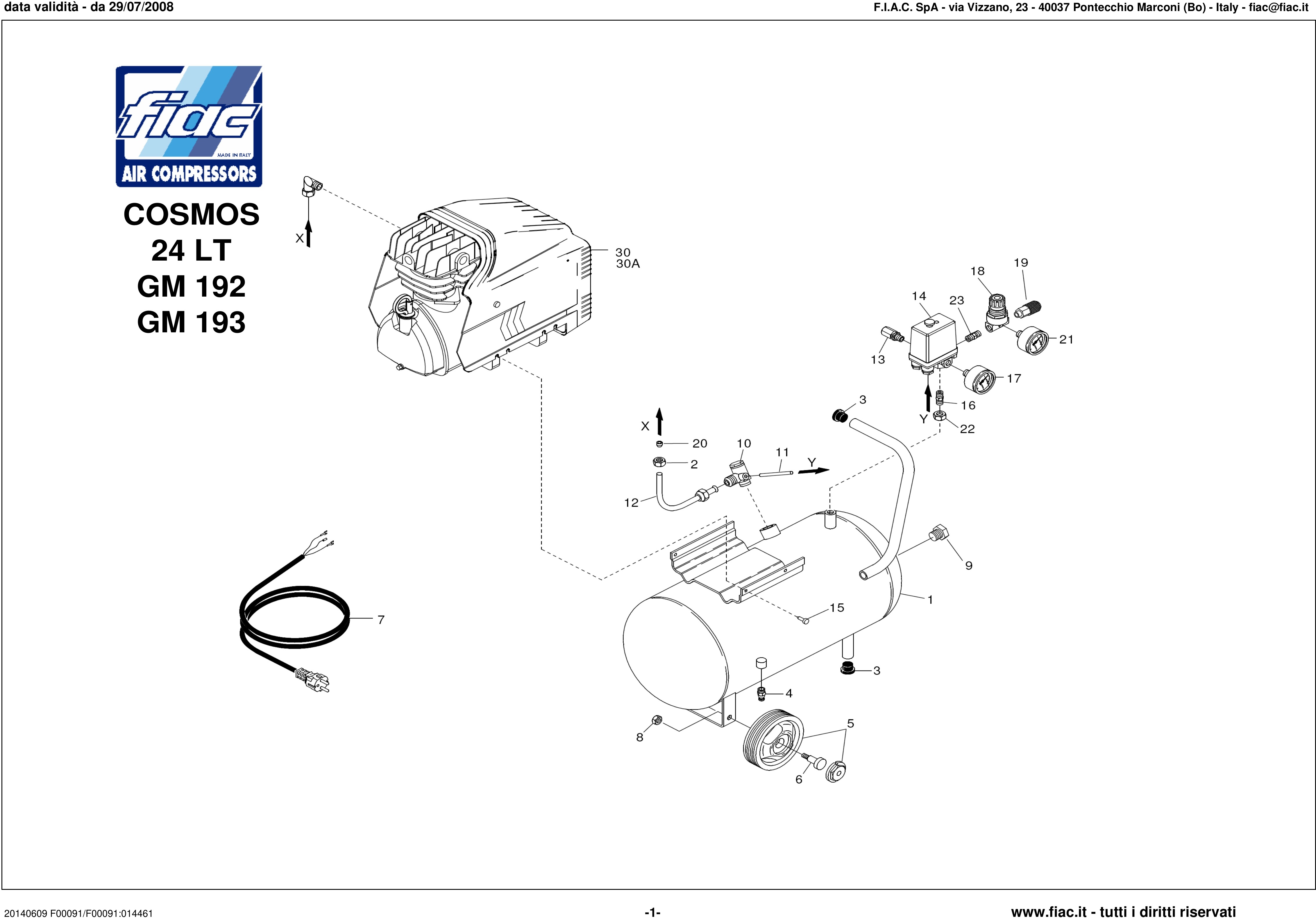

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

25 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 5157310008 Tank 24lt €275.69
2
photo_cameraImage coming soon 7024250000 Nut 1/2" €4.25
3
photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
4
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
5
Wheel D.125x35x15 for FIAC AIR Compressors 7260160000 Wheel D.125x35x15 for FIAC AIR Compressors €7.50
6
Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
7
photo_cameraImage coming soon 7329070000 Power Cord €29.80
8
photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
9
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
10
Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
11
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
12
Aluminium Hose for Air Compressor FIAC COSMOS 24 7231660000 Aluminium Hose for Air Compressor FIAC COSMOS 24 €21.69
13
Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
14
Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
15
photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
16
photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
17
Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
18
Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
19
photo_cameraImage coming soon 7130010000 Line Valve M1/4" €12.10
20
photo_cameraImage coming soon 7041170000 Hose Ogive Ø14 €6.79
21
Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
22
photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
23
photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
030A
photo_cameraImage coming soon 9100010000 Pump Unit GM192 €236.97
30
photo_cameraImage coming soon 9100020000 Pump Unit GM193 €252.54

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor Cosmos 24

FIAC

 authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Air Compressor COSMOS 24.

In the following table , look for the type of the air compressor and the respective parts of the code .

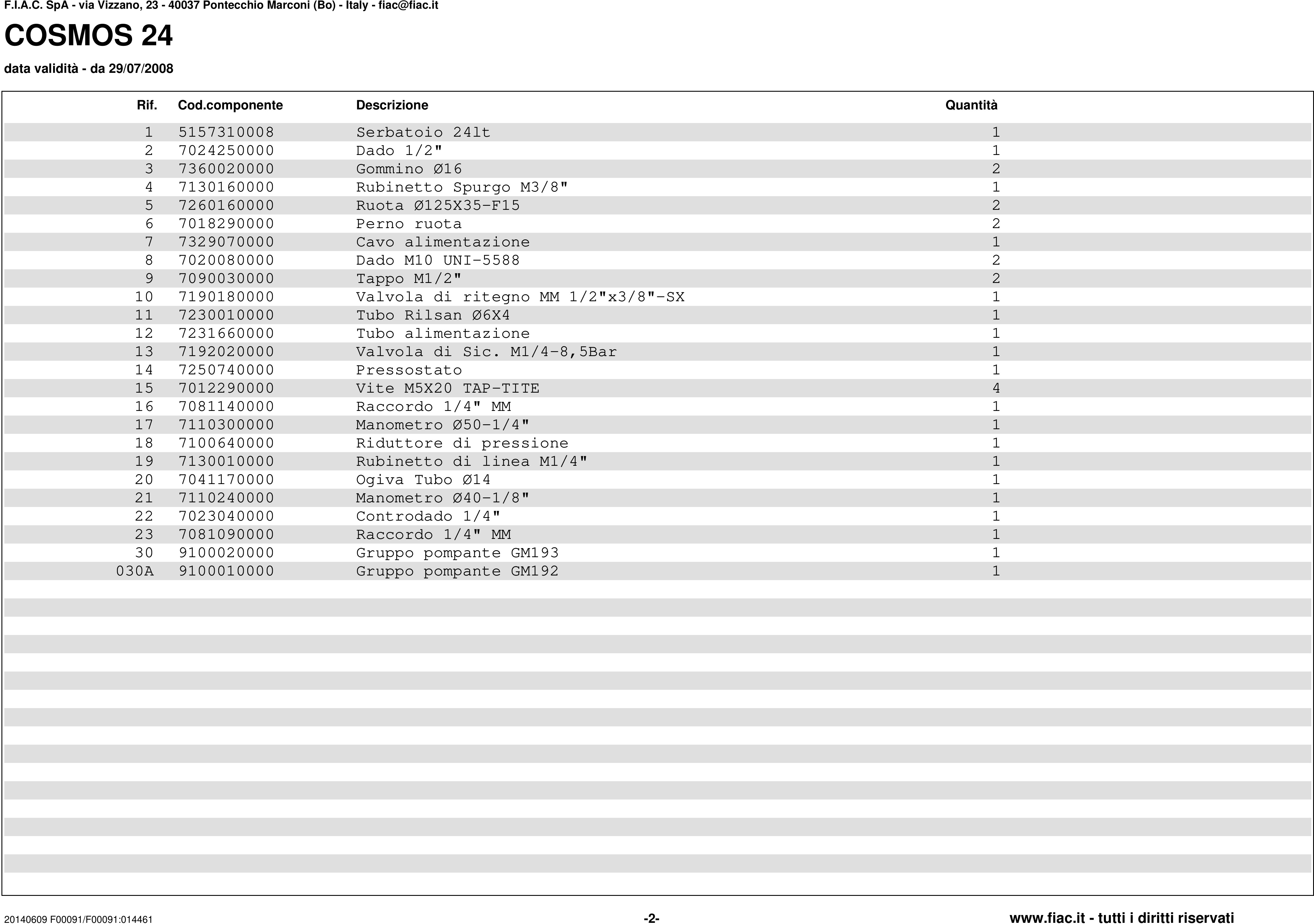

Fiac COSMOS 24

Air Compressor Cosmos 24
# Part Num. Description
1 5157310008 Tank 24lt
2 7024250000 Nut 1/2"
3 7360020000 Grommet Ø16
4 7130160000 Drain valve M3/8"
5 7260160000 Wheel Ø125X35-F15
6 7018290000 Wheel Bolt
7 7329070000 Power Cord
8 7020080000 Nut M10 UNI-5588
9 7090030000 Cap M1/2"
10 7190180000 Non return valve MM 1/2"x3/8"-SX
11 7230010000 Rilsan Hose Ø6X4
12 7231660000 Intake Hose
13 7192020000 Safety valve M1/4-8,5Bar
14 7250740000 Pressure switch
15 7012290000 Screw M5X20 TAP-TITE
16 7081140000 Joint 1/4" MM
17 7110300000 Gauge Ø50-1/4"
18 7100640000 Pressure regulator
19 7130010000 Line Valve M1/4"
20 7041170000 Hose Ogive Ø14
21 7110240000 Gauge Ø40-1/8"
22 7023040000 Locknut 1/4"
23 7081090000 Raccordo 1/4" MM
30 9100020000 Pump Unit GM193
030A 9100010000 Pump Unit GM192
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac COSMOS-24
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Fiac Cosmos 24

Diagram Fiac Cosmos 24

Download (0)
