FIAC Spare Parts for Pump Unit F114

SKU: Fiac F114
€4.35
VAT included

FIAC Spare Parts for Pump Unit F114

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Pump Unit F114 .

FIAC Spare Parts for Pump Unit F114
  • FIAC Spare Parts for Pump Unit F114
FIAC spa

FIAC Spare Parts for Pump Unit F114

SKU: Fiac F114 Condition: New
€4.35
VAT included

FIAC Spare Parts for Pump Unit F114

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Pump Unit F114 .

settings 15 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 10/15 Business Days Approx.

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Pump
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
15 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

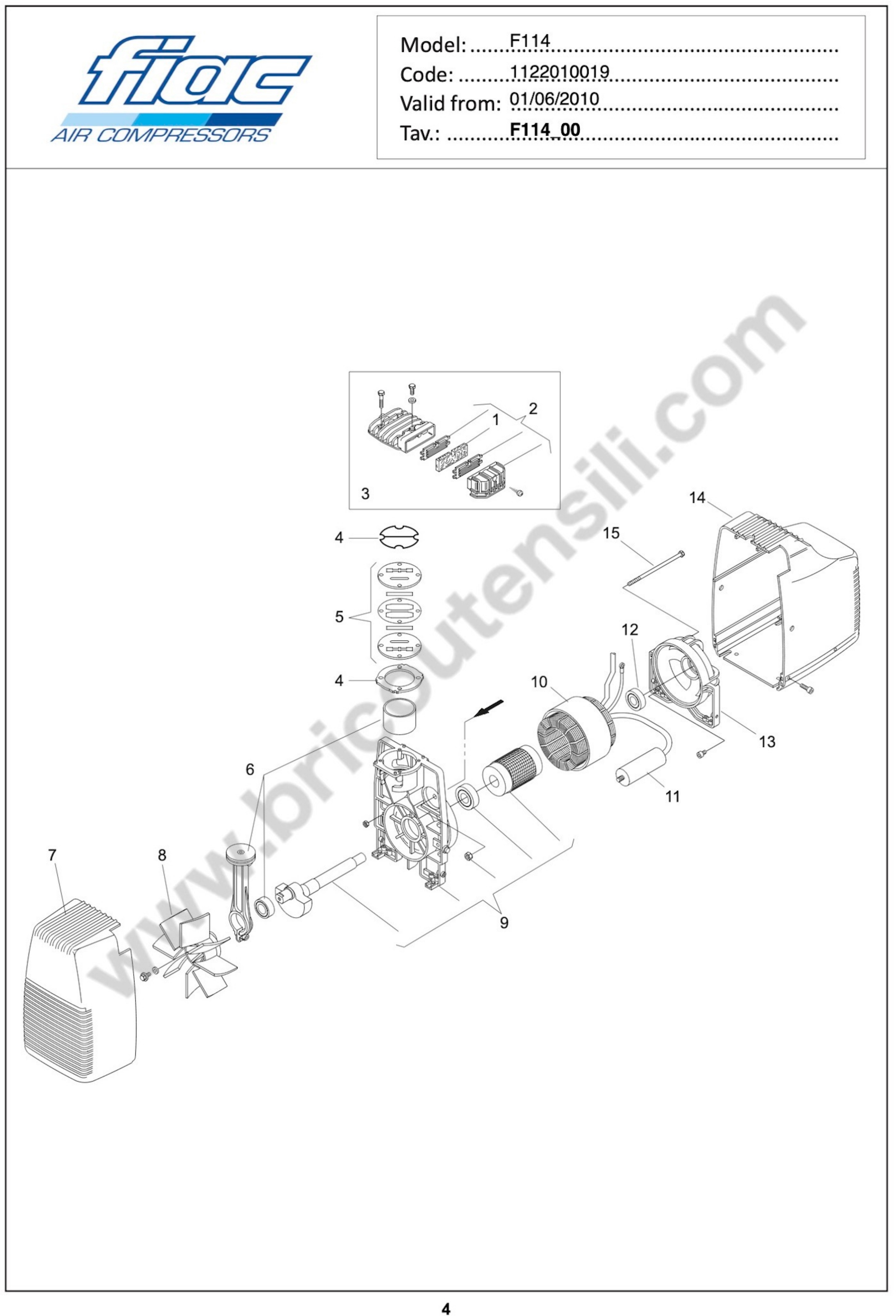

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €1.63
2
 photo_cameraImage coming soon 4085110000 KIT €11.83
3
 photo_cameraImage coming soon 4020760000 KIT €47.03
4
 FIAC F114 Gaskets Kit 4082610000 FIAC F114 Gaskets Kit €13.95
5
 Kit Valves Plate for Air Compressors FIAC FB-210-LEONARDO HP 1 4200030000 Kit Valves Plate for Air Compressors FIAC FB-210-LEONARDO HP 1 €32.09 Not available for order
6
 Conrod Piston + Cylinder for Air Compressor Fiac ECU201-FB-210 4190270000 Conrod Piston + Cylinder for Air Compressor Fiac ECU201-FB-210 €77.90 Not available for order
7
 photo_cameraImage coming soon 7150560000 Plastic COVER €20.86
8
 Motor Fan for Air Compressor Fiac ECU201-FB-210 7200140000 Motor Fan for Air Compressor Fiac ECU201-FB-210 €8.84
9
 photo_cameraImage coming soon 4280510000 CRANKCASE/SHAFT KIT €0.11 Not available for order
10
 photo_cameraImage coming soon 4011710000 Stator 230V / 50Hz €330.19
11
 Capacitor 20 mf for Air Compressors 7310100000 Capacitor 20 mf for Air Compressors €22.94
12
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €14.13
13
 Fiac LEONARDO HP 1 Rear Motor Holder 7640100000 Fiac LEONARDO HP 1 Rear Motor Holder €23.22
14
 Motor Housing for Air Compressors Fiac ECU 200 - ECU 201 7150580000 Motor Housing for Air Compressors Fiac ECU 200 - ECU 201 €35.16
15
 photo_cameraImage coming soon 7018010000 Screw M6x139 UNI-5737 €1.73

Shipping and delivery information will be available shortly.

FIAC Spare Parts for Pump Unit F114

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Pump Unit F114 .

In the following table, look for the type of the Compressor and the respective parts of the code.
Fiac F114

Fiac Pump Unit F114 Spares
1122010019
# Part Num. Description
1 7210010000 FILTER ELEMENT
2 4085110000 INTAKE FILTER
3 4020760000 unit
4 4082610000 GASKETS KIT
5 4200030000 KIT
6 4190270000 KIT
7 7150560000 HOUSING
8 7200140000 FAN
9 4280510000 CRANKCASE/SHAFT KIT
10 4011710000 WOUND STATOR
11 7310100000 CAPACITOR
12 7060010000 BEARING
13 7640100000 COVER
14 7150580000 MOTOR COVER BLACK
15 7018010000 SCREW
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac F114
6 Items

Data sheet

Machine Type
Pump
MORE INFO:
[email protected]
SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS

Specific References

New

Download

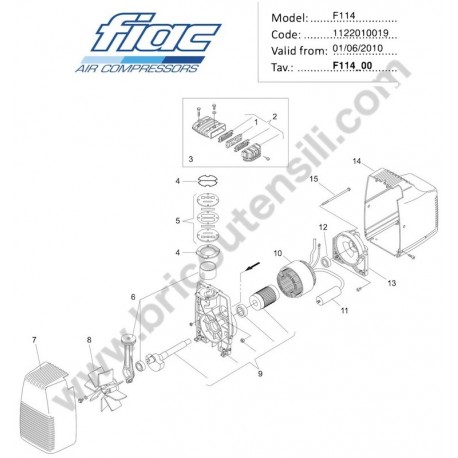

Fiac F114 Parts Drawing

Fiac F114 Parts Drawing

Download (236.16KB)
