FIAC Spare Parts for Air Compressor AB500/981

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type Air Compressor AB500/981.

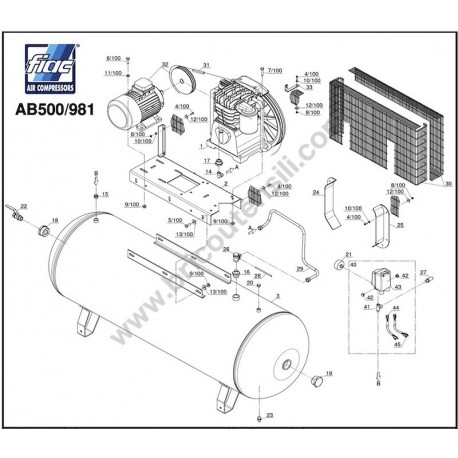

FIAC AB500/981 Spare Parts - Compressor Drawing
  • FIAC AB500/981 Spare Parts - Compressor Drawing
  • FIAC AB500/981 Spare Parts - Pump Unit Drawing
FIAC spa

FIAC AB500/981 Spare Parts

SKU: Fiac AB500/981 Condition: New
€214.33
VAT included

FIAC Spare Parts for Air Compressor AB500/981

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type Air Compressor AB500/981.
settings 98 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
98 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

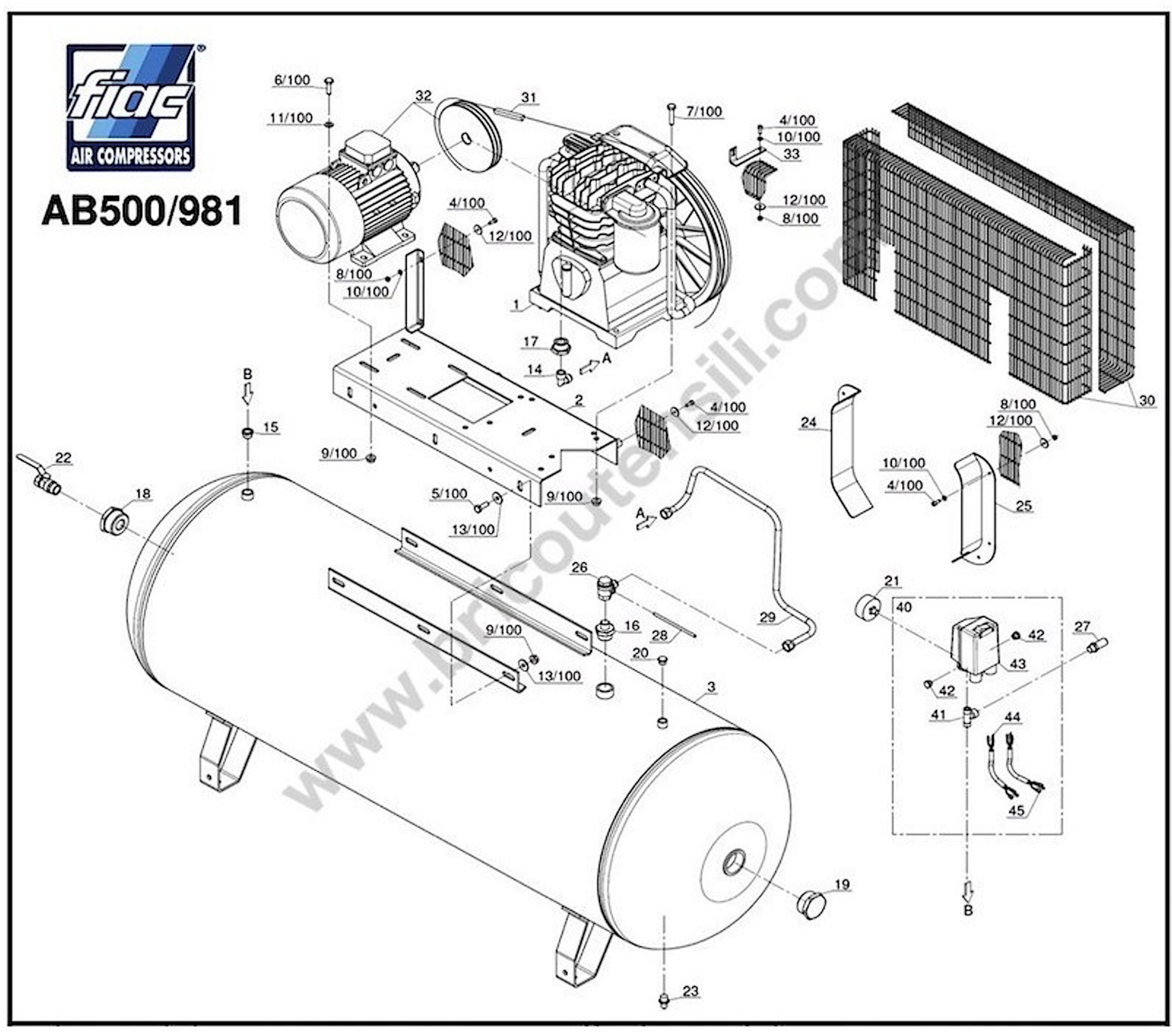

Esploso pagina 1
Pos. Item Price Buy
1A
 photo_cameraImage coming soon 1123020166 Pump unit AB998 €967.47
1
 photo_cameraImage coming soon 3020980000 Pump unit €1,247.52
1B
 Pump Unit from AB 981 to AB 998 7 Modification Kit. 3030350000 Pump Unit from AB 981 to AB 998 7 Modification Kit. €150.35
2
 photo_cameraImage coming soon 5010460008 BASE €220.76
3
 photo_cameraImage coming soon 5159190008 Tank €1,032.44
14
 photo_cameraImage coming soon 7080160000 Fitting "L" 1/2 €11.84
15
 photo_cameraImage coming soon 7085020000 Fitting 1/2 "-3 / 8" MF €10.12
16
 photo_cameraImage coming soon 7085030000 Joint €9.72
17
 photo_cameraImage coming soon 7085110000 Fitting 1 "-1/2" MF €6.04
18
 FIAC 2'-3/4' MF Reduction Galvanized 7085390000 FIAC 2'-3/4' MF Reduction Galvanized €22.17
19
 photo_cameraImage coming soon 7090050000 Plug €22.17
20
 photo_cameraImage coming soon 7090080000 Stopper M3 / 8 " €1.50
21
 FIAC Manometer for Air Compressor AB300 7110060000 FIAC Manometer for Air Compressor AB300 €21.31
22
 photo_cameraImage coming soon 7130600000 Universal Tap M1 / 2 " - Tank €11.88
23
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
24
 photo_cameraImage coming soon 7153090000 Conveyor €39.93
25
 photo_cameraImage coming soon 7153100000 Conveyor €39.93
26
 photo_cameraImage coming soon 7190150000 Check valve FM 1.2 " €38.30
27
 FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
28
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
29
 photo_cameraImage coming soon 7235650000 Infeed hose €24.41
30
 photo_cameraImage coming soon 4170200000 BELT GUARD €179.57
31
 photo_cameraImage coming soon 7370140000 BELT €10.40
32
 photo_cameraImage coming soon 4150900000 Motor/pulley kit €1,072.89
41
 A fitting "T" 8.3 MFM 7082690000 A fitting "T" 8.3 MFM €13.84
42
 photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
43
 FIAC Pressure Switch MDR3-EA11-R3-16 7250500000 FIAC Pressure Switch MDR3-EA11-R3-16 €89.54
44
 photo_cameraImage coming soon 7328690000 Cable Pressure Switch / Motor €28.67
45
 photo_cameraImage coming soon 7328700000 power cable €30.04
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

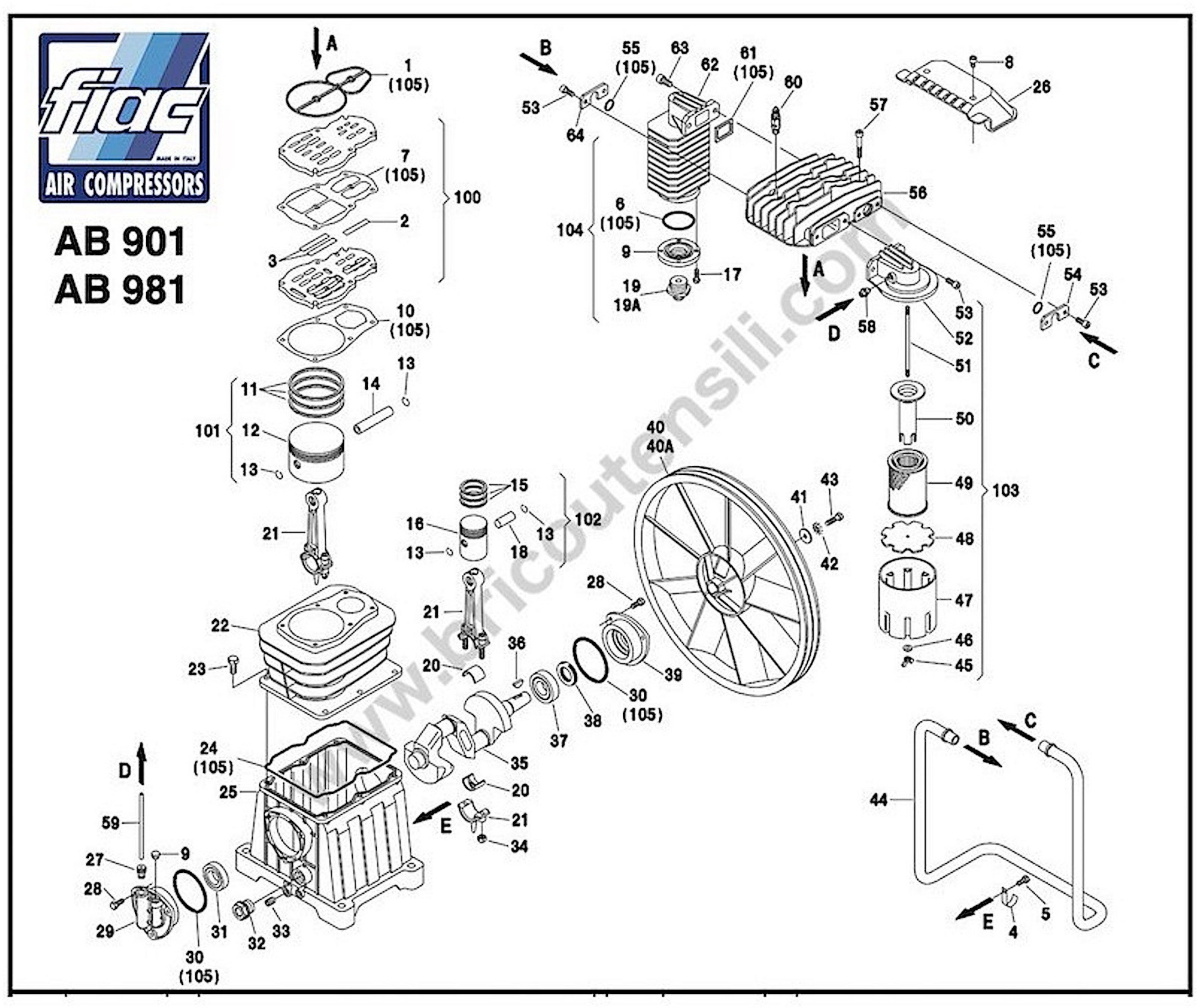

Esploso pagina 2
Pos. Item Price Buy
1
 Valves Plate-Head Gasket for Pump Units FIAC AB 671-851 7079610000 Valves Plate-Head Gasket for Pump Units FIAC AB 671-851 €11.91
2
 photo_cameraImage coming soon 7199130000 Valve €7.46
3
 photo_cameraImage coming soon 7199140000 Valve €8.87
4
 photo_cameraImage coming soon 7458910000 band €4.52
5
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
6
 FIAC AB851 O-Ring 4200 7070140000 FIAC AB851 O-Ring 4200 €2.59
7
 Valves Plate-Valves Plate Gasket for Pump Units FIAC AB 671-851 7079600000 Valves Plate-Valves Plate Gasket for Pump Units FIAC AB 671-851 €8.59
8
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
9
 photo_cameraImage coming soon 5131020008 junction €26.95
10
 photo_cameraImage coming soon 7079710000 Gasket (AB951) €18.64
11
 FIAC Pump Unit AB 901 Piston Ring Kit LP D.110 mm 4080220000 FIAC Pump Unit AB 901 Piston Ring Kit LP D.110 mm €65.59
12
 photo_cameraImage coming soon 7220250000 Piston LP D.110 mm €152.52
13
 photo_cameraImage coming soon 7040140000 Seeger Ø18 UNI-7437 €4.48
14
 Piston Pin 18x99 for Pump Unit FIAC AB851 7050200000 Piston Pin 18x99 for Pump Unit FIAC AB851 €9.56
15
 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 4080030000 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 €30.64
16
 Piston 55 mm for Pumping Unit FIAC AB 901-981-998 7220240000 Piston 55 mm for Pumping Unit FIAC AB 901-981-998 €111.34
17
 photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
18
 photo_cameraImage coming soon 7050190000 Piston PIN Ø18X44 €6.67
19A
 photo_cameraImage coming soon 7080160000 Fitting "L" 1/2 €11.84
19
 photo_cameraImage coming soon 7085110000 Fitting 1 "-1/2" MF €6.04
20
 Con-Rod Bearing for Pumping Units AB 901-981-AB 991-AB 998 7060530000 Con-Rod Bearing for Pumping Units AB 901-981-AB 991-AB 998 €44.47
21
 Conrod Kit for Air Pumping Unit Fiac AB 901-981 4190390008 Conrod Kit for Air Pumping Unit Fiac AB 901-981 €106.02
22
 photo_cameraImage coming soon 5060760008 cylinder €637.39
23
 photo_cameraImage coming soon 7011160000 Screw M10x30 UNI-5739 €1.52
24
 Fiac AB 671 Crankcase - Cylinder Gasket 7079410000 Fiac AB 671 Crankcase - Cylinder Gasket €11.85
25
 FIAC AB678 Crankcase 5070270008 FIAC AB678 Crankcase €199.89
26
 Air Baffle for Pump Unit FIAC AB851 7153050000 Air Baffle for Pump Unit FIAC AB851 €9.90
27
 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 7091120000 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 €4.34
28
 photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
29
 FIAC AB678 Holder Oil Cap 5082090008 FIAC AB678 Holder Oil Cap €30.83
30
 O-Ring 82x2 for Pumping Units FIAC AB 671 - 851 - 901 7070290000 O-Ring 82x2 for Pumping Units FIAC AB 671 - 851 - 901 €1.52
31
 Crank Shaft Ball Bearing for Pumping Units FIAC AB 671-678 7060160000 Crank Shaft Ball Bearing for Pumping Units FIAC AB 671-678 €20.38
32
 Fiac AB598 Pump Unit Oil Sight Glass 7180060000 Fiac AB598 Pump Unit Oil Sight Glass €6.57
33
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
34
 photo_cameraImage coming soon 7022040000 Nut M8 DIN-980 €1.52
35
 Crank Shaft for Pump Units FIAC AB 901-981-998 5041260008 Crank Shaft for Pump Units FIAC AB 901-981-998 €297.86
36
 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 7051520000 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 €10.13
37
 photo_cameraImage coming soon 7060150000 bearing 6206 €41.13
38
 Oil Seal for Pumping Units FIAC AB 671-AB 901-981 7071130000 Oil Seal for Pumping Units FIAC AB 671-AB 901-981 €5.89
39
 FIAC AB678 Crankshaft Holder 5082050008 FIAC AB678 Crankshaft Holder €30.83
40
 Flywheel for Pumping unit Fiac AB 450-550-800 7201050000 Flywheel for Pumping unit Fiac AB 450-550-800 €193.41
40A
 photo_cameraImage coming soon 7201240000 flywheel €252.19
41
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
42
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
43
 photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
44
 Fiac AB670-850 Cooler Kit 7230750000 Fiac AB670-850 Cooler Kit €94.03
45
 photo_cameraImage coming soon 7024150000 A nut M6 GALLETTO €1.52
46
 photo_cameraImage coming soon 7031030000 Washer Ø6 UNI-3703 €1.52
47
 Air Filter Holder for Pumping Units Fiac AB 671 - AB 851 7210270000 Air Filter Holder for Pumping Units Fiac AB 671 - AB 851 €54.50 Not available for order
48
 Filter Element For Pumping Units FIAC AB 671-851-901-981 7210280000 Filter Element For Pumping Units FIAC AB 671-851-901-981 €10.43
49
 Air Filter For Pumping Units FIAC AB 671-851-901-981 7210260000 Air Filter For Pumping Units FIAC AB 671-851-901-981 €26.62
50
 Air Filter Sleeve For Pumping Units FIAC AB 671-851-901-981 7210290000 Air Filter Sleeve For Pumping Units FIAC AB 671-851-901-981 €7.53
51
 photo_cameraImage coming soon 7015160000 rod M6X160 €1.52
52
 photo_cameraImage coming soon 5130070008 collector €26.55
53
 photo_cameraImage coming soon 7010050000 Screw M8X20 UNI-5931 €1.52
54
 photo_cameraImage coming soon 7458460000 plate €7.46
55
 O-Ring 17.12 X 2.62 for Air Compressors Unit Fiac AB 450 - 550 - 800 7070260000 O-Ring 17.12 X 2.62 for Air Compressors Unit Fiac AB 450 - 550 - 800 €4.37
56
 Head for Pump Units FIAC AB 671-851-901 5030590008 Head for Pump Units FIAC AB 671-851-901 €83.48
57
 photo_cameraImage coming soon 7010060000 Screw M8x45 UNI-5931 €1.52
58
 photo_cameraImage coming soon 7084600000 Fitting M1 / 8 "x6 €6.00
59
 photo_cameraImage coming soon 7230020000 Tube Rilsan Ø8X6 €7.46
60
 Safety Valve M1/4-6 bar for Pumping Units Fiac 7192350000 Safety Valve M1/4-6 bar for Pumping Units Fiac €13.02
61
 FIAC AB851 Cooler Gasket 7079250000 FIAC AB851 Cooler Gasket €7.47
62
 photo_cameraImage coming soon 5130090008 cooler €58.10
63
 photo_cameraImage coming soon 7010220000 Screw M10x25 UNI-5931 €1.52
64
 photo_cameraImage coming soon 7458420000 plate €6.04
101
 photo_cameraImage coming soon 4291160000 Kit rod / piston €216.26
102
 Piston Set for Pump Units FIAC AB 901-981 4291170000 Piston Set for Pump Units FIAC AB 901-981 €121.66
103
 Suction Filter Kit For Pumping Units FIAC AB 671-851-901-981 4250100000 Suction Filter Kit For Pumping Units FIAC AB 671-851-901-981 €54.50 Not available for order
104
 photo_cameraImage coming soon 4251150000 Kit cooler €128.82
105
 Gaskets for Air Compressors Pump Unit AB901-981 4082600000 Gaskets for Air Compressors Pump Unit AB901-981 €50.17

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Air Compressor AB500/981

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type Air Compressor AB500/981.

In the following table, look for the type of the air compressor and the respective parts of the code .
Air Compressor AB500/981

FIAC AIR COMPRESSOR AB500/981 Pag.1
# Part Num. Description
1 3020980000 Pump unit AB981
1A 1123020166 Pump unit AB998
1B 3030350000 Modification Kit for Pump Unit from AB 981 to AB 998
2 5010460008 Base
3 5159190008 Tank
4 x Screw
5 x Screw
6 x Screw
7 x Screw
8 x Nut
9 x Nut
10 x Washer
11 x Washer
12 x Washer
13 x Washer
14 7080160000 Joint
15 7085020000 Joint
16 7085030000 Joint
17 7085110000 Joint
18 7085390000 Joint
19 7090050000 Plug
20 7090080000 Plug
21 7110060000 Pressure gauge
22 7130600000 Universal Tap
23 7130160000 Discharge tap
24 7153090000 Conveyor
25 7153100000 Conveyor
26 7190150000 Non return valve
27 7192090000 Safety valve
28 7230010000 Rilsan hose
29 7235650000 Infeed hose
30 4170200000 Belt guard kit
31 7370140000 Belt
32 4150900000 Motor/pulley kit
33 7458840000 Belt guard Support Staffa paracinghia
40 4051970000 Press. Switch kit
41 7082690000 Joint
42 7090070000 Plug
43 7250500000 Pressure switch
44 7328690000 Pres.switch/Motor c Cavo Pressostato / Motore
45 7328700000 Infeed cable
100 4080460000 Screw kit
PUMP UNIT AB 901 - AB 981 Pag.2
# Part Num. Description
1 7079610000 Gasket
2 7199130000 Valve
3 7199140000 Valve
4 7458910000 Clamp
5 7011460000 Screw
6 7070140000 Gasket
7 7079600000 Gasket
8 7012090000 Screw
9 5131020008 Reduction
10 7079710000 Gasket
11 4080220000 Low pressure piston rings
12 7220250000 Low pressure piston
13 7040140000 Ring
14 7050200000 Piston pin
15 4080030000 High pressure piston rings
16 7220240000 High pressure piston
17 7011040000 Screw
18 7050190000 Piston pin
19 7085110000 Joint
19A 7080160000 Joint
20 7060530000 Bushing
21 4190390008 Con rod Kit
22 5060760008 Cylinder
23 7011160000 Screw
24 7079410000 Gasket
25 5070270008 Carter
26 7153050000 Conveyor
27 7091120000 Plug
28 7011090000 Screw
29 5082090008 Support
30 7070290000 Gasket
31 7060160000 Bearing
32 7180060000 Oil level sight glass
33 7090090000 Plug
34 7022040000 Selflocking nut
35 5041260008 Crankshaft
36 7051520000 Key
37 7060150000 Bearing
38 7071130000 Mim ring
39 5082050008 Support
40 7201050000 Flywheel
40A 7201240000 Flywheel
41 7030270000 Washer
42 7031010000 Toothed washer
43 7011100000 Screw
44 7230750000 Cooler ----> 1124080806 ex 1127230025 ex 7230750000
45 7024150000 Nut
46 7031030000 Washer
47 7210270000 Filter Holder Assy ----> 425010000
48 7210280000 Filtering element
49 7210260000 Filter
50 7210290000 Sleeve
51 7015160000 Tension rod
52 5130070008 Manifold
53 7010050000 Screw
54 7458460000 Stop plate
55 7070260000 OR ring
56 5030590008 Head
57 7010060000 Screw
58 7084600000 Joint
59 7230020000 Rilsan hose
60 7192350000 Safety valve
61 7079250000 Gasket
62 5130090008 Refrigerator
63 7010220000 Screw
64 7458420000 Stop plate
100 7459550000 Valve plate group
101 4291160000 Low pressure piston group
102 4291170000 High pressure piston group
103 4250100000 Filter group
104 4251150000 Refrigerator group
105 4082600000 Set of gasket
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB500/981
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Fiac AB500/981 Parts Drawing

Fiac AB500/981 Parts Drawing

Download (806.92KB)

You might also like

Air Filter for Pump Unit Fiac AB 1000
FIAC spa SKU: 7210320000
Air Filter for Pump Unit Fiac AB 1000
Air Filter for Pump Unit Fiac AB 1000 Genuine replacement part FIAC, Air Filter for pump units AB 1000 - AB 1500. Part for the following products: -  Pump Unit AB 1000 validity date - by 12/07/2011 -  Pump Unit AB 1500 Tech data:...
AVAILABLE €29.53
Details
Air Filter Holder for Pump Unit Fiac AB 1000 Sale
FIAC spa SKU: 7210310000
Air Filter Holder for Pump Unit Fiac AB 1000
Air Filter Holder for Pump Unit Fiac AB 1000 Genuine parts FIAC, Air Filter Holder for Pump Unit   AB 1000 validity date - da 12/07/2011 Part for the following products: -  Pump Unit AB 1000 validity date - by 12/07/2011 -  Pump...
Last items in stock €19.18
Details
Pumping Unit for air Compressor Mod. AB 998 Sale
FIAC spa SKU: AB1000 - 3020600000
Pumping Unit for air Compressor Mod. AB 998
Pumping Unit for air Compressor Mod. AB 998 The AB series distinguishes the oil lubricated twin cylinder compressor pumps with single and two stage belt drive. The Fiac compressor pumps have been designed and tested in compliance with...
Last items in stock €2,503.64
Details
FIAC Spare Parts for Pumping Unit AB 1000
FIAC spa SKU: Fiac AB1000
FIAC Spare Parts for Pumping Unit AB 1000
FIAC Spare Parts for Pump Unit AB 1000 We have the original Spares FIAC for Pump Unit AB 1000 , the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again. Fix...
build View Spare Parts
Cylinder Plate Gasket for Pumping Unit FIAC AB 1000
FIAC spa SKU: 7079270000
Cylinder Plate Gasket for Pumping Unit FIAC AB 1000
Cylinder Plate Gasket for Pump Unit FIAC AB 1000 Original replacement part FIAC, cylinder plate gasket for pump units FIAC AB 1000-1500. Part for the following products: -  Pump Unit AB 1000 validity date - by 12/07/2011 -  Pump Unit...
AVAILABLE €24.41
Details
Head Gasket for Pumping Unit FIAC AB 1000
FIAC spa SKU: 7079260000
Head Gasket for Pumping Unit FIAC AB 1000
Head Gasket for Pump Unit FIAC AB 1000 Original replacement part FIAC, Head Gasket for pump units FIAC AB 1000 - AB 1500. Part for the following products: -  Pump Unit AB 1000 validity date - by 12/07/2011 -  Pump Unit AB 1500 -...
AVAILABLE €46.70
Details
Con-Rod Bearing for Pumping Units AB1000-1500 Sale
FIAC spa SKU: 7062110000
Con-Rod Bearing for Pumping Units AB1000-1500
Con-Rod Bearing for Pumping Units AB1000-1500 Original parts FIAC, Connecting rod bearing for pumping units for AB 1000 - AB 1500. Part for the following article: - Pumping Unit AB 1000 validity date - by 12/07/2011 - Pumping Unit AB...
Last items in stock €27.49
Details
Gasket kit for Pumping Units AB 1000-1500
FIAC spa SKU: 4082570000
Gasket kit for Pumping Units AB 1000-1500
Gasket kit for Pump Unit AB 1000-1500 Genuine parts for FIAC Pump Unit AB 1000 - AB 1500, complete kit with all the seals needed to repair the pumping units. - For the following products -  Pump Unit AB 1000 validity date - by...
Last items in stock €134.14
Details
Fiac AB670-850 Cooler Kit
FIAC spa SKU: 7230750000
Fiac AB670-850 Cooler Kit
Fiac AB670/850 Cooler Kit Genuine part FIAC, Cooler Kit for Pump Units Fiac AB670-850 - Fiac AB 851 901 951 981 SA/SSA. Part for the following Products: - Fiac AB 851 901 951 981 SA/SSA - Fiac AB500/981 - Fiac...
Last items in stock €94.03
Details
FIAC Pumping Unit AB858 Holder Oil Cap
FIAC spa SKU: 5082090008
FIAC AB678 Holder Oil Cap
FIAC Holder Oil Cap for Pump Unit AB678 Genuine replacement part FIAC, Crankshaft and Oil Cap Holder for Pump Unit AB678 - AB858. Part for the following products: -  Pump Unit Fiac AB851 from...
Last items in stock €30.83
Details
FIAC Manometer for Air Compressor AB500/981
FIAC spa SKU: 7110060000
FIAC Manometer for Air Compressor AB300
FIAC Manometer for Air Compressor AB300 Genuine replacement part FIAC, Manometer 0-16 bar 1/4" for Air Compressor AB300 - CCS 100/245. Part for the following products: -  Pumping Unit Fiac CCS245 FOR APOLLO 100...
Last items in stock €21.31
Details
FIAC AB678 Crankcase
FIAC spa SKU: 5070270008
FIAC AB678 Crankcase
FIAC AB678 Crankcase Genuine replacement part FIAC, Crankcase for Pump Units AB678-858-998. Part for the following products: -  Pump Unit AB 671 - Pump Unit AB 678 -  Pump Unit AB 851 - Pump Unit AB 858...
Last items in stock €199.89
Details
FIAC AB678 Cylinder
FIAC spa SKU: 5060720008
FIAC AB678 Cylinder
FIAC AB678 Cylinder Genuine replacement part FIAC, Cylinder for Pump Units AB678-858-998. Part for the following products: -  Pump Unit AB 671 - Pump Unit AB 678 -  Pump Unit AB 851 - Pump Unit AB 858...
Last items in stock €229.24
Details
FIAC 2'-3/4' MF Reduction Galvanized
FIAC spa SKU: 7085390000
FIAC 2'-3/4' MF Reduction Galvanized
FIAC 2'-3/4'MF Reduction, Galvanized, M/F. Genuine replacement part FIAC, 2'-3/4'MF Reduction, Galvanized, M/F. Part for the following products: -  Fiac AB500/1000 -  Fiac ABT 900-1996 -  Fiac CRS 15-20 - ...
Last items in stock €22.17
Details
Comments (0)
