FIAC spa

FIAC Cosmos 255 Spare Parts

SKU: COSMOS 255
€1.48
VAT included

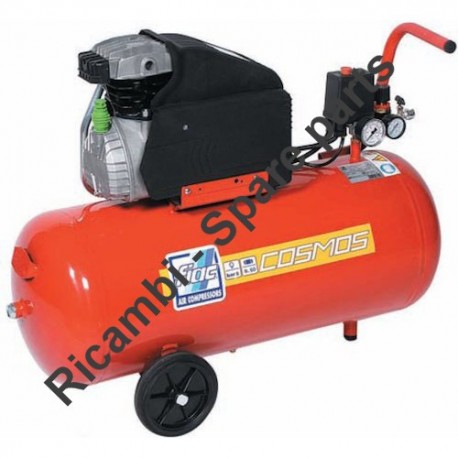

FIAC Air Compressor Cosmos 255 Spare Parts

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type COSMOS COSMOS 255 - FJ 07-09-28.
FIAC Cosmos 255 Spare Parts
  • FIAC Cosmos 255 Spare Parts
  • FIAC Cosmos 255 Spare Parts - Drawing
FIAC spa

FIAC Cosmos 255 Spare Parts

SKU: COSMOS 255 Condition: New
€1.48
VAT included

FIAC Air Compressor Cosmos 255 Spare Parts

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type COSMOS COSMOS 255 - FJ 07-09-28.
settings 69 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
69 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

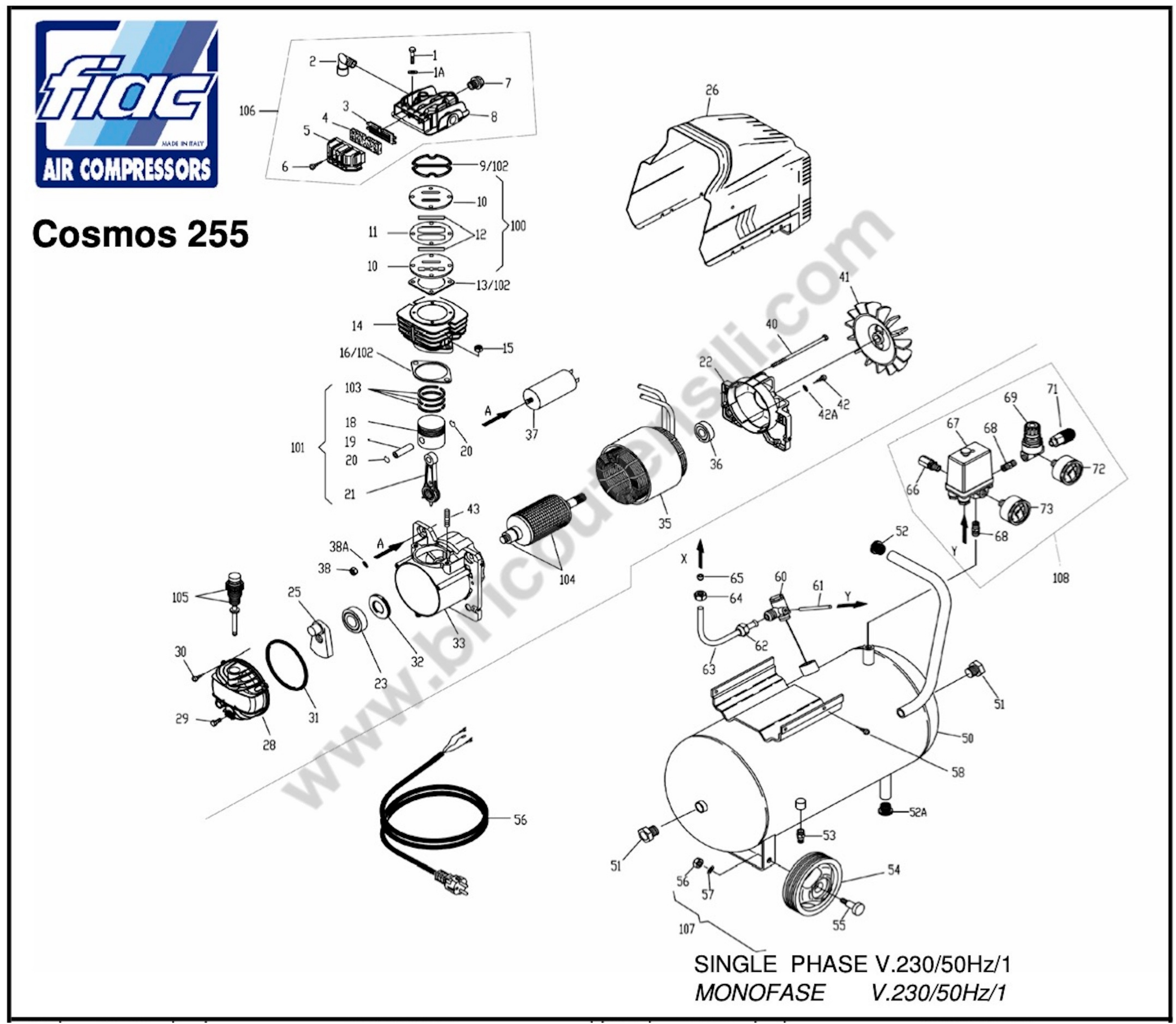

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 photo_cameraImage coming soon 7084040000 Fitting "L" M3 / 8 " €9.84
3
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
 Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
6
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
7
 Start Valve for Pumping Units GM 9100010190 Start Valve for Pumping Units GM €7.89
8
 Head for Air Compressors FIAC COSMOS S 225-255 9101410070 Head for Air Compressors FIAC COSMOS S 225-255 €30.64
9
 Head Gasket for Air Compressors FIAC COSMOS S 225-255 9101410080 Head Gasket for Air Compressors FIAC COSMOS S 225-255 €2.91
10
 photo_cameraImage coming soon 9100010240 plate €27.84
11
 Valves Plate Gasket for Pumping units FIAC GM 142-143 9100010080 Valves Plate Gasket for Pumping units FIAC GM 142-143 €4.34
12
 photo_cameraImage coming soon 9100010370 valve €4.23
13
 Cylinder Head Gasket for Air Compressors FIAC COSMOS S 225-255 9101410090 Cylinder Head Gasket for Air Compressors FIAC COSMOS S 225-255 €1.51
14
 photo_cameraImage coming soon 9101410060 cylinder €25.56
15
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
16
 Cylinder Gasket for Pumping Units FIAC GM 142 7078150000 Cylinder Gasket for Pumping Units FIAC GM 142 €2.94
18
 photo_cameraImage coming soon 9100580050 piston €15.99
19
 photo_cameraImage coming soon 9100580090 pin €3.91
20
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
21
 Conrod for Pump Units FIAC GM-VX 5050150008 Conrod for Pump Units FIAC GM-VX €27.33
22
 photo_cameraImage coming soon 9101410030 cap €16.89
23
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
25
 photo_cameraImage coming soon 9101410050 crank €20.54
26
 Pump Unit PVC Cover for Air Compressors Fiac Cosmos 225-255 S 9100030090 Pump Unit PVC Cover for Air Compressors Fiac Cosmos 225-255 S €31.27
28
 photo_cameraImage coming soon 9101410020 crankcase cover €14.64
29
 photo_cameraImage coming soon 7012160000 screw €1.48
30
 photo_cameraImage coming soon 9700010187 screw M5x14 €1.44
31
 O-Ring (110,7X3,53) for Pump Unit FIAC GM 142 9700000016 O-Ring (110,7X3,53) for Pump Unit FIAC GM 142 €2.29
32
 Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €4.30
33
 photo_cameraImage coming soon 9101410010 CARTER GM 172 €49.91
35
 photo_cameraImage coming soon 9101410130 STATORE AVV.V.230 / 50-H.55 GM 142 €162.38
36
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
37
 Capacitor 25 mf for Air Compressors 7310590000 Capacitor 25 mf for Air Compressors €26.97
38A
 photo_cameraImage coming soon 9700010184 washer Ø8 €1.44
40
 photo_cameraImage coming soon 9100010060 prisoner M6x139 €1.48
41
 Motor Fan for Pumping Units GM 142-192 9100010200 Motor Fan for Pumping Units GM 142-192 €15.06
42
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
43
 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S 9100010050 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S €1.28
50
 photo_cameraImage coming soon 9700010250 Tank €1.38
51
 Tank Cap for Pumping Unit Fiac Cosmos 225S-250S 9100010750 Tank Cap for Pumping Unit Fiac Cosmos 225S-250S €5.39
52A
 Rubber Foot for Air Compressor FIAC Cosmos 50 7360040000 Rubber Foot for Air Compressor FIAC Cosmos 50 €4.34
52
 Rubber Footh for Air Compressors Black & Decker CP 2525 - CP 5050 9100010380 Rubber Footh for Air Compressors Black & Decker CP 2525 - CP 5050 €9.12
53
 Drain Valve D. 3/8" for Air Compressors Fiac COSMOS 225 S-255 S 9700000324 Drain Valve D. 3/8" for Air Compressors Fiac COSMOS 225 S-255 S €7.17
54
 Wheel D.150X20X55 for Air Compressor Black & Decker CP5050 9700010077 Wheel D.150X20X55 for Air Compressor Black & Decker CP5050 €8.64
55
 Black & Decker CP5050 Wheel Pin 9700010192 Black & Decker CP5050 Wheel Pin €5.88
56
 photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
57
 photo_cameraImage coming soon 7030040000 Washer Ø10 UNI-6592 €1.45
58
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
59
 photo_cameraImage coming soon 9100010400 power cable €12.65
60
 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
61
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
62
 Aluminium Pipe Nut 3/8" for Air Compressor FIAC COSMOS 225-255 S 9700000327 Aluminium Pipe Nut 3/8" for Air Compressor FIAC COSMOS 225-255 S €2.48
63
 Aluminium Pipe for Air Compressor FIAC COSMOS 255 S 9700000343 Aluminium Pipe for Air Compressor FIAC COSMOS 255 S €12.15
64
 photo_cameraImage coming soon 7024140000 Nut 3/8 " €4.11
65
 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 7041070000 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 €4.37
66
 FIAC Safety Valve M1-4-9Bar 9700000303 FIAC Safety Valve M1-4-9Bar €10.71
67
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
68
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
69
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
71
 photo_cameraImage coming soon 9700000276 universal tap €16.78
72
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
73
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
100
 Valve Plate Kit for Pump Unit FIAC GM 142 7459480000 Valve Plate Kit for Pump Unit FIAC GM 142 €26.28
101
 Fiac Conrod-Piston Kit D.42MM 4190330000 Fiac Conrod-Piston Kit D.42MM €66.03
102
 Gaskets Set for Pump Unit FIAC GM 142 - GM 145 4082380000 Gaskets Set for Pump Unit FIAC GM 142 - GM 145 €6.43
103
 Piston Rings for Pump Unit FIAC Series GM 4080010000 Piston Rings for Pump Unit FIAC Series GM €28.26
104
 photo_cameraImage coming soon 9101410150 GR.ALBERO ROTOR-54,2X55-GM 142 €121.32
105
 Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP 7181150000 Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP €10.95
106
 photo_cameraImage coming soon 9700000157 Head Kit €30.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Air Compressor Cosmos 255 Spare Parts

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type COSMOS COSMOS 255 - FJ 07-09-28.

In the following table , look for the type of the air compressor and the respective parts of the code .
COSMOS 255 FJ 07-09-28

FIAC COSMOS 255 FJ 07-09-28 Spare Parts
COSMOS 255 ROSSO WILKINSON UK - 1129500594
#
Part Num.
 Description
1
7011220000
 Screw
1A
9700010186
 Washer
2
7084040000
 Joint
3
 7458340000 Plate
4
 7210010000 Filtering element
5
 7210430000 Intatake filter
6
7012100000
 Screw
7
 9100010190 START valve 1.7Bar
8
 head
9
 9101410080 Gasket
10
9100010240
 Valve plate
11
 9100010080 Gasket
12
9100010370
 Valve
13
 9101410090 Gasket
14
9101410060
 Cylinder
15
7020070000
 Nut
16
 7078150000 Gasket 1mm
18
9100580050
 Piston
19
9100580090
 Piston pin
20
 7041010000 Seeger D12
21
 Con rod
22
9101410030
 Rear Cover
23
 Bearing
25
9101410050
 Counter weight
26
 Plastic schroud Black
28
9101410020
 Carter cover
29
7012160000
 Screw
30
9700010187
 Screw
31
 O-Ring (110,7X3,53)
32
 Oil seal
33
9101410010
 Cranckcase
35
9101410130
 Stator
36
7060010000
 Bearing
37
 Capacitor
38
9700010188
 Nut M8
38A
9700010184
 Washer
40
9100010060
 Tension rod M6x138x25
41
 Fan
42
7013060000
 Screw
42A
9700010183
 Washer
43
 9100010050 Stud bolt M8x36
50
9700010250
 Tank
51
 Plug
52
 Rubber D20
52A
 Rubber D25
53
 Discharge tap
54
 Wheel D150
55
 Wheel Pin
56
7020080000
 Nut
57
7030040000
 Washer
58
7012290000
 Screw
59
9100010400
 Infeed cable SHUKO
60
 Non reture valve
61
 Rilsan hose
62
 9700000327 Nut
63
 Infeed hose
64
7024140000
 Nut
65
 Spinner
66
 Safety valve 9Bar
67
 Pressure switch 8 bar CE
68
7081090000
 Joint
69
 Pressure reducer
71
9700000276
 Universal coupling (Zinc)
72
 Pressure gauge D40
73
 Pressure gauge D50
100
 7459480000 Set of valve plate
101
 Conrod-Piston Kit
102
 Set of gaskets
103
 Piston ring Kit
104
9101410150
 Cranckshaft with rotor
105
 Oil dipstick+O-ring Kit Black
106
9700000157
 Head Kit
107
9700010004
 Wheel Kit D125
108
9700000577
 Pressure switch Kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
COSMOS 255
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Fiac Cosmos 255 Drawing

Fiac Cosmos 255 Drawing

Download (385.06KB)

You might also like

Dipstick level Oil for Pump Unit and Compressors GM-Cosmos
FIAC spa SKU: 9100010170
Dipstick level Oil for Pump Unit and Compressors GM-Cosmos
Dipstick level Oil for Pump Unit and Compressors GM-Cosmos Original parts FIAC, Dipstick with Oil Tap for Pump Units GM142 - GM143 - GM192 - GM193 - GM244, Compressors COSMOS S 225-255. Part for the following products: - Pump...
AVAILABLE €10.47
Details
Motor Fan for Pumping Units GM 142-192
FIAC spa SKU: 9100010200
Motor Fan for Pumping Units GM 142-192
Motor Fan for Pumping Units GM 142-192 Genuine part FIAC, Motor fan for pump units GM 142 - GM 145 - GM 192 - GM 193 - Air Compressors Colibri' GM 192 - FX 90 1300 W - COSMOS 225 S. Part...
AVAILABLE €15.06
Details
Conrod for Pump Units FIAC GM-VX
FIAC spa SKU: 5050150008
Conrod for Pump Units FIAC GM-VX
Conrod for Pump Units FIAC GM-VX Genuine part FIAC, Conrod Entirely Made in aluminum, for Pump Units FIAC GM-VX prepared with lubrication holes. Part for the following products: - GM 110 15 BAR validity date - from...
Last items in stock €27.33
Details
Oil Seal for Pumping Units FIAC AB248-338-360
FIAC spa SKU: 9100270150
Oil Seal for Pumping Units FIAC AB248-338-360
Oil Seal for Pumping Units FIAC AB248-338-360 Genuine spare part FIAC, Oil Seal for Pump units FIAC AB248-360 Parts for the following products: - Pump unit AB 248-338 - Pump unit AB 360 - GM 145 validity date - from...
AVAILABLE €4.30
Details
Capacitor 20 mf for Air Compressors
FIAC spa SKU: 7310100000
Capacitor 20 mf for Air Compressors
Capacitor 20 mf for Air Compressors Original part FIAC, Capacitor 20 mf 450 V for Air Compressors 6-10-24-50 liters, with pumping units with electric motor 750-1300-1500W. Part for the following products: - For all types of...
AVAILABLE €22.94
Details
Oil for Air Compressors 25-50 Lt
Axel Group SKU: OlioCompressore
Oil for Air Compressors Engines
Oil for Air Compressors Engines Special Oil for 4-stroke Engines XP-LINE SAE-30 Special oil for the lubrication of high performance engines. Suitable for gasoline with and without lead. it does not generate encrustations, low...
Last items in stock €7.59
Details
Head for Air Compressors FIAC COSMOS S 225-255
FIAC spa SKU: 9101410070
Head for Air Compressors FIAC COSMOS S 225-255
Head for Air Compressors FIAC COSMOS S 225-255 Genuine part FIAC, Head New! for Air Compressors 225 S - 255 S - Pumping unit GM 142 - GM 145. Parts for the following compressors: - Pleae Note! for this head buy the gasket:...
AVAILABLE €30.64
Details
Head Gasket for Air Compressors FIAC COSMOS S 225-255
FIAC spa SKU: 9101410080
Head Gasket for Air Compressors FIAC COSMOS S 225-255
Head Gasket for Air Compressors FIAC COSMOS S 225-255 Genuine part FIAC, Head Gasket  for Air Compressors COSMOS 225 S - 255 S - Pumping unit GM 142 - 145 GM. Parts for the following compressors: - Air Compressor COSMOS 225 S validity...
AVAILABLE €2.91
Details
Aluminium Pipe for Air Compressor FIAC COSMOS 255 S
FIAC spa SKU: 9700000343
Aluminium Pipe for Air Compressor FIAC COSMOS 255 S
Aluminium Pipe for Air Compressor FIAC COSMOS 255 S Genuine part FIAC, Aluminium Pipe for Air Compressors FIAC COSMOS 255 S - MICHELIN MB 50 GM142 - BLACK & DECKER CP 5050. Parts for the following products: - Air Compressor FIAC...
AVAILABLE €12.15
Details
Cylinder Carter Gasket for Air Compressors FIAC AB 410-510-512
SKU: 7078150000
Cylinder Gasket for Pumping Units FIAC GM 142
Cylinder Gasket for Pump Units FIAC GM 142 Original replacement part FIAC, Cylinder gasket for pump units FIAC GN - VS 254 S - VS 254 S - VX. Part for the following products: - COSMOS 225  - COSMOS 225...
AVAILABLE €2.94
Details
Tank Cap for Pumping Unit Fiac Cosmos 225S-250S
FIAC spa SKU: 9100010750
Tank Cap for Pumping Unit Fiac Cosmos 225S-250S
Tank Cap for Pumping Unit Fiac Cosmos 225S-250S Genuine spare part FIAC, Tank Cap for Pumping Unit Cosmos 225S/250S, Black&Decker CP 2525/5050. Part for the following products: - Pumping Unit COSMOS 225 S  - Pumping Unit COSMOS...
AVAILABLE €5.39
Details
Cylinder Gasket for Air Compressors FIAC GM 142
SKU: 9100580020
Piston Ring AC42 for Air Compressors Fiac 225S - 255S
Piston Ring AC42 for Air Compressors Fiac 225S - 255S Fiac Genuine part, Piston Ring AC42 for Air Compressors Fiac 225S - 255S - TTV GM 172 FJ - GM 143, Black e Decker CP 2525S/5050S. Ricambi per i seguenti prodotti Fiac: - Air...
on 7/10 Business Days Approx. €6.15
Details
Capacitor 25 mf for Air Compressors
FIAC spa SKU: 7310590000
Capacitor 25 mf for Air Compressors
Capacitor 25 mf for Air Compressors Original part FIAC, Capacitor 25 mf 450 V for Air Compressors 6-10-24-50 liters, with pumping units with electric motor 750-1300-1500W. Part for the following products: - For all types of...
AVAILABLE €26.97
Details
Aluminium Pipe for Air Compressor FIAC COSMOS 225 S
FIAC spa SKU: 9700000342
Aluminium Pipe for Air Compressor FIAC COSMOS 225 S
Aluminium Pipe for Air Compressor FIAC COSMOS 225 S Genuine part FIAC, Aluminium Pipe for Air Compressors FIAC COSMOS 225 S - MICHELIN MB 24 GM142 - BLACK & DECKER CP 2525. Parts for the following products: - Air Compressor FIAC...
AVAILABLE €12.15
Details
Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S
FIAC spa SKU: 9100010050
Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S
Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S Original Part FIAC, Stud Bolt M8x35x14x16 Zincplated for Air Compressors Cosmos 225 S - 255 S - Colibri' GM 192. Part for the following products: - Air Compressor Cosmos 225 S...
AVAILABLE €1.28
Details
O-Ring (110,7X3,53) for Pump Unit FIAC GM 142
FIAC spa SKU: 9700000016
O-Ring (110,7X3,53) for Pump Unit FIAC GM 142
O-Ring (110,7X3,53) for Pump Unit FIAC GM 142 Genuine part FIAC, O-Ring (110,7X3,53) for Pump Units GM 142 - GM 145 - Air Compressor Michelin MB 50_GM145 Part for the following Pump Units: - ...
AVAILABLE €2.29
Details
Black & Decker CP5050 Wheel Pin
FIAC spa SKU: 9700010192
Black & Decker CP5050 Wheel Pin
Black & Decker CP5050 Wheel Pin D.20x57MM Original spare Black & Decker, Wheel Pin D.20x57MM for Air Compressors B&D CP5050 - Michelin MB50 GM145 - FIAC Cosmos 255. Part for the following products: -  Black & Decker Air...
AVAILABLE €5.88
Details
Fiac Conrod-Piston Kit D.42MM
FIAC spa SKU: 4190330000
Fiac Conrod-Piston Kit D.42MM
Fiac Conrod-Piston Kit D.42MM Genuine replacement part FIAC, Conrod-Piston Kit D.42MM for Pump Units FIAC GM Series. Part for the following products: PUMP UNITS - Fiac GM110 15 BAR - da 27/02/2003 - Fiac GM142 - Aluminium -...
AVAILABLE €66.03
Details
FIAC Safety Valve M1-4-9 Bar
FIAC spa SKU: 9700000303
FIAC Safety Valve M1-4-9Bar
FIAC Safety Valve M1/4 - 9 Bar Genuine replacement part FIAC, Safety Valve M1/4 - 9 Bar for Air Compressors FIAC - MICHELIN Black&Decker. Parts for the following products: - Air Compressor COSMOS 225 S - da 10/01/2011 - Air...
AVAILABLE €10.71
Details
Comments (0)
