FIAC EASY 1100 Spare Parts

SKU: EASY 1100 1129100572
€146.75
VAT included

FIAC EASY 1100 F3002 Spare Parts

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Air Compressor EASY 1100 1129100572.
FIAC EASY 1100 Spare Parts
  • FIAC EASY 1100 Spare Parts
  • FIAC EASY 1100 Spare Parts - Drawing

FIAC EASY 1100 Spare Parts

SKU: EASY 1100 1129100572 Condition: New
€146.75
VAT included

FIAC EASY 1100 F3002 Spare Parts

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Air Compressor EASY 1100 1129100572.
settings 32 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Last items in stock

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

32 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
FIAC Pump Unit F3002 1129704342 FIAC Pump Unit F3002 €257.46 €146.75 -43%
2
photo_cameraImage coming soon 9700002605 FITTING €14.58
3A
photo_cameraImage coming soon 7010650000 Screw M4x25 UNI-1447 €1.48
3
photo_cameraImage coming soon 9700001816 COVER €4.36
4
photo_cameraImage coming soon 7310670000 Capacitor MF0,22 €24.78
5
photo_cameraImage coming soon 9700001707 Rilsan Hose €7.95
7
photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
8
FIAC EASY 1100 Pressure Reducer 1129704345 FIAC EASY 1100 Pressure Reducer €59.52
8A
photo_cameraImage coming soon 9700003699 KNOBS €14.58
9
FIAC Safety Valve M1-4-9Bar 9700000303 FIAC Safety Valve M1-4-9Bar €10.71
10
”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 7084240000 ”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 €12.09
11
photo_cameraImage coming soon 1127110008 PRESSURE GAUGE D40 X R1/4 AL €7.46
12
photo_cameraImage coming soon 9700000276 universal tap €16.78
13
photo_cameraImage coming soon 2234900034 HOUSING €13.31
13A
photo_cameraImage coming soon 2234900035 PANEL €4.04
14
photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
15
photo_cameraImage coming soon 7300370000 Switch €14.39
18
FIAC F205 Drain Tap 1/4" 7130090000 FIAC F205 Drain Tap 1/4" €10.00
19
Fiac AIRBOX2 Pressure Switch 9700002262 Fiac AIRBOX2 Pressure Switch €28.12
20
photo_cameraImage coming soon 9700001528 CHECK VALVE €30.05
21
photo_cameraImage coming soon 9700000633 wishbone Ø10 €1.48
22
photo_cameraImage coming soon 9700000634 Nut €1.38
23
photo_cameraImage coming soon 1129704347 INFEED HOSE €10.64
24
photo_cameraImage coming soon 9700000631 NUT €1.38
25
photo_cameraImage coming soon 1129702649 THIN WIRE €6.71
26
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
29
photo_cameraImage coming soon 2234900033 HOUSING €13.31
30
photo_cameraImage coming soon 1129704351 POWER CABLE €10.77
31A
photo_cameraImage coming soon 9700001057 Screw €1.42
32
photo_cameraImage coming soon 7270080000 Sucker €11.04
34A
photo_cameraImage coming soon 1127010229 SCREW €1.38
35
photo_cameraImage coming soon 7311450000 BAND €1.42
36
photo_cameraImage coming soon 7010650000 Screw M4x25 UNI-1447 €1.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC EASY 1100 F3002 Spare Parts

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Air Compressor EASY 1100 1129100572.

In the following table , look for the model of the pumping unit and the respective parts of the code .
Fiac EASY 1100 1129100572
Fiac Air Compressor EASY 1100 1129100572 Spare Parts
# Part Num. Description
1 1129704342 PUMP UNIT
2 9700002605 FITTING
3 9700001816 CONVEYOR
3A 7010650000 SCREW
4 7310670000 NOISE SUPPRESSOR MF0,22
5 9700001707 RILSAN TUBE
6 1129704343 SUPPORT
7 7011460000 SCREW
8 1129704345 PRESSURE REDUCER
8A 9700003699 KNOBS
9 9700000303 RELIEF VALVE
10 7084240000 FITTING
11 1127110008 PRESSURE GAUGE
12 9700000276 SNAP COCK
13 2234900034 HOUSING
13A 2234900035 PANEL
14 7012090000 SCREW
15 7300370000 SWITCH
16 1129701693 SCREW
17 1129704576 TANK
18 7130090000 DISCHARGE TAP
19 9700002262 PRESSURE SWITCH
20 9700001528 CHECK VALVE
21 9700000633 OGIVE
22 9700000634 NUT
23 1129704347 INFEED HOSE
24 9700000631 NUT
25 1129702649 THIN WIRE
26 7230010000 RILSAN TUBE
27 1129704827 SCREW
28 9700010183 WASHER
29 2234900033 HOUSING
30 1129704351 POWER CABLE
31 9700001171 SCREW
31A 9700001057 SCREW
32 7270080000 RUBBER FOOT
33 9701192003 WASHER
33A 7030050000 WASHER
34 1129702607 SCREW
34A 1127010229 SCREW
35 7311450000 CABLE CLIP
36 7010650000 SCREW
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
EASY 1100 1129100572
2 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

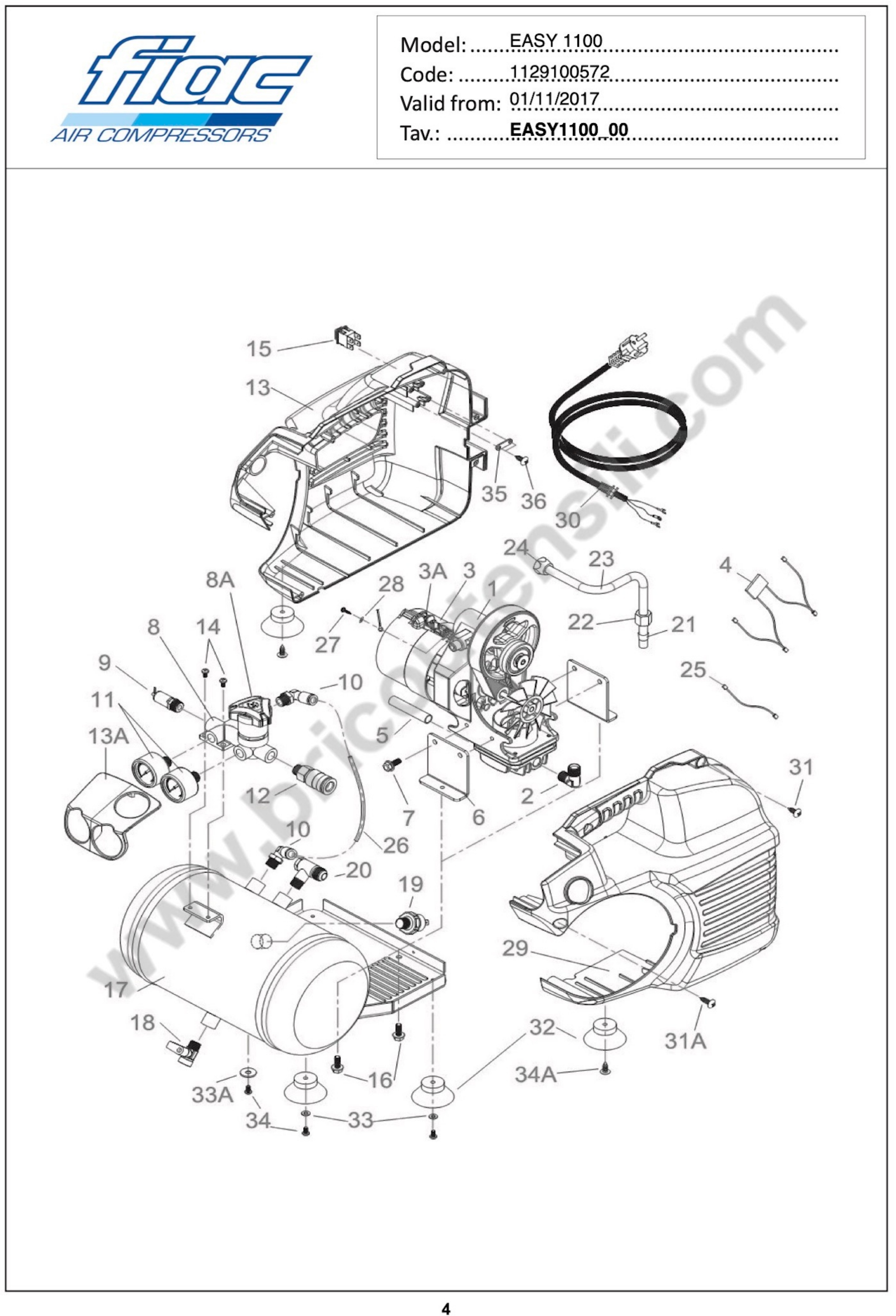

Fiac EASY 1100 F3002 Drawing

Fiac EASY 1100 F3002 Drawing

Download (363.02KB)
