FIAC spa

FIAC Air Compressor SA 850 Spare Parts

SKU: Fiac SA850 1700552000
€66.89
VAT included

FIAC Air Compressor SA 850 Spare Parts

We are FIAC PROFESSIONAL AIR COMPRESSORS original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance for Air Compressor SA 850 - THREE PHASE V400-50/3 cod. 1700552000.
FIAC Air Compressor SA 850 Spare Parts - Compressor Diagram
  • FIAC Air Compressor SA 850 Spare Parts - Compressor Diagram
  • FIAC Air Compressor SA 850 Spare Parts - Pump Unit Diagram
FIAC spa

FIAC Air Compressor SA 850 Spare Parts

SKU: Fiac SA850 1700552000 Condition: New
€66.89
VAT included

FIAC Air Compressor SA 850 Spare Parts

We are FIAC PROFESSIONAL AIR COMPRESSORS original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance for Air Compressor SA 850 - THREE PHASE V400-50/3 cod. 1700552000.
settings 107 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
107 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

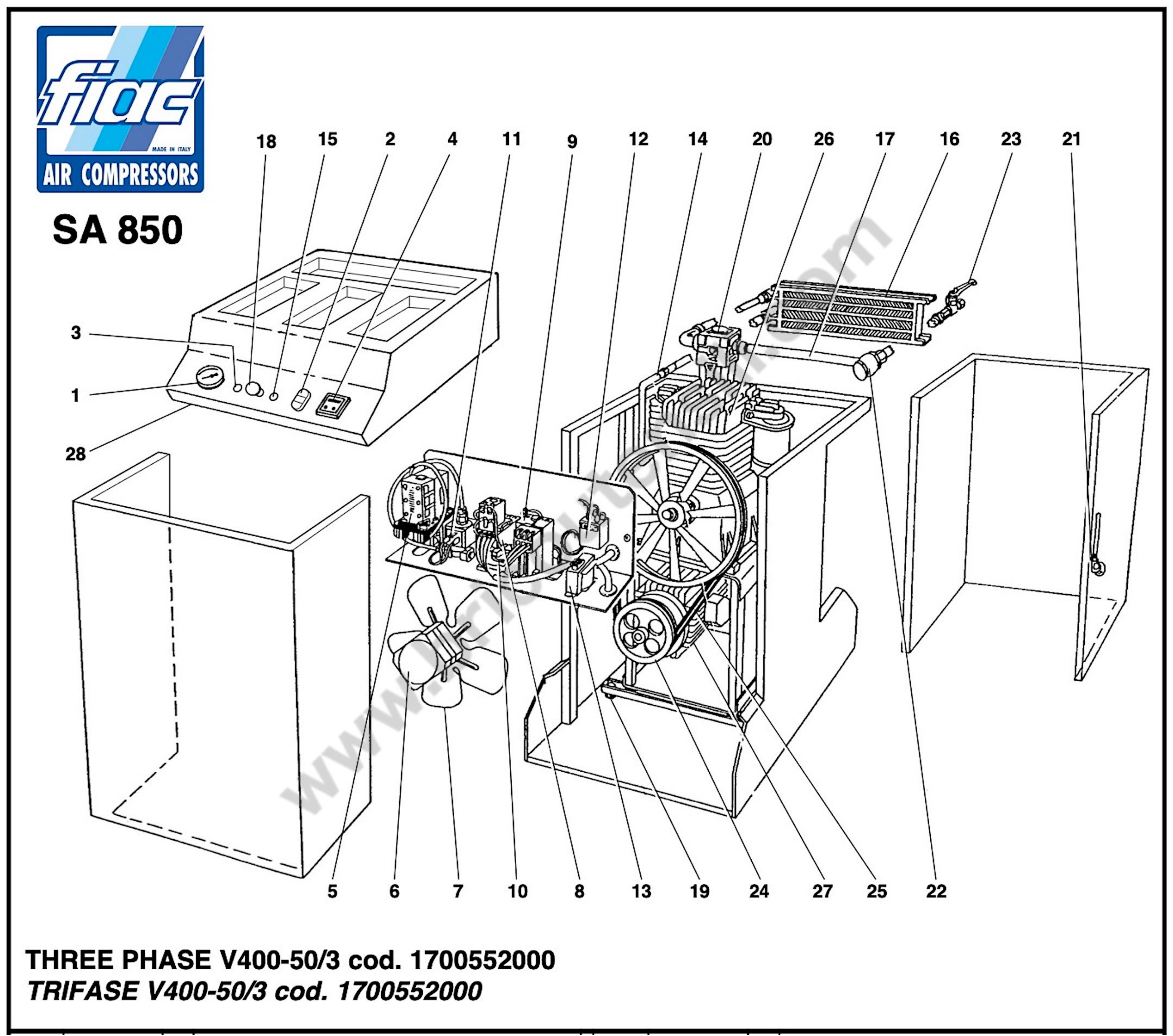

Esploso pagina 1
Pos. Item Price Buy
1
 Pressure Gauge for Silenced Compressor Fiac SA 410-300 7111030000 Pressure Gauge for Silenced Compressor Fiac SA 410-300 €66.89
2
 photo_cameraImage coming soon 7300190000 ON/OFF switch €116.78
3
 photo_cameraImage coming soon 7432060000 Lamp €28.19
4
 photo_cameraImage coming soon 7563510000 Hour meter €48.17
5
 FIAC Pressure Switch MDR 53/16 (CONDOR) 7250410000 FIAC Pressure Switch MDR 53/16 (CONDOR) €142.94
6
 photo_cameraImage coming soon 7381800000 Single phase Motor €100.19
7
 photo_cameraImage coming soon 7200110000 Fan €19.37
8
 photo_cameraImage coming soon 7431700000 Contactor €127.82
9
 photo_cameraImage coming soon 7550060000 Thermal relay €229.88
10
 photo_cameraImage coming soon 7431650000 Coil contactor (220 V) €38.56
11
 Solenoid for Silenced Compressor Fiac SA 410-300 7194070000 Solenoid for Silenced Compressor Fiac SA 410-300 €114.47
12
 photo_cameraImage coming soon 7563760000 Thermostat €67.66
13
 photo_cameraImage coming soon 1127560381 Transformer €141.00
14
 photo_cameraImage coming soon 7235680000 Pipe €79.75
15
 photo_cameraImage coming soon 7432050000 Green lamp €19.71
16
 photo_cameraImage coming soon 7517040000 Radiator €364.02
17
 photo_cameraImage coming soon 7235310000 Pipe €48.17
19
 Shock Absorber for Silenced Compressor Fiac SA 670 7364200000 Shock Absorber for Silenced Compressor Fiac SA 670 €6.72
20
 photo_cameraImage coming soon 7100370000 Filter discharger €384.44
21
 photo_cameraImage coming soon 4092870000 Condensate discharge valve €89.36
22
 photo_cameraImage coming soon 7190150000 Check valve FM 1.2 " €38.30
23
 photo_cameraImage coming soon 7130150000 MF ball valve 1/2 " €23.60
24
 photo_cameraImage coming soon 7408830000 Pulley €50.77
25
 photo_cameraImage coming soon 7370490000 Belt €17.75
26
 photo_cameraImage coming soon 3020920000 AB 670 Unit €825.16
27
 photo_cameraImage coming soon 7380120000 Three-phase motor €715.89
28
 photo_cameraImage coming soon 7155220000 Plastic cover €303.87
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

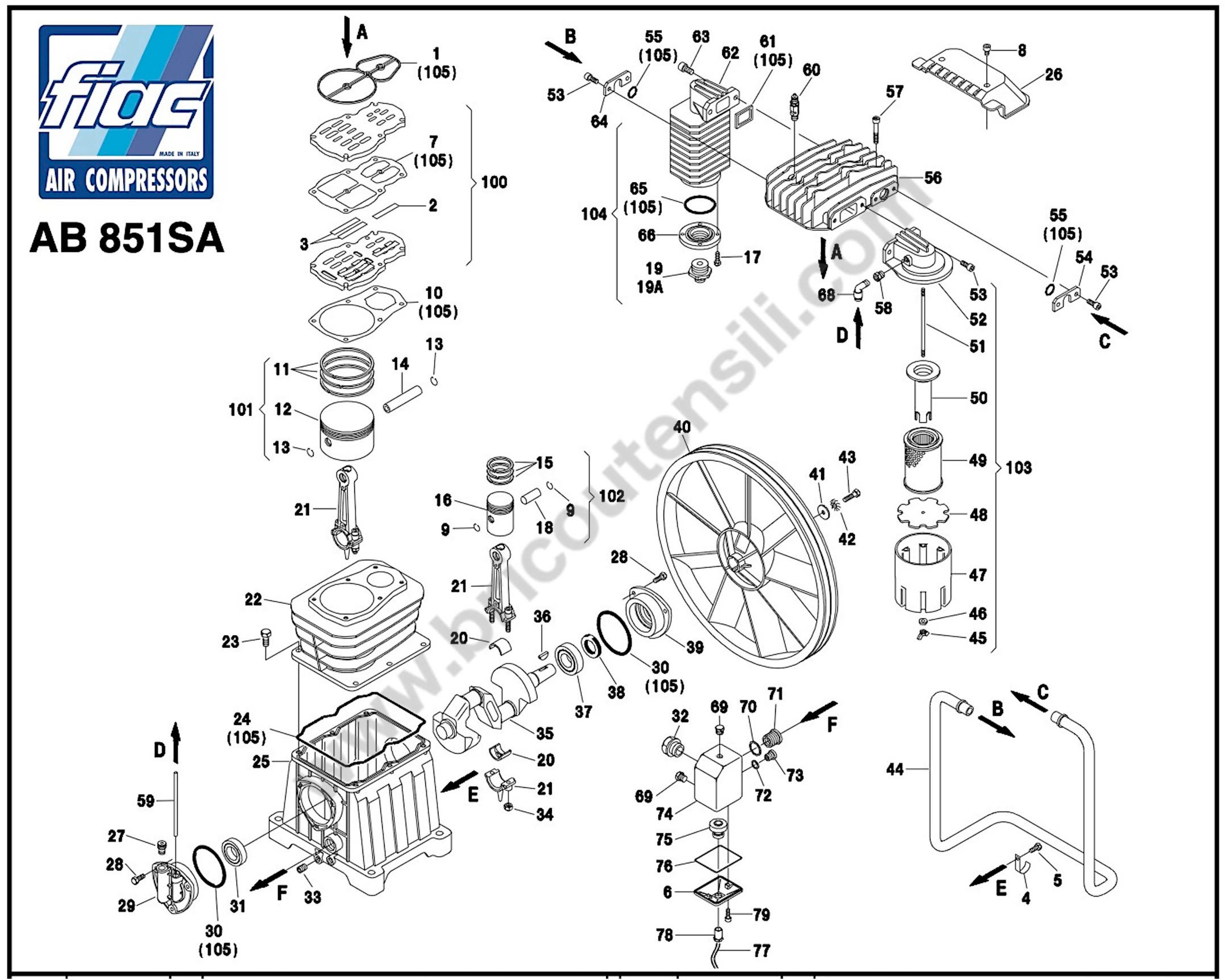

Esploso pagina 2
Pos. Item Price Buy
1
 Valves Plate-Head Gasket for Pump Units FIAC AB 671-851 7079610000 Valves Plate-Head Gasket for Pump Units FIAC AB 671-851 €11.91
2
 photo_cameraImage coming soon 7199130000 Valve €7.46
3
 photo_cameraImage coming soon 7199140000 Valve €8.87
4
 photo_cameraImage coming soon 7458910000 band €4.52
5
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
6
 photo_cameraImage coming soon 7650130000 Cover €4.56
7
 Valves Plate-Valves Plate Gasket for Pump Units FIAC AB 671-851 7079600000 Valves Plate-Valves Plate Gasket for Pump Units FIAC AB 671-851 €8.59
8
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
9
 photo_cameraImage coming soon 7040140000 Seeger Ø18 UNI-7437 €4.48
10
 Cylinder-Valves Plate Gasket for Pump Units FIAC AB 671-851 7079590000 Cylinder-Valves Plate Gasket for Pump Units FIAC AB 671-851 €16.23
11
 Piston Ring Set 105 mm for Pump Units FIAC AB 671-851 4080090000 Piston Ring Set 105 mm for Pump Units FIAC AB 671-851 €58.91
12
 Piston LP for Pump Units FIAC AB 678-858 7220140000 Piston LP for Pump Units FIAC AB 678-858 €61.19
13
 photo_cameraImage coming soon 7040140000 Seeger Ø18 UNI-7437 €4.48
14
 Piston Pin 18x94 for Pump Units FIAC AB 678-858 7050150000 Piston Pin 18x94 for Pump Units FIAC AB 678-858 €9.91
15
 Piston Rings for Pumping Units FIAC AB 671-AB 851 4080080000 Piston Rings for Pumping Units FIAC AB 671-AB 851 €40.68
16
 FIAC AB858 HP Piston 7220120000 FIAC AB858 HP Piston €80.84
17
 photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
18
 Piston Pin 18x42 for Pump Unit FIAC AB 550 7050130000 Piston Pin 18x42 for Pump Unit FIAC AB 550 €10.67
19A
 photo_cameraImage coming soon 7080160000 Fitting "L" 1/2 €11.84
19
 photo_cameraImage coming soon 7085110000 Fitting 1 "-1/2" MF €6.04
20
 Connecting Rod Bearing for Air Pump Units Fiac AB 671 - AB 851 7062170000 Connecting Rod Bearing for Air Pump Units Fiac AB 671 - AB 851 €19.72
21
 Conrod Assy for Air Pump Units Fiac AB 671 - AB 851 4190370008 Conrod Assy for Air Pump Units Fiac AB 671 - AB 851 €83.03
22
 FIAC AB678 Cylinder 5060720008 FIAC AB678 Cylinder €229.24
23
 photo_cameraImage coming soon 7011160000 Screw M10x30 UNI-5739 €1.52
24
 Fiac AB 671 Crankcase - Cylinder Gasket 7079410000 Fiac AB 671 Crankcase - Cylinder Gasket €11.85
25
 photo_cameraImage coming soon 5070310008 Carter - Carter €305.03
26
 Air Baffle for Pump Unit FIAC AB851 7153050000 Air Baffle for Pump Unit FIAC AB851 €9.90
27
 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 7091120000 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 €4.34
28
 photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
29
 FIAC AB678 Holder Oil Cap 5082090008 FIAC AB678 Holder Oil Cap €30.83
30
 O-Ring 82x2 for Pumping Units FIAC AB 671 - 851 - 901 7070290000 O-Ring 82x2 for Pumping Units FIAC AB 671 - 851 - 901 €1.52
31
 Crank Shaft Ball Bearing for Pumping Units FIAC AB 671-678 7060160000 Crank Shaft Ball Bearing for Pumping Units FIAC AB 671-678 €20.38
32
 Fiac AB598 Pump Unit Oil Sight Glass 7180060000 Fiac AB598 Pump Unit Oil Sight Glass €6.57
33
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
34
 photo_cameraImage coming soon 7022040000 Nut M8 DIN-980 €1.52
35
 Crank Shaft for Pump Unit FIAC AB 851 5041150008 Crank Shaft for Pump Unit FIAC AB 851 €208.18
36
 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 7051520000 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 €10.13
37
 Main Bearing (6206) 9170020 0502210600 Main Bearing (6206) 9170020 €41.24
38
 Oil Seal for Pumping Units FIAC AB 671-AB 901-981 7071130000 Oil Seal for Pumping Units FIAC AB 671-AB 901-981 €5.89
39
 FIAC AB678 Crankshaft Holder 5082050008 FIAC AB678 Crankshaft Holder €30.83
40
 photo_cameraImage coming soon 7201240000 flywheel €252.19
41
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
42
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
44
 Fiac AB670-850 Cooler Kit 7230750000 Fiac AB670-850 Cooler Kit €94.03
45
 photo_cameraImage coming soon 7024150000 A nut M6 GALLETTO €1.52
46
 photo_cameraImage coming soon 7031030000 Washer Ø6 UNI-3703 €1.52
47
 Air Filter Holder for Pumping Units Fiac AB 671 - AB 851 7210270000 Air Filter Holder for Pumping Units Fiac AB 671 - AB 851 €54.50 Not available for order
48
 Filter Element For Pumping Units FIAC AB 671-851-901-981 7210280000 Filter Element For Pumping Units FIAC AB 671-851-901-981 €10.43
49
 Air Filter For Pumping Units FIAC AB 671-851-901-981 7210260000 Air Filter For Pumping Units FIAC AB 671-851-901-981 €26.62
50
 Air Filter Sleeve For Pumping Units FIAC AB 671-851-901-981 7210290000 Air Filter Sleeve For Pumping Units FIAC AB 671-851-901-981 €7.53
51
 photo_cameraImage coming soon 7015160000 rod M6X160 €1.52
52
 photo_cameraImage coming soon 5130070008 collector €26.55
53
 photo_cameraImage coming soon 7010050000 Screw M8X20 UNI-5931 €1.52
54
 photo_cameraImage coming soon 7458460000 plate €7.46
55
 O-Ring 17.12 X 2.62 for Air Compressors Unit Fiac AB 450 - 550 - 800 7070260000 O-Ring 17.12 X 2.62 for Air Compressors Unit Fiac AB 450 - 550 - 800 €4.37
56
 Head for Pump Units FIAC AB 671-851-901 5030590008 Head for Pump Units FIAC AB 671-851-901 €83.48
57
 photo_cameraImage coming soon 7010060000 Screw M8x45 UNI-5931 €1.52
58
 photo_cameraImage coming soon 7085210000 Fitting 1 / 4-1 / 8 FM €5.60
59
 photo_cameraImage coming soon 7230020000 Tube Rilsan Ø8X6 €7.46
60
 Safety Valve M1/4-6 bar for Pumping Units Fiac 7192350000 Safety Valve M1/4-6 bar for Pumping Units Fiac €13.02
61
 FIAC AB851 Cooler Gasket 7079250000 FIAC AB851 Cooler Gasket €7.47
62
 photo_cameraImage coming soon 5130090008 cooler €58.10
63
 photo_cameraImage coming soon 7010220000 Screw M10x25 UNI-5931 €1.52
64
 photo_cameraImage coming soon 7458420000 plate €6.04
65
 FIAC AB851 O-Ring 4200 7070140000 FIAC AB851 O-Ring 4200 €2.59
66
 photo_cameraImage coming soon 5131030008 Reduction €23.81
68
 photo_cameraImage coming soon 7080070000 JOINT €4.92
69
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
70
 photo_cameraImage coming soon 7078730000 Gasket €5.07
71
 photo_cameraImage coming soon 7018270000 Pin €16.71
72
 photo_cameraImage coming soon 7078720000 Gasket €3.77
73
 photo_cameraImage coming soon 7018280000 Pin €19.07
74
 photo_cameraImage coming soon 5131210008 Tank €139.97
75
 photo_cameraImage coming soon 7062750000 Spacer €9.91
76
 photo_cameraImage coming soon 7079490000 Gasket €4.16
77
 photo_cameraImage coming soon 7432200000 Switch €94.22
78
 photo_cameraImage coming soon 7025040000 Nut €13.83
101
 photo_cameraImage coming soon 4291110000 Kit rod / piston €182.57
102
 HP Piston Kit for Air Pump Units Fiac AB 671 - AB 851 4291150000 HP Piston Kit for Air Pump Units Fiac AB 671 - AB 851 €50.04
103
 Suction Filter Kit For Pumping Units FIAC AB 671-851-901-981 4250100000 Suction Filter Kit For Pumping Units FIAC AB 671-851-901-981 €54.50 Not available for order
104
 photo_cameraImage coming soon 4251150000 Kit cooler €128.82
105
 Gaskets Kit for Pump Units Fiac AB 851 - AB 901 4082480000 Gaskets Kit for Pump Units Fiac AB 851 - AB 901 €63.41

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Air Compressor SA 850 Spare Parts

We are FIAC PROFESSIONAL AIR COMPRESSORS original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor SA 850 - THREE PHASE V400-50/3 cod. 1700552000.

In the following table, look for the type of the Compressor and the respective parts of the code.
Fiac AB 500-808 1121550891

FIAC Air Compressor SA 850 Spare Parts Pag.1
THREE PHASE V400-50/3 cod. 1700552000
TRIFASE V400-50/3 cod. 1700552000
# Part Num.
 Description
1 7111030000 Pressure gauge - Manometro
2 7300190000 ON/OFF switch - Pulsante ON/OFF
3 7432060000 Lamp - Spia
4 7563510000 Hour meter - Contaore
5 7250410000 Pressure switch - Pressostato
6 7381800000 Electric motor fan - Motore elettroventola
7 7200110000 Fan - Ventola
8 7431700000 Contactor B12 - Contattore B12 (220 V)
9 7550060000 Thermal relay - Relè termico
10 7431650000 Coil contactor - Bobina contattore (220 V)
11 7194070000 Solenoid valve - Elettrovalvola
12 7563760000 Fan thermostat - Termostato ventola
13 1127560381 Transformer - Trasformatore
14 7235680000 Pipe - Tubo
15 7432050000 Lamp - Spia
16 7517040000 Radiator - Radiatore
17 7235310000 Pipe - Tubo
18 7300080000 Emergency button - Pulsante emergenza
19 7364200000 Shock absorber - Antivibrante
20 7100370000 Filter discharger - Filtro scarico condensa
21 4092870000 Condensate discharge valve - Valvola scarico condensa
22 7190150000 Non return valve - Valvola ritegno
23 7130150000 Tap - Rubinetto
24 7408830000 Pulley - Puleggia
25 7370490000 Belt - Cinghia
26 3020920000 AB 850 Unit - Gruppo AB 850
27 7380120000 7,5 HP Motor - Motore HP 7,5
28 7155220000 Plastic cover - Coperchio
Pump Unit AB 851SA Pag.2
# Part Num. Description
1 7079610000 Gasket - Guarnizione
2 7199130000 Valve - Valvola lamellare a.p.
3 7199140000 Valve - Valvola lamellare b.p.
4 7458910000 Clamp - Fascetta
5 7011460000 Screw - Vite T.E. 6x16 TAP-TITE
6 7650130000 Cover - Coperchio serbatoio olio
7 7079600000 Gasket - Guarnizione piastra piastra
8 7012090000 Screw - Vite
9 7040140000 Ring - Anello
10 7079590000 Gasket - Guarnizione
11 4080090000 Low pressure piston rings - Kit segmenti BP
12 7220140000 Low pressure piston - Pistone BP
13 7040140000 Ring - Anello
14 7050150000 Piston pin - Spinotto
15 4080080000 High pressure piston rings - Kit segmenti
16 7220120000 High pressure piston - Pistone AP
17 7011040000 Screw - Vite T.E. M6x20 UNI5739
18 7050130000 Piston pin - Spinotto
19 7085110000 Joint - Raccordo
19A 7080160000 Joint - Raccordo (per SA)
20 7062170000 Bushing - Boccola
21 4190370008 Con rod Kit - Kit biella completa
22 5060720008 Cylinder - Cilindro
23 7011160000 Screw - Vite T.E. M10x30 UNI5739
24 7079410000 Gasket - Guarnizione
25 5070310008 Carter - Carter
26 7153050000 Conveyor - Convogliatore
27 7091120000 Plug - Tappo
28 7011090000 Screw - Vite T.E. M8x20 UNI5739
29 5082090008 Support - Supporto
30 7070290000 Gasket - Guarnizione
31 7060160000 Bearing - Cuscinetto 6006
32 7180060000 Oil level sight glass - Spia livello olio
33 7090090000 Plug - Tappo
34 7022040000 Selflocking nut - Dado autobloccante M8 DIN980
35 5041150008 Crankshaft - Albero a gomito
36 7051520000 Key - Chiavetta 6x9 UNI6606
37 0502210600 Bearing - Cuscinetto 6206/C2
38 7071130000 Mim ring - Anello SMIM 3047/7
39 5082050008 Support - Supporto
40 7201240000 Flywheel - Volano
41 7030270000 Washer - Rondella
42 7031010000 Toothed washer - Rondella Ø8 UNI3703
43 7011110000 Screw - Vite T.E. M8x25 UNI5739
44 7230750000 Cooler ---> 1124080806 ex 1127230025 ex 7230750000
45 7024150000 Nut - Dado M6 UNI5448-71
46 7031030000 Washer - Rondella Ø6 UNI3703
47 7210270000 Filter Holder Assy ----> 425010000
48 7210280000 Filtering element - Elemento filtrante
49 7210260000 Filter - Filtro
50 7210290000 Sleeve - Cannotto
51 7015160000 Tension rod - Tirante
52 5130070008 Manifold - Collettore
53 7010050000 Screw - Vite T.C.C.E. M8x20 UNI5931
54 7458460000 Stop plate - Piastrina
55 7070260000 OR ring - Anello OR 3068 NBR 70sh
56 5030590008 Head - Testa
57 7010060000 Screw - Vite T.C.C.E. M8x45 UNI5931
58 7085210000 Joint - Raccordo
59 7230020000 Rilsan hose - Tubo rilsan
60 7192350000 Safety valve - Valvola di sicurezza
61 7079250000 Gasket - Guarnizione
62 5130090008 Refrigerator - Refrigeratore
63 7010220000 Screw - Vite T.C.C.E. M10x25 UNI5931
64 7458420000 Stop plate - Piastrina
65 7070140000 O-Ring 4200
66 5131030008 Reduction - Riduzione
68 7080070000 Joint - Raccordo
69 7090090000 Plug - Tappo
70 7078730000 Gasket - Guarnizione
71 7018270000 Pin - Perno 3/8"
72 7078720000 Gasket - Guarnizione
73 7018280000 Pin - Perno 3/4"
74 5131210008 Tank - Serbatoio
75 7062750000 Spacer - Distanziale
76 7079490000 Gasket - Guarnizione
77 7432200000 Switch - Contatto a galleggiante
78 7025040000 Nut - Dado
79 7010010000 Screw - Vite M6x16
100 7459550000 Valve plate group - Gruppo piastra valvole
101 4291110000 Low pressure piston group - Gruppo pistone BP
102 4291150000 High pressure piston group - Gruppo pistone AP
103 4250100000 Filter group - Gruppo filtro aspirazione
104 4251150000 Refrigerator group - Gruppo refrigeratore
105 4082480000 Set of gasket - Kit guarnizioni
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac SA850 1700552000
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
ON DEMAND ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Fiac SA 850 Exploded Diagram

Fiac SA 850 Exploded Diagram

Download (1.01MB)

You might also like

Pumping unit for air compressors Mod MK102/100 Lt
Dari Air Compressors SKU: 41P0017SGL
Pumping unit for air compressors Mod MK102/100 Lt
Pumping unit for air compressors Mod MK102/100 Lt Pumping unit for air compressors Fini/Dari/Fiac 100 Lt lubricated single-stage belt drive. Technical data: - MK 102 Code: 5131690510 - For engines: 1.5 / 2 Hp - Step Air: 235 L / min....
In Stock €250.71
Details
Pumping Unit for Compressor Coaxial Monophase 25/50 Lt -5% Sale
Axel Group SKU: Mono 2 Hp
Pump Unit for Compressors Coaxial Monophase 25/50 Lt
Pump Unit for Compressors Coaxial Monophase 25/50 Lt Pump Unit for coaxial air compressors with drive directed in oil bath by 1500 watts 2 Hp single crankshaft air compressor/motor. - No drive transmission - Conveyed ventilation -...
Last items in stock €102.76 €108.17
Details
Gruppo Pompante per Compressore a Cinghia Mod. MK103/150-200 Lt -5%
FINI S.p.A. SKU: 41P0019SGL
Pumping Unit for Air Compressors Mod MK103/150-200 Lt-200 Lt
Pumping Unit for Air Compressors Mod MK103/150-200 Lt-200 Lt Pumping unit for compressor Fini/Dari/Fiac 150-200 Liters- single stage, lubricated belt drive. - System-cylinder head with large fins for heat dissipation - Tree Elbow...
Last items in stock €278.93 €293.61
Details
Pumping unit for air compressor Mod. AB 268 -10%
FIAC spa SKU: AB268 - 1123020153
Pumping unit for air compressor Mod. AB 268
Pumping unit for air compressor Mod. AB 268 Pump unit for air compressors Fiac 25/50/100/150/200 Liters lubricated single-stage belt drive. - System-head with large ciindro fins for heat dissipation - Ductile iron crankshaft...
AVAILABLE €231.53 €257.25
Details
Pumping unit for air compressor Mod. AB 360 -10%
FIAC spa SKU: AB360 - 9101880000
Pumping unit for air compressor Mod. AB 360
Pumping unit for air compressor Mod. AB 360 Pump unit for air compressors Fiac 100/150/200 Liters lubricated single-stage belt drive. - System-head with large ciindro fins for heat dissipation - Ductile iron crankshaft carefully...
AVAILABLE €240.64 €267.38
Details
Pumping unit for air compressor Mod. AB 415/515 -10%
FIAC spa SKU: AB415/515 - 1129740082
Pumping unit for air compressor Mod. AB 415/515
Pump unit for air compressor Mod. AB 415/515 Pump unit for air compressors Fiac 150/200/300 Liters lubricated single-stage belt drive.  - System-head with large ciindro fins for heat dissipation  - Ductile iron crankshaft...
AVAILABLE €361.02 €401.13
Details
Pumping Unit for air Compressor Mod. AB 525
FIAC spa SKU: AB525 - 1123021005
Pumping Unit for air Compressor Mod. AB 525
Pumping Unit for air Compressor Mod. AB 525 The AB series distinguishes the oil lubricated twin cylinder compressor pumps with single and two stage belt drive. The Fiac compressor pumps have been designed and tested in compliance with...
Last items in stock €540.77
Details
Pumping Unit for air Compressor Mod. AB 858 -5%
FIAC spa SKU: AB858 - 1123020163
Pumping Unit for air Compressor Mod. AB 858
Pump Unit for air Compressor Mod. AB 858 The AB series distinguishes the oil lubricated twin cylinder compressor pumps with single and two stage belt drive. The Fiac compressor pumps have been designed and tested in compliance with...
Last items in stock €863.55 €909.00
Details
Oil Filter for Rotary Screw Fiac Series AIRBLOK
FIAC spa SKU: 7211141150
Oil Filter for Rotary Screw Fiac Series AIRBLOK
Oil Filter for Rotary Screw Fiac Series AIRBLOK Original Part FIAC, Oil Filter for Rotary Screw and Vane Type Air Compressors - AIRBLOK. Part for the following products: - AIRBLOK 10 HP 2008-10-09 Stand Alone - AIRBLOK 10HP 8...
AVAILABLE €39.72
Details
Air Filter for Rotary Screw Fiac Series AIRBLOK
FIAC spa SKU: 7212160010
Air Filter for Rotary Screw Fiac Series AIRBLOK
Air Filter for Rotary Screw Fiac Series AIRBLOK Original Part FIAC, Air Filter Cartridge for Rotary Screw and Vane Type Air Compressors - AIRBLOK. Part for the following products: - AIRBLOK 10 HP 2008-10-09 Stand Alone - AIRBLOK 10HP...
AVAILABLE €41.19
Details
FIAC Spare Parts for Pump Unit AB808
FIAC spa SKU: Fiac AB808 00 1121550891
FIAC Spare Parts for Pump Unit AB808
FIAC Spare Parts for Pump Unit AB808 We are FIAC PROFESSIONAL AIR COMPRESSORS original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to...
build View Spare Parts
Fiac AB 671 Crankcase - Cylinder Gasket
FIAC spa SKU: 7079410000
Fiac AB 671 Crankcase - Cylinder Gasket
Fiac AB 671 Crankcase - Cylinder Gasket Genuine part FIAC, Crankcase - Cylinder Gasket for Pump Units Fiac Fiac AB 671 - AB 851 - AB 951 - AB 981 x SA/SSA. Part for the following Products:...
AVAILABLE €11.85
Details
FIAC AB851 Cooler Gasket
FIAC spa SKU: 7079250000
FIAC AB851 Cooler Gasket
FIAC AB851 Cooler Gasket Genuine Part FIAC, Cooler Gasket for Pump Units AB 671 - 851 - 901. Part for the following products: -  Pump Unit AB 851 - FIAC AB1000 - FIAC AB1500 -  Pump...
on 7/10 Business Days Approx. €7.47
Details
FIAC AB851 O-Ring 4200
FIAC spa SKU: 7070140000
FIAC AB851 O-Ring 4200
FIAC AB851 O-Ring 4200 (50,39*3,53) Genuine Part FIAC, O-Ring 4200 (50,39*3,53) for Pump Units AB 671 - 851 - 901. Part for the following products: -  Pump Unit AB 851 - FIAC AB1000 - FIAC...
on 7/10 Business Days Approx. €2.59
Details
FIAC Pressure Switch MDR 53/16 (CONDOR)
FIAC spa SKU: 7250410000
FIAC Pressure Switch MDR 53/16 (CONDOR)
FIAC Pressure Switch MDR 53/16 (CONDOR) Fiac Original Spare Part, Three Phase Pressure Switch MDR 53/16 (CONDOR) 8/10 Bar 1/2" for Silenced Belt Driven Oil Lubricated Air Compressors SA 410-300 - SA 450-300 - SA 670 -...
Last items in stock €142.94
Details
FIAC Pumping Unit AB678 Crankshaft Holder
FIAC spa SKU: 5082050008
FIAC AB678 Crankshaft Holder
FIAC Holder for Pump Unit AB678 Genuine replacement part FIAC, Crankshaft Holder for Pump Unit AB678 - AB858. Part for the following products: -  Pump Unit Fiac AB851 from 05/03/2012 -  Pump...
Last items in stock €30.83
Details
FIAC Pumping Unit AB858 Holder Oil Cap
FIAC spa SKU: 5082090008
FIAC AB678 Holder Oil Cap
FIAC Holder Oil Cap for Pump Unit AB678 Genuine replacement part FIAC, Crankshaft and Oil Cap Holder for Pump Unit AB678 - AB858. Part for the following products: -  Pump Unit Fiac AB851 from...
Last items in stock €30.83
Details
FIAC AB678 Cylinder
FIAC spa SKU: 5060720008
FIAC AB678 Cylinder
FIAC AB678 Cylinder Genuine replacement part FIAC, Cylinder for Pump Units AB678-858-998. Part for the following products: -  Pump Unit AB 671 - Pump Unit AB 678 -  Pump Unit AB 851 - Pump Unit AB 858...
Last items in stock €229.24
Details
Comments (0)
