FIAC ABT 500-1716 Spare Parts

SKU: Fiac ABT 500-1716 Condition: New
€2,408.11
VAT included

FIAC ABT 500-1716 Spare Parts

Fiac Genuine spare parts or replacement parts fo to repair Piston Air Compressor ABT ABT 500-1716 - 1121570900.
settings 69 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
67 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

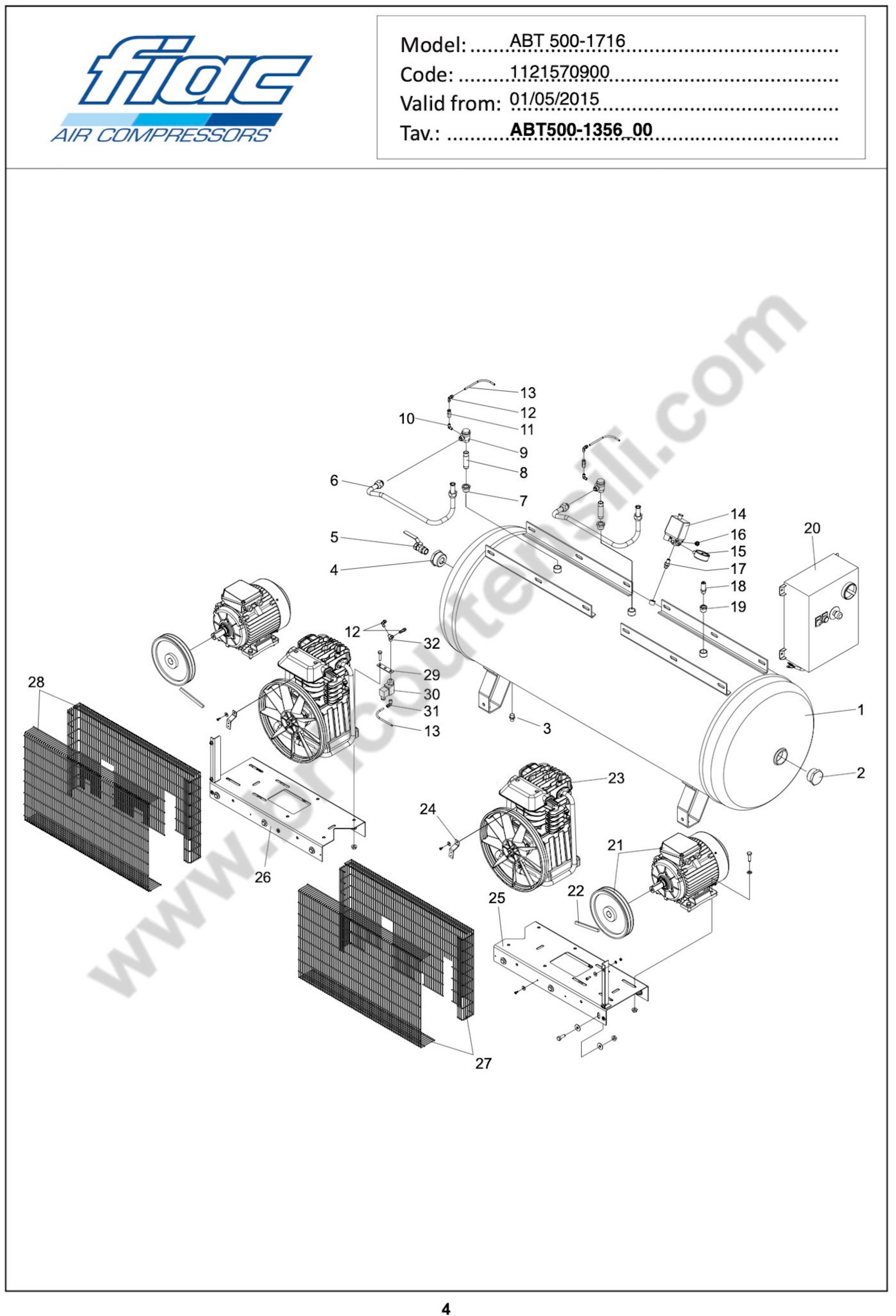

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1124300050 TANK KIT RAL 3000S €2,408.11
2
 photo_cameraImage coming soon 7090050000 Plug €22.17
3
 photo_cameraImage coming soon 4080910000 Screw kit €17.75
3
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
4
 FIAC 2'-3/4' MF Reduction Galvanized 7085390000 FIAC 2'-3/4' MF Reduction Galvanized €22.17
5
 photo_cameraImage coming soon 7130460000 TAP €42.23
6
 photo_cameraImage coming soon 7231110000 FEEDING TUBE €56.59
7
 Crank Shaft for Pump Unit FIAC AB 851 5041150008 Crank Shaft for Pump Unit FIAC AB 851 €208.18
7
 photo_cameraImage coming soon 7085070000 JOINT €11.86
8
 photo_cameraImage coming soon 7232070000 EXTENSION TUBE €5.99
9
 photo_cameraImage coming soon 7190150000 Check valve FM 1.2 " €38.30
10
 photo_cameraImage coming soon 7080070000 JOINT €4.92
11
 photo_cameraImage coming soon 7191010000 RETAINING VALVE €11.86
12
 photo_cameraImage coming soon 7080560000 Joint €7.46
13
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
14
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
15
 photo_cameraImage coming soon 7110250000 PRESSURE GAUGE €31.00
16
 O-Ring for Pumping Unit Fiac AB 335-410-858-998 7070110000 O-Ring for Pumping Unit Fiac AB 335-410-858-998 €1.52
16
 photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
17
 photo_cameraImage coming soon 7082040000 Fitting 1/4 M €11.86
18
 FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
20
 photo_cameraImage coming soon 7430640000 ELECTRIC CABINET €1,610.00
21
 photo_cameraImage coming soon 4150520000 Motor/pulley kit €947.44
22
 photo_cameraImage coming soon 7370140000 BELT €10.40
23
 photo_cameraImage coming soon 1123020111 Pump Unit AB 858 €909.00
24
 photo_cameraImage coming soon 7458990000 Belt guard Support €23.64
25
 photo_cameraImage coming soon 5010450008 BASE PLATE €153.64
26
 photo_cameraImage coming soon 5010460008 BASE €220.76
27
 photo_cameraImage coming soon 4170210000 BELT GUARD €183.05
28
 photo_cameraImage coming soon 4170200000 BELT GUARD €179.57
29
 photo_cameraImage coming soon 7458900000 SUPPORT €7.91
30
 photo_cameraImage coming soon 7194200000 ELECTRIC VALVE €113.37
31
 photo_cameraImage coming soon 7080200000 JOINT €6.51
32
 photo_cameraImage coming soon 7082060000 JOINT €7.23
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

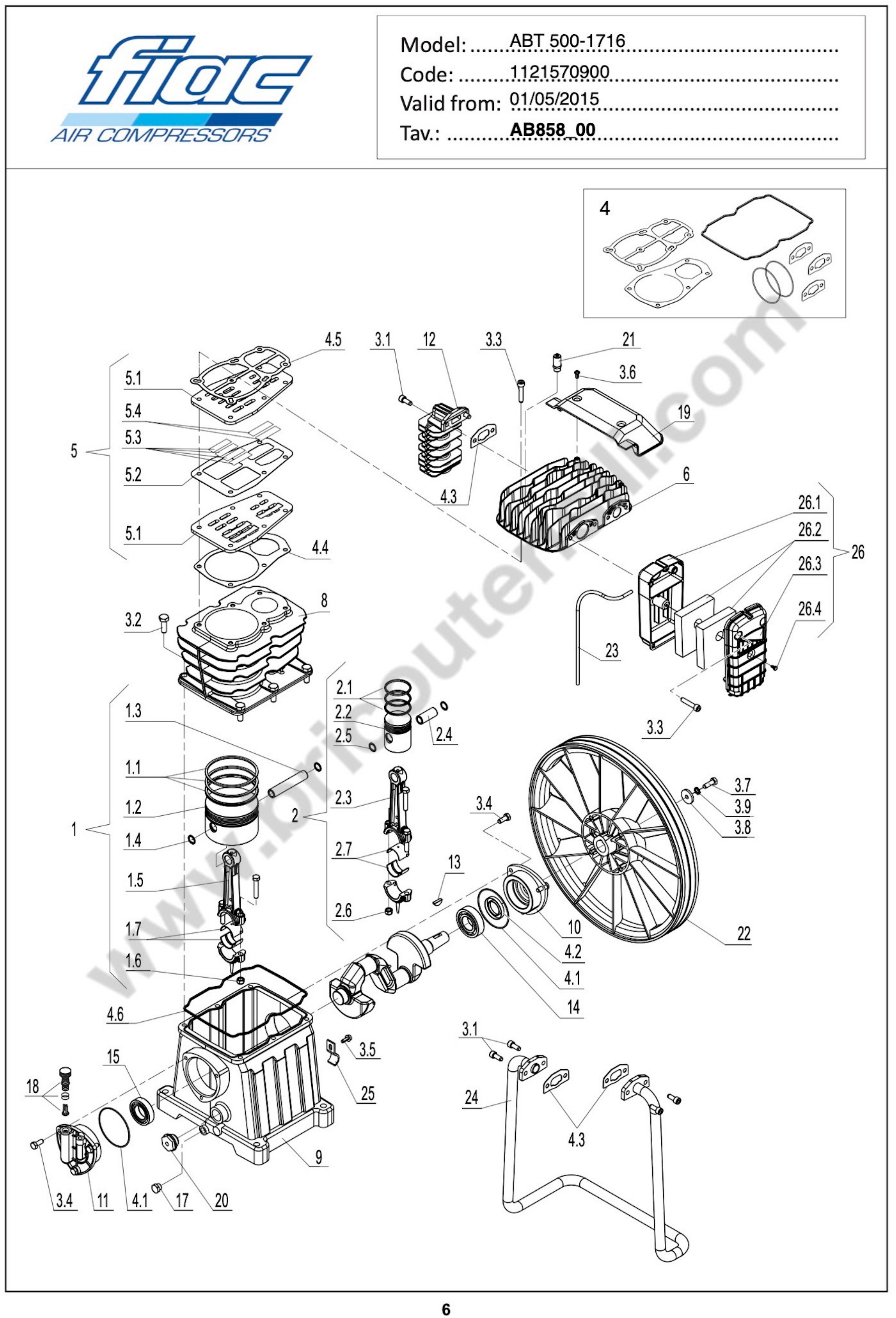

Esploso pagina 2
Pos. Item Price Buy
1.1
 Piston Ring Set 105 mm for Pump Units FIAC AB 671-851 4080090000 Piston Ring Set 105 mm for Pump Units FIAC AB 671-851 €58.91
1
 Conrod - Piston Kit LP for Pump Units FIAC AB 678-858 4080870000 Conrod - Piston Kit LP for Pump Units FIAC AB 678-858 €95.74
1.5
 Conrod Assy for Air Pump Units Fiac AB 671 - AB 851 4190370008 Conrod Assy for Air Pump Units Fiac AB 671 - AB 851 €83.03
1.3
 Piston Pin 18x94 for Pump Units FIAC AB 678-858 7050150000 Piston Pin 18x94 for Pump Units FIAC AB 678-858 €9.91
1.7
 Connecting Rod Bearing for Air Pump Units Fiac AB 671 - AB 851 7062170000 Connecting Rod Bearing for Air Pump Units Fiac AB 671 - AB 851 €19.72
1.2
 Piston LP for Pump Units FIAC AB 678-858 7220140000 Piston LP for Pump Units FIAC AB 678-858 €61.19
2.1
 Piston Rings for Pumping Units FIAC AB 671-AB 851 4080080000 Piston Rings for Pumping Units FIAC AB 671-AB 851 €40.68
2
 Fiac AB678 Conrod Piston Kit HP 4080880000 Fiac AB678 Conrod Piston Kit HP €117.78
2.3
 photo_cameraImage coming soon 4190370005 Con rod €37.25
2.4
 Piston Pin 18x42 for Pump Unit FIAC AB 550 7050130000 Piston Pin 18x42 for Pump Unit FIAC AB 550 €10.67
2.2
 FIAC AB858 HP Piston 7220120000 FIAC AB858 HP Piston €80.84
4
 photo_cameraImage coming soon 4081900000 Gasket kit €54.53
5
 Valves Plate Kit for Pumping Units FIAC AB 671-851-901 4231240000 Valves Plate Kit for Pumping Units FIAC AB 671-851-901 €155.88
6
 Fiac AB678 Head 5030620008 Fiac AB678 Head €45.80
8
 FIAC AB678 Cylinder 5060720008 FIAC AB678 Cylinder €229.24
9
 FIAC AB678 Crankcase 5070270008 FIAC AB678 Crankcase €199.89
10
 FIAC AB678 Crankshaft Holder 5082050008 FIAC AB678 Crankshaft Holder €30.83
11
 FIAC AB678 Holder Oil Cap 5082090008 FIAC AB678 Holder Oil Cap €30.83
12
 Fiac Pumping Unit AB 678 Aftercooler 5130010008 Fiac Pumping Unit AB 678 Aftercooler €41.59
13
 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 7051520000 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 €10.13
14
 photo_cameraImage coming soon 0502210600 Main Bearing (6206) 9170020 €41.24
15
 Crank Shaft Ball Bearing for Pumping Units FIAC AB 671-678 7060160000 Crank Shaft Ball Bearing for Pumping Units FIAC AB 671-678 €20.38
17
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
18
 Oil Filler Neck Komplett for Pump Units FIAC 9700001377 Oil Filler Neck Komplett for Pump Units FIAC €13.60
19
 Air Baffle for Pump Unit FIAC AB851 7153050000 Air Baffle for Pump Unit FIAC AB851 €9.90
20
 FIAC Pump Unit AB268 Oil Sight Glass 9700000408 FIAC Pump Unit AB268 Oil Sight Glass €7.04
21
 Safety Valve M1/4-6 bar for Pumping Units Fiac 7192350000 Safety Valve M1/4-6 bar for Pumping Units Fiac €13.02
22
 photo_cameraImage coming soon 7201240000 flywheel €252.19
23
 photo_cameraImage coming soon 7230040000 Rilsan hose €5.99
24
 photo_cameraImage coming soon 7232700000 Intercooler €83.95
25
 photo_cameraImage coming soon 7458910000 band €4.52
26.2
 Air Filter Element for Air Compressor Fiac AB678 9103760330 Air Filter Element for Air Compressor Fiac AB678 €7.80
26
 Air Filter Kit for Air Compressor Fiac AB678 9700002979 Air Filter Kit for Air Compressor Fiac AB678 €16.60

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC ABT 500-1716 Spare Parts

Fiac Genuine spare parts or replacement parts fo to repair Piston Air Compressor ABT ABT 500-1716 - 1121570900.

In the following table, look for the type of the Air Compressor and the respective parts of the code.
Fiac ABT 500-1716 - 1121570900

FIAC ABT 500-1716 - 1121570900 Spare Parts Pag.1
# Part Num. Description
1 1124300050 TANK KIT RAL 3000S
2 7090050000 PLUG
3 7130160000 DISCHARGE TAP
4 7085390000 FITTING
5 7130460000 BALL COCK
6 7231110000 INFEED HOSE
7 7085070000 FITTING
8 7232070000 PIPE
9 7190150000 CHECK VALVE
10 7080070000 FITTING
11 7191010000 SINGLE-ACTING VALVE
12 7080560000 FITTING
13 7230010000 RILSAN TUBE
14 7250740000 PRESSURE SWITCH
15 7110250000 PRESSURE GAUGE
16 7090070000 PLUG
17 7082040000 FITTING
18 7192090000 RELIEF VALVE
19 7085010000 FITTING
20 7430640000 ELECTRIC CABINET
21 4150520000 MOTOR/PULLEY KIT
22 7370140000 BELT
23 1123020111 PUMP UNIT
24 7458990000 BELT GUARD SUPPORT
25 5010450008 BASE PLATE
26 5010460008 BASE PLATE
27 4170210000 BELT GUARD KIT
28 4170200000 BELT GUARD KIT
29 7458900000 SUPPORT
30 7194200000 SOLENOID VALVE
31 7080200000 FITTING
32 7082060000 FITTING
33 4080530000 SCREWS KIT
AB858 Pump Unit Spare Parts Pag.2
# Part Num. Description
1 4080870000 LP CON ROD-PISTON KIT
1.1 4080090000 LP PISTON RING KIT
1.2 7220140000 LP PISTON
1.3 7050150000 GUDGEON PIN
1.4. SEEGER RING
1.5 4190370008 CONNECTING ROD
1.6. NUT
1.7 7062170000 BEARING
2 4080880000 CON ROD-PISTON KIT
2.1 4080080000 PISTON RING KIT
2.2 7220120000 PISTON HP
2.3 4190370005 CONNECTING ROD
2.4 7050130000 GUDGEON PIN
2.5. SEEGER RING
2.6. NUT
2.7 7062170000 BEARING
3 4080910000 SCREWS KIT
3.1. SCREW
3.2. SCREW
3.3. SCREW
3.4. SCREW
3.5. SCREW
3.6. SCREW
3.7. SCREW
3.8. WASHER
3.9. WASHER
4 4081900000 GASKETS KIT
4.1. O RING
4.2. OIL SEAL
4.3. GASKET
4.4. GASKET
4.5. GASKET
4.6. GASKET
5 4231240000 VALVE PLATE KIT
5.1. VALVE PLATE
5.2. GASKET
5.3. VALVE
5.4. VALVE
6 5030620008 HEAD
7 5041150008 CRANKSHAFT
8 5060720008 CYLINDER
9 5070270008 CRANKCASE
10 5082050008 SUPPORT
11 5082090008 SUPPORT
12 5130010008 COOLER
13 7051520000 FEATHER
14 0502210600 BEARING
15 7060160000 BEARING
16 7070110000 GASKET
17 7090090000 PLUG
18 9700001377 PLUG
19 7153050000 CONVEYOR
20 9700000408 OIL LIGHT
21 7192350000 RELIEF VALVE
22 7201240000 FLYWHEEL
23 7230040000 PIPE
24 7232700000 COOLER
25 7458910000 BRACKET
26 9700002979 FILTER
26.1. BASE PLATE
26.2 9103760330 FILTER ELEMENT
26.3. FILTER COVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac ABT 500-1716
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Fiac ABT 500-1716 Drawing

Fiac ABT 500-1716 Drawing

Download (754.45KB)

You might also like

Pumping unit for air compressor Mod. AB 678 -25% Sale
FIAC spa SKU: AB678 - 3021100000
Pumping unit for air compressor Mod. AB 678
Pumping unit for air compressor Mod. AB 678 Pumping unit for air compressors Fini/Dari/Fiac 200/300/500 Liters lubricated single-stage belt drive.  - System-head with large ciindro fins for heat dissipation  - Ductile iron...
Last items in stock €792.43 €1,056.57
Details
Pumping Unit for air Compressor Mod. AB 998 -18%
FIAC spa SKU: AB998 - 1123020166
Pumping Unit for air Compressor Mod. AB 998
Pumping Unit for air Compressor Mod. AB 998 The AB series distinguishes the oil lubricated twin cylinder compressor pumps with single and two stage belt drive. The Fiac compressor pumps have been designed and tested in compliance with...
Last items in stock €967.49 €1,179.86
Details
FIAC Spare Parts for Pumping Unit AB 678
FIAC spa SKU: Fiac AB678
FIAC Spare Parts for Pumping Unit AB 678
FIAC Spare Parts for Pump Unit AB 678 We have the original Spares FIAC for Pump Unit AB 678 , the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again. Fix Your...
build View Spare Parts
FIAC Spare Parts for Pumping Unit AB 998
FIAC spa SKU: Fiac AB998
FIAC Spare Parts for Pumping Unit AB 998
FIAC Spare Parts for Pump Unit AB 998 FIAC AIR COMPRESSORS Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to...
build View Spare Parts
Con-Rod Bearing for Pumping Units AB 901-981-AB 991-AB 998
FIAC spa SKU: 7060530000
Con-Rod Bearing for Pumping Units AB 901-981-AB 991-AB 998
Con-Rod Bearing for Pumping Units AB 901-981-AB 991-AB 998 Genuine part FIAC, Connecting Rod Bearing for Pump Units for AB 901-981 - AB 991 - AB 998 Part for the following products: - Pumping Unit Fiac AB 901-981 data validità - da...
Last items in stock €44.47
Details
Air Filter Element for Air Compressor Fiac AB678
FIAC spa SKU: 9103760330
Air Filter Element for Air Compressor Fiac AB678
Air Filter Element for Air Compressor Fiac AB678 Genuine part FIAC, Air Filter Element, for Air Pump Units AB 678 - AB 858 - AB 998. Parts for the following compressors: -  Pump Unit AB 678 -  Pump Unit AB 858 -  Pump Unit AB 998 -...
Last items in stock €7.80
Details
Air Filter Kit for Air Compressor Fiac AB678
FIAC spa SKU: 9700002979
Air Filter Kit for Air Compressor Fiac AB678
Air Filter Kit for Air Compressor Fiac AB678 Genuine part FIAC, Air Filter Kit Assembly, for Air Pump Units AB 678 - AB 858 - AB 998. Parts for the following compressors: -  Pump Unit AB 678...
AVAILABLE €16.60
Details
Fiac AB678 Head
FIAC spa SKU: 5030620008
Fiac AB678 Head
Fiac AB678 Head Genuine part FIAC, Head, for Air Pump Units AB 678 - AB 858. Parts for the following compressors: - Pump Unit AB 678 - Pump Unit AB 858 - Air Compressor ABT 500-1716 - 1121570900 -...
Last items in stock €45.80
Details
Fiac Pumping Unit AB 678 Aftercooler
FIAC spa SKU: 5130010008
Fiac Pumping Unit AB 678 Aftercooler
Fiac Aftercooler for Pumping Unit AB 678 Genuine FIAC Spare Part, Aftercooler for Punping Unit AB678 - AB858 - AB998. Part for the following products: -  Punping Unit Fiac AB678 -  Punping Unit Fiac AB858 -  Punping...
Last items in stock €41.59
Details
FIAC Pumping Unit AB678 Crankshaft Holder
FIAC spa SKU: 5082050008
FIAC AB678 Crankshaft Holder
FIAC Holder for Pump Unit AB678 Genuine replacement part FIAC, Crankshaft Holder for Pump Unit AB678 - AB858. Part for the following products: -  Pump Unit Fiac AB851 from 05/03/2012 -  Pump...
Last items in stock €30.83
Details
FIAC Pumping Unit AB858 Holder Oil Cap
FIAC spa SKU: 5082090008
FIAC AB678 Holder Oil Cap
FIAC Holder Oil Cap for Pump Unit AB678 Genuine replacement part FIAC, Crankshaft and Oil Cap Holder for Pump Unit AB678 - AB858. Part for the following products: -  Pump Unit Fiac AB851 from...
Last items in stock €30.83
Details
FIAC AB678 Crankcase
FIAC spa SKU: 5070270008
FIAC AB678 Crankcase
FIAC AB678 Crankcase Genuine replacement part FIAC, Crankcase for Pump Units AB678-858-998. Part for the following products: -  Pump Unit AB 671 - Pump Unit AB 678 -  Pump Unit AB 851 - Pump Unit AB 858...
Last items in stock €199.89
Details
FIAC AB678 Cylinder
FIAC spa SKU: 5060720008
FIAC AB678 Cylinder
FIAC AB678 Cylinder Genuine replacement part FIAC, Cylinder for Pump Units AB678-858-998. Part for the following products: -  Pump Unit AB 671 - Pump Unit AB 678 -  Pump Unit AB 851 - Pump Unit AB 858...
Last items in stock €229.24
Details
FIAC 2'-3/4' MF Reduction Galvanized
FIAC spa SKU: 7085390000
FIAC 2'-3/4' MF Reduction Galvanized
FIAC 2'-3/4'MF Reduction, Galvanized, M/F. Genuine replacement part FIAC, 2'-3/4'MF Reduction, Galvanized, M/F. Part for the following products: -  Fiac AB500/1000 -  Fiac ABT 900-1996 -  Fiac CRS 15-20 - ...
Last items in stock €22.17
Details
Fiac AB678 Conrod Piston Kit HP
FIAC spa SKU: 4080880000
Fiac AB678 Conrod Piston Kit HP
Fiac AB678 Conrod Piston Kit HP Genuine part FIAC, Conrod Piston Kit HP, for Air Pump Units AB 678 - AB 858. Parts for the following compressors: - Pump Unit AB 678 - Pump Unit AB 858 - Air Compressor...
Last items in stock €117.78
Details
Comments (0)
