FIAC spa

FIAC WHISPER AB335 Spare Parts

SKU: Fiac WHISPER AB335
€120.28
VAT included

FIAC Air Compressor WHISPER AB335 Spare Parts

Genuine Parts FIAC for Air compressor WHISPER AB 335 SINGLE PHASE V230-50/1
FIAC WHISPER AB335 Spare Parts
  • Online only
  • FIAC WHISPER AB335 Spare Parts
FIAC spa

FIAC WHISPER AB335 Spare Parts

SKU: Fiac WHISPER AB335 Condition: New
€120.28
VAT included

FIAC Air Compressor WHISPER AB335 Spare Parts

Genuine Parts FIAC for Air compressor WHISPER AB 335 SINGLE PHASE V230-50/1
settings 57 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
57 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7010080000 Screw M8x35 UNI-5931 €1.52
2
 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 7091120000 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 €4.34
2
 photo_cameraImage coming soon 7300190000 ON/OFF switch €116.78
3
 Single-Phase Pressure Switch with Built-in Start valve 7250240000 Single-Phase Pressure Switch with Built-in Start valve €32.67
4
 photo_cameraImage coming soon 7381800000 Single phase Motor €100.19
4
 Head for Pump Units FIAC AB 245-335 7570580000 Head for Pump Units FIAC AB 245-335 €49.07
5
 Head Plate Gasket for Pumping Units FIAC AB245-335 7079540000 Head Plate Gasket for Pumping Units FIAC AB245-335 €7.25
5
 photo_cameraImage coming soon 7200110000 Fan €19.37
6
 Valves Plate for Pump Unit FIAC AB 335 4231170000 Valves Plate for Pump Unit FIAC AB 335 €65.51 Not available for order
6
 photo_cameraImage coming soon 7563511000 HOURMETER €129.11
7
 Cylinder Plate Gasket for Pumping Units FIAC AB245-335 7079550000 Cylinder Plate Gasket for Pumping Units FIAC AB245-335 €8.05
7
 Solenoid for Silenced Compressor Fiac SA 410-300 7194070000 Solenoid for Silenced Compressor Fiac SA 410-300 €114.47
8
 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 4080030000 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 €30.64
8
 photo_cameraImage coming soon 7563760000 Thermostat €67.66
9
 Piston for Pumping Unit FIAC AB 335 7220050000 Piston for Pumping Unit FIAC AB 335 €29.18
10
 photo_cameraImage coming soon 7050030000 Pin Ø 13 €5.58
10
 photo_cameraImage coming soon 7364180000 Antivibration Ø25X20 MF M6x18 45SH €15.41
11
 photo_cameraImage coming soon 7041030000 Seeger Ø13 €1.44
11
 photo_cameraImage coming soon 7190150000 Check valve FM 1.2 " €38.30
12
 photo_cameraImage coming soon 3020441000 Pumping unit AB 335 - AB360 €283.39
12
 Conrod for Pumping unit FIAC AB335 5050550008 Conrod for Pumping unit FIAC AB335 €16.77
13
 O-Ring mm 53x2 for Pump Unit FIAC AB 335 7070360000 O-Ring mm 53x2 for Pump Unit FIAC AB 335 €1.52
14
 photo_cameraImage coming soon 7012220000 Screw M8X 25 UNI-8112 €1.52
14
 photo_cameraImage coming soon 7432050000 Green lamp €19.71
15
 photo_cameraImage coming soon 5060740008 CYLINDER €202.83
15
 Motor Pulley Ø 130 1-A F24 for Air Compressor Fiac AB 50/245 -335 7408370000 Motor Pulley Ø 130 1-A F24 for Air Compressor Fiac AB 50/245 -335 €41.69
16
 Cylinder Carter Gasket for Pump Unit FIAC AB 335 7079530000 Cylinder Carter Gasket for Pump Unit FIAC AB 335 €11.68
16
 photo_cameraImage coming soon 7370060000 V-Belt A 46 €13.48
17
 photo_cameraImage coming soon 7670060000 sump €78.40
18
 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 7060180000 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 €11.77
18
 FIAC Safety Valve 1/4" 10,5 Bar for Air Compressors SCS 7192010000 FIAC Safety Valve 1/4" 10,5 Bar for Air Compressors SCS €17.32
19
 O-Ring mm 47x2 for Pump Unit FIAC AB 335 7070350000 O-Ring mm 47x2 for Pump Unit FIAC AB 335 €1.52
20
 photo_cameraImage coming soon 7151200000 SIDE BLIND HOLDER AB 245 PLASTIC €6.40
21
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
22
 photo_cameraImage coming soon 7155110000 COVER SA paneled €271.01
22
 Oil Sight Glass 3/8" for Pump Unit Fiac AB 335 7180120000 Oil Sight Glass 3/8" for Pump Unit Fiac AB 335 €13.29
24
 photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
Page 2 local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
**
 Side Blinde Holder for Pump Unit FIAC AB 335 7151410000 Side Blinde Holder for Pump Unit FIAC AB 335 €11.03 Not available for order
1
 photo_cameraImage coming soon 7010080000 Screw M8x35 UNI-5931 €1.52
2
 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 7091120000 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 €4.34
4
 Head for Pump Units FIAC AB 245-335 7570580000 Head for Pump Units FIAC AB 245-335 €49.07
5
 Head Plate Gasket for Pumping Units FIAC AB245-335 7079540000 Head Plate Gasket for Pumping Units FIAC AB245-335 €7.25
6
 Valves Plate for Pump Unit FIAC AB 335 4231170000 Valves Plate for Pump Unit FIAC AB 335 €65.51 Not available for order
7
 Cylinder Plate Gasket for Pumping Units FIAC AB245-335 7079550000 Cylinder Plate Gasket for Pumping Units FIAC AB245-335 €8.05
8
 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 4080030000 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 €30.64
9
 Piston for Pumping Unit FIAC AB 335 7220050000 Piston for Pumping Unit FIAC AB 335 €29.18
10
 photo_cameraImage coming soon 7050030000 Pin Ø 13 €5.58
11
 photo_cameraImage coming soon 7041030000 Seeger Ø13 €1.44
12
 Conrod for Pumping unit FIAC AB335 5050550008 Conrod for Pumping unit FIAC AB335 €16.77
13
 O-Ring mm 53x2 for Pump Unit FIAC AB 335 7070360000 O-Ring mm 53x2 for Pump Unit FIAC AB 335 €1.52
14
 photo_cameraImage coming soon 7012220000 Screw M8X 25 UNI-8112 €1.52
15
 photo_cameraImage coming soon 5060740008 CYLINDER €202.83
16
 Cylinder Carter Gasket for Pump Unit FIAC AB 335 7079530000 Cylinder Carter Gasket for Pump Unit FIAC AB 335 €11.68
17
 photo_cameraImage coming soon 7670060000 sump €78.40
18
 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 7060180000 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 €11.77
19
 O-Ring mm 47x2 for Pump Unit FIAC AB 335 7070350000 O-Ring mm 47x2 for Pump Unit FIAC AB 335 €1.52
20
 photo_cameraImage coming soon 7151200000 SIDE BLIND HOLDER AB 245 PLASTIC €6.40
21
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
22
 Oil Sight Glass 3/8" for Pump Unit Fiac AB 335 7180120000 Oil Sight Glass 3/8" for Pump Unit Fiac AB 335 €13.29
23
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
24
 photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
25
 photo_cameraImage coming soon 7151240000 Plastic cover €5.26
26
 Set Intake Filter for Pump Units AB 335 - AB 410 4086990000 Set Intake Filter for Pump Units AB 335 - AB 410 €16.77
27
 Filter Plate for Pump Unit FIAC AB 335 7151230000 Filter Plate for Pump Unit FIAC AB 335 €4.34
28
 Filter Element for Pumping Unit FIAC AB 410 7210610000 Filter Element for Pumping Unit FIAC AB 410 €5.30
29
 Crank Shaft for Pumping Units FIAC AB 245 - AB 335 5041160008 Crank Shaft for Pumping Units FIAC AB 245 - AB 335 €90.65 Not available for order
30
 Oil Seal 20x40x7 for Pump Unit FIAC AB 335 7071290000 Oil Seal 20x40x7 for Pump Unit FIAC AB 335 €7.17
31
 photo_cameraImage coming soon 7051500000 Tab 4X6,5 €1.48
32
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
33
 photo_cameraImage coming soon 7151210000 SIDE PERFORATED HOLDER AB 245 "PLASTIC" €6.40
34
 photo_cameraImage coming soon 7201000000 flywheel €61.75
35
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
36
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
37
 photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
38
 O-Ring for Pumping Unit Fiac AB 335-410-858-998 7070110000 O-Ring for Pumping Unit Fiac AB 335-410-858-998 €1.52
39
 photo_cameraImage coming soon 7153070000 conveyor €6.86
40
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
100
 Valves Plate Kit for Pumping Units FIAC AB 245-335 4082800000 Valves Plate Kit for Pumping Units FIAC AB 245-335 €81.98 Not available for order
101
 Kit Piston for Pumping unit FIAC AB 248-338 4291030000 Kit Piston for Pumping unit FIAC AB 248-338 €70.16
102
 Gaskets Kit for Air Compressors Pump Unit FIAC AB245-335 4082220000 Gaskets Kit for Air Compressors Pump Unit FIAC AB245-335 €31.09

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Air Compressor WHISPER AB335 Spare Parts

Genuine Parts FIAC for Air compressor WHISPER AB 335 SINGLE PHASE V230-50/1

In the following table, look for the type of the air compressor and the respective parts of the code.

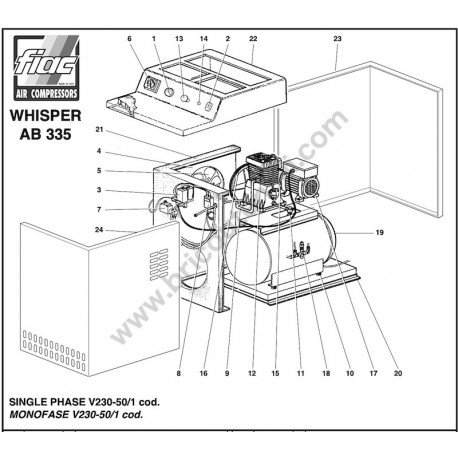

WHISPER AB 335

WHISPER AB 335 Pag.1
SINGLE PHASE V230-50/1
MONOFASE V230-50/1
Pos. Codice Descrizione
1 7111010000 Pressure gauge - Manometro
2 7300190000 ON/OFF switch - Pulsante ON/OFF
3 7250240000 Pressure switch - Pressostato
4 7381800000 Electric motor fan - Motore elettroventola
5 7200110000 Fan - Ventola
6 7563511000 Hour meter - Contaore
7 7194070000 Solenoid valve - Elettrovalvola
8 7563760000 Fan thermostat - Termostato ventola
9 7232150000 Pipe - Tubo
10 7364180000 Shock absorber - Antivibrante
11 7190150000 Non return valve - Valvola ritegno
12 3020441000 AB 335 Unit - Gruppo AB 335 --> AB360
13 7300080000 Emergency push button - Pulsante emergenza
14 7432050000 Green warning lamp - Spia verde
15 7408370000 Pulley - Puleggia
16 7370060000 Belt - Cinghia
17 7381200000 Electric motor - Motore elettrico
18 7192010000 Safety valve - Valvola di sicurezza
19 5159130008 Tank - Serbatoio
20 5011080008 Base - Base
21 5162020008 Intermediate panel - Pannello intermedio
22 7155110000 Plastic cover - Coperchio
23 5163000008 Rear cover - Guscio posteriore
24 5163240008 Front cover - Guscio anteriore
PUMP UNIT AB 335 data validità - da 11/03/2002 Pag.2
# Part Num. Description
1 7010080000 Screw M8x35 UNI-5931
2 7091120000 stopper
3 7010350000 Screw M6X22 UNI-5931
4 7570580000 Head
5 7079540000 gasket
6 4231170000 Valves plate
7 7079550000 gasket
8 4080030000 Piston rings Set
9 7220050000 PISTON
10 7050030000 Pin Ø 13
11 7041030000 Seeger Ø13
12 5050550008 Connecting Rod
13 7070360000 O-Ring Ø53x2
14 7012220000 Screw M8X 25 UNI-8112
15 5060740008 CYLINDER
16 7079530000 GASKET
17 7670060000 sump
18 7060180000 Bearing 6203 "17X40X12
19 7070350000 O-Ring
20 7151200000 SIDE BLIND HOLDER AB 245 PLASTIC
** 7151410000 SIDE BLIND HOLDER AB 245 + PLASTIC VENT - DISCONTINUED
21 7011460000 Screw M6X16 TAP-TITE
22 7180120000 OIL SIGHT GLASS D. 20 AB 245
23 7011460000 Screw M6X16 TAP-TITE
24 7012060000 Screw M4X12 UNI-8112
25 7151240000 Plastic cover
26 4086990000 Kit suction filter
27 7151230000 FILTER PLATE AB 410/510-NEW
28 7210610000 filter element
29 5041160008 CRANKSHAFT - DISCONTINUED
30 7071290000 OIL SEAL 20X40X7
31 7051500000 tab 4X6,5
32 7060200000 bearing 6204
33 7151210000 SIDE PERFORATED HOLDER AB 245 "PLASTIC"
34 7201000000 flywheel
35 7030270000 Washer Ø8,5X30X4 UNI-6593
36 7031010000 Washer Ø8 UNI-3703
37 7011100000 Screw M8X25 UNI-5739
38 7070110000 O-Ring 3037
39 7153070000 conveyor
40 7012090000 Screw M5X12 UNI-8112
41 7040160000 Seeger E 32
100 4082800000 Kit Valve plate
101 4291030000 Kit piston + Ring + Pin
102 4082220000 Gasket Kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac WHISPER AB335
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Fiac WHISPER AB335 Drawing

Fiac WHISPER AB335 Drawing

Download (494.67KB)

You might also like

Piston Rings for Pumping Units FIAC VX 194-254-402
FIAC spa SKU: 4080020000
Piston Rings for Pumping Units FIAC VX 194-254-402
Piston Rings for Pump Units FIAC VX 194-254-402 Genuine Parts FIAC, Special Steel Piston Rings for Pump Units, VX 194 - VX 254 - VX 402 - GM 191 - GM 192 - GM 242 - GM 243. Part for the following Items. - Pump Unit FIAC VX 194 - Pump...
Last items in stock €26.02
Details
O-Ring 4500 for Petrol Engine Air Compressors S1506-S1520
FIAC spa SKU: 7070250000
O-Ring 4500 for Petrol Engine Air Compressors S1506-S1520
O-Ring 4500 for Petrol Engine Air Compressors S1506-S1520 Genuine spare parts Fiac, O-Ring 4500 for Petrol Engine Air Compressors S1506 - S1520. Parts for the following products:  -  Fiac per Petrol Engine Air Compressors...
Last items in stock €10.61
Details
Circlip for Pumping Units Fiac VX 194-VX 214
FIAC spa SKU: 7041010000
Circlip for Pumping Units Fiac VX 194-VX 214
Circlip for Pump Units Fiac VX 194-VX 214 Genuine part FIAC, Circlip for Pump Units Fiac VX 194 - VX 214 - GM 143 - GM 145 - VX 402 - VX 422 - VS 204 - VX 254 - VS...
AVAILABLE €1.52
Details
Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50
FIAC spa SKU: 7040040000
Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50
Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 Genuine part FIAC, Seeger E 20 for Pumping Units Fiac S 15 - GM 25 - GM 50 - GM 300 - VX 254 - GM 201 - VX 194 - GM 242 - VX 402. Parts for the following products: - Pumping Unit S...
AVAILABLE €0.62
Details
Oil Seal mm 25x52x10 for Pump Unit FIAC S 15
FIAC spa SKU: 7071090000
Oil Seal mm 25x52x10 for Pump Unit FIAC S 15
Oil Seal mm 25x52x10 for Pump Unit FIAC S 15 Genuine spare part FIAC, Oil Seal mm 25x52x10 for Pump Unit FIAC S 15 - Petrol Engine Air Compressor Fiac S 1506 - S 1520 Parts for the following...
AVAILABLE €5.77
Details
Motor Fan for Pump Unit Fiac S15
FIAC spa SKU: 7200150000
Motor Fan for Pump Unit Fiac S15
Motor Fan for Pump Unit Fiac S15 Genuine part FIAC, Motor fan for Pump Unit Fiac S15 Part for the following products: - Pump Unit Fiac S15 - Code: 1127200015 ex 7200150000
AVAILABLE €12.06
Details
Oil Seal 17x28x7 FP for Pump Unit Fiac S15
FIAC spa SKU: 7071260000
Oil Seal 17x28x7 FP for Pump Unit Fiac S15
Oil Seal 17x28x7 FP for Pump Unit Fiac S15 Genuine part FIAC, Oil Seal 17x28x7 FP for Pump Unit Fiac S15 Part for the following products: -  Pump Unit Fiac S15 -  Engine...
AVAILABLE €5.77
Details
Motor Fan Shaft for Pump Unit Fiac S15
FIAC spa SKU: 5040720008
Motor Fan Shaft for Pump Unit Fiac S15
Motor Fan Shaft for Pump Unit Fiac S15 Genuine replacement part FIAC, Motor Fan Shaft for Pump Unit Fiac S15 Part for the following products: -  Pump Unit Fiac S15 - Code: 1125040072 ex 5040720008
AVAILABLE €81.06
Details
Crank Shaft for Pump Unit Fiac S15
FIAC spa SKU: 5041280008
Crank Shaft for Pump Unit Fiac S15
Crank Shaft for Pump Unit Fiac S15 Genuine replacement part FIAC, Crank Shaft for Pump Unit Fiac S15, Engine Air Compressors S1506 - S1520 Powered Honda. Part for the following products: -  Pump Unit Fiac S15 -  Engine Air Compressor...
on 10 Business Days Approx €131.29
Details
Crank Shaft Ass'y for Pump Unit Fiac S15
FIAC spa SKU: 5041280008 - Assemblato
Crank Shaft Ass'y for Pump Unit Fiac S15
Crank Shaft Ass'y for Pump Unit Fiac S15 Genuine replacement part FIAC, Crank Shaft Complete Ass'y for Pump Unit Fiac S15, Engine Air Compressors S1506 - S1520 Powered Honda. Part for the following products: -  Pump Unit Fiac S15 -...
AVAILABLE €196.70
Details
Centering Ring for Petrol Engine Air Compressors S1506
FIAC spa SKU: 7040200000
Centering Ring for Petrol Engine Air Compressors S1506
Centering Ring for Petrol Engine Air Compressors S1506 Genuine spare parts Fiac, Centering Ring for Petrol Engine Air Compressors S1506 - S1520. Parts for the following products:  -  Fiac per Petrol Engine...
AVAILABLE €69.42
Details
Valves Kit for Pump Unit Fiac S15
FIAC spa SKU: 4081050000
Valves Kit for Pump Unit Fiac S15
Valves Kit for Pump Unit Fiac S15 Genuine part FIAC, Valves Kit for Pump Unit Fiac S15 Part for the following products: -  Pump Unit Fiac S15 -  Engine Compressor S1506 - ...
AVAILABLE €10.00
Details
Piston D.50 MM for Pump Units FIAC Series VX - GM
FIAC spa SKU: 7220020000
Piston D.50 MM for Pump Units FIAC Series VX - GM
Piston D. 50 MM for Pump Units FIAC Series VX - GM Genuine part FIAC, Piston D. 50 MM for Pump Units FIAC Series VX - GM. Parts for the following products: -  Pump Unit FIAC VX 194 -  Pump Unit...
on 7/10 Business Days Approx €26.96
Details
Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S15
FIAC spa SKU: 7051280000
Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S15
Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S15 Genuine part FIAC, Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S14 - S15. Part for the following products: -  Pump Unit Fiac S15 - ...
AVAILABLE €2.84
Details
Fiac S14 Pump Unit Gasket Kit
FIAC spa SKU: 4082330000
Fiac S14 Pump Unit Gasket Kit
Fiac S14 Pump Unit Gasket Kit Genuine part FIAC, Gasket Kit for Pump Units Fiac S14. Part for the following Products: -  Pump Unit S14 M/S - Code : 1124080233 EX 4082330000
Last items in stock €17.07
Details
Fiac Pump Unit S13 Conrod - Piston Kit
FIAC spa SKU: 4190090000
Fiac Pump Unit S13 Conrod - Piston Kit
Fiac Pump Unit S13 - S14 Conrod - Piston Kit Genuine replacement part FIAC, Conrod + Piston + Piston Ring Ass'y Kit for Pump Unit Fiac S13 - S14 - GM242. Part for the following products: - Pump Unit S 13 - Pump...
on 10 Business Days Approx €89.21
Details
Comments (0)
