FIAC spa

FIAC Pump Unit VS204S Spare Parts

SKU: Fiac VS204S
€1.48
VAT included

FIAC Pump Unit VS204S Spare Parts

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS204S data validità - da 27/08/2003.

Fix Your Pump unit, VS204S. All Spares are Ready For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
FIAC Pump Unit VS204S Spare Parts
  • FIAC Pump Unit VS204S Spare Parts
  • FIAC Pump Unit VS204S Spare Parts - Drawing
FIAC spa

FIAC Pump Unit VS204S Spare Parts

SKU: Fiac VS204S Condition: New
€1.48
VAT included

FIAC Pump Unit VS204S Spare Parts

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit, VS204S data validità - da 27/08/2003.

Fix Your Pump unit, VS204S. All Spares are Ready For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 55 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
54 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

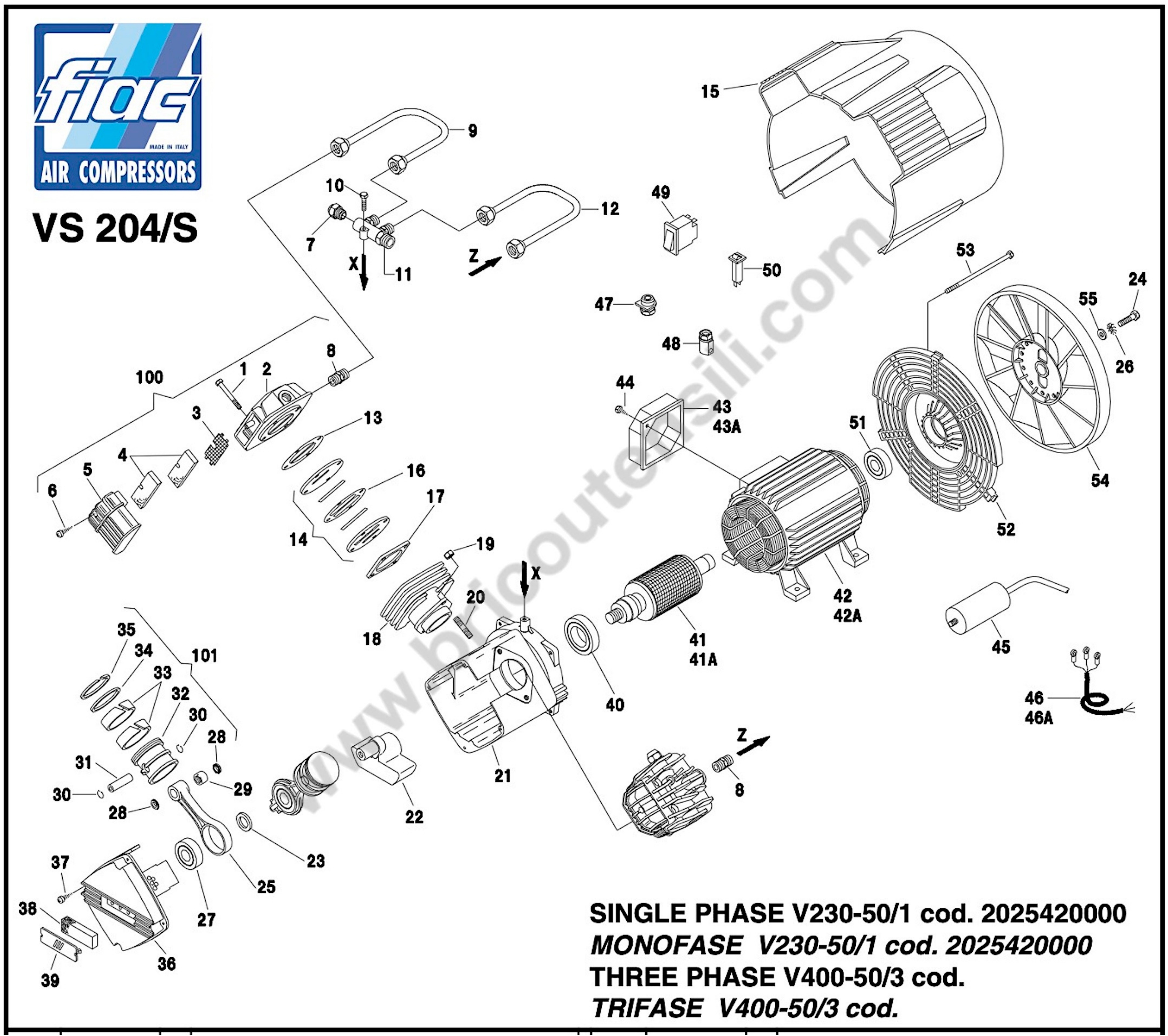

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 photo_cameraImage coming soon 5030170008 Head €108.62
3
 photo_cameraImage coming soon 7458031000 Filter plate €5.87
4
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
 photo_cameraImage coming soon 7210640000 INTAKE FILTER VS204S-VS254S €16.10
6
 photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
7
 Start Valve M1/4" 1,5 B for Pump Unit Fiac VS 204 7196020000 Start Valve M1/4" 1,5 B for Pump Unit Fiac VS 204 €10.00
8
 photo_cameraImage coming soon 7081100000 3/8 " €8.35
9
 FIAC Pump Units VS Head Pipe L 7231770000 FIAC Pump Units VS Head Pipe L €25.96
10
 photo_cameraImage coming soon 7010120000 Screw M6X25 UNI-5931 €1.40
11
 photo_cameraImage coming soon 7089950000 Collector €25.04
12
 FIAC Pump Units VS Head Pipe R 7231760000 FIAC Pump Units VS Head Pipe R €25.96
13-16-17
 Gaskets Set for Pump Unit FIAC GM 142 - GM 145 4082380000 Gaskets Set for Pump Unit FIAC GM 142 - GM 145 €6.43
14
 Fiac VS204 Valve Plate Kit 7459510000 Fiac VS204 Valve Plate Kit €77.90
15
 FIAC Motor Cover for Series VS-VX 7150370000 FIAC Motor Cover for Series VS-VX €36.88
18
 FIAC VS204S Cylinder 7575290000 FIAC VS204S Cylinder €103.36
19
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
20
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
21
 photo_cameraImage coming soon 5070160008 Sump €232.09
22
 photo_cameraImage coming soon 5041360008 Crank €69.32
23
 photo_cameraImage coming soon 7038070000 Washer Ø20,1X26X2 UNI-6593 €3.73
24
 photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
25-28-29
 photo_cameraImage coming soon 4190320000 Kit rod €104.77
26
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
27
 photo_cameraImage coming soon 7060140000 Bearing 6204-2RS2 / HT-22-C3 SKF €23.84
30
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
31
 photo_cameraImage coming soon 7050050000 Pin Ø12/8,5X46 "GMS" €4.35
32
 photo_cameraImage coming soon 7220070000 Piston €74.77
33-34-35
 FIAC VS204S Piston Rings Kit 4080040000 FIAC VS204S Piston Rings Kit €43.96 Not available for order
36
 photo_cameraImage coming soon 7151030000 COVER CARTER GMVS €10.77
37
 photo_cameraImage coming soon 7012020000 Screw Ø3,9X12,7 DIN-7981 €1.52
38
 FIAC GMS 100 Air Filter 7210120000 FIAC GMS 100 Air Filter €3.32
39
 Air Cleaner Cap for Pump Unit FIAC VS 244 7151040000 Air Cleaner Cap for Pump Unit FIAC VS 244 €1.49
40
 photo_cameraImage coming soon 7060050000 6007 35-62-14-bearing 2RS1 SKF €38.94
41
 photo_cameraImage coming soon 4280770000 Rotor Kit €206.15
41A
 photo_cameraImage coming soon 4280810000 Rotor Kit €178.31
42
 photo_cameraImage coming soon 4010810000 HOUSING MOT GMVS 200 V220 / 50HZ S / MORS. €249.43
42A
 photo_cameraImage coming soon 4010980000 HOUSING MOT.GMVS 200 V380 / 50HZ S / MORS. €655.97
43
 photo_cameraImage coming soon 7382340000 Terminal cover €4.34
43A
 photo_cameraImage coming soon 7382350000 COVER Morset MEC90 GMV-E TRIFAS €4.34
44
 photo_cameraImage coming soon 7012020000 Screw Ø3,9X12,7 DIN-7981 €1.52
45
 photo_cameraImage coming soon 7310330000 Condenser MF.30 V450 €30.79
46A
 photo_cameraImage coming soon 7329870000 PR WIRE / MOTGMV25-30 3X1,5 + T PVC90CM €22.13
46
 photo_cameraImage coming soon 7329900000 Cable Pressure / Motor €15.66
47
 photo_cameraImage coming soon 7501060000 Cable locks €1.52
48
 photo_cameraImage coming soon 7501050000 Cable locks €4.48
49
 photo_cameraImage coming soon 7410460000 Prot. Thermal ETA-3120-F521-P7T1-W09D-6A €125.92
50
 photo_cameraImage coming soon 7410470000 Prot. Thermal singl. 10A €7.17
51
 photo_cameraImage coming soon 7060030000 Bearing 6204 20-47-14 2RS1- €17.12
53
 photo_cameraImage coming soon 7015100000 Guy M6X185 €1.44
54
 FIAC Pump Units VS-VX-GMS Fan 7200340000 FIAC Pump Units VS-VX-GMS Fan €29.81
55
 photo_cameraImage coming soon 7038020000 Washer Ø8X30X3 UNI-6593 €1.52
100
 photo_cameraImage coming soon 4021350000 Kit head €136.94
101
 photo_cameraImage coming soon 4191011000 GR.BIELLA-PISTON GMS-VS €98.76

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Pump Unit VS204S Spare Parts

Fix Your Pump unit, VS204S data validità - da 27/08/2003. All Spares are Ready For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table , look for the model of the pumping unit and the respective parts of the code.
Fiac VS 204S

FIAC VS204S MONOFASE - SINGLE PHASE V230-50/1 cod. 2025420000
TRIFASE - THREE PHASE V400-50/3
# Part Num.
 Description
1 7011220000 Screw - Vite T.E. M6x40 UNI 5737
2 5030170008 Head - Testa
3 7458031000 Filter plate - Piastrina filtro
4 7210010000 Filtering element - Elemento filtrante
5 7210640000 Intake filter - Filtro aspirazione
6 7012010000 Screw - Vite ø 3.9x19 "B" UNI 6954
7 7196020000 START valve - Valvola START
8 7081100000 Joint - Raccordo
9 7231770000 Tube sx. - Tubo sx.
10 7010120000 Screw - Vite T.C.C.E. M6x25 UNI 5931
11 7089950000 Manifold - Collettore
12 7231760000 Tube dx. - Tubo dx.
13-16-17 4082380000 Set of gasket - Kit guarnizioni
14 7459510000 Valve plate unit - Gruppo Piastra Valvole
15 7150370000 Housing - Carenatura
18 7575290000 Cylinder - Cilindro
19 7020070000 Nut - Dado M8 UNI 5587
20 7015020000 Stud bolt - Prigioniero
21 5070160008 Carter - Carter
22 5041360008 Crank lever - Manovella
23 7038070000 Ring - Anello
24 7011090000 Screw - Vite T.E. M8x20 UNI 5739
25-28-29 4190320000 Con rod unit - Gruppo biella
26 7031010000 Washer - Rondella ø 8 UNI 3703
27 7060140000 Bearing - Cuscinetto 6204-2RS2-C3-HT22
30 7041010000 Ring - Anello
31 7050050000 Piston pin - Spinotto
32 7220070000 Piston - Pistone - 1127220030+1127140104
33-34-35 4080040000 Piston rings - Kit segmenti
36 7151030000 Carter cover - Coperchio carter
37 7012020000 Screw - Vite ø 3.9x12.7 UNI 6954
38 7210120000 Filtering element - Elemento filtrante
39 7151040000 Filter cover - Coperchio filtro
40 7060050000 Bearing - Cuscinetto 6007 2RS
41 4280770000 Single phase rotor - Indotto monofase
41A 4280810000 Three phase rotor - Indotto trifase
42 4010810000 Motor - Motore V230-50/1
42A 4010980000 Motor - Motore V400-50/3
43 7382340000 Single phase cover - Coperchio monofase
43A 7382350000 Three phase cover - Coperchio trifase
44 7012020000 Screw - Vite ø 3.9x12.7 UNI 6954
45 7310330000 Capacitor - Condensatore 30 µF
46 7329900000 Single phase cable - Cavo monofase
46A 7329870000 Three phase cable - Cavo trifase
47 7501060000 Stretch eliminator - Bloccacavo
48 7501050000 Stretch eliminator - Bloccacavo steab
49 7410460000 3ph. thermal protection - Termica trifase
50 7410470000 1ph. thermal protection - Termica monofase
51 7060030000 Bearing - Cuscinetto 6204 2RS
52 7640010000 Cover - Calotta
53 7015100000 Tension rod - Tirante
54 7200340000 Fan - Ventola
55 7038020000 Washer - Rondella ø 8x30x3
100 4021350000 Head Unit - Gruppo Testa
101 4191011000 Set Con rod/Piston - Kit Biella/Pistone - 1124190114
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
