55 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

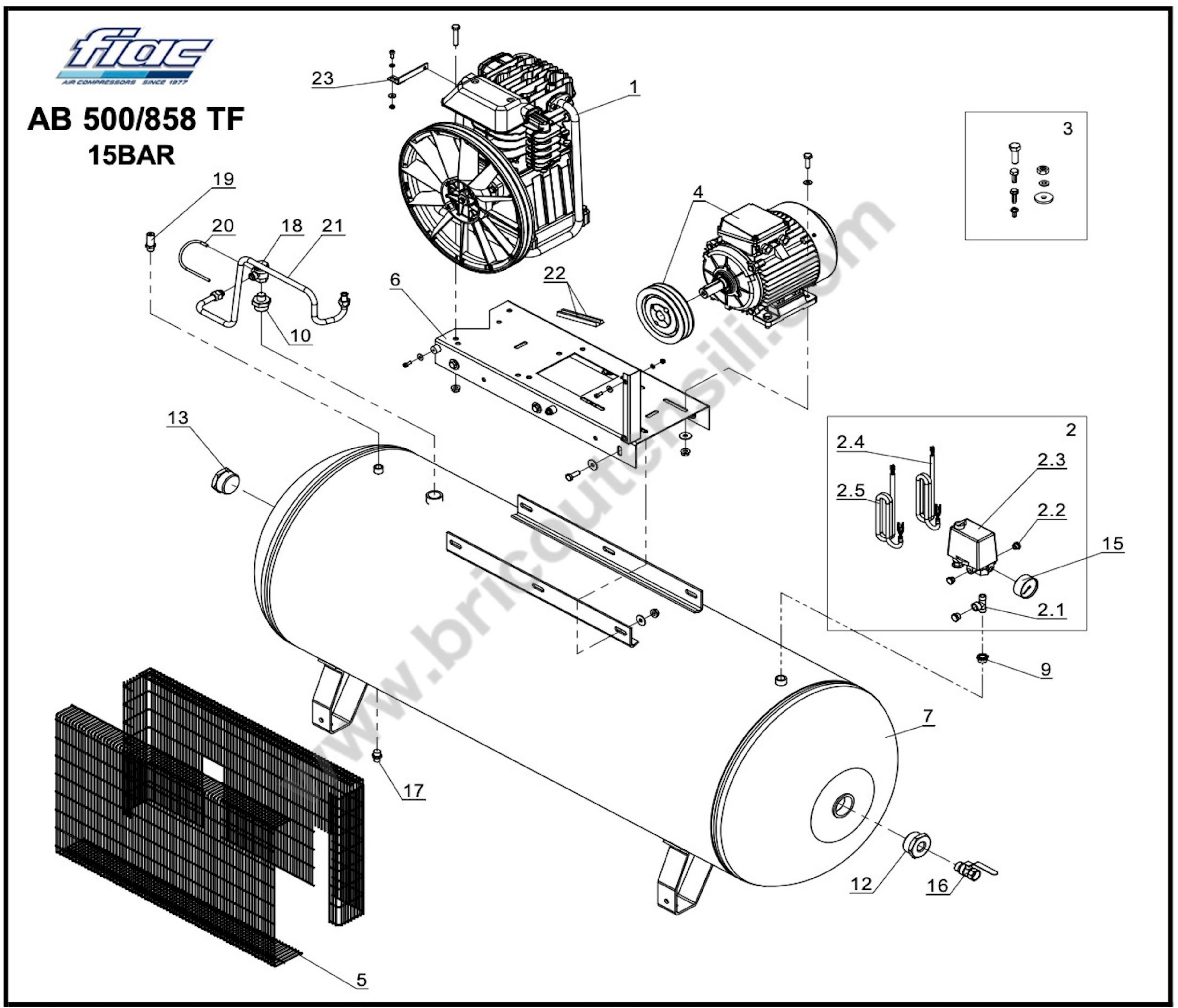

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 4056140000 Press. Switch kit €163.51
2.1
 A fitting "T" 8.3 MFM 7082690000 A fitting "T" 8.3 MFM €13.84
2.2
 photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
2.3
 FIAC AB 500-858 TF Pressure Switch 7251290000 FIAC AB 500-858 TF Pressure Switch €113.27
2.4
 photo_cameraImage coming soon 7328690000 Cable Pressure Switch / Motor €28.67
2.5
 photo_cameraImage coming soon 7328700000 power cable €30.04
3
 photo_cameraImage coming soon 4080520000 SCREW KIT €18.62
5
 photo_cameraImage coming soon 4170200000 BELT GUARD €179.57
6
 photo_cameraImage coming soon 5010460008 BASE €220.76
7
 photo_cameraImage coming soon 5159660008 Tank €2,234.81
9
 photo_cameraImage coming soon 7085020000 Fitting 1/2 "-3 / 8" MF €10.12
10
 photo_cameraImage coming soon 7085030000 Joint €9.72
12
 FIAC 2'-3/4' MF Reduction Galvanized 7085390000 FIAC 2'-3/4' MF Reduction Galvanized €22.17
13
 photo_cameraImage coming soon 7090050000 Plug €22.17
15
 photo_cameraImage coming soon 7110150000 Pressure gauge €15.79
16
 photo_cameraImage coming soon 7130460000 TAP €42.23
17
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
18
 photo_cameraImage coming soon 7190150000 Check valve FM 1.2 " €38.30
19
 photo_cameraImage coming soon 7192330000 Safety valve €27.55
20
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
21
 photo_cameraImage coming soon 7231210000 Rubber hose €34.10
22
 photo_cameraImage coming soon 7370680000 Belt €13.18
23
 photo_cameraImage coming soon 7458990000 Belt guard Support €23.64
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

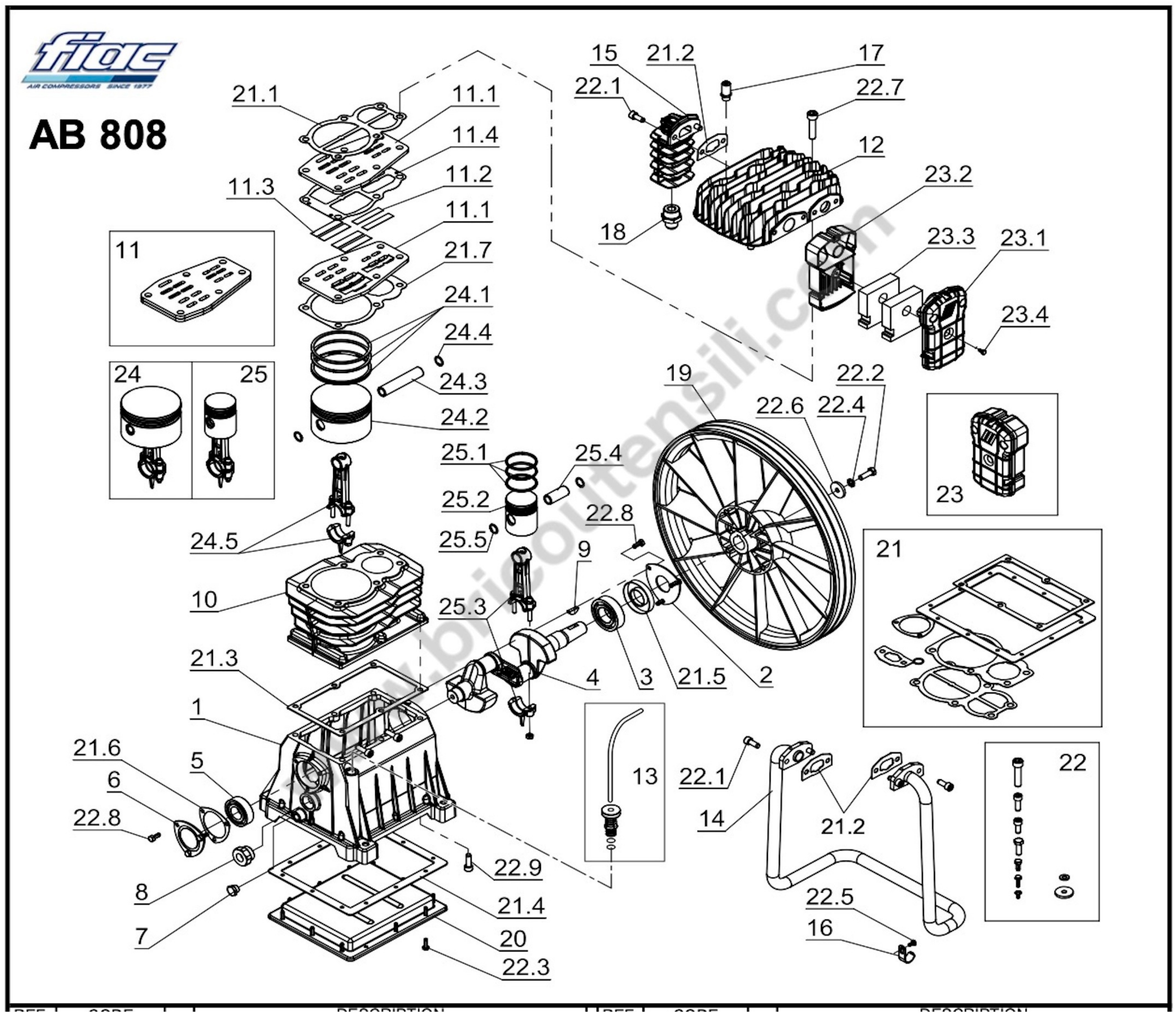

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Fiac AB598 Pump Unit Crankcase 5071020008 Fiac AB598 Pump Unit Crankcase €179.76
2
 Fiac AB598 Pump Unit Front Cover 7650080000 Fiac AB598 Pump Unit Front Cover €7.18
3
 photo_cameraImage coming soon 7060150000 bearing 6206 €41.13
5
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
6
 Fiac AB598 Pump Unit Rear Cover 7650070000 Fiac AB598 Pump Unit Rear Cover €7.18
7
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
8
 Fiac AB598 Pump Unit Oil Sight Glass 7180060000 Fiac AB598 Pump Unit Oil Sight Glass €6.57
9
 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 7051520000 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 €10.13
10
 Fiac AB598 Cylinder 7575460000 Fiac AB598 Cylinder €213.56
11
 Valves Plate Set for Pumping Units FIAC AB AB 450-550-800 4231230000 Valves Plate Set for Pumping Units FIAC AB AB 450-550-800 €155.92
12
 Fiac AB598 Pump Unit Head 5030610008 Fiac AB598 Pump Unit Head €118.68
13
 Fiac AB598 Breather Pipe Plug Kit 4086830000 Fiac AB598 Breather Pipe Plug Kit €5.30
14
 Fiac AB598 Intermediate Aftercooler 7232220000 Fiac AB598 Intermediate Aftercooler €70.84
15
 Fiac AB598 Aftercooler 5130110008 Fiac AB598 Aftercooler €43.17
16
 photo_cameraImage coming soon 7043050000 Stirrup €4.00
17
 Safety Valve M1/4-6 bar for Pumping Units Fiac 7192350000 Safety Valve M1/4-6 bar for Pumping Units Fiac €13.02
18
 photo_cameraImage coming soon 7081190000 Joint €14.24
19
 photo_cameraImage coming soon 7201240000 flywheel €252.19
20
 Fiac AB598 Crankcase Lover Cover 7650090000 Fiac AB598 Crankcase Lover Cover €39.72
21
 Fiac AB598 Pump Unit Gasket Kit 4082280000 Fiac AB598 Pump Unit Gasket Kit €43.07
22
 photo_cameraImage coming soon 4080920000 Screw kit €21.31
23
 Fiac AB598 Intake Filter Kit 4080290000 Fiac AB598 Intake Filter Kit €17.08
23.3
 FIAC AB598 Filter Element 7210690000 FIAC AB598 Filter Element €7.17
24.1
 photo_cameraImage coming soon 4080840000 Low pression ring kit €41.13
24
 Fiac AB598 Conrod-Piston Kit LP 4080850000 Fiac AB598 Conrod-Piston Kit LP €99.12
24.5
 photo_cameraImage coming soon 5050580008 Con rod €76.25
24.3
 photo_cameraImage coming soon 7050270000 Piston pin €9.37
24.2
 photo_cameraImage coming soon 7220340000 Piston €76.48
25.1
 Piston Rings for Pumping Units FIAC AB 671-AB 851 4080080000 Piston Rings for Pumping Units FIAC AB 671-AB 851 €40.68
25
 Fiac AB598 Conrod-Piston Kit HP 4080860000 Fiac AB598 Conrod-Piston Kit HP €77.90
25.3
 photo_cameraImage coming soon 5050580008 Con rod €76.25
25.4
 Piston Pin 18x42 for Pump Unit FIAC AB 550 7050130000 Piston Pin 18x42 for Pump Unit FIAC AB 550 €10.67
25.2
 FIAC AB858 HP Piston 7220120000 FIAC AB858 HP Piston €80.84

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

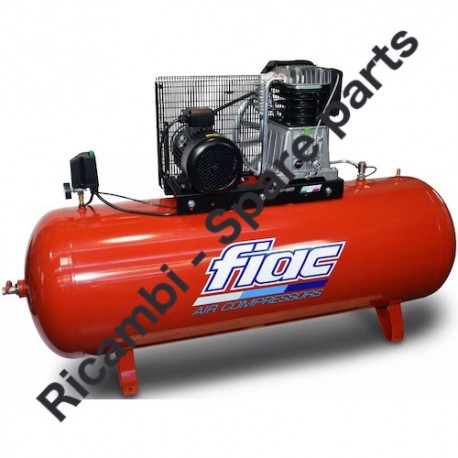

FIAC AB 500-858 TF 15BAR Spare Parts

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 500/858 TF 15BAR Code: 1525600000.

In the following table, look for the type of the air compressor and the respective parts of the code .
Air Compressor AB 500/858 TF 15BAR

AB 500/858 TF 15BAR Code: 1525600000 serial nr. 120814986
# Part Num. Description
1 3021110000 Pump unit NEW VERSION
2 4056140000 Press. Switch kit
2.1 7082690000 Joint
2.2 7090070000 Plug
2.3 7251290000 Pressure switch
2.4 7328690000
2.5 7328700000 Infeed cable
3 4080520000 Screw kit
4 4151450000 Motor/pulley kit - QUOTE ON DEMAND
5 4170200000 Belt guard kit
6 5010460008 Base
7 5159660008 Tank
9 7085020000 Joint
10 7085030000 Joint
12 7085390000 Joint
13 7090050000 Plug
15 7110150000 Pressure gauge
16 7130460000 Tap
17 7130160000 Discharge tap
18 7190150000 Non return valve
19 7192330000 Safety valve
20 7230010000 Rilsan hose
21 7231210000 Rubber hose
22 7370680000 Belt
23 7458990000 Belt guard Support
Pump Unit AB 808
# Part Num. Description
1 5071020008 Crankcase
2 7650080000 Front cover
3 7060150000 Bearing
4 5041490008 Crankshaft - DISCONTINUED
5 7060060000 Bearing
6 7650070000 Rear cover
7 7090090000 Plug
8 7180060000 Oil level gauge
9 7051520000 Key
10 7575460000 Cylinder
11 4231230000 Valve Plate
11.1 x Plate
11.2 x Valve
11.3 x Valve
11.4 x gasket
12 5030610008 Head
13 4086830000 Breather pipe plug kit
14 7232220000 Intermediate Aftercooler
15 5130110008 Aftercooler
16 7043050000 Stirrup
17 7192350000 Safety Valve
18 7081190000 Joint
19 7201240000 Flywheel
20 7650090000 Lower cover
21 4082280000 Gasket kit
21.1 x Gasket
21.2 x Gasket
21.3 x Gasket
21.4 x Gasket
21.5 x Oil seal
21.6 x Gasket
21.7 x Gasket
22 4080920000 Screw kit
22.1 x Screw
22.2 x Screw
22.3 x Screw
22.4 x Washer
22.5 x Screw
22.6 x Washer
22.7 x Screw
22.8 x Screw
22.9 x Screw
23 4080290000 Intake filter kit
23.1 x Filter cover
23.2 x Filter base
23.3 7210690000 Filtering element
23.4 x Screw
24 4080850000 LP Conn.rod/Piston Kit biella/pistone BP
24.1 4080840000 Low pression ring ki Kit fasce bassa pressione
24.2 7220340000 Piston
24.3 7050270000 Piston pin
24.4 x Internal snapring
24.5 5050580008 Con rod
25 4080860000 HP conn.rod/piston Kit biella/pistone AP
25.1 4080080000 High pressure ring k Kit fasce alta pressione
25.2 7220120000 Piston
25.3 5050580008 Con rod
25.4 7050130000 Piston pin
25.5 x Internal snapring
