FIAC AIRBOX2 F3002 Spare Parts

SKU: AIRBOX2 F3002 1121010010
€155.69
VAT included

FIAC AIRBOX2 F3002 Spare Parts

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Air Compressor AIRBOX2 F3002 1121010010.
FIAC AIRBOX2 F3002 Spare Parts
  • FIAC AIRBOX2 F3002 Spare Parts
  • FIAC AIRBOX2 F3002 Spare Parts - Drawing
  • FIAC AIRBOX2 F3002 Spare Parts - Drawing 1
FIAC spa

FIAC AIRBOX2 F3002 Spare Parts

SKU: AIRBOX2 F3002 1121010010 Condition: New
€155.69
VAT included

FIAC AIRBOX2 F3002 Spare Parts

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Air Compressor AIRBOX2 F3002 1121010010.
settings 44 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Air Compressor
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

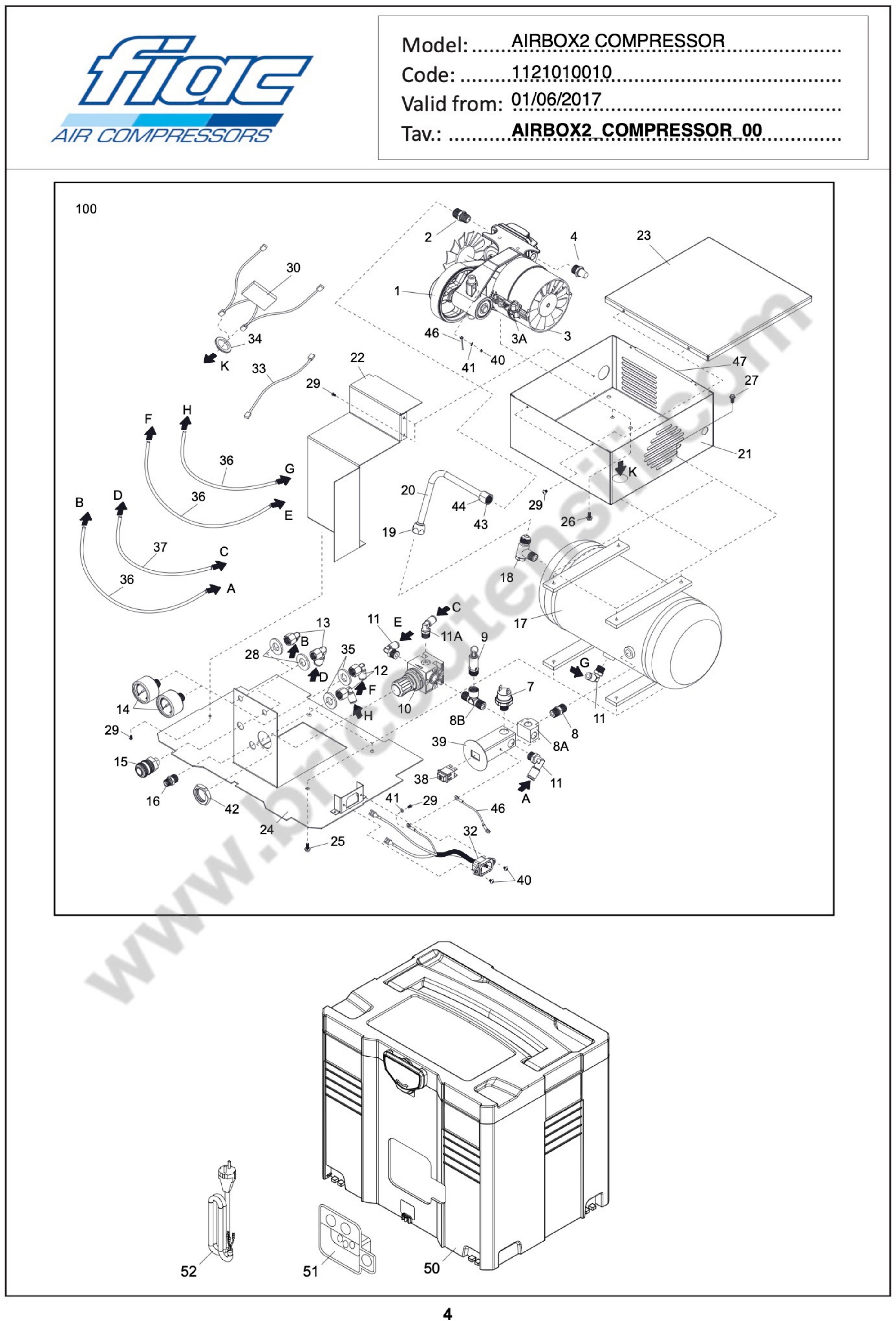

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1129704820 PUMP UNIT €151.16
2
 photo_cameraImage coming soon 1129704816 FITTING €0.11 Not available for order
3
 photo_cameraImage coming soon 9700001816 COVER €4.36
4
 photo_cameraImage coming soon 9700003279 INTAKE FILTER €11.09
7
 Fiac AIRBOX2 Pressure Switch 9700002262 Fiac AIRBOX2 Pressure Switch €28.12
8
 photo_cameraImage coming soon 1129701183 FITTING €0.11 Not available for order
8A
 photo_cameraImage coming soon 1129702294 FITTING €0.11 Not available for order
8B
 photo_cameraImage coming soon 1129704068 UNION TEE €0.11 Not available for order
9
 photo_cameraImage coming soon 9700002591 RELIEF VALVE €3.67
10
 photo_cameraImage coming soon 7100790000 PRESSURE REDUCER €17.96
11
 ”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 7084240000 ”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 €3.00
11A
 photo_cameraImage coming soon 9700002612 FITTING €5.60
12
 photo_cameraImage coming soon 1129703287 FITTING €0.11 Not available for order
13
 photo_cameraImage coming soon 7080240000 L F1 / 8 "-6 RAPID0 connector €15.66
14
 photo_cameraImage coming soon 7110240000A PRESSURE GAUGE €17.20
15
 photo_cameraImage coming soon 9700000276 universal tap €7.09
16
 FIAC F205 Drain Tap 1/4" 7130090000 FIAC F205 Drain Tap 1/4" €10.00
17
 photo_cameraImage coming soon 1129703293 TANK €0.11 Not available for order
18
 photo_cameraImage coming soon 9700001528 CHECK VALVE €30.05
20
 Fiac AIRBOX2 Infeed Hose 1129704822 Fiac AIRBOX2 Infeed Hose €31.21
21
 photo_cameraImage coming soon 1129704823 BOX €0.11 Not available for order
22
 photo_cameraImage coming soon 1129704824 PLATE €0.11 Not available for order
23
 photo_cameraImage coming soon 1129704825 COVERING €0.11 Not available for order
24
 photo_cameraImage coming soon 1129704826 SUPPORT €0.11 Not available for order
30
 photo_cameraImage coming soon 7310670000 Capacitor MF0,22 €24.78
32
 photo_cameraImage coming soon 1129704828 ELECTRIC CABLE €13.34
33
 photo_cameraImage coming soon 1129702649 THIN WIRE €6.71
34
 photo_cameraImage coming soon 1129703298 FAIRLEAD €0.11 Not available for order
36
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €2.57
37
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €2.57
38
 photo_cameraImage coming soon 7300370000 Switch €14.39
39
 photo_cameraImage coming soon 1129704829 SWITCH €0.11 Not available for order
43
 photo_cameraImage coming soon 9700000633 wishbone Ø10 €1.48
46
 photo_cameraImage coming soon 1129704830 THIN WIRE €0.11 Not available for order
47
 photo_cameraImage coming soon 1129704831 RUBBER €0.11 Not available for order
50
 photo_cameraImage coming soon 1125160799 BOX €148.42
51
 photo_cameraImage coming soon 1127150111 PANEL €6.72
52
 photo_cameraImage coming soon 9700003295 POWER CABLE €9.22
100
 photo_cameraImage coming soon 112910274 MODULE €0.11 Not available for order
Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

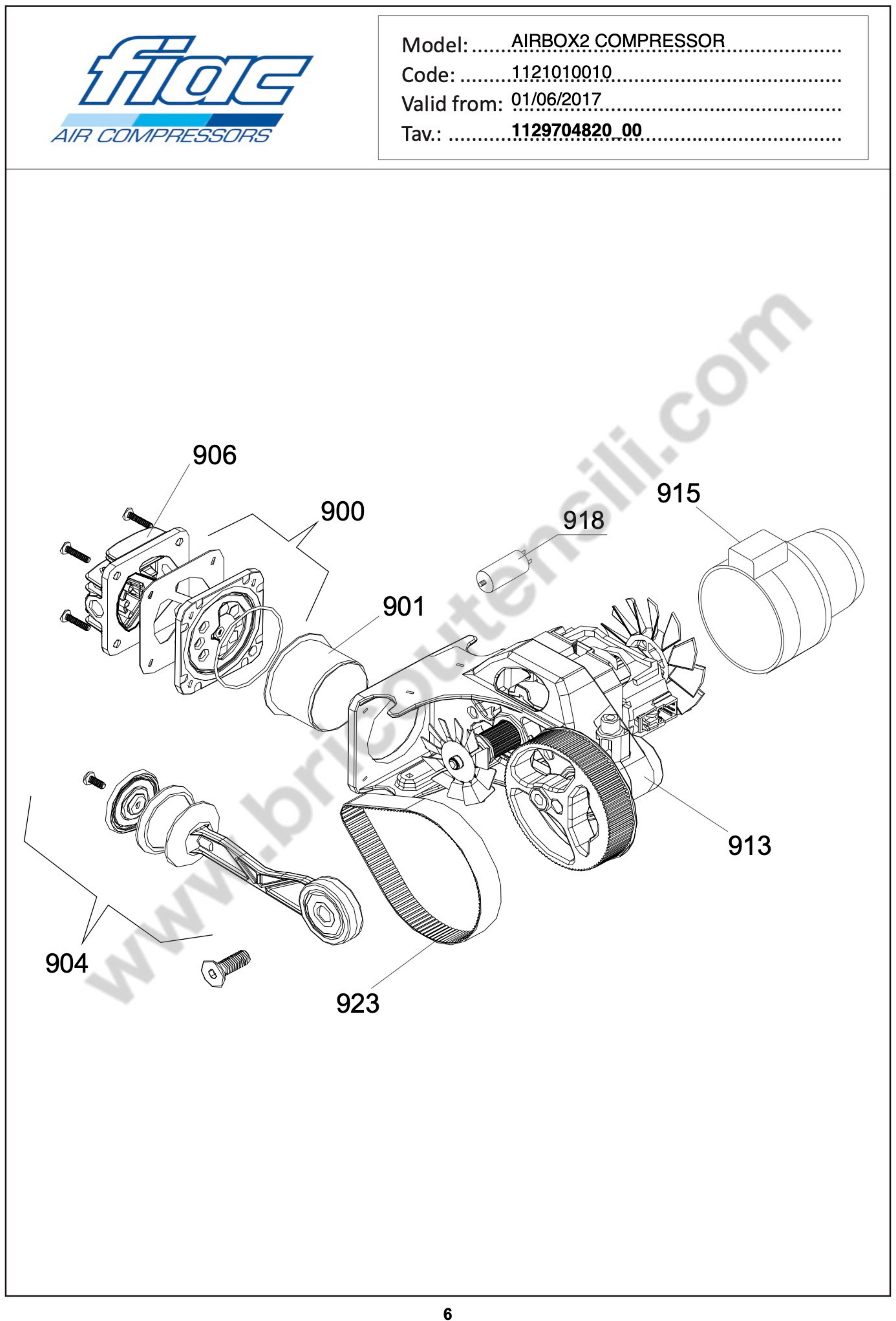

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
900
 photo_cameraImage coming soon 9700000177 VALVE HOLDER PLATE €23.45
901
 Cylinder for Air Compressor Black & Decker CP6 7422250020 Cylinder for Air Compressor Black & Decker CP6 €15.97
904
 Fiac AIRBOX2 Conrod Piston Kit 9700000723 Fiac AIRBOX2 Conrod Piston Kit €45.37
906
 photo_cameraImage coming soon 9101500210 HEAD €13.84
913
 photo_cameraImage coming soon 9700003707 MOTOR €142.48
915
 photo_cameraImage coming soon 9700001816 COVER €4.36
918
 photo_cameraImage coming soon 7310670000 Capacitor MF0,22 €24.78
923
 Belt for Air Compressor Yamato Oil-Less 6-1,5 7422250030 Belt for Air Compressor Yamato Oil-Less 6-1,5 €24.80

Shipping and delivery information will be available shortly.

FIAC AIRBOX2 F3002 Spare Parts

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Air Compressor AIRBOX2 F3002 1121010010.

In the following table , look for the model of the pumping unit and the respective parts of the code .
Fiac AIRBOX2 COMPRESSOR - 1121010010

AIRBOX2 COMPRESSOR - 1121010010 Pag.1
# Part Num. Description
1 1129704820 PUMP UNIT
2 1129704816 FITTING
3 9700001816 COVER
3A X SCREW
4 9700003279 INTAKE FILTER
7 9700002262 PRESSURE SWITCH
8 1129701183 FITTING
8A 1129702294 FITTING
8B 1129704068 UNION TEE
9 9700002591 RELIEF VALVE
10 7100790000 PRESSURE REDUCER
11 7084240000 FITTING
11A 9700002612 FITTING
12 1129703287 FITTING
13 7080240000 FITTING
14 7110240000A PRESSURE GAUGE
15 9700000276 SNAP COCK
16 7130090000 DISCHARGE TAP
17 1129703293 TANK
18 9700001528 CHECK VALVE
19 X NUT
20 1129704822 INFEED HOSE
21 1129704823 BOX
22 1129704824 PLATE
23 1129704825 COVERING
24 1129704826 SUPPORT
25 X SCREW
26 X SCREW
27 X SCREW
28 X WASHER
29 X SCREW
30 7310670000 CAPACITOR
32 1129704828 ELECTRIC CABLE
33 1129702649 THIN WIRE
34 1129703298 FAIRLEAD
35 X WASHER
36 7230010000 RILSAN TUBE
37 7230010000 RILSAN TUBE
38 7300370000 SWITCH
39 1129704829 SWITCH
40 X SCREW
41 X WASHER
42 X NUT
43 9700000633 OGIVE
44 X NUT
46 1129704830 THIN WIRE
47 1129704831 RUBBER
50 1125160799 BOX
51 1127150111 PANEL
52 9700003295 POWER CABLE
100 112910274 MODULE
Pump Unit Kit 1129704820 Pag.2
# Part Num. Description
900 9700000177 VALVE HOLDER PLATE
901 7422250020 CYLINDER
904 9700000723 CON ROD KIT
906 9101500210 HEAD
913 9700003707 MOTOR
915 9700001816 COVER
918 7310670000 CAPACITOR
923 7422250030 BELT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AIRBOX2 F3002 1121010010
6 Items

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
Machine Type
Air Compressor
MORE INFO:
[email protected]

Specific References

New

Download

Fiac AIRBOX2 Drawing

Fiac AIRBOX2 Drawing

Download (669.78KB)
