FIAC spa

FIAC AB 245 CAST IRON Spare Parts

SKU: Fiac AB245 CAST-IRON
€1.52
VAT included

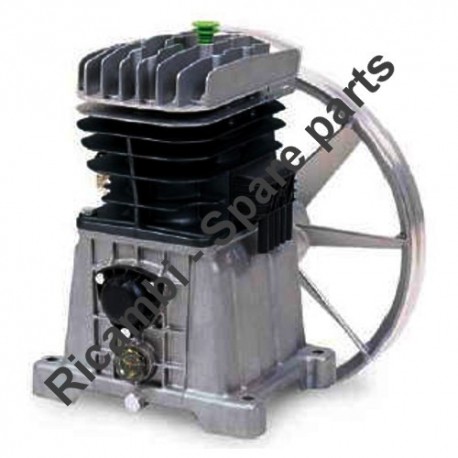

FIAC AB 245 CAST IRON Spare Parts

Fiac Genuine parts or replacement parts for to repair Piston Air Compressor Pump Unit AB 245 CAST IRON validity date - from 03-05-01.
FIAC AB 245 CAST IRON Spare Parts
  • FIAC AB 245 CAST IRON Spare Parts
  • FIAC AB 245 CAST IRON Spare Parts - Drawing
FIAC spa

FIAC AB 245 CAST IRON Spare Parts

SKU: Fiac AB245 CAST-IRON Condition: New
€1.52
VAT included

FIAC AB 245 CAST IRON Spare Parts

Fiac Genuine parts or replacement parts for to repair Piston Air Compressor Pump Unit AB 245 CAST IRON validity date - from 03-05-01.
settings 41 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
41 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

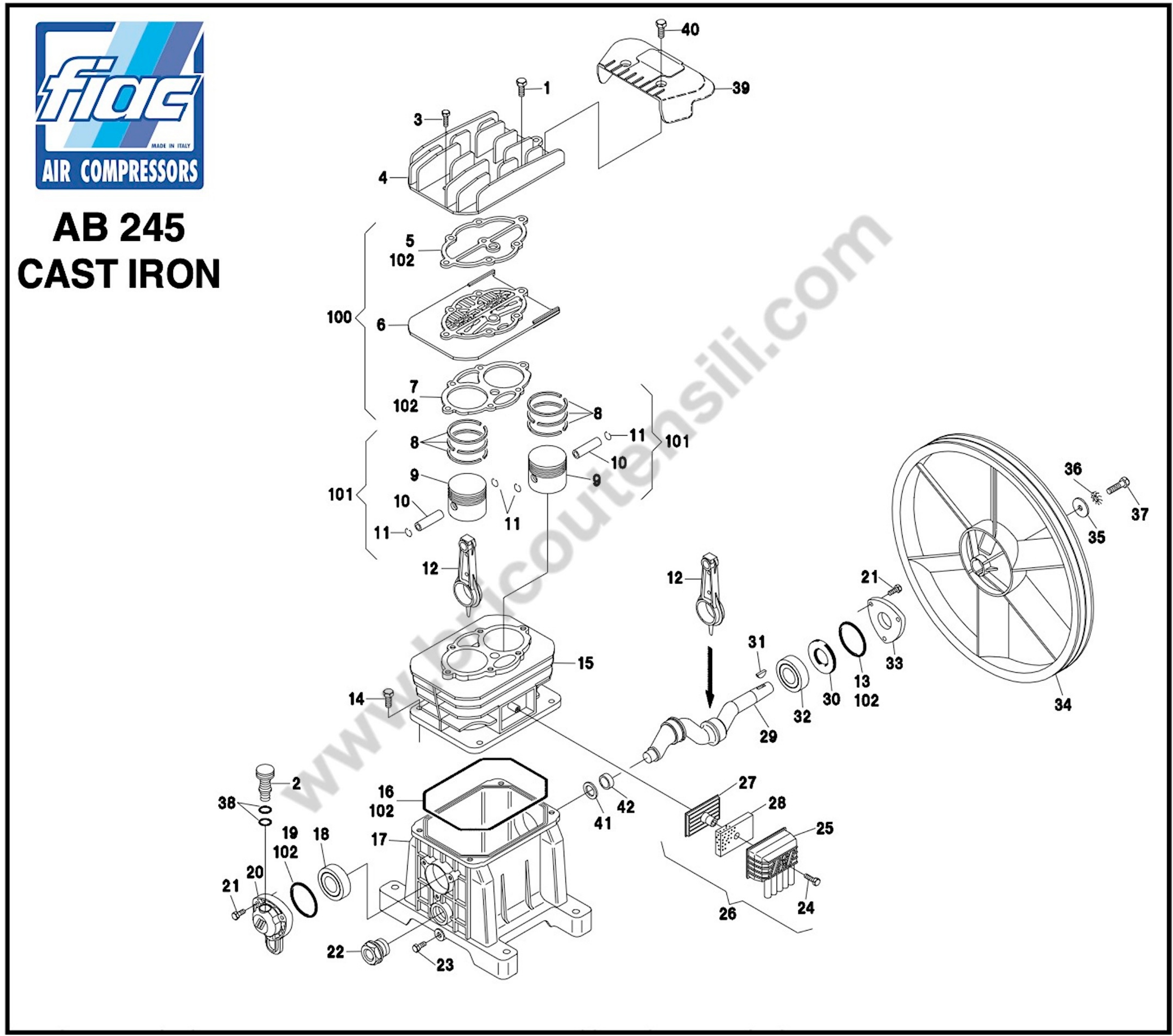

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7010080000 Screw M8x35 UNI-5931 €1.52
2
 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 7091120000 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 €4.34
4
 photo_cameraImage coming soon 7570120000 Head €46.26
5
 Head Plate Gasket for Pumping Units FIAC AB245-335 7079540000 Head Plate Gasket for Pumping Units FIAC AB245-335 €7.25
7
 Cylinder Plate Gasket for Pumping Units FIAC AB245-335 7079550000 Cylinder Plate Gasket for Pumping Units FIAC AB245-335 €8.05
8
 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 4080030000 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 €30.64
9
 Piston for Pumping Unit FIAC AB 335 7220050000 Piston for Pumping Unit FIAC AB 335 €29.18
10
 photo_cameraImage coming soon 7050030000 Pin Ø 13 €5.58
11
 photo_cameraImage coming soon 7041030000 Seeger Ø13 €1.44
12
 Conrod for Pumping unit FIAC AB335 5050550008 Conrod for Pumping unit FIAC AB335 €16.77
13
 O-Ring mm 53x2 for Pump Unit FIAC AB 335 7070360000 O-Ring mm 53x2 for Pump Unit FIAC AB 335 €1.52
14
 photo_cameraImage coming soon 7012220000 Screw M8X 25 UNI-8112 €1.52
15
 photo_cameraImage coming soon 7575230000 Cylinder €142.05
16
 Cylinder Carter Gasket for Pump Unit FIAC AB 335 7079530000 Cylinder Carter Gasket for Pump Unit FIAC AB 335 €11.68
17
 photo_cameraImage coming soon 7670060000 sump €78.40
18
 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 7060180000 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 €11.77
19
 O-Ring mm 47x2 for Pump Unit FIAC AB 335 7070350000 O-Ring mm 47x2 for Pump Unit FIAC AB 335 €1.52
20
 Side Blinde Holder for Pump Unit FIAC AB 335 7151410000 Side Blinde Holder for Pump Unit FIAC AB 335 €11.03 Not available for order
21
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
22
 Oil Sight Glass 3/8" for Pump Unit Fiac AB 335 7180120000 Oil Sight Glass 3/8" for Pump Unit Fiac AB 335 €13.29
23
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
24
 photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
25
 photo_cameraImage coming soon 7151240000 Plastic cover €5.26
26
 Set Intake Filter for Pump Units AB 335 - AB 410 4086990000 Set Intake Filter for Pump Units AB 335 - AB 410 €16.77
27
 Filter Plate for Pump Unit FIAC AB 335 7151230000 Filter Plate for Pump Unit FIAC AB 335 €4.34
28
 Filter Element for Pumping Unit FIAC AB 410 7210610000 Filter Element for Pumping Unit FIAC AB 410 €5.30
29
 Crank Shaft for Pumping Units FIAC AB 245 - AB 335 5041160008 Crank Shaft for Pumping Units FIAC AB 245 - AB 335 €90.65 Not available for order
30
 Oil Seal 20x40x7 for Pump Unit FIAC AB 335 7071290000 Oil Seal 20x40x7 for Pump Unit FIAC AB 335 €7.17
31
 photo_cameraImage coming soon 7051500000 Tab 4X6,5 €1.48
32
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
33
 photo_cameraImage coming soon 7151210000 SIDE PERFORATED HOLDER AB 245 "PLASTIC" €6.40
34
 photo_cameraImage coming soon 7201000000 flywheel €61.75
35
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
36
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
37
 photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
38
 O-Ring for Pumping Unit Fiac AB 335-410-858-998 7070110000 O-Ring for Pumping Unit Fiac AB 335-410-858-998 €1.52
39
 photo_cameraImage coming soon 7153070000 conveyor €6.86
40
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
41
 photo_cameraImage coming soon 7031140000 Washer €2.77
100
 FIAC AB245 CAST IRON Kit Valve Plate 4082920000 FIAC AB245 CAST IRON Kit Valve Plate €61.19
101
 Kit Piston for Pumping unit FIAC AB 248-338 4291030000 Kit Piston for Pumping unit FIAC AB 248-338 €70.16
102
 Gaskets Kit for Air Compressors Pump Unit FIAC AB245-335 4082220000 Gaskets Kit for Air Compressors Pump Unit FIAC AB245-335 €31.09

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC AB 245 CAST IRON Spare Parts

Fiac Genuine parts or replacement parts for to repair Piston Air Compressor Pump Unit AB 245 CAST IRON validity date - from 03-05-01.

In the following table , look for the model of the pumping unit and the respective parts of the code.
Fiac Pump Unit AB 245 CAST IRON

Fiac Pump Unit AB 245 CAST IRON Spare Parts
# Part Num. Description
1 7010080000 Screw
2 7091120000 Breather pipe plug
3 7010350000 Screw
4 7570120000 Head
5 7079540000 Gasket
6 4231200000 Valve plate
7 7079550000 Gasket
8 4080030000 Piston rings
9 7220050000 Piston
10 7050030000 Piston pin
11 7041030000 Ring
12 5050550008 Con rod
13 7070360000 Gasket
14 7012220000 Screw
15 7575230000 Cylinder
16 7079530000 Gasket
17 7670060000 Carter
18 7060180000 Bearing
19 7070350000 Gasket
20 7151410000 Cover - DISCONTINUED
21 7011460000 Screw
22 7180120000 Oil level sight glass
23 7011460000 Screw
24 7012060000 Screw
25 7151240000 Intake filter
26 4086990000 Set intake filter
27 7151230000 Filter plate
28 7210610000 Filtering element
29 5041160008 Crankshaft
30 7071290000 Mim ring
31 7051500000 Key
32 7060200000 Bearing
33 7151210000 Cover
34 7201000000 Flywheel
35 7030270000 Washer
36 7031010000 Toothed washer
37 7011100000 Screw
38 7070110000 Gasket
39 7153070000 Air conveyor
40 7012090000 Screw
41 7031140000 Washer
42 7031130000 Spacer
100 4082920000 Set valves plate
101 4291030000 Piston group
102 4082220000 Set of gasket
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB245 CAST-IRON
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Fiac AB 245 CAST IRON Drawing

Fiac AB 245 CAST IRON Drawing

Download (396.95KB)
