| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
KM1
|
|
1129708083 Easy kit | €18.49 | |
|
PK1
|
photo_cameraImage coming soon | 1129708084 Performance kit | €44.53 |
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Air Compressor AIR XSS 228/6 R3000 4116000675.
In the following table , look for the model of the pumping unit and the respective parts of the code .![]()
| Direct Driven Air Compressor AIR XSS228/6 R3000 4116000675 - 1129741073 | ||

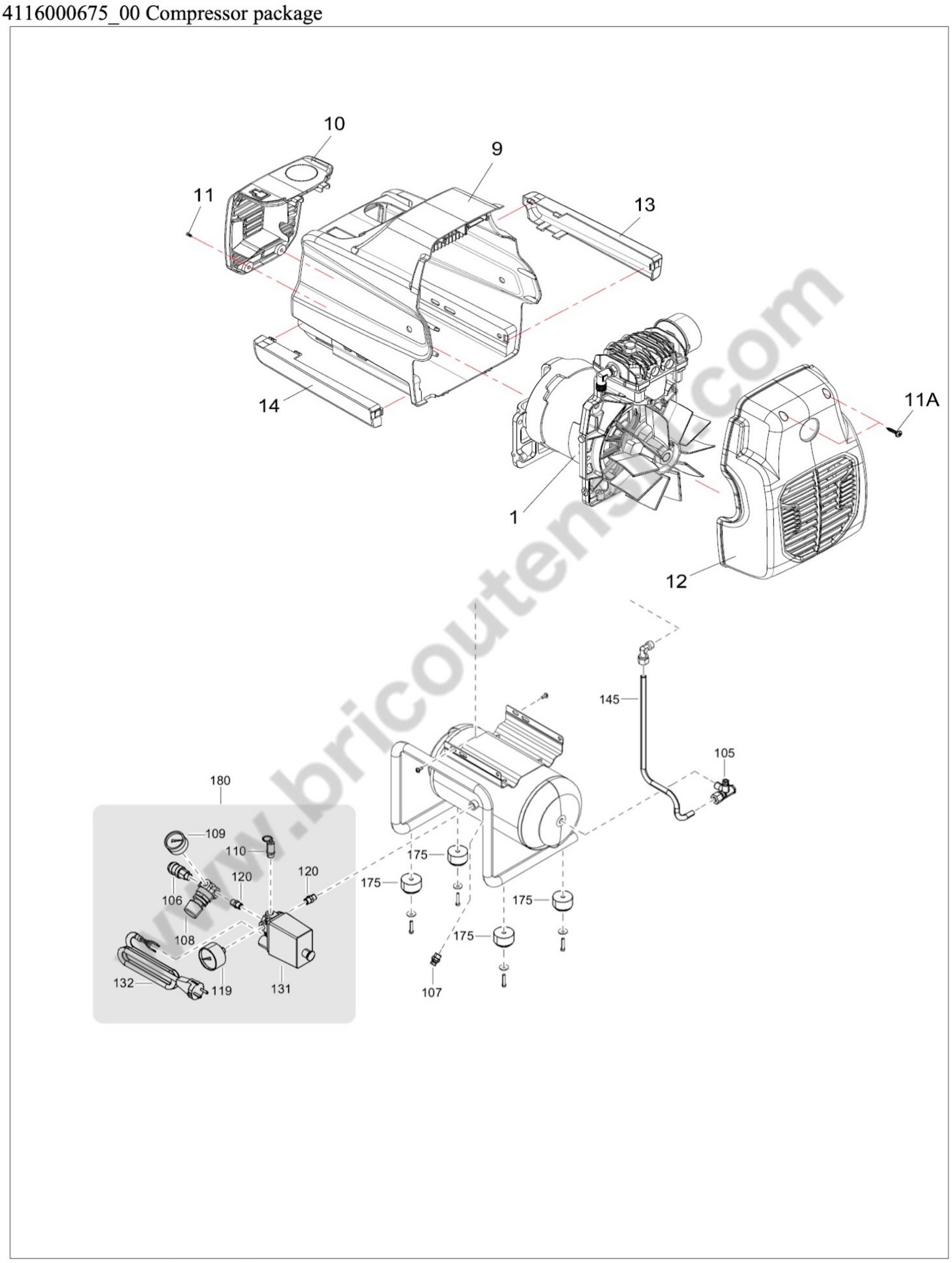

| Repairing Kits & Parts Pag.1 | ||
| 1 | 1129740770 | Pump unit |
| 9 | 1129707419 | Plastic rear shroud |
| 10 | 1129707420 | Plastic panel |
| 11 | 9700001171 | Screw |
| 11A | 9700001057 | Screw |
| 12 | 1129707418 | Plastic front shroud |
| 13 | 1129707421 | Right plastic block |
| 14 | 1129707422 | Left plastic block |
| 105 | 7190200000 | valvola di Non Ritorno |
| 106 | 7130570000 | Rubinetto Rapido 1/4" M2 |
| 107 | 7130090000 | RUBINETTO SPURGO |
| 108 | 1127100064 | RIDUTTORE DI PRESSIONE |
| 109 | 7110240000 | MANOMETRO D40 XR 1/8" |
| 110 | 7192910000 | VALV.SIC.1/4'10BAR C/ANELLA PA |
| 119 | 7110300000 | MANOMETRO D50 XR 1/4" 10 BAR RED |
| 120 | 7081090000 | Raccordo 1/4" MM |
| 131 | 7250740000 | Pressostato 8BAR CE |
| 132 | 7326450000 | Cavo |
| 145 | 2236116569 | Tubo Mandata D10 XSS 3+3L |
| 175 | 7270010000 | Piede in Gomma |
| 180 | 2236116606 | Kit Pressostato |

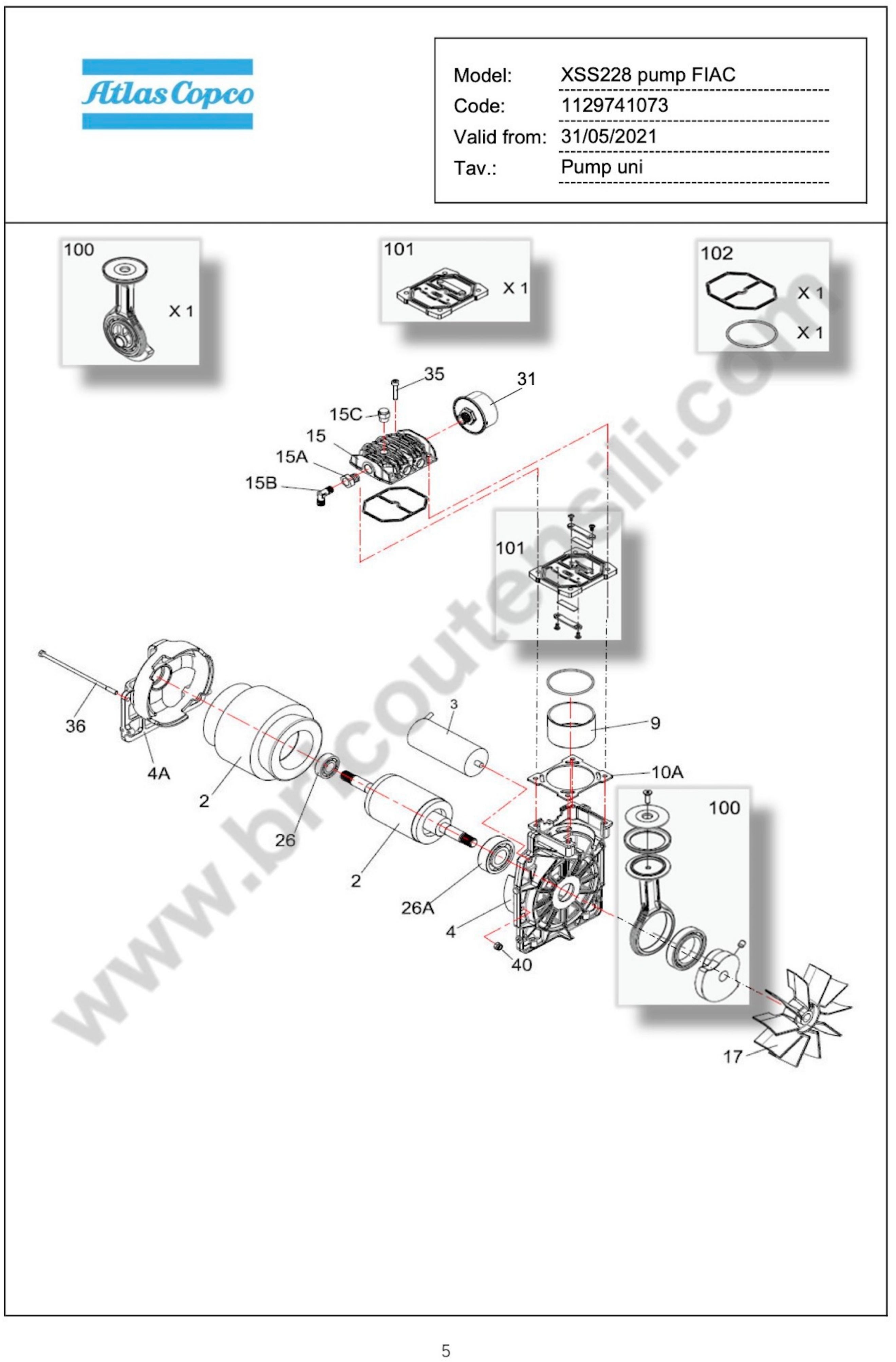

| Repairing Kits & Parts Pag.2 | ||
| 2 | 1129708090 | Motor |
| 3 | 7310320000 | Capacitor |
| 4 | 1129707416 | Cranckcase |
| 4A | 1127640002 | Rear cover |
| 9 | 1129707776 | Cylinder |
| 10A | 1127060309 | Gasket |
| 15 | 1127570003 | Head |
| 15A | 7085190000 | Joint |
| 15B | 9700000632 | L Joint |
| 15C | 7196020000 | Start valve |
| 17 | 1127200132 | Fan cover |
| 26 | 7060230000 | Bearing |
| 26A | 1129707849 | Bearing |
| 31 | 1129703717 | Filter |
| 35 | 7010100000 | Screw |
| 36 | 9100010060 | Screw |
| 40 | 7021010000 | Nut |
| 100 | 1129708079 | Con rod kit |
| 101 | 1129708080 | Valve plate kit |
| 102 | 1129708082 | Seal kit |

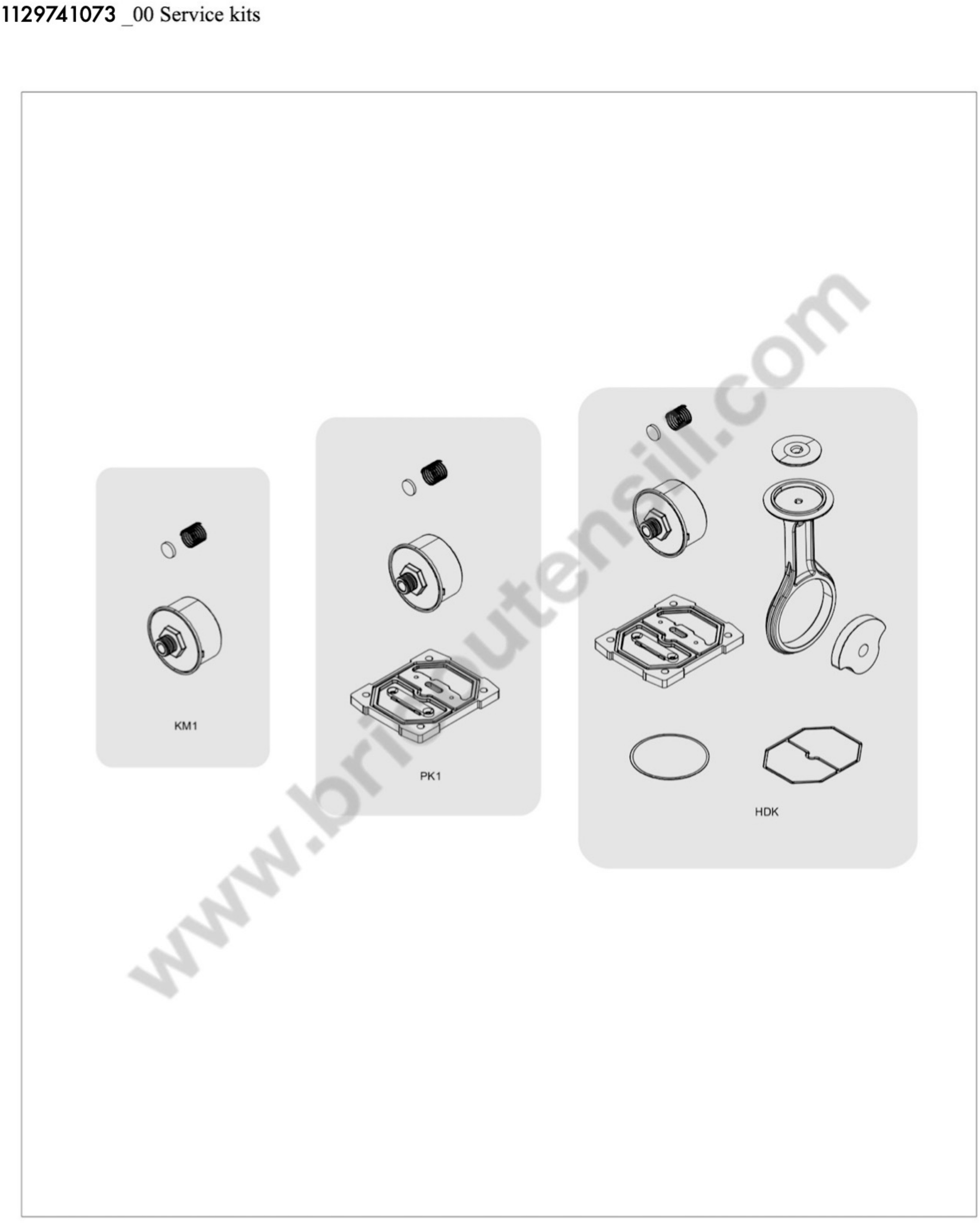

| SERVICE KITS Pag.3 | ||
| KM1 | 1129708083 | Easy kit |
| PK1 | 1129708084 | Performance kit |
| HDK | 1129708085 | Heavy duty kit |
