FIAC COSMOS 2420 Spare Parts

SKU: Cosmos 2420 1129990526
€0.61
VAT included

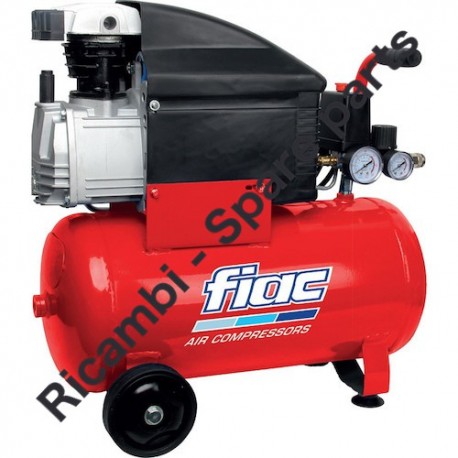

FIAC COSMOS 2420 Spare Parts

FIAC genuine spare parts or replacement parts for to fix Air Compressor COSMOS 2420 V230/50 - 1129990526 * 1129981160.
IAC COSMOS 2420 Spare Parts
  • IAC COSMOS 2420 Spare Parts
  • IAC COSMOS 2420 Spare Parts - Drawing

FIAC COSMOS 2420 Spare Parts

SKU: Cosmos 2420 1129990526 Condition: New
€0.61
VAT included

FIAC COSMOS 2420 Spare Parts

FIAC genuine spare parts or replacement parts for to fix Air Compressor COSMOS 2420 V230/50 - 1129990526 * 1129981160.
settings 67 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

67 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 7031030000 Washer Ø6 UNI-3703 €1.52
3
Head for Air Compressors FIAC FX-90 Colibri' GM 192 9100010320 Head for Air Compressors FIAC FX-90 Colibri' GM 192 €33.32
4
photo_cameraImage coming soon 9993820060 Joint €9.26
5
Cylinder Head Gasket for Compressor Fiac Stratos 24 9993820070 Cylinder Head Gasket for Compressor Fiac Stratos 24 €1.92
6
photo_cameraImage coming soon 9995420040 Valve assembly €10.75
7
FIAC Stratos 24 Flap Valve 9993820090 FIAC Stratos 24 Flap Valve €4.22
8
Fiac Stratos Valve Plate Gasket 9993820100 Fiac Stratos Valve Plate Gasket €3.13
9
photo_cameraImage coming soon 9993820110 Piston €19.71
10
Cylinder-Valve Plate Gasket for Air Compressor Stratos 24 9993820120 Cylinder-Valve Plate Gasket for Air Compressor Stratos 24 €1.54
11
photo_cameraImage coming soon 9995420030 Cylinder €65.29
12
photo_cameraImage coming soon 7010090000 Screw M8X25 UNI-5931 €2.22
13
photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
14
Crankcase-Cylinder Gasket for Air Compressor Stratos 24 9993820140 Crankcase-Cylinder Gasket for Air Compressor Stratos 24 €4.34
15
Piston Ring for Compressor Fiac Stratos 24 9993820150 Piston Ring for Compressor Fiac Stratos 24 €9.22
16
Oil Scraper Ring for Compressor Fiac Stratos 24 9993820160 Oil Scraper Ring for Compressor Fiac Stratos 24 €5.41
17
photo_cameraImage coming soon 9993820170 Piston pin €4.03
18
Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
19
Conrod for Air Compressor FIAC Stratos 24 9993820180 Conrod for Air Compressor FIAC Stratos 24 €19.95
20
photo_cameraImage coming soon 9993820190 Counter weight €15.95
21
photo_cameraImage coming soon 7010050000 Screw M8X20 UNI-5931 €1.52
22
Dipstick Level Oil for Pump Unit and Compressors Fiac GM-Vx-Colibrì 7181060000 Dipstick Level Oil for Pump Unit and Compressors Fiac GM-Vx-Colibrì €10.47
23
photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
24
photo_cameraImage coming soon 7180100000 Oil level gauge €7.95
25
photo_cameraImage coming soon 7180100000 Oil level gauge €7.95
26
photo_cameraImage coming soon 9995420020 Carter cover €38.53
27
photo_cameraImage coming soon 9993820220 Gasket €4.03
28
Oil Seal 20x40x7 for Pump Unit FIAC AB 335 7071290000 Oil Seal 20x40x7 for Pump Unit FIAC AB 335 €7.17
29
photo_cameraImage coming soon 9993820230 Crankcase €25.54
30
photo_cameraImage coming soon 9993820240 Capacitor €10.81
31
photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
32
photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
33
photo_cameraImage coming soon 9993820250 Screw €13.18
36
Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
37
photo_cameraImage coming soon 9993820260 Rotor €58.93
38
photo_cameraImage coming soon 7060710000 Bearing €12.05
39
photo_cameraImage coming soon 9993820270 Stator €69.39
40
photo_cameraImage coming soon 9993820280 Gasket €1.42
41
photo_cameraImage coming soon 9993820290 Covering €13.06
42
photo_cameraImage coming soon 9993820300 Tension rod €13.18
43
photo_cameraImage coming soon 7030330000 Washer €1.44
44
photo_cameraImage coming soon 9993820310 Fan €11.00
46
photo_cameraImage coming soon 9995420010 Plastic schroud €13.13
47
photo_cameraImage coming soon 7012080000 Screw Ø4,2X12,7 UNI-6954 €1.38
48
photo_cameraImage coming soon 7030700000 Screw €1.42
49
photo_cameraImage coming soon 7130010000 Line Valve M1/4" €12.10
50
photo_cameraImage coming soon 7110280000 Pressure gauge €11.23
51
Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
52
Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
53
photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
54
Pressure Switch 10 BAR CE for FIAC Air Compressors 9700000388 Pressure Switch 10 BAR CE for FIAC Air Compressors €42.54
55
photo_cameraImage coming soon 9993820340 Joint €4.03
58
Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
60
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
61
photo_cameraImage coming soon 7326450000 Infeed cable €15.31
64
photo_cameraImage coming soon 9993820370 Tank €92.07
65
photo_cameraImage coming soon 7280070000 knob €7.05
66
photo_cameraImage coming soon 9993820380 Non return valve €4.03
67
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
68
photo_cameraImage coming soon 7020050000 M5 Nut UNI-5587 €1.48
69
photo_cameraImage coming soon 7030010000 Washer Ø5 UNI-6592 €1.48
70
Sucking Foot for Air Compressor Compact 106 7270010000 Sucking Foot for Air Compressor Compact 106 €3.45
71
photo_cameraImage coming soon 7014510000 Screw €1.42
72
photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
74
Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
75
Wheel D.125x35x15 for FIAC AIR Compressors 7260160000 Wheel D.125x35x15 for FIAC AIR Compressors €7.50
76
Pipe for Connection Head Valve for Stratos 50 Lt 9993820390 Pipe for Connection Head Valve for Stratos 50 Lt €19.97
78
photo_cameraImage coming soon 9993820400 Nut €2.07
79
Set Intake Filter for Pumping Units FIAC GM 201-202-242 4085010000 Set Intake Filter for Pumping Units FIAC GM 201-202-242 €15.65
81
photo_cameraImage coming soon 7012070000 Screw M4X8 UNI-8112 €2.07

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC COSMOS 2420 Spare Parts

FIAC genuine spare parts or replacement parts for to fix Air Compressor COSMOS 2420 V230/50 - 1129990526 * 1129981160.

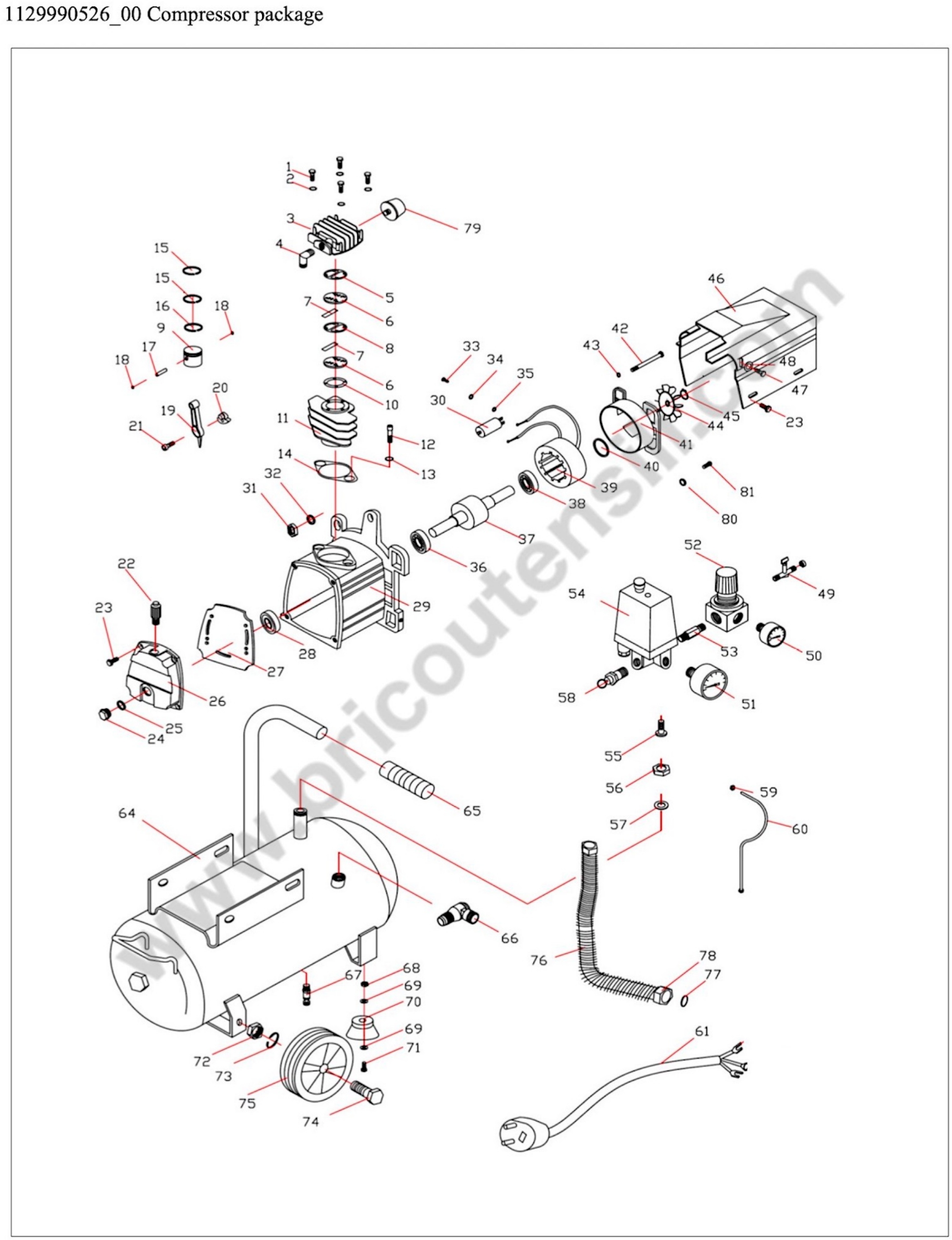

In the following table , look for the type of the Air Compressor and the respective parts of the code .
COSMOS 2420 V230/50 - 1129990526

COSMOS 2420 V230/50 - 1129990526
# Part Num. Description
1 7011340000 Screw
2 7031030000 WASHER LOCK D6 UNI 3703
3 9100010320 HEAD GM192
4 9993820060 JOINT L M3/8"
5 9993820070 Cylinder-head gasket
6 9995420040 Valve assembly
7 9993820090 Flap Valve
8 9993820100 Gasket
9 9993820110 Piston
10 9993820120 Gasket
11 9995420030 Cylinder
12 7010090000 Screw
13 7031010000 WASHER LOCK GALV, D8
14 9993820140 Cylinder/crankcase gasket
15 9993820150 Piston ring
16 9993820160 Piston ring
17 9993820170 Piston pin
18 7041010000 SEEGER
19 9993820180 Connecting rod
20 9993820190 Counter weight
21 7010050000 SCREW T.C.C.E. M8X20 UNI5931
22 7181060000 Oil dipstick
23 7011040000 Screw
24 7180100000 Oil level gauge
25 7180100000 Oil level gauge
26 9995420020 Carter cover
27 9993820220 Gasket
28 7071290000 Oil seal
29 9993820230 Crankcase
30 9993820240 Capacitor
31 7020070000 DADO
32 7031010000 RONDELLA DENTATA
33 9993820250 Screw
34 7030220000 Washer
35 7030520000 Washer
36 7060200000 BALL BEARING
37 9993820260 Rotor
38 7060710000 Bearing
39 9993820270 Stator
40 9993820280 Gasket
41 9993820290 Covering
42 9993820300 Tension rod
43 7030330000 Washer
44 9993820310 Fan
45 9993820320 Internal snapring
46 9995420010 Plastic schroud
47 7012080000 Screw
48 7030700000 Screw
49 7130010000 Tap
50 7110280000 Pressure gauge D40
51 7110300000 PRESSURE GAUGE D50
52 7100640000 PRESSURE REDUCER
53 7081090000 Fitting
54 9700000388 Pressure switch
55 9993820340 Joint
56 9993820350 Nut
57 7030680000 Washer - Rondella 3/8"
58 7192020000 Safety valve
59 9993820360 Nut
60 7230010000 RILSAN HOSE
61 7326450000 Infeed cable
64 9993820370 Tank
65 7280070000 Handle
66 9993820380 Non return valve
67 7130160000 DRAIN TAP D 3/8
68 7020050000 Nut
69 7030010000 WASHER
70 7270010000 Rubber Foot
71 7014510000 Screw
72 7020080000 NUT M10 UNI-5588
73 7030360000 Toothed washer - UNI3703
74 7018290000 WHEEL PIN
75 7260160000 Wheel
76 9993820390 Infeed hose
77 7030470000 Washer
78 9993820400 Nut
79 4085010000 Air filter
80 7030180000 Washer
81 7012070000 Screw
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
