FIAC spa

FIAC Pump Unit S13 - S14 Spare Parts

SKU: S13/S14 M/S HONDA
€1.48
VAT included

FIAC Pump Unit S13 - S14 Spare Parts

Genuine Parts FIAC for Air compressors with Pump Units  S13 / S14 M/S HONDA for use where there is no available electric power supply.

Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them.
- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines.

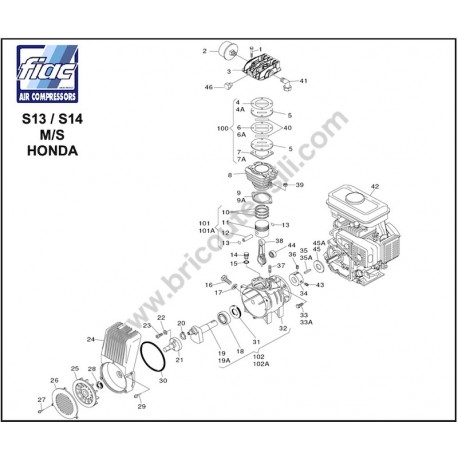

FIAC Pump Unit S13 - S14 Spare Parts - Drawing
  • Online only
  • FIAC Pump Unit S13 - S14 Spare Parts - Drawing
FIAC spa

FIAC Pump Unit S13 - S14 Spare Parts

SKU: S13/S14 M/S HONDA Condition: New
€1.48
VAT included

FIAC Pump Unit S13 - S14 Spare Parts

Genuine Parts FIAC for Air compressors with Pump Units  S13 / S14 M/S HONDA for use where there is no available electric power supply.

Designed with wide-track gauge to facilitate their transport, they have large all-terrain tyres to make it easier to move them.
- The range is equipped with 4, 5.5 and 9 HP Honda petrol engines.
settings 47 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
47 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 photo_cameraImage coming soon 7210800000 Suction Filter €19.96
3
 photo_cameraImage coming soon 5030220008 Head €19.14
7-9
 photo_cameraImage coming soon 4082200000 Set of gaskets €11.53
7A-9A
 Fiac S14 Pump Unit Gasket Kit 4082330000 Fiac S14 Pump Unit Gasket Kit €17.07
10
 Piston Rings for Pumping Units FIAC VX 194-254-402 4080020000 Piston Rings for Pumping Units FIAC VX 194-254-402 €26.02
11
 Piston D.50 MM for Pump Units FIAC Series VX - GM 7220020000 Piston D.50 MM for Pump Units FIAC Series VX - GM €26.96
12
 photo_cameraImage coming soon 7050020000 Pin Ø12 / 8X42 €5.60
13
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
14
 photo_cameraImage coming soon 7098010000 Cork €10.26
15
 photo_cameraImage coming soon 7070010000 O-Ring 108 €1.44
16
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
17
 photo_cameraImage coming soon 7072010000 Seal €1.44
18
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
19A
 Crank Shaft for Pump Unit Fiac S15 5041280008 Crank Shaft for Pump Unit Fiac S15 €131.29
20
 Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 7040040000 Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 €0.62
21
 Motor Fan Shaft for Pump Unit Fiac S15 5040720008 Motor Fan Shaft for Pump Unit Fiac S15 €81.06
22
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
23
 Special Bolt M8x20 UNI-5931 for Pump Unit Fiac S15 7010420000 Special Bolt M8x20 UNI-5931 for Pump Unit Fiac S15 €1.52
24
 photo_cameraImage coming soon 5080060008 Cover €83.46
25
 Motor Fan for Pump Unit Fiac S15 7200150000 Motor Fan for Pump Unit Fiac S15 €12.06
26
 photo_cameraImage coming soon 7248060000 Grid €5.44
27
 photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
28
 Oil Seal 17x28x7 FP for Pump Unit Fiac S15 7071260000 Oil Seal 17x28x7 FP for Pump Unit Fiac S15 €5.77
29
 photo_cameraImage coming soon 7012240000 Screw M5X15 UNI-8112 €5.34
30
 O-Ring 4500 for Petrol Engine Air Compressors S1506-S1520 7070250000 O-Ring 4500 for Petrol Engine Air Compressors S1506-S1520 €10.61
31
 Oil Seal mm 25x52x10 for Pump Unit FIAC S 15 7071090000 Oil Seal mm 25x52x10 for Pump Unit FIAC S 15 €5.77
32
 photo_cameraImage coming soon 5070260008 CARTER €137.43
33
 photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
33A
 photo_cameraImage coming soon 7011970000 Screw 5/16 "25 UNF €1.48
34
 photo_cameraImage coming soon 7040510000 Ring €58.77
35
 photo_cameraImage coming soon 7051250000 Key €8.99
35A
 Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S15 7051280000 Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S15 €2.84
36
 photo_cameraImage coming soon 7016100000 Screw M8x10 UNI-5923 €1.44
37
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
38
 photo_cameraImage coming soon 5050091008 Con rod unit €10.26
39
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
40
 Valves Kit for Pump Unit Fiac S15 4081050000 Valves Kit for Pump Unit Fiac S15 €10.00
41
 photo_cameraImage coming soon 7084040000 Fitting "L" M3 / 8 " €9.84
43
 photo_cameraImage coming soon 7016190000 Screw M5X8 UNI-5923 €1.44
44
 Fiac Pump Unit S14 Cage Bearing HK20x12 7061010000 Fiac Pump Unit S14 Cage Bearing HK20x12 €18.46
45
 photo_cameraImage coming soon 1127040017 Spacer €45.80
45A
 Centering Ring for Petrol Engine Air Compressors S1506 7040200000 Centering Ring for Petrol Engine Air Compressors S1506 €69.42
46
 photo_cameraImage coming soon 7090080000 Stopper M3 / 8 " €1.50
100
 Valves Plate Kit for Puming Units Fiac VX 402 4082660000 Valves Plate Kit for Puming Units Fiac VX 402 €45.39
101A
 Fiac Pump Unit S13 Conrod - Piston Kit 4190090000 Fiac Pump Unit S13 Conrod - Piston Kit €89.21
101
 Fiac Pump Unit S13 Conrod - Piston Kit 4190090000 Fiac Pump Unit S13 Conrod - Piston Kit €89.21
102A
 photo_cameraImage coming soon 4280800000 GR.CARTER + TREE S-14 "HONDA" €243.89

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Pump Unit S13 - S14 Spare Parts

Genuine Parts FIAC for Air compressors with Pump Units  S 13-14 M-S HONDA_12-2008_StandAlone for use where there is no available electric power supply.

In the following table, look for the type of the air compressor and the respective parts of the code.
Pump Units S13 / S14 M/S HONDA

FIAC Pump Unit S 13-14 M-S HONDA_12-2008_StandAlone Spare Parts
# Part Num. Description
1 7011220000 Screw
2 7210800000 Intake filter
3 5030220008 Head
4
7-9 4082200000 Set of gaskets
4A
7A-9A 4082330000 Set of gaskets
5 Valve plate
8 7575240000 Cylinder - DISCONTINUED
10 4080020000 Piston rings
11 7220020000 Piston
12 7050020000 Piston pin
13 7041010000 Ring
14 7098010000 Breather pipe plug
15 7070010000 Gasket
16 7090090000 Plug
17 7072010000 Gasket
18 7060060000 Bearing
19 5040710008 Crankshaft S13 - Honda - DISCONTINUED
19A 5041280008 Crankshaft
20 7040040000 Seeger
21 5040720008 Fan shaft
22 7030030000 Washer
23 7010420000 Screw
24 5080060008 Conveyor
25 7200150000 Fan
26 7248060000 Grill
27 7012060000 Screw
28 7071260000 Oil Seal
29 7012240000 Screw
30 7070250000 O-Ring 4500
31 7071090000 Oil-Seal SMIM
32 5070260008 Carter
33 7011090000 Screw
33A 7011970000 Screw
34 7040510000 Fixing ring
35 7051250000 Key
35A 7051280000 Woodruff Key
36 7016100000 Screw
37 7015020000 Stud bolt
38 5050091008 Con rod unit
39 7020070000 Dado
40 4081050000 Set of valve
41 7084040000 Joint
42 HONDA petrol eng. Motore a scoppio HONDA
43 7016190000 Screw
44 7061010000 Cage Bearing DB 20x12
45 1127040017 Spacer
45A 7040200000 Spacer
46 7090080000 Plug
100 4082660000 Set valves plates
101 4190090000 Set Con rod/Piston Kit Biella/Pistone (S 13)
101A 4190090000 Set Con rod/Piston Kit Biella/Pistone (S 14)
102 4280500000 Carter/Shaft unit
102A 4280800000 Carter/Shaft unit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
S13/S14 M/S HONDA
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Fiac S13 - S14 M-S Honda Drawing

Fiac S13 - S14 M-S Honda Drawing

Download (296.39KB)
