FIAC spa

FIAC Spare Parts for Pump Unit VX360HY

SKU: Fiac VX360HY 1129708362
€1.48
VAT included

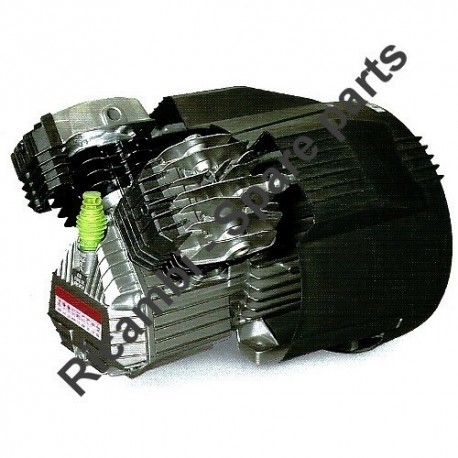

FIAC Spare Parts for Pump Unit VX360HY

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Pump Unit VX360HY 1129708362 old 1129702565.
FIAC Spare Parts for Pump Unit VX 362
  • FIAC Spare Parts for Pump Unit VX 362
  • FIAC Spare Parts for Pump Unit VX 360HY - Drawing
FIAC spa

FIAC Spare Parts for Pump Unit VX360HY

SKU: Fiac VX360HY 1129708362 Condition: New
€1.48
VAT included

FIAC Spare Parts for Pump Unit VX360HY

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Pump Unit VX360HY 1129708362 old 1129702565.
settings 43 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
43 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

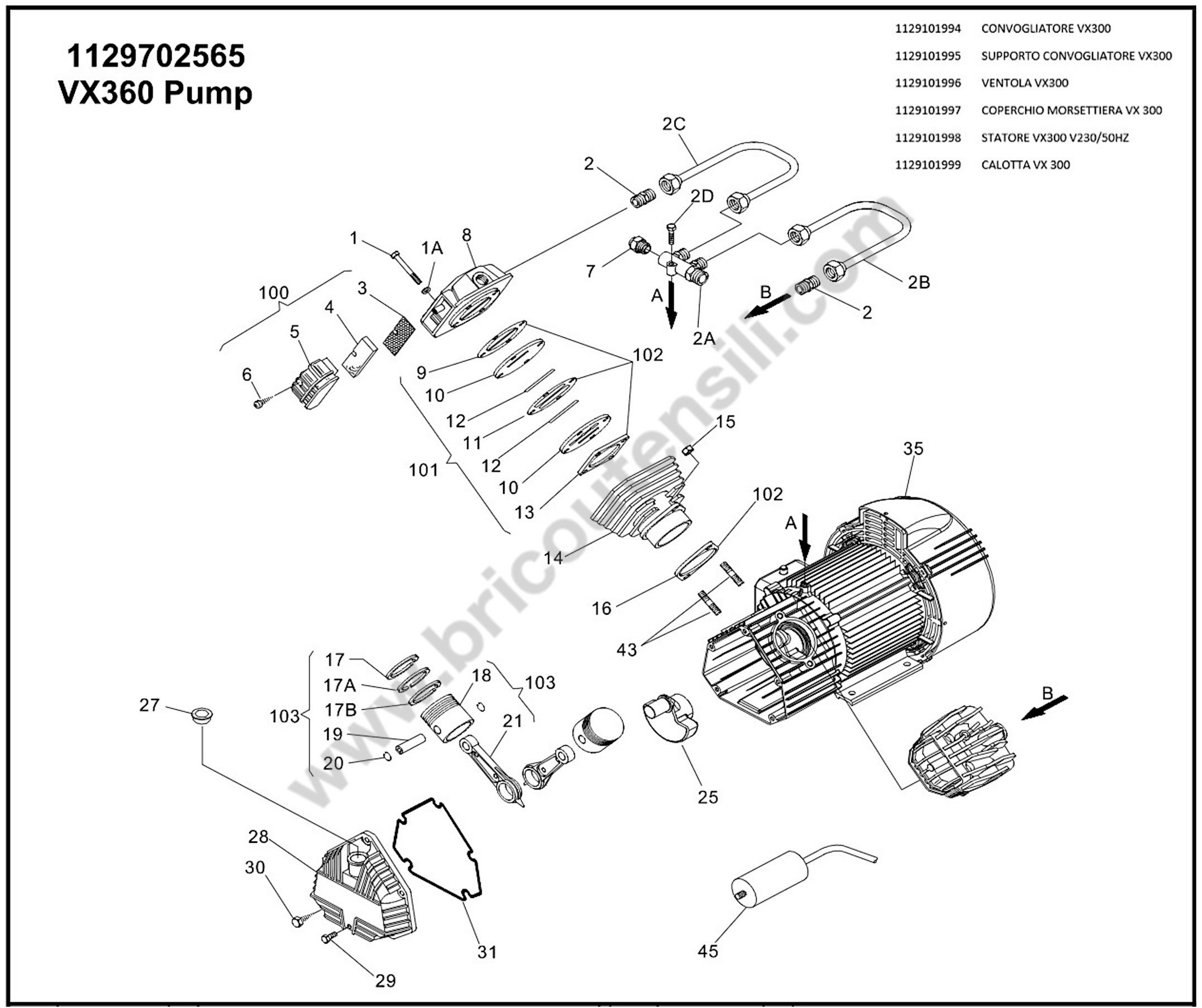

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 photo_cameraImage coming soon 7081100000 3/8 " €8.35
2A
 photo_cameraImage coming soon 7089950000 Collector €25.04
2B
 photo_cameraImage coming soon 9700002534 Tube dx. €6.10
2C
 photo_cameraImage coming soon 9700002535 Tube sx. €6.10
3
 photo_cameraImage coming soon 7458031000 Filter plate €5.87
4
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
 Air Filter Cover for Pump Unit Fiac AB 360 9100270240 Air Filter Cover for Pump Unit Fiac AB 360 €6.01
6
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
7
 Start Valve M1/4" 1,5 B for Pump Unit Fiac VS 204 7196020000 Start Valve M1/4" 1,5 B for Pump Unit Fiac VS 204 €10.00
8
 photo_cameraImage coming soon 5030250008 Head €57.22
9
 Head Plate Gasket for Pumping Units Fiac GM 192-193-244 9100010310 Head Plate Gasket for Pumping Units Fiac GM 192-193-244 €4.34
10
 photo_cameraImage coming soon 9100010240 plate €27.84
11
 Valves Plate Gasket for Pumping units FIAC GM 142-143 9100010080 Valves Plate Gasket for Pumping units FIAC GM 142-143 €4.34
12
 photo_cameraImage coming soon 9100010370 valve €4.23
13
 Cylinder Head Gasket for Air Compressors FIAC COSMOS S 225-255 9101410090 Cylinder Head Gasket for Air Compressors FIAC COSMOS S 225-255 €1.51
14
 photo_cameraImage coming soon 7575400000 CYLINDER €24.82
15
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
16
 Cylinder Gasket for Pumping Units FIAC GM 142 7078150000 Cylinder Gasket for Pumping Units FIAC GM 142 €2.94
17A
 photo_cameraImage coming soon 7140730000 Piston rings €4.00
17
 photo_cameraImage coming soon 7140740000 Piston rings €3.71
17B
 photo_cameraImage coming soon 7140750000 Piston rings €4.00
18
 photo_cameraImage coming soon 7220260000 Piston €24.91
19
 photo_cameraImage coming soon 7050210000 8X38 pin Ø12 €4.12
20
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
21
 Conrod for Pump Units FIAC GM-VX 5050150008 Conrod for Pump Units FIAC GM-VX €27.33
25
 photo_cameraImage coming soon 5041440008 Counter weight €21.68
27
 photo_cameraImage coming soon 1129704079 Plug €3.92
28
 photo_cameraImage coming soon 7650010000 Crankcase cover €28.94
30
 photo_cameraImage coming soon 7011420000 Screw M6X16 UNI-5739 €1.52
31
 Motor Carter Gasket for Pumping Units FIAC VX 7078440000 Motor Carter Gasket for Pumping Units FIAC VX €7.53
43
 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S 9100010050 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S €1.28
45
 photo_cameraImage coming soon 9700002571 Capacitor €27.82
100
 photo_cameraImage coming soon 9700001902 INTAKE FILTER KIT €11.42
101
 photo_cameraImage coming soon 9700002538 Set valves plates _Kit €11.53
102
 photo_cameraImage coming soon 9700002758 Set of gasket €2.21
103
 FIAC VX360 Conrod-Piston Kit 4191130000 FIAC VX360 Conrod-Piston Kit €62.35
501
 photo_cameraImage coming soon 9108720010 CONVEYOR €27.84
502
 photo_cameraImage coming soon 9108720020 FAN GRID €19.14
503
 Motor Fan for Pump unit FIAC VX 360 9108720030 Motor Fan for Pump unit FIAC VX 360 €9.71
504
 photo_cameraImage coming soon 9108720040 Cover MORSETTIERA VX 300 €17.87
505
 photo_cameraImage coming soon 1129101998 Stator VX300 V230/SOHZ €152.39
506
 photo_cameraImage coming soon 9108720060 COVER €14.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit VX360HY

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Pump Unit VX360HY 1129708362 old 1129702565.

In the following table , look for the model of the pumping unit and the respective parts of the code .
Fiac VX360 1122020730

VX360HY Pump Unit 1129708362 old 1129702565 Spare Parts
# Part Num. Description
1 7011220000 Screw
1A 9700010186 Washer
2 7081100000 Joint
2A 7089950000 4 Way Manifold
2B 9700002534 Tube dx.
2C 9700002535 Tube sx.
2D 7010350000 Screw
3 7458031000 Filter plate
4 7210010000 Filtering element
5 9100270240 Intake filter
6 7012100000 Screw
7 7196020000 Start valve
8 5030250008 Head
9 9100010310 Gasket
10 9100010240 Valve plate
11 9100010080 Gasket
12 9100010370 Valve
13 9101410090 Gasket
14 7575400000 Cylinder
15 7020070000 Nut
16 7078150000 Gasket
17 7140740000 Piston rings
17A 7140730000 Piston rings
17B 7140750000 Piston rings
18 7220260000 Piston
19 7050210000 Piston pin
20 7041010000 Ring
21 5050150008 Connection Rod
25 5041440008 Counter weight
27 1129704079 Plug
28 7650010000 Carter Cover
29 1129702533 Screw
30 7011420000 Screw
31 7078440000 Gasket
35 112970256 Electric Motor
43 9100010050 Stud bolt
45 9700002571 Capacitor
100 9700001902 Set Intake filter
101 9700002538 Set valves plates _Kit
102 9700002758 Set of gasket
103 4191130000 Piston/ con rod kit
501 9108720010 CONVOGLIATORE VX300
502 9108720020 SUPPORTO CONVOGLIATORE VX300
503 9108720030 VENTOLA VX300
504 9108720040 COPERCHIO MORSETTIERA VX 300
505 1129101998 STATORE VX300 V230/SOHZ
506 9108720060 CALOTTA VX 300
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
