FIAC spa

FIAC Cosmos WATT 1500 Air Compressor Spare Parts

SKU: Fiac WATT 1500
€1.47
VAT included

FIAC Cosmos WATT 1500 Air Compressor Spare Parts

FIAC authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Air Compressor COSMOS WATT 1500 1207052000 - SN.320110459.

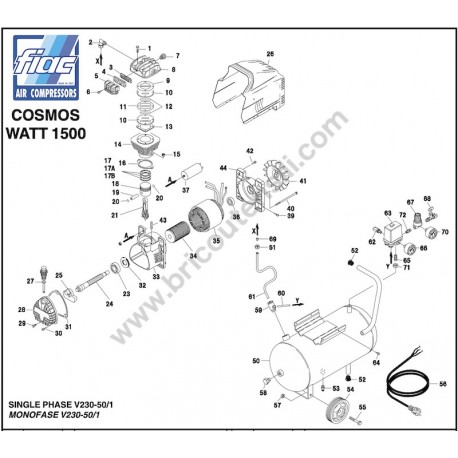

FIAC Cosmos WATT 1500 Air Compressor Spare Parts - Drawing
  • FIAC Cosmos WATT 1500 Air Compressor Spare Parts - Drawing
FIAC spa

FIAC Cosmos WATT 1500 Air Compressor Spare Parts

SKU: Fiac WATT 1500 Condition: New
€1.47
VAT included

FIAC Cosmos WATT 1500 Air Compressor Spare Parts

FIAC authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Air Compressor COSMOS WATT 1500 1207052000 - SN.320110459.
settings 64 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
64 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 photo_cameraImage coming soon 9100010120 Fitting M3 L / 8x1 / 2 €17.10
3
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
 Air Filter Element for Air Compressor Fiac AB360 9100010210 Air Filter Element for Air Compressor Fiac AB360 €3.45
5
 Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
6
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
7
 Start Valve for Pumping Units GM 9100010190 Start Valve for Pumping Units GM €7.89
8
 photo_cameraImage coming soon 9100010260 HEAD GM Ranked n.2 HOLES €23.14
9
 Head Plate Gasket for Pumping Units Fiac GM 192-193-244 9100010310 Head Plate Gasket for Pumping Units Fiac GM 192-193-244 €4.34
10
 photo_cameraImage coming soon 9100010240 plate €27.84
11
 Valves Plate Gasket for Pumping units FIAC GM 142-143 9100010080 Valves Plate Gasket for Pumping units FIAC GM 142-143 €4.34
12
 photo_cameraImage coming soon 9100010370 valve €4.23
13
 Cylinder/Plate Gasket for Pumping Unit FIAC GM 193-244 9100020140 Cylinder/Plate Gasket for Pumping Unit FIAC GM 193-244 €4.34
14
 photo_cameraImage coming soon 9100020030 Cylinder €27.60
15
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
16
 photo_cameraImage coming soon 9100020160 gasket €1.44
17
 photo_cameraImage coming soon 9100020090 Piston ring €5.93
17A
 photo_cameraImage coming soon 9100020100 Piston ring €3.71
17B
 photo_cameraImage coming soon 9100020110 Piston ring €3.71
18
 Piston for Pumping unit FIAC AB 248-338-GM193 9100020120 Piston for Pumping unit FIAC AB 248-338-GM193 €25.65
19
 Piston Pin for Pumping Unit FIAC AB 248-338-GM 193 9100020080 Piston Pin for Pumping Unit FIAC AB 248-338-GM 193 €15.80
20
 Retaining Ring 13 mm for Piston Pin Pumping Unit FIAC AB 248-338-GM193 9100010580 Retaining Ring 13 mm for Piston Pin Pumping Unit FIAC AB 248-338-GM193 €9.10
21
 Conrod for Pumping unit FIAC GM193 9100020070 Conrod for Pumping unit FIAC GM193 €27.33
23
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
25
 photo_cameraImage coming soon 9100020050 Crank €11.87
26
 Pump Unit PVC Cover for Air Compressors Fiac Cosmos 225-255 S 9100030090 Pump Unit PVC Cover for Air Compressors Fiac Cosmos 225-255 S €31.27
27
 Dipstick level Oil for Pump Unit and Compressors GM-Cosmos 9100010170 Dipstick level Oil for Pump Unit and Compressors GM-Cosmos €10.47
28
 photo_cameraImage coming soon 7650020000 crankcase cover €17.43
29
 photo_cameraImage coming soon 7012160000 screw €1.48
30
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
31
 Motor Cover Gasket for Pumping Units Fiac GM 192-193 9100010100 Motor Cover Gasket for Pumping Units Fiac GM 192-193 €9.07
32
 photo_cameraImage coming soon 9100010430 Oil Seal €4.05
33
 photo_cameraImage coming soon 9100020010 sump €51.09
35
 photo_cameraImage coming soon 9100020060 stator €253.42
36
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
37
 Capacitor 25 mf for Air Compressors 7310590000 Capacitor 25 mf for Air Compressors €26.97
39
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
40
 photo_cameraImage coming soon 9100010060 prisoner M6x139 €1.48
41
 Motor Fan for Pumping Units GM 142-192 9100010200 Motor Fan for Pumping Units GM 142-192 €15.06
42
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
43
 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S 9100010050 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S €1.28
44
 Motor Hood for Pumping Unit FIAC GM193 9100020020 Motor Hood for Pumping Unit FIAC GM193 €30.64
50
 photo_cameraImage coming soon 5157310008 Tank 24lt €275.69
51
 photo_cameraImage coming soon 7024250000 Nut 1/2" €4.25
52
 photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
53
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
54
 Wheel D.125x35x15 for FIAC AIR Compressors 7260160000 Wheel D.125x35x15 for FIAC AIR Compressors €7.50
55
 Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
56
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
57
 photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
58
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
59
 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
60
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
61
 Aluminium Hose for Air Compressor FIAC COSMOS 24 7231660000 Aluminium Hose for Air Compressor FIAC COSMOS 24 €21.69
62
 Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
63
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
64
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
65
 photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
66
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
67
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
68
 photo_cameraImage coming soon 7130010000 Line Valve M1/4" €12.10
69
 photo_cameraImage coming soon 7041170000 Hose Ogive Ø14 €6.79
70
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
71
 photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
72
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
501
 photo_cameraImage coming soon 9100020000 Pump Unit GM193 €252.54

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Cosmos WATT 1500 Air Compressor Spare Parts

FIAC

 authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Air Compressor COSMOS WATT 1500 1207052000 - SN.320110459.

In the following table , look for the type of the air compressor and the respective parts of the code .
Fiac WATT 1500 1207052000 - SN.320110459

FIAC COSMOS WATT 1500 1207052000 - SN.320110459 Parts
SINGLE PHASE V230-50/1
# Part Num. Description
1 7011220000 Screw
2 9100010120 Joint
3 7458340000 Plate
4 9100010210 Filtering element
5 7210430000 Intatake filter
6 7012100000 Screw
7 9100010190 START valve
8 9100010260 Head
9 9100010310 Gasket
10 9100010240 Valve plate
11 9100010080 Gasket
12 9100010370 Valve
13 9100020140 Gasket
14 9100020030 Cylinder
15 7020070000 Nut
16 9100020160 Gasket
17 9100020090 Piston ring
17A 9100020100 Piston ring
17B 9100020110 Piston ring
18 9100020120 Piston
19 9100020080 Piston pin
20 9100010580 Seeger
21 9100020070 Con rod
23 7060060000 Bearing
24 9100020040 Cranckshaft
25 9100020050 Counter weight
26 9100030090 Plastic schroud
27 9100010170 Oil dipstick
28 7650020000 Carter cover
29 7012160000 Screw
30 7012100000 Screw
31 9100010100 Gasket
32 9100010430 Oil seal
33 9100020010 Cranckcase
34 9100020130 Rotor
35 9100020060 Motor
36 7060010000 Bearing
37 7310590000 Capacitor
39 7012290000 Screw
40 9100010060 Tension rod
41 9100010200 Fan
42 7013060000 Screw
43 9100010050 Stud bolt
44 9100020020 Cover
50 5157310008 Tank
51 7024250000 Nut
52 7360020000 Rubber
53 7130160000 Discharge tap
54 7260160000 Wheel
55 7018290000 Screw
56 7329070000 Infeed cable
57 7020080000 Nut
58 7090030000 Plug
59 7190180000 Non return valve
60 7230010000 Rilsan hose
61 7231660000 Infeed hose
62 7192020000 Safety valve
63 7250740000 Pressure switch
64 7012290000 Screw
65 7081140000 Joint
66 7110300000 Pressure guage
67 7100640000 Pressure reducer
68 7130010000 Tap
69 7041170000 Olive
70 7110240000 Pressure guage
71 7023040000 Blocking nut
72 7081090000 Joint
501 9100020000 Pump UNIT GM193
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac WATT 1500
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Fiac Cosmos WATT 1500 Drawing

Fiac Cosmos WATT 1500 Drawing

Download (440.46KB)
