Fiac Air Compressor F3000/6 Spare Parts
Fiac genuine spare parts or replacement parts for to fix Air Compressor F3000/6 1129700311.

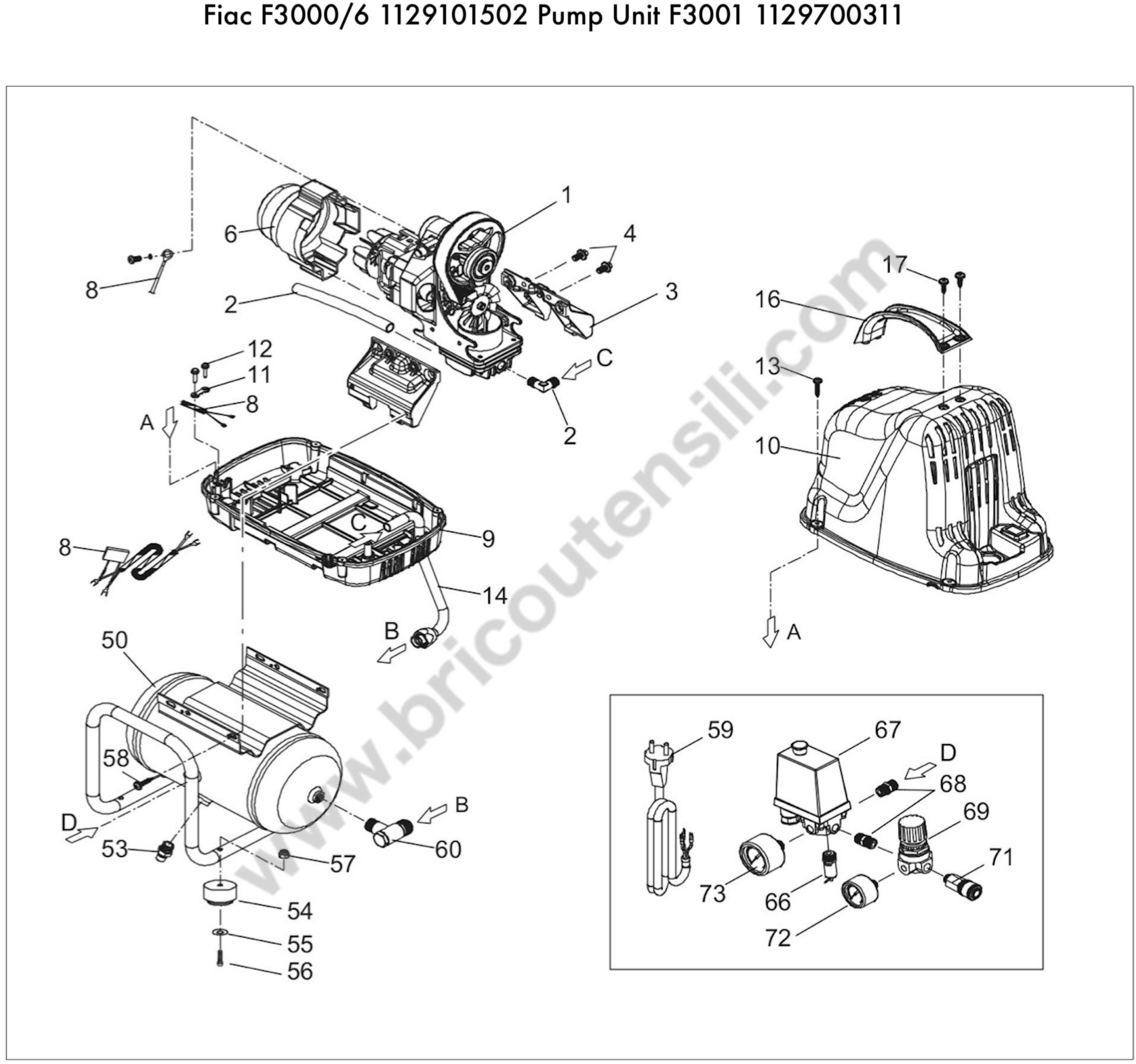

In the following table, look for the type of the Pumping Unit and the respective parts of the code.
| Fiac Air Compressor F3000/6 Pump Unit-F3001 |
| # |
Part Num. |
Description |
| 1 |
1129700311 |
Pump unit F3001 |
| 2 |
9700001707 |
Rilsan Hose |
| 3 |
9101500220 |
Support |
| 4 |
7011460000 |
SCREW TRILOB.FLAT HEX M6X16 |
| 5 |
7083120000 |
Joint |
| 6 |
9700001036 |
Cooler Cover F3001 UL VO |
| 8 |
9700001136 |
Motor/switch cable |
| 9 |
9700000452 |
COVER BOTTOM F-3000 - DISCONTINUED |
| 10 |
9700000451 |
Upper Cover |
| 11 |
7311450000 |
Fermacavo |
| 12 |
9700000536 |
Screw |
| 13 |
9700001057 |
Screw |
| 14 |
7239671000 |
Rilsan Hose D8 High T |
| 15 |
9700000416 |
Plastic Sleeve |
| 16 |
9700000453 |
Handle |
| 17 |
9700001171 |
Srew |
| 50 |
1129701279 |
Tank |
| 53 |
7130090000 |
DISCHARGE TAP R1/4. |
| 54 |
7360010000 |
RUBBER D 40X25 F 6,2 |
| 55 |
7030190000 |
WASHER GALV. 6.4X18X1.5 |
| 56 |
1127010106 |
Screw |
| 57 |
7021010000 |
NUT LOCK GALV. M.6 |
| 58 |
9700000574 |
Screw |
| 59 |
9700001301 |
Electric Plug |
| 60 |
7190290000 |
NON.RET.VALVE 1/4 1/4 MM |
| 66 |
9700000303 |
SAFETY VALVE 9BAR |
| 67 |
9700000388 |
PRESSURE SWITCH 10BAR CE |
| 68 |
9700000330 |
FITTING 1/4" |
| 69 |
7100640000 |
Pressure reducer |
| 71 |
9700000276 |
Universal coupling |
| 72 |
1127110024 |
Pressure gauge |
| 73 |
7110300000 |
P. GUAGE D50XR1/4 10BAR RED |
