FIAC spa

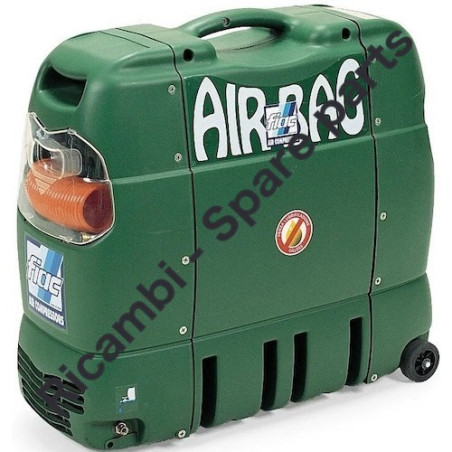

FIAC Silencied Air Compressor AIRBAG HP1/1,5 Spare Parts

SKU: Fiac AIRBAG HP1/1,5
€33.43
VAT included

FIAC Silencied Air Compressor AIRBAG HP1/1,5 Spare Parts

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Silencied Air Compressor AIRBAG HP1/1,5.
FIAC Silencied Air Compressor AIRBAG HP1/1,5 Spare Parts
  • FIAC Silencied Air Compressor AIRBAG HP1/1,5 Spare Parts
  • FIAC Silencied Air Compressor AIRBAG HP1/1,5 Spare Parts - Drawing
  • FIAC Silencied Air Compressor AIRBAG HP1/1,5 Spare Parts
FIAC spa

FIAC Silencied Air Compressor AIRBAG HP1/1,5 Spare Parts

SKU: Fiac AIRBAG HP1/1,5 Condition: New
€33.43
VAT included

FIAC Silencied Air Compressor AIRBAG HP1/1,5 Spare Parts

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Silencied Air Compressor AIRBAG HP1/1,5.
settings 64 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
58 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

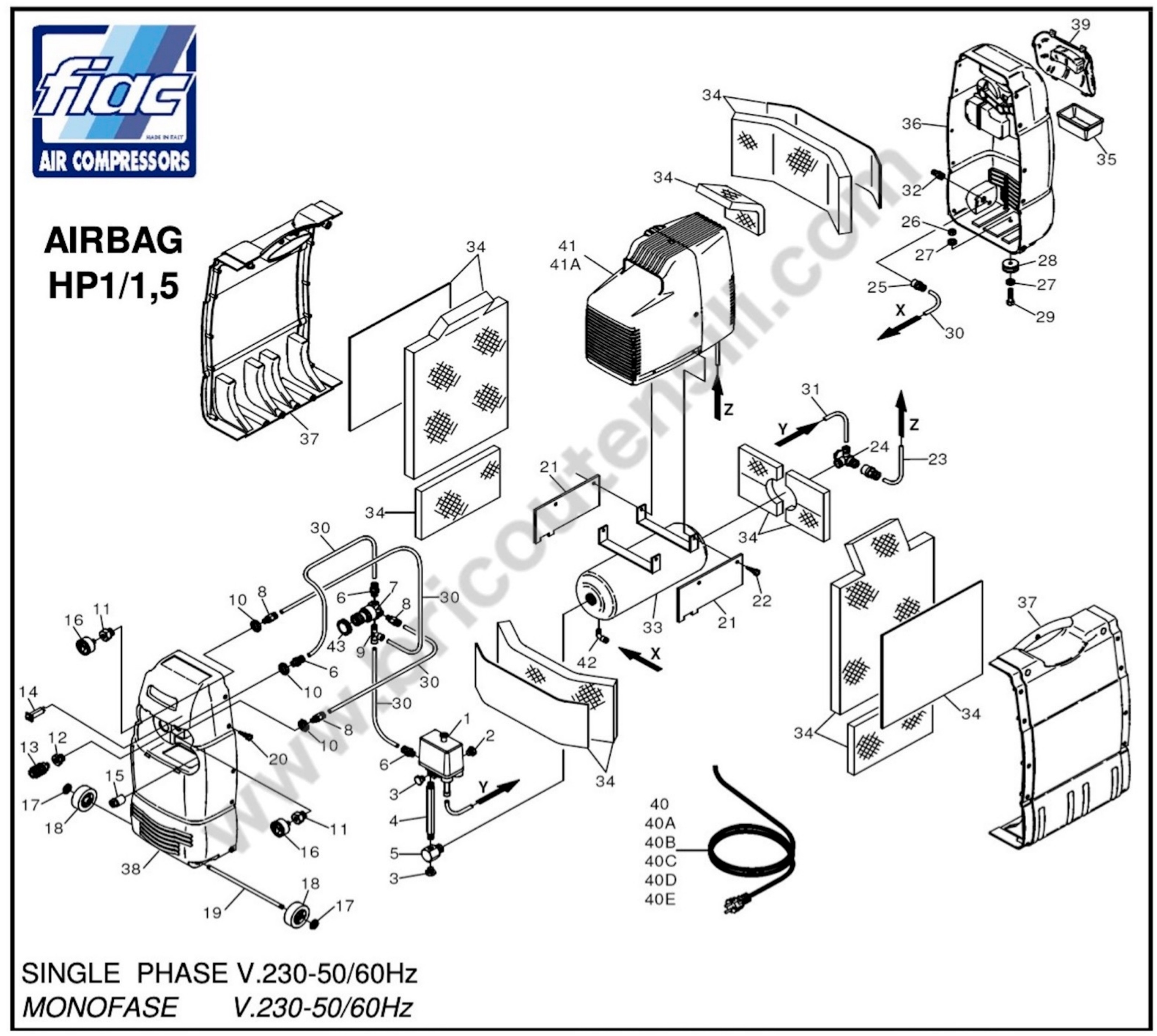

Esploso pagina 1
Pos. Item Price Buy
1
 Single-Phase Pressure Switch with Built-in Start valve 7250240000 Single-Phase Pressure Switch with Built-in Start valve €32.67
2
 photo_cameraImage coming soon 7196070000 Pre-set safety valve 1/4 - 8.5-10BAR €7.72
3
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
4
 photo_cameraImage coming soon 7088100000 Thread JOINT 1/4 MM €26.89
5
 photo_cameraImage coming soon 7084590000 AIRBAG TANK ACCESSOERIES FITTING €22.29
6
 photo_cameraImage coming soon 7084220000 Fitting DIR.M1 / 4 "-6 QUICK €6.64
7
 photo_cameraImage coming soon 7100120000 Pressure REGULATOR €29.91
8
 photo_cameraImage coming soon 7084270000 Joint €5.18
9
 photo_cameraImage coming soon 6006250614 "T" Joint for RILSAN hose "T" 1/4" 6/4 €6.45
10
 photo_cameraImage coming soon 7023020000 Locknut 1/2" €6.45
11
 photo_cameraImage coming soon 7082720000 BUSH 1/8 " €18.46
12
 photo_cameraImage coming soon 7082730000 BUSH 1/4G FOR QUICK COUPLING €18.46
13
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
14
 photo_cameraImage coming soon 7410670000 Overload protection - Thermal amperometrica €14.32
15
 photo_cameraImage coming soon 7501050000 Cable locks €4.48
16
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
17
 photo_cameraImage coming soon 7042040000 Seeger TYPE ZA 8 €1.38
18
 photo_cameraImage coming soon 7260010000 Wheel Ø60 X 30 F.8 €6.45
19
 photo_cameraImage coming soon 7018340000 AIRBAG AXLE D.8 X 250 €1.38
20
 photo_cameraImage coming soon 7012570000 Screw 5,5X25 UNI-6956 €1.38
21
 photo_cameraImage coming soon 7154080000 BLACK AIRBAG SUPPORT PLATE €5.34
22
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
23
 photo_cameraImage coming soon 7234990000 COPPER DELIVERY PIPE D.10 AIRBAG €22.95
24
 Non Return Valve for Air Compressors Fiac ECU 200-201 7190200000 Non Return Valve for Air Compressors Fiac ECU 200-201 €28.91
25
 photo_cameraImage coming soon 7083990000 Joint for RILSAN hose F1/4"-6 €6.45
26
 photo_cameraImage coming soon 7020200000 Nut M6 UNI-5587 €1.48
28
 photo_cameraImage coming soon 7360010000 Rubber foot €2.72
29
 photo_cameraImage coming soon 7011050000 Screw M6x30 UNI-5739 €1.48
30
 photo_cameraImage coming soon 7230040000 Rilsan hose €5.99
31
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
32
 FIAC F205 Drain Tap 1/4" 7130090000 FIAC F205 Drain Tap 1/4" €10.00
33
 photo_cameraImage coming soon 7474330000 Tank - Serbatoio 6 Lt. €115.59
34
 photo_cameraImage coming soon 7213440000 Sound absorbing kit €190.47
35
 photo_cameraImage coming soon 7154100000 PLASTIC TRAY AIRBAG €20.32
38
 photo_cameraImage coming soon 7154070000 Plastic coover - Calotta frontale €32.29
39
 Fiac AIRBAG Pressure Reducer Micro 7154060000 Fiac AIRBAG Pressure Reducer Micro €33.33
40A
 photo_cameraImage coming soon 7328600000 Alimentation Cable €12.09
40B
 photo_cameraImage coming soon 7328620000 Alimentation Cable €21.16
40C
 photo_cameraImage coming soon 7329000000 Alimentation Cable €16.99
40D
 photo_cameraImage coming soon 7329020000 CABLE THERMAL-INTERR.F-130 "CSA" €6.97
40
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
40E
 photo_cameraImage coming soon 7329140000 Alimentation Cable €4.23
42
 photo_cameraImage coming soon 7080780000 FITTING €13.18
43
 photo_cameraImage coming soon 7101360000 RING X RID-MICRO "A" 1R 1/8 "FLAT" €6.54
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
2
 photo_cameraImage coming soon 4085110000 KIT €11.83
3
 photo_cameraImage coming soon 4020760000 KIT €47.03
4
 FIAC F114 Gaskets Kit 4082610000 FIAC F114 Gaskets Kit €13.95
5
 Kit Valves Plate for Air Compressors FIAC FB-210-LEONARDO HP 1 4200030000 Kit Valves Plate for Air Compressors FIAC FB-210-LEONARDO HP 1 €32.09 Not available for order
6
 Conrod Piston + Cylinder for Air Compressor Fiac ECU201-FB-210 4190270000 Conrod Piston + Cylinder for Air Compressor Fiac ECU201-FB-210 €77.90 Not available for order
7
 photo_cameraImage coming soon 7150560000 Plastic COVER €20.86
8
 Motor Fan for Air Compressor Fiac ECU201-FB-210 7200140000 Motor Fan for Air Compressor Fiac ECU201-FB-210 €8.84
10
 photo_cameraImage coming soon 4011710000 Stator 230V / 50Hz €330.19
11
 Capacitor 20 mf for Air Compressors 7310100000 Capacitor 20 mf for Air Compressors €22.94
12
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
13
 Fiac LEONARDO HP 1 Rear Motor Holder 7640100000 Fiac LEONARDO HP 1 Rear Motor Holder €23.22
14
 Motor Housing for Air Compressors Fiac ECU 200 - ECU 201 7150550000 Motor Housing for Air Compressors Fiac ECU 200 - ECU 201 €35.16
15
 photo_cameraImage coming soon 7018010000 Screw M6x139 UNI-5737 €1.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Silencied Air Compressor AIRBAG HP1/1,5 Spare Parts

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Silencied Air Compressor AIRBAG HP1/1,5.

In the following table, look for the type of the air compressor and the respective parts of the code.
Fiac Silencied Air Compressor AIRBAG HP1/1,5

FIAC Silencied Air Compressor AIRBAG HP1/1,5
MONOFASE V.230-50/60Hz SINGLE PHASE V.230-50/60Hz
# Part Num. Description
1 7250240000 Pressure switch - Pressostato
2 7196070000 Valve for maximum pressure - Valvola di massima pressione
3 7090090000 Plug - Tappo 1/4 G
4 7088100000 Connection - Prolunga 1/4 G
5 7084590000 Support - Supporto accessori
6 7084220000 Joint - Raccordo 1/4 G
7 7100120000 Pressure reducer - Riduttore di pressione
8 7084270000 Joint - Raccordo 1/8 G
9 6006250614 Joint - Raccordo 1/4 G
10 7023020000 Blocking nut - Controdado 1/2 G
11 7082720000 Joint - Boccola 1/8 G
12 7082730000 Joint - Boccola 1/4 G
13 7130570000 Tap - Rubinetto rapido 1/4 G
14 7410670000 Overload protection - Termica amperometrica
15 7501050000 Stretch eliminator - Bloccacavo
16 7110240000 Pressure gauge - Manometro
17 7042040000 Seeger - Seeger ZA 8
18 7260010000 Wheel - Ruota Ø70
19 7018340000 Pivot - Perno
20 7012570000 Screw - Vite TS 5.5x25 UNI 6956
21 7154080000 Support - Piastra supporto
22 7012290000 Screw - Vite TC CROSS 5x20 TAP - TITE
23 7234990000 Infeed tube - Tubo di alimentazione
24 7190200000 Non return valve - Valvola di ritegno 1/4 G
25 7083990000 Joint - Raccordo 1/4 G
26 7020200000 Nut - Dado M6 UNI 5587
27 7030190000 Washer - Rondella Ø6x18
28 7360010000 Rubber - Gommino
29 7011050000 Screw - Vite TE M6x30 UNI 5739
30 7230040000 Rilsan hose - Tubo rilsan bianco Ø6x4
31 7230010000 Rilsan hose - Tubo rilsan Ø6-0.8 mt
32 7130090000 Discharge tap - Rubinetto spurgo 1/4 G
33 7474330000 Tank - Serbatoio 6 Lt.
34 7213440000 Sound proof kit - Kit insonorizzante
35 7154100000 Tub - Vaschetta
36 7154110000 Plastic coover - Calotta frontale
37 7154040000 Plastic coover - Calotta centrale
38 7154070000 Plastic coover - Calotta frontale
39 7154060000 Door - Sportello
40 7329070000 Infeed cable - Cavo alimentazione europeo
40A 7328600000 Infeed cable - Cavo alimentazione svizzero
40B 7328620000 Infeed cable - Cavo alimentazione americano
40C 7329000000 Infeed cable - Cavo alimentazione australiano
40D 7329020000 Infeed cable - Cavo alimentazione inglese
40E 7329140000 Infeed cable - Cavo alimentazione giapponese
41 3015140000 Pump unit - Unità pompante F114 (HP 1)
41A 3015150000 Pump unit - Unità pompante F205 (HP 1,5)
42 7080780000 Joint - Raccordo
43 7101360000 Plastic ring - Ghiera riduttore
Fiac Pump Unit F114 Spares Pag.2
1122010019
# Part Num. Description
1 7210010000 FILTER ELEMENT
2 4085110000 INTAKE FILTER
3 4020760000 unit
4 4082610000 GASKETS KIT
5 4200030000 KIT
6 4190270000 KIT
7 7150560000 HOUSING
8 7200140000 FAN
9 4280510000 CRANKCASE/SHAFT KIT
10 4011710000 WOUND STATOR
11 7310100000 CAPACITOR
12 7060010000 BEARING
13 7640100000 COVER
14 7150550000 HOUSING
15 7018010000 SCREW
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
