FIAC spa

FIAC Parts for Air Compressor SUPER ECU FB210

SKU: SUPER ECU FB210 1121030200
€142.96
VAT included

FIAC Spare Parts for Piston Air Compressor SUPER ECU FB210

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Air Compressor SUPER ECU FB210 V.230/50HZ-CE-9LT - 1121030200
FIAC Parts for Air Compressor SUPER ECU FB210
  • FIAC Parts for Air Compressor SUPER ECU FB210
  • FIAC Parts for Air Compressor SUPER ECU FB210 - Drawing
  • FIAC Parts for Air Compressor SUPER ECU FB210 - Drawing 1
FIAC spa

FIAC Parts for Air Compressor SUPER ECU FB210

SKU: SUPER ECU FB210 1121030200 Condition: New
€142.96
VAT included

FIAC Spare Parts for Piston Air Compressor SUPER ECU FB210

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Air Compressor SUPER ECU FB210 V.230/50HZ-CE-9LT - 1121030200
settings 40 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
37 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

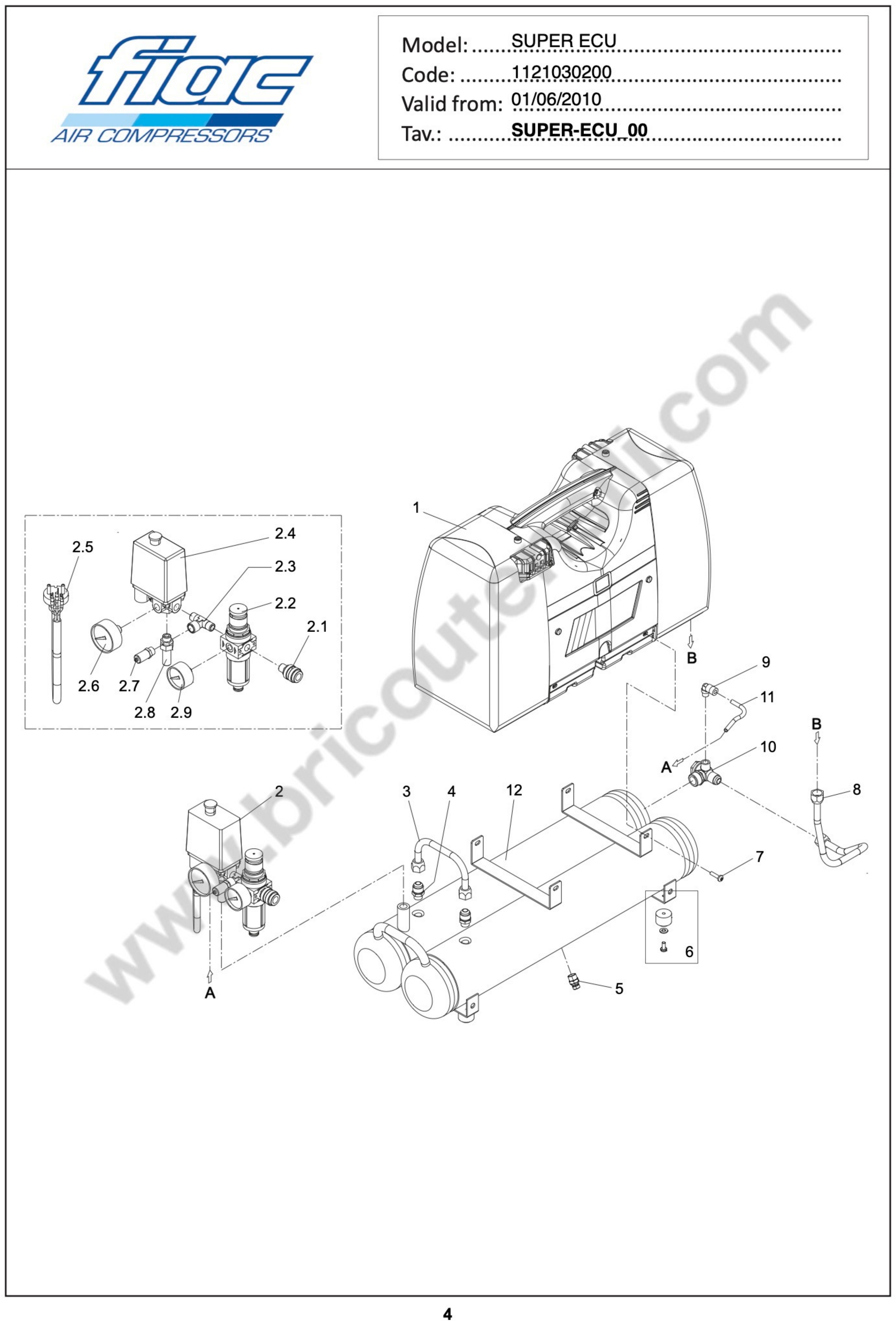

Esploso pagina 1
Pos. Item Price Buy
2.9
 photo_cameraImage coming soon 1127110024 PRESSURE GAUGE €16.38
2
 photo_cameraImage coming soon 4057020000 Press. Switch Kit €128.28
2.8
 photo_cameraImage coming soon 7082280000 Fitting 1 / 4M 3PZ.IN LINE L = 58 €11.53
2.3
 FIAC Air Compressor ECU201 T Joint 7082530000 FIAC Air Compressor ECU201 T Joint €10.20
2.2
 Fiac Pressure Reducer Micro W-Filter 7100380000 Fiac Pressure Reducer Micro W-Filter €58.00
2.6
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
2.1
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
2.7
 FIAC Safety Valve 1/4" 10,5 Bar for Air Compressors SCS 7192010000 FIAC Safety Valve 1/4" 10,5 Bar for Air Compressors SCS €17.32
2.4
 photo_cameraImage coming soon 7250360000 Pressure Switch €38.56
2.5
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
3
 photo_cameraImage coming soon 7234900000 Tank hose D.10 €16.60
4
 photo_cameraImage coming soon 7085160000 Reducer Fitting 1/4 3/8 €8.99
5
 FIAC F205 Drain Tap 1/4" 7130090000 FIAC F205 Drain Tap 1/4" €10.00
6
 photo_cameraImage coming soon 4083540000 KIT €12.80
7
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
8
 photo_cameraImage coming soon 7234890000 PIPE €12.80
9
 ”L” joint for RILSAN hose (M) D.6 for Air Compressor Michelin MCX 6 7080140000 ”L” joint for RILSAN hose (M) D.6 for Air Compressor Michelin MCX 6 €9.07
10
 Non Return Valve for Air Compressors MM 1/2"x3/8"-DX 7190080000 Non Return Valve for Air Compressors MM 1/2"x3/8"-DX €25.59
11
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
12
 photo_cameraImage coming soon 5153700008 Tank €183.48
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

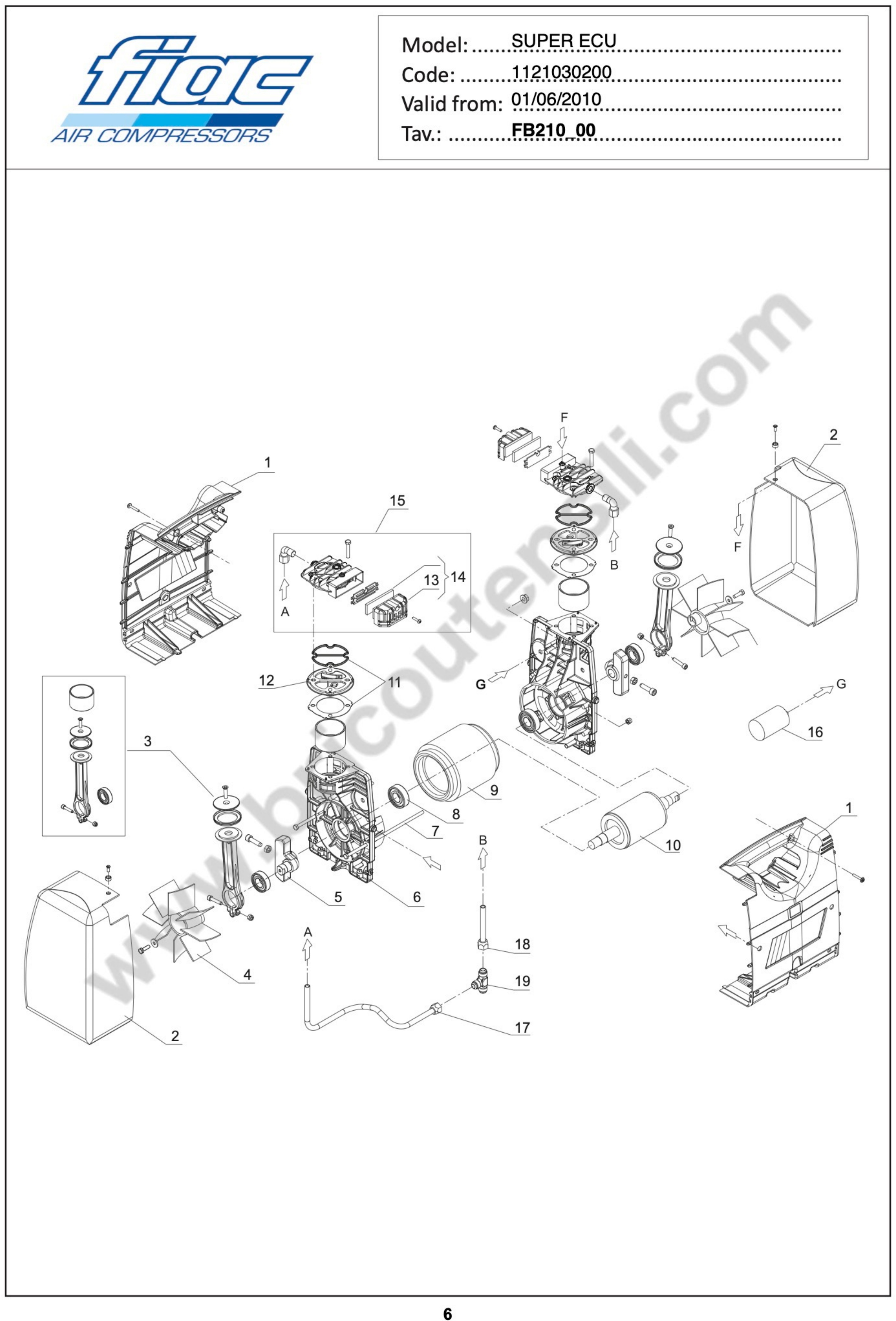

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 9109050000 Hull plastic side €13.84
2
 photo_cameraImage coming soon 7150800000 Casing COMPRESSOR RED €17.12
3
 Conrod Piston + Cylinder for Air Compressor Fiac ECU201-FB-210 4190270000 Conrod Piston + Cylinder for Air Compressor Fiac ECU201-FB-210 €77.90 Not available for order
4
 Motor Fan for Air Compressor Fiac ECU201-FB-210 7200140000 Motor Fan for Air Compressor Fiac ECU201-FB-210 €8.84
5
 photo_cameraImage coming soon 5041430008 Crank €73.81
6
 Motor Support for Air Compressors Fiac ECU 200 - ECU 201 7670010000 Motor Support for Air Compressors Fiac ECU 200 - ECU 201 €58.91
8
 photo_cameraImage coming soon 7060090000 6204-2RS1-bearing SKF €26.97
9
 photo_cameraImage coming soon 4013600000 Stator €225.48
10
 photo_cameraImage coming soon 4280890000 Rotor Kit €219.83
12
 Kit Valves Plate for Air Compressors FIAC FB-210-LEONARDO HP 1 4200030000 Kit Valves Plate for Air Compressors FIAC FB-210-LEONARDO HP 1 €32.09 Not available for order
13
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
14
 photo_cameraImage coming soon 4085110000 KIT €11.83
15
 photo_cameraImage coming soon 4020760000 KIT €47.03
16
 Capacitor 25 mf for Air Compressors 7310590000 Capacitor 25 mf for Air Compressors €26.97
17
 photo_cameraImage coming soon 7234740000 Tube feeding €13.99
18
 photo_cameraImage coming soon 7234750000 Tube feeding €11.09
19
 photo_cameraImage coming soon 7083270000 Connector "T" 3/8 "MMM €17.96

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor SUPER ECU FB210

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Air Compressor SUPER ECU FB210 V.230/50HZ-CE-9LT - 1121030200

In the following table, look for the type of the air compressor and the respective parts of the code.
Fiac ESUPER ECU FB210 - 1121030200

Air Compressor FIAC SUPER ECU FB210 - 1121030200 Pag.1
# Part Num. Description
1 1123010577 PUMP UNIT
2 4057020000 PRESS. SWITCH KIT
2.1 7130570000 TAP
2.2 7100380000 PRESSURE REDUCER
2.3 7082530000 UNION TEE
2.4 7250360000 PRESSURE SWITCH
2.5 7329070000 POWER CABLE
2.6 7110300000 Pressure gauge D50XR1/4 10BAR RED
2.7 7192010000 RELIEF VALVE
2.8 7082280000 FITTING
2.9 1127110024 PRESSURE GAUGE
3 7234900000 PIPE
4 7085160000 NIPPLE
5 7130090000 DRAIN TAP
6 4083540000 KIT
7 7012090000 SCREW
8 7234890000 PIPE
9 7080140000 Elbow Fitting 1/4 6
10 7190080000 CHECK VALVE gm 192 Right
11 7230010000 Rilsan hose D.6x4
12 5153700008 TANK
FIAC SUPER ECU FB210 - 1121030200 Pag.2
1 9109050000 HOUSING
2 7150800000 HOUSING
3 4190270000 CONROD PISTON KIT
4 7200140000 FAN
5 5041430008 ECCENTRIC
6 7670010000 CRANKCASE
7 1127010551 TIE-ROD
8 7060090000 BEARING
9 4013600000 WOUND STATOR
10 4280890000 ROTOR/SHAFT KIT
11 1120002191 GASKETS KIT
12 4200030000 Valve plate
13 7210010000 FILTER CARTRIDGE
14 4085110000 KIT
15 4020760000 KIT
16 7310590000 CAPACITOR
17 7234740000 PIPE
18 7234750000 PIPE
19 7083270000 UNION TEE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SUPER ECU FB210 1121030200
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

SUPER ECU FB210 Drawing

SUPER ECU FB210 Drawing

Download (539.12KB)
