FIAC spa

FIAC Spare Parts for Pump Unit S15

SKU: Fiac S15
€1.48
VAT included

FIAC Spare Parts for Pump Unit S15

We are FIAC authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Pump Unit S15.
FIAC Spare Parts for Pump Unit S15
  • FIAC Spare Parts for Pump Unit S15
  • FIAC Spare Parts for Pump Unit S15
FIAC spa

FIAC Spare Parts for Pump Unit S15

SKU: Fiac S15 Condition: New
€1.48
VAT included

FIAC Spare Parts for Pump Unit S15

We are FIAC authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Pump Unit S15.
settings 48 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

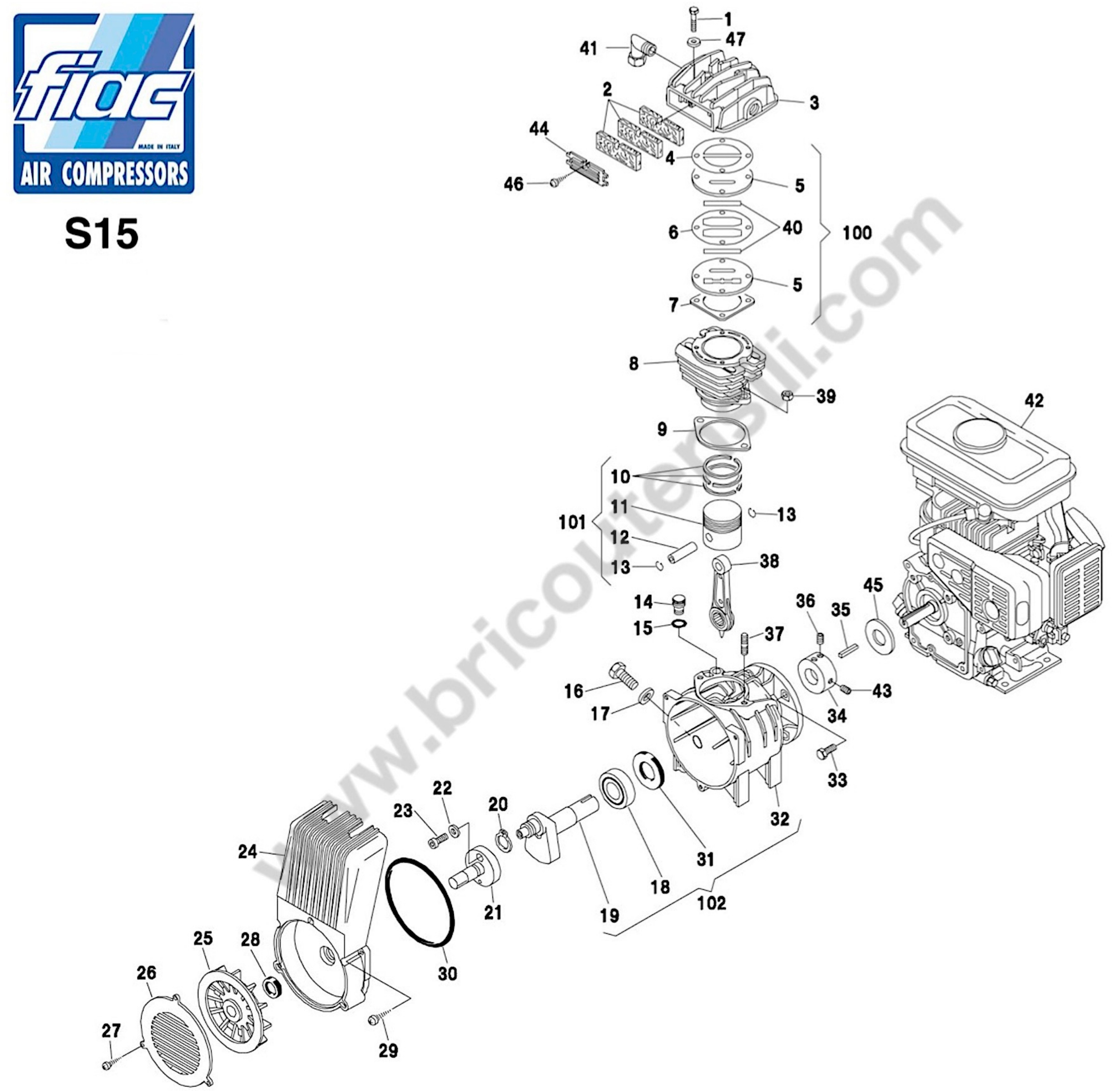

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
3
 FIAC S15 Pump Unit Head 5030150008 FIAC S15 Pump Unit Head €29.86
5
 photo_cameraImage coming soon 7459530000 Kit Valve Plate €28.15
8
 Cylinder for Pump Unit Fiac S15 7575360000 Cylinder for Pump Unit Fiac S15 €80.09
10
 FIAC Pump Unit S15 Piston Ring Kit 4080240000 FIAC Pump Unit S15 Piston Ring Kit €23.10
11
 Piston for Pumping Unit FIAC AB 335 7220050000 Piston for Pumping Unit FIAC AB 335 €29.18
12
 photo_cameraImage coming soon 7050030000 Pin Ø 13 €5.58
13
 photo_cameraImage coming soon 7041030000 Seeger Ø13 €1.44
14
 photo_cameraImage coming soon 7098120000 Stopper €18.13
15
 photo_cameraImage coming soon 7070010000 O-Ring 108 €1.44
16
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
17
 photo_cameraImage coming soon 7072010000 Seal €1.44
18
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
19
 Crank Shaft for Pump Unit Fiac S15 5041280008 Crank Shaft for Pump Unit Fiac S15 €131.29
20
 Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 7040040000 Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 €0.62
21
 Motor Fan Shaft for Pump Unit Fiac S15 5040720008 Motor Fan Shaft for Pump Unit Fiac S15 €81.06
22
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
23
 Special Bolt M8x20 UNI-5931 for Pump Unit Fiac S15 7010420000 Special Bolt M8x20 UNI-5931 for Pump Unit Fiac S15 €1.52
24
 photo_cameraImage coming soon 5080060008 Cover €83.46
25
 Motor Fan for Pump Unit Fiac S15 7200150000 Motor Fan for Pump Unit Fiac S15 €12.06
26
 photo_cameraImage coming soon 7248060000 Grid €5.44
27
 photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
28
 Oil Seal 17x28x7 FP for Pump Unit Fiac S15 7071260000 Oil Seal 17x28x7 FP for Pump Unit Fiac S15 €5.77
29
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
30
 O-Ring 4500 for Petrol Engine Air Compressors S1506-S1520 7070250000 O-Ring 4500 for Petrol Engine Air Compressors S1506-S1520 €10.61
31
 Oil Seal mm 25x52x10 for Pump Unit FIAC S 15 7071090000 Oil Seal mm 25x52x10 for Pump Unit FIAC S 15 €5.77
32
 photo_cameraImage coming soon 5070260008 CARTER €137.43
33
 photo_cameraImage coming soon 7011970000 Screw 5/16 "25 UNF €1.48
34
 photo_cameraImage coming soon 7040510000 Ring €58.77
35
 Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S15 7051280000 Woodruff Key 4,76x4,76x22 for Pump Unit Fiac S15 €2.84
36
 photo_cameraImage coming soon 7016100000 Screw M8x10 UNI-5923 €1.44
37
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
38
 Conrod for Pump Unit FIAC S15 5050160008 Conrod for Pump Unit FIAC S15 €27.40
39
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
40
 Valves Kit for Pump Unit Fiac S15 4081050000 Valves Kit for Pump Unit Fiac S15 €10.00
41
 photo_cameraImage coming soon 7084190000 Fitting "L" 3/8-1/2 MM €15.30
42
 photo_cameraImage coming soon 7382680000 Engine €1,014.82
43
 photo_cameraImage coming soon 7016190000 Screw M5X8 UNI-5923 €1.44
45
 Centering Ring for Petrol Engine Air Compressors S1506 7040200000 Centering Ring for Petrol Engine Air Compressors S1506 €69.42
46
 photo_cameraImage coming soon 7012080000 Screw Ø4,2X12,7 UNI-6954 €1.38
48
 photo_cameraImage coming soon 7210800000 Suction Filter €19.96
49
 photo_cameraImage coming soon 7090080000 Stopper M3 / 8 " €1.50
50
 photo_cameraImage coming soon 7458031000 Filter plate €5.87
100
 Valve Plate Kit for Pump Unit Fiac S15 4082970000 Valve Plate Kit for Pump Unit Fiac S15 €102.29
101
 Conrod + Piston + Piston Ring Ass'y Set for Pump Unit Fiac S15 4191040000 Conrod + Piston + Piston Ring Ass'y Set for Pump Unit Fiac S15 €76.79
102
 photo_cameraImage coming soon 4280800000 GR.CARTER + TREE S-14 "HONDA" €243.89
103
 Gasket Set for Pump Unit Fiac S15 4082340000 Gasket Set for Pump Unit Fiac S15 €15.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit S15

We are FIAC authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Pump Unit S15.

In the following table, look for the type of the air compressor and the respective parts of the code.
FIAC - S15

Pump Unit S 15
# Part Num. Description
1 7011220000 Screw M6x40 UNI-5737
2 7210010000 Filter Element
3 5030150008 Head
5 7459530000 Kit Valve Plate
8 7575360000 Cylinder
10 4080240000 Piston Ring Kit
11 7220050000 Piston
12 7050030000 Pin Ø 13
13 7041030000 Seeger Ø13
14 7098120000 Stopper
15 7070010000 O-Ring 108
16 7090090000 Stopper M1 / 4 "Brass
17 7072010000 Seal
18 7060060000 Bearing 6205
19 5041280008 Crank Shaft
20 7040040000 And Seeger 20
21 5040720008 Fan Shaft
22 7030030000 Washer Ø8 UNI-6592
23 7010420000 Screw M8x20 UNI-5931
24 5080060008 Cover
25 7200150000 Cooling Fan
26 7248060000 Grid
27 7012060000 Screw M4X12 UNI-8112
28 7071260000 Oil Seal SM 1728/7
29 7012290000 Screw M5X20 TAP-TITE
30 7070250000 O-Ring 4500
31 7071090000 Oil Seal 2552/10
32 5070260008 Carter
33 7011970000 Screw 5/16 "25 UNF
34 7040510000 Ring
35 7051280000 Woodruff Key 4,76X4,76X22 X GC135 S-13
36 7016100000 Screw M8x10 UNI-5923
37 7015020000 Prisoner M.8X35X14X16
38 5050160008 Piston ConRod
39 7020070000 Nut M8 UNI-5587
40 4081050000 Kit Valves
41 7084190000 Fitting "L" 3 / 8-1 / 2 MM
42 7382680000 Engine
43 7016190000 Screw M5X8 UNI-5923
44 7488011000 Plate
45 7040200000 Centering Ring
46 7012080000 Screw Ø4,2X12,7 UNI-6954
47 7030020000 Ø6 Washer UNI-6592
48 7210800000 Suction Filter
49 7090080000 Stopper M3 / 8 "
50 7458031000 Filter Plate
100 4082970000 Valve Plate Kit
101 4191040000 KIT ROD-PISTON-PISTON TINGS 55 / VX 304
102 4280800000 GR.CARTER + TREE S-14 "HONDA"
103 4082340000 Gasket Set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac S15
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Fiac S15

Drawing Fiac S15

Download (296.72KB)
