FIAC Parts for Piston Air Compressor AB 50-268 - 230V

SKU: Fiac AB 50-268 M - 1121430164
€118.92
VAT included

FIAC Parts for Piston Air Compressor AB 50-268 - Single Phase

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 50-268 Single Phase - 1121430164.
FIAC Parts for Piston Air Compressor AB 50-268 - 230V
  • FIAC Parts for Piston Air Compressor AB 50-268 - 230V
  • FIAC Parts for Piston Air Compressor AB 50-268 - 230V - Drawing
  • FIAC Parts for Piston Air Compressor AB 50-268 - 230V - Drawing - 1
FIAC spa

FIAC Parts for Piston Air Compressor AB 50-268 - 230V

SKU: Fiac AB 50-268 M - 1121430164 Condition: New
€118.92
VAT included

FIAC Parts for Piston Air Compressor AB 50-268 - Single Phase

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 50-268 Single Phase - 1121430164.
settings 59 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
59 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

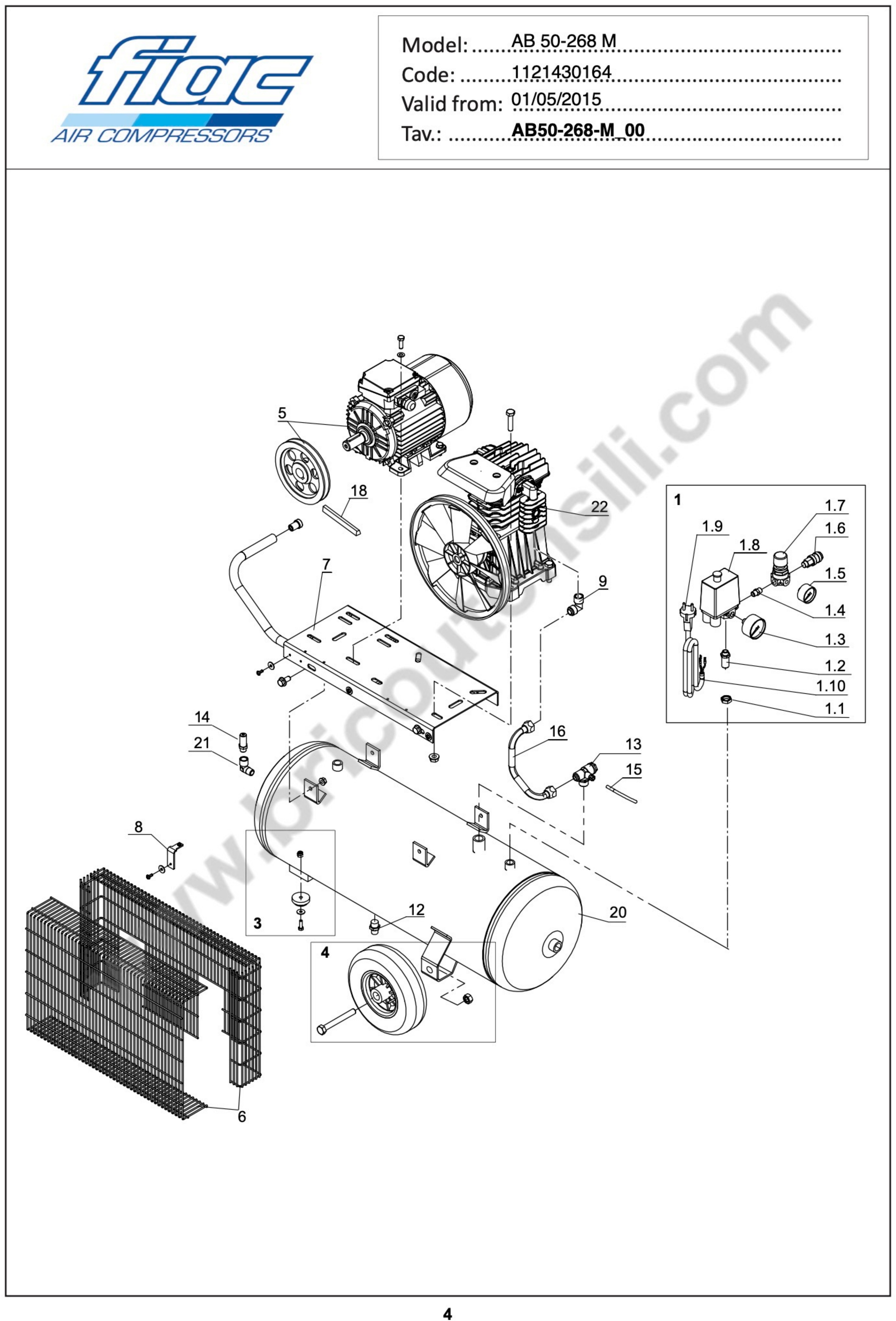

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4054720000 PRESS. SWITCH KIT €118.92
1.1
 Fiac Locking Nut 3/8" 7023050000 Fiac Locking Nut 3/8" €6.42
1.4
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
1.2
 FIAC Reduction 3/8"-1/4" 7088060000 FIAC Reduction 3/8"-1/4" €18.30
1.7
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
1.5
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
1.3
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
1.6
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
1.8
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
1.9
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
3
 photo_cameraImage coming soon 4083070000 KIT €13.29
4
 Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo 4083010000 Wheel Kit D.150 for 50 Lt FIAC AIR Compressors + Apollo €21.06
5
 photo_cameraImage coming soon 4150820000 MOTOR/PULLEY KIT €269.39
6
 photo_cameraImage coming soon 4170160000 BELT GUARD KIT €100.37
7
 photo_cameraImage coming soon 5010990008 basis €99.11
8
 photo_cameraImage coming soon 7458510000 Belt Guard Bracket €5.44
9
 photo_cameraImage coming soon 7080160000 Fitting "L" 1/2 €11.84
12
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
13
 Check Valve MM 1/2"-DX for Air Compressors 7190090000 Check Valve MM 1/2"-DX for Air Compressors €29.61
14
 FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
15
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
16
 Air Supply Hose mm 14 for Pumping Units Fiac AB 268-360 7231680000 Air Supply Hose mm 14 for Pumping Units Fiac AB 268-360 €33.10
18
 photo_cameraImage coming soon 7370300000 TRAP belt. A 44 €5.77
20
 photo_cameraImage coming soon 5153960008 TANK €323.95
21
 FIAC Apollo 100 L Joint 7080130000 FIAC Apollo 100 L Joint €12.86
22
 photo_cameraImage coming soon 9110930000 Pumping Unit AB 268 €249.76
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

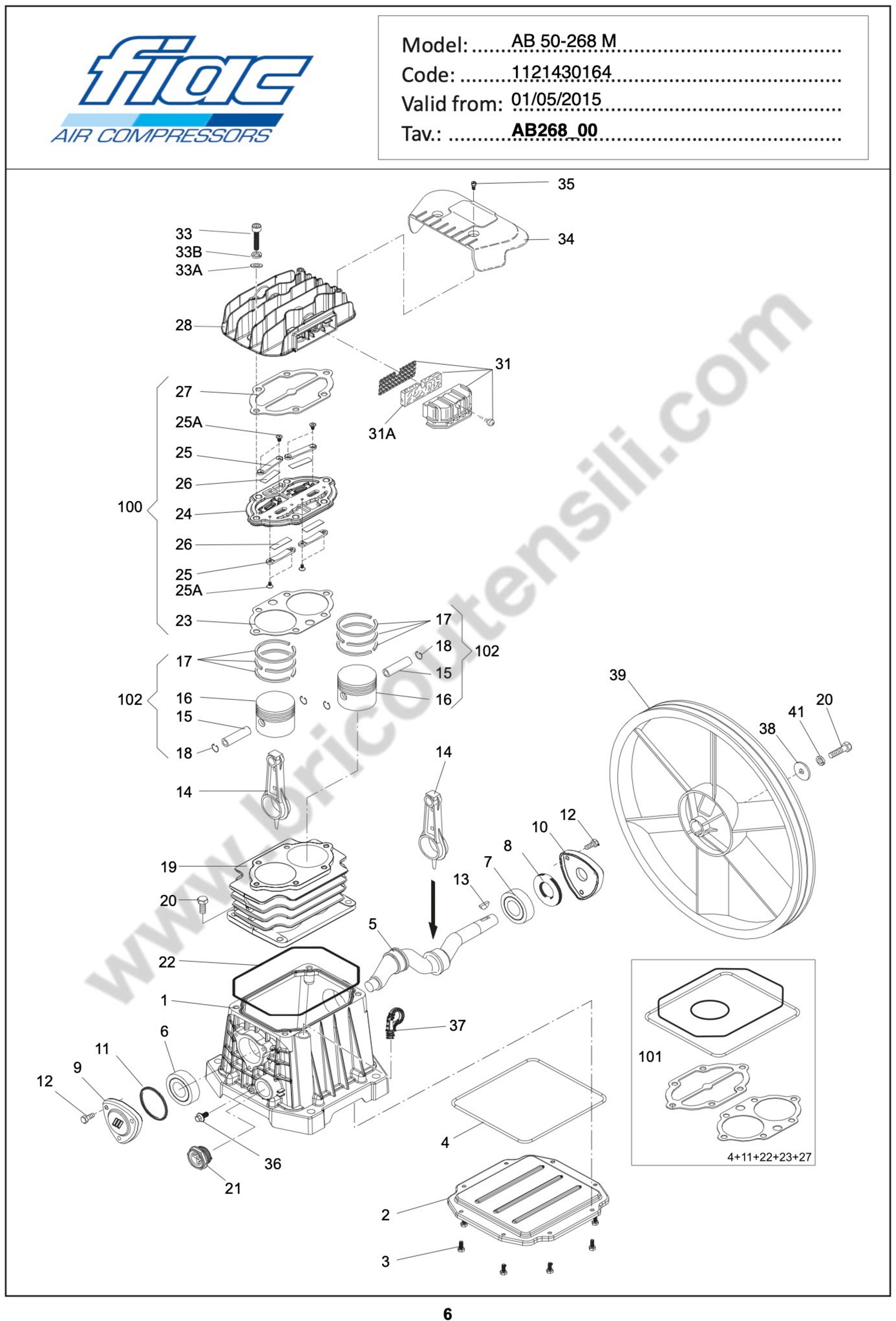

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 9700001075 Case €79.81
2
 FIAC AB268 Carter Cover 9700001076 FIAC AB268 Carter Cover €20.50
3
 photo_cameraImage coming soon 9700000531 Screw M5X18 UNI7687 €1.82
5
 Crank Shaft for Pumping Units FIAC AB248-338-360 9100270140 Crank Shaft for Pumping Units FIAC AB248-338-360 €58.71 Not available for order
6
 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 7060180000 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 €11.77
7
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
8
 Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €4.30
9
 Front Cover for Pumping Units FIAC AB248-268-338-360 9100270160 Front Cover for Pumping Units FIAC AB248-268-338-360 €12.15
10
 Rear Cover for Pumping Units FIAC AB248-268-338-360 9100270170 Rear Cover for Pumping Units FIAC AB248-268-338-360 €12.15
12
 photo_cameraImage coming soon 7011420000 Screw M6X16 UNI-5739 €1.52
13
 FIAC AB268 Flywheel Key 9100280020 FIAC AB268 Flywheel Key €1.29
14
 Conrod for Pumping unit FIAC AB248 9100280030 Conrod for Pumping unit FIAC AB248 €29.72
15
 Piston Pin for Pumping Unit FIAC AB 248-338-GM 193 9100020080 Piston Pin for Pumping Unit FIAC AB 248-338-GM 193 €15.80
16
 Piston for Pumping unit FIAC AB 248-338-GM193 9100020120 Piston for Pumping unit FIAC AB 248-338-GM193 €25.65
17
 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 4080030000 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 €30.64
19
 photo_cameraImage coming soon 7575480000 Cylinder €111.92
20
 photo_cameraImage coming soon 7012220000 Screw M8X 25 UNI-8112 €1.52
21
 FIAC Pump Unit AB268 Oil Sight Glass 9700000408 FIAC Pump Unit AB268 Oil Sight Glass €7.04
28
 Head for Air Compressor Pump Unit FIAC AB 268 7570140000 Head for Air Compressor Pump Unit FIAC AB 268 €55.50
31A
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
31
 Set Intake Filter for Air Compressor Pump Unit AB 268 9700000843 Set Intake Filter for Air Compressor Pump Unit AB 268 €8.23
33
 photo_cameraImage coming soon 7010080000 Screw M8x35 UNI-5931 €1.52
33A
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
33B
 photo_cameraImage coming soon 9700010087 WASHER €4.47
34
 Air Conveyor for Pumping Units FIAC AB248-268-338-360 9100270220 Air Conveyor for Pumping Units FIAC AB248-268-338-360 €10.61
35
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
36
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
37
 Oil Vent Cap for Air Compressor Pump Unit FIAC AB 268 9700000300 Oil Vent Cap for Air Compressor Pump Unit FIAC AB 268 €6.11
38
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
39
 Flywheel for Pumping unit Fiac AB 248-338-360 9100270230 Flywheel for Pumping unit Fiac AB 248-338-360 €64.36
100
 Valves Plate kit for Air Compressor Pump Unit FIAC AB 268 9700003272 Valves Plate kit for Air Compressor Pump Unit FIAC AB 268 €56.90
101
 Gaskets kit for Air Compressor Pump Unit FIAC AB 268 9700003271 Gaskets kit for Air Compressor Pump Unit FIAC AB 268 €21.06
102
 Kit Piston for Pumping unit FIAC AB 248-338 4291030000 Kit Piston for Pumping unit FIAC AB 248-338 €70.16

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Parts for Piston Air Compressor AB 50-268 - Single Phase

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 50-268 Single Phase - 1121430164.

In the following table , look for the type of the air compressor and the respective parts of the code.
Fiac AB 50-268 230V - 1121430164

Air Compressor FIAC AB 50-268 Single Phase - 1121430164 Pag.1
# Part Num. Description
1 4054720000 PRESS. SWITCH KIT
1.1 7023050000 LOCK NUT
1.2 7088060000 FITTING
1.3 7110300000 PRESSURE GAUGE
1.4 7081090000 FITTING
1.5 7110240000 PRESSURE GAUGE
1.6 7130570000 TAP
1.7 7100640000 PRESSURE REDUCER
1.8 7250740000 PRESSURE SWITCH
1.9 7329070000 POWER CABLE
3 4083070000 KIT
4 4083010000 WHEEL KIT
5 4150820000 MOTOR/PULLEY KIT
6 4170160000 BELT GUARD KIT
7 5010990008 BASE PLATE
8 7458510000 BELT GUARD SUPPORT
9 7080160000 FITTING
12 7130160000 DISCHARGE TAP
13 7190090000 CHECK VALVE
14 7192090000 RELIEF VALVE
15 7230010000 RILSAN TUBE
16 7231680000 INFEED HOSE
18 7370300000 BELT
20 5153960008 TANK
21 7080130000 FITTING
22 9110930000 AIR COMPRESSOR GROUP 268
Pump Unit AB268 Pag.2
1 9700001075 CRANKCASE
2 9700001076 CASING COVER
3 9700000531 SCREW
4 X O RING
5 9100270140 CRANKSHAFT
6 7060180000 BEARING
7 7060200000 BEARING
8 9100270150 OIL SEAL
9 9100270160 COVER Front
10 9100270170 COVER Rear
11 X O RING
12 7011420000 SCREW
13 9100280020 FEATHER
14 9100280030 CONNECTING ROD
15 9100020080 PISTON PIN
16 9100020120 PISTON
17 4080030000 PISTON RING KIT
18 X RING
19 7575480000 CYLINDER
20 7012220000 SCREW
21 9700000408 OIL SIGHT GLASS
22 X O RING
23 X GASKET
24 X VALVE HOLDER PLATE
25 X VALVE
25A X SCREW
26 X VALVE
27 X GASKET
28 7570140000 Head
31 9700000843 INTAKE FILTER KIT
31A 7210010000 FILTER CARTRIDGE
33 7010080000 SCREW
33A 7030030000 WASHER
33B 9700010087 WASHER
34 9100270220 AIR CONVEYOR
35 7012090000 SCREW
36 7011460000 SCREW
37 9700000300 KIT OIL VENT CAP
38 7030270000 WASHER
39 9100270230 FLYWHEEL
41 9700010087 WASHER
100 9700003272 Valves plate kit
101 9700003271 Gasket Kit
102 4291030000 PISTON KIT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
