FIAC spa

FIAC Spare Parts for Air Compressor FX 250 2 HP

SKU: Fiac FX250 2 HP
€1.48
VAT included

FIAC Spare Parts for Air Compressor FX 250 2 HP

We are FIAC AIR COMPRESSORS original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor FX250 2 HP 03-02-14.
FIAC Spare Parts for Air Compressor FX 250 2 HP
  • FIAC Spare Parts for Air Compressor FX 250 2 HP
  • FIAC Spare Parts for Air Compressor FX 250 2 HP - Drawing
FIAC spa

FIAC Spare Parts for Air Compressor FX 250 2 HP

SKU: Fiac FX250 2 HP Condition: New
€1.48
VAT included

FIAC Spare Parts for Air Compressor FX 250 2 HP

We are FIAC AIR COMPRESSORS original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor FX250 2 HP 03-02-14.
settings 67 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
58 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

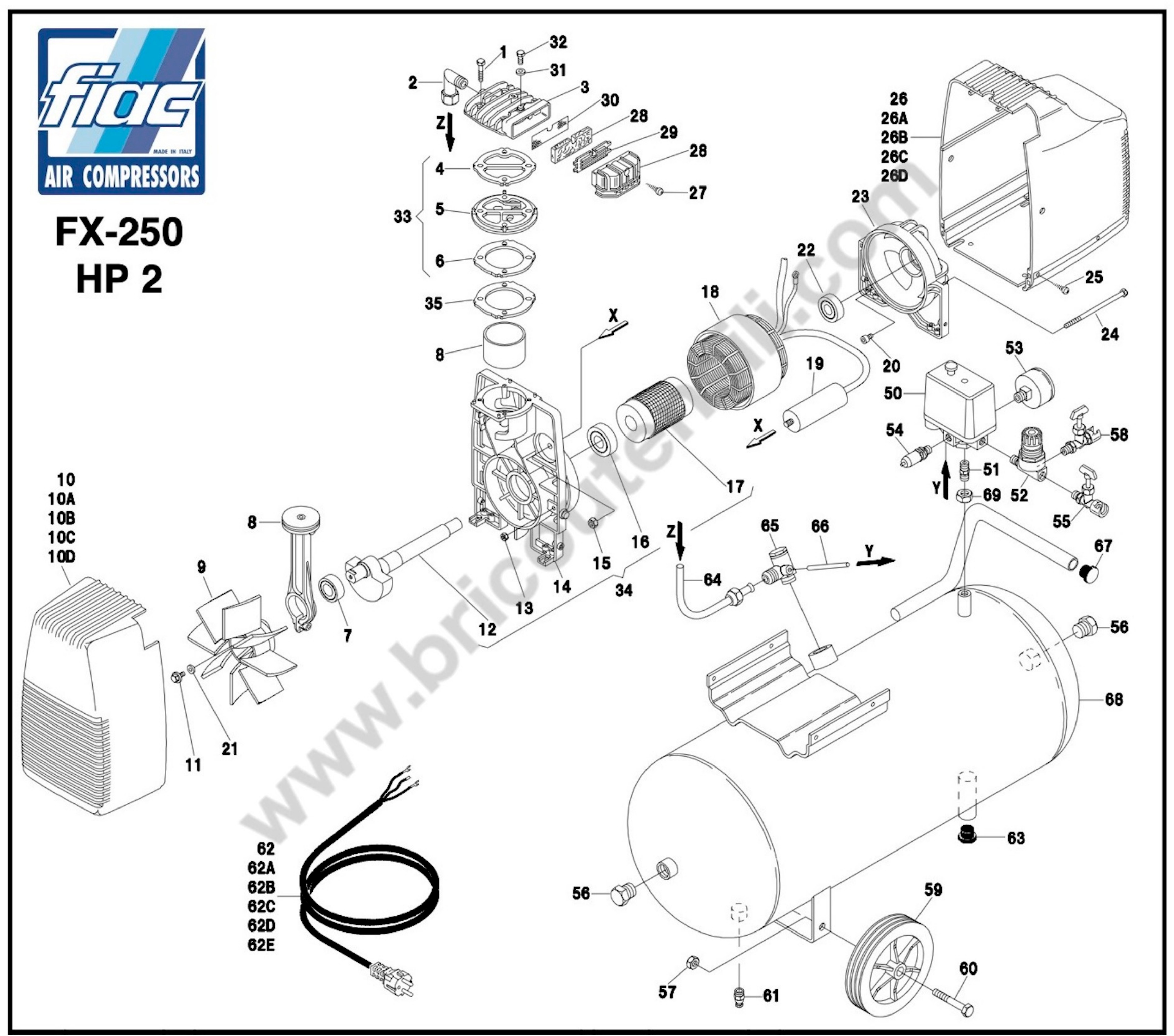

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 photo_cameraImage coming soon 7084620000 FITTING "L" X AC1300 €14.68
3
 Head for Air Compressors FIAC ECU 201-FB-210-LEONARDO HP 1-FX 95 7570550000 Head for Air Compressors FIAC ECU 201-FB-210-LEONARDO HP 1-FX 95 €33.32
4-6
 FIAC F114 Gaskets Kit 4082610000 FIAC F114 Gaskets Kit €13.95
5
 Valves Plate for Air Compressors FIAC ECU 201-FX 95 4200020000 Valves Plate for Air Compressors FIAC ECU 201-FX 95 €32.09
7
 photo_cameraImage coming soon 7060550000 Bearing 6004 2RS1 / QE6 €8.35
9
 Fan Motor for Air Compressor Makita AC1300 7200190000 Fan Motor for Air Compressor Makita AC1300 €14.96
10A
 photo_cameraImage coming soon 7150560000 Plastic COVER €20.86
10B
 photo_cameraImage coming soon 7150610000 CASING COMPRESS. "ECU" YELLOW €22.43
10C
 Fiac FX95 Motor Housing BLUE 7150650000 Fiac FX95 Motor Housing BLUE €20.48
10D
 photo_cameraImage coming soon 7150720000 CASING COMPRES.ECU GRAY €17.12
10
 photo_cameraImage coming soon 7150800000 Casing COMPRESSOR RED €17.12
11
 photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
12
 photo_cameraImage coming soon 5040860008 CRANKSHAFT X AC1300 €70.53
13
 photo_cameraImage coming soon 7021010000 Nut M6-7473 UNI €1.52
14
 photo_cameraImage coming soon 7670040000 Casing €53.54
15
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
16
 photo_cameraImage coming soon 7060320000 BEARING X AC1300 €15.66
17
 photo_cameraImage coming soon 7660240000 HARMATURE D.64,2X75 X AC1300 €48.70
18
 photo_cameraImage coming soon 4012690000 STATOR WRAPPED V230-50 / 1 €299.64
19
 Capacitor 30 mf for Air Compressors 7310320000 Capacitor 30 mf for Air Compressors €26.02
20
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
22
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
23
 Motor Hood for Pump Unit FIAC GM 145 7640060000 Motor Hood for Pump Unit FIAC GM 145 €27.79
24
 photo_cameraImage coming soon 7018010000 Screw M6x139 UNI-5737 €1.73
25
 photo_cameraImage coming soon 7012240000 Screw M5X15 UNI-8112 €5.34
26A
 Motor Housing for Air Compressors Fiac ECU 200 - ECU 201 7150550000 Motor Housing for Air Compressors Fiac ECU 200 - ECU 201 €35.16
26
 photo_cameraImage coming soon 7150580000 Plastic Fairing €19.99
26B
 photo_cameraImage coming soon 7150600000 CASING MOTOR "ECU" YELLOW €24.30
26C
 photo_cameraImage coming soon 7150640000 FAIRING ENGINE ECU BLEU €11.09
26D
 photo_cameraImage coming soon 7150710000 CARENAT.MOTORE ECU GRAY €19.99
27
 photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
28
 Set Intake Filter for Pumping Units FIAC GM 201-202-242 4085010000 Set Intake Filter for Pumping Units FIAC GM 201-202-242 €15.65
30
 photo_cameraImage coming soon 7458031000 Filter plate €5.87
31
 FIAC Air Compressor Ecu 201 Washer 7030780000 FIAC Air Compressor Ecu 201 Washer €0.62
33
 Valves Plate Kit for Air Compressors FIAC FX 95 4082620000 Valves Plate Kit for Air Compressors FIAC FX 95 €38.34
34
 photo_cameraImage coming soon 4280640000 GROUP CARTER / TREE / HARMATURE €191.18
35
 FIAC FX 250 Spacer 7062720000 FIAC FX 250 Spacer €8.53
50
 Single-Phase Pressure Switch with Built-in Start valve 7250240000 Single-Phase Pressure Switch with Built-in Start valve €32.67
51
 photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
52
 photo_cameraImage coming soon 7100470000 Pressure reducer - Riduttore of pressione €42.79
53
 photo_cameraImage coming soon 7110020000 Manometer €19.55
54
 Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
55
 photo_cameraImage coming soon 7130010000 Line Valve M1/4" €12.10
56
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
59
 Wheel D.125x35x15 for FIAC AIR Compressors 7260160000 Wheel D.125x35x15 for FIAC AIR Compressors €7.50
60
 Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
61
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
62A
 photo_cameraImage coming soon 7328600000 Alimentation Cable €12.09
62B
 photo_cameraImage coming soon 7328620000 Alimentation Cable €21.16
62C
 photo_cameraImage coming soon 7329000000 Alimentation Cable €16.99
62D
 photo_cameraImage coming soon 7329020000 CABLE THERMAL-INTERR.F-130 "CSA" €6.97
62
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
62E
 photo_cameraImage coming soon 7329140000 Alimentation Cable €4.23
63
 Rubber Foot for Air Compressor FIAC Cosmos 50 7360040000 Rubber Foot for Air Compressor FIAC Cosmos 50 €4.34
65
 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
66
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
69
 photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Air Compressor FX 250 2 HP

We are FIAC AIR COMPRESSORS original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor FX250 2 HP 03-02-14.

In the following table, look for the type of the Air Compressor and the respective parts of the code.
FX 250 2 HP 03-02-14

FIAC Air Compressor FX250 2 HP 03-02-14
# Part Num. Description
1 7011220000 Screw - Vite
2 7084620000 Joint - Raccordo
3 7570550000 Head - Testa
4-6 4082610000 Set of gaskets - Kit guarnizioni
5 4200020000 Monoplate - Monopiastra
7 7060550000 Bearing - Cuscinetto
8 4190350000 Con-rod/Piston/Cylinder kit - Kit Biella/Pistone/Cilindro
9 7200190000 Fan - Ventola
10 7150800000 Red comp. housing - Carenatura compr. rosso
10A 7150560000 Green comp. housing - Carenatura compr. verde
10B 7150610000 Yellow comp. housing - Carenatura compr. giallo
10C 7150650000 Blue comp. housing - Carenatura compr. blu
10D 7150720000 Grey comp. housing - Carenatura compr. grigio
11 7011040000 Screw - Vite
12 5040860008 Crankshaft - Albero a gomito
13 7021010000 Nut - Dado
14 7670040000 Carter - Carter
15 7020070000 Nut for capacitor - Dado condensatore
16 7060320000 Bearing - Cuscinetto
17 7660240000 Rotor - Rotore
18 4012690000 Wound stator - Statore avvolto V230-50/1
19 7310320000 Capacitor - Condensatore 30 µF
20 7013060000 Screw - Vite
21 7030190000 Washer - Rondella
22 7060010000 Bearing - Cuscinetto
23 7640060000 Cover - Calotta
24 7018010000 Tension rod - Tirante
25 7012240000 Screw - Vite
26 7150580000 Black motor housing - Carenatura motore nero
26A 7150550000 Green motor housing - Carenatura motore verde
26B 7150600000 Yellow motor housing - Carenatura motore giallo
26C 7150640000 Blue motor housing - Carenatura motore blu
26D 7150710000 Grey motor housing - Carenatura motore grigio
27 7012010000 Screw - Vite
28 4085010000 Intake filter - Filtro aspirazione
29 7458680000 Filter plate - Piastrina filtro
30 7458031000 Filter plate - Piastrina filtro
31 7030780000 Washer - Rondella
32 7014300000 Screw - Vite
33 4082620000 Set of monoplate and gaskets - Kit monopiastra e guarnizioni
34 4280640000 Carter/Shaft/Rotor group - Gruppo Carter/Albero/Rotore
35 7062720000 Spacer - Distanziale
50 7250240000 Pressure switch - Pressostato
51 7081140000 Joint - Raccordo 1/4" G
52 7100470000 Pressure reducer - Riduttore di pressione
53 7110020000 Pressure gauge - Manometro
54 7192020000 Safety valve - Valvola di sicurezza
55 7130010000 Tap - Rubinetto
56 7090030000 Plug - Tappo 1/2 G
57 7020250000 Nut - Dado M10 UNI 5588
58 7130020000 Tap - Rubinetto
59 7260160000 Wheel - Ruota
60 7018290000 Pivot - Perno ruota
61 7130160000 Discharge tap - Rubinetto spurgo
62 7329070000 Infeed cable - Cavo alimentazione europeo
62A 7328600000 Infeed cable - Cavo alimentazione svizzero
62B 7328620000 Infeed cable - Cavo alimentazione americano
62C 7329000000 Infeed cable - Cavo alimentazione australiano
62D 7329020000 Infeed cable - Cavo alimentazione inglese
62E 7329140000 Infeed cable - Cavo alimentazione giapponese
63 7360040000 Rubber - Gommino
64 7233750000 Infeed tube - Tubo alimentazione
65 7190180000 Non return valve - Valvola ritegno 1/2" M - 3/8" M
66 7230010000 Rilsan hose - Tubo rilsan 0,35 mt.
67 7360070000 Rubber - Gommino
68 5154030008 Tank - Serbatoio
69 7023040000 Blocking Nut - Controdado
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac FX250 2 HP
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Fiac FX 250 2 HP

Drawing Fiac FX 250 2 HP

Download (407.36KB)

You might also like

Pumping unit for air compressor Mod. AB 268 -10%
FIAC spa SKU: AB268 - 1123020153
Pumping unit for air compressor Mod. AB 268
Pumping unit for air compressor Mod. AB 268 Pump unit for air compressors Fiac 25/50/100/150/200 Liters lubricated single-stage belt drive. - System-head with large ciindro fins for heat dissipation - Ductile iron crankshaft...
AVAILABLE €231.53 €257.25
Details
Pumping unit for air compressor Mod. AB 360 -10%
FIAC spa SKU: AB360 - 9101880000
Pumping unit for air compressor Mod. AB 360
Pumping unit for air compressor Mod. AB 360 Pump unit for air compressors Fiac 100/150/200 Liters lubricated single-stage belt drive. - System-head with large ciindro fins for heat dissipation - Ductile iron crankshaft carefully...
AVAILABLE €240.64 €267.38
Details
Pumping unit for air compressor Mod. AB 415/515 -10%
FIAC spa SKU: AB415/515 - 1129740082
Pumping unit for air compressor Mod. AB 415/515
Pump unit for air compressor Mod. AB 415/515 Pump unit for air compressors Fiac 150/200/300 Liters lubricated single-stage belt drive.  - System-head with large ciindro fins for heat dissipation  - Ductile iron crankshaft...
AVAILABLE €361.02 €401.13
Details
Pumping unit for air compressor Mod. AB 678 -25% Sale
FIAC spa SKU: AB678 - 3021100000
Pumping unit for air compressor Mod. AB 678
Pumping unit for air compressor Mod. AB 678 Pumping unit for air compressors Fini/Dari/Fiac 200/300/500 Liters lubricated single-stage belt drive.  - System-head with large ciindro fins for heat dissipation  - Ductile iron...
Last items in stock €792.43 €1,056.57
Details
Motor Fan for Air Compressor Fiac ECU201-FB-210
FIAC spa SKU: 7200140000
Motor Fan for Air Compressor Fiac ECU201-FB-210
Motor Fan for Air Compressor Fiac ECU201-FB-210 Genuine part FIAC, Motor fan, for self-lubricated compressors FIAC ECU 201 HP 1.5 - F206 - FB-210. Part for the following products: -  AIR COMPRESSOR ECU 201 HP 1,5 F206 - ...
AVAILABLE €8.84
Details
Pumping Unit for air Compressor Mod. AB 998 -18%
FIAC spa SKU: AB998 - 1123020166
Pumping Unit for air Compressor Mod. AB 998
Pumping Unit for air Compressor Mod. AB 998 The AB series distinguishes the oil lubricated twin cylinder compressor pumps with single and two stage belt drive. The Fiac compressor pumps have been designed and tested in compliance with...
Last items in stock €967.49 €1,179.86
Details
Pumping Unit for air Compressor Mod. AB 1500 Sale
FIAC spa SKU: AB1500 - 3020600000
Pumping Unit for air Compressor Mod. AB 1500
Pumping Unit for air Compressor Mod. AB 1500 The AB series distinguishes the oil lubricated twin cylinder compressor pumps with single and two stage belt drive.The Fiac compressor pumps have been designed and tested in compliance with...
Last items in stock €2,503.64
Details
Capacitor 20 mf for Air Compressors
FIAC spa SKU: 7310100000
Capacitor 20 mf for Air Compressors
Capacitor 20 mf for Air Compressors Original part FIAC, Capacitor 20 mf 450 V for Air Compressors 6-10-24-50 liters, with pumping units with electric motor 750-1300-1500W. Part for the following products: - For all types of...
Last items in stock €22.94
Details
Aluminium Pipe for Air Compressor Fiac FX 95 - HP 1.5
FIAC spa SKU: 7230170000
Aluminium Pipe for Air Compressor Fiac FX 95 - HP 1.5
Aluminium Pipe for Air Compressor Fiac FX 95 - HP 1.5 Original parts FIAC, Aluminum pipe for joining the head of the compressor to the air intake valve on the tank. Parts for the following products: -Compressore FIAC FX 95 - HP 1.5 -...
AVAILABLE €22.94
Details
Set Intake Filter for Pumping Units FIAC GM 201-202-242
FIAC spa SKU: 4085010000
Set Intake Filter for Pumping Units FIAC GM 201-202-242
Set Intake Filter for Pumping Units FIAC GM 201-202-242 Original parts FIAC, Set Intake Filter for Pumping Units GM 201 - 202 GM - GM 242 - ECU 201 - FX 95. Part for the following products: - Pumping unit GM 201 data...
Last items in stock €15.65
Details
Valves Plate Kit for Air Compressors FIAC FX 95
FIAC spa SKU: 4082620000
Valves Plate Kit for Air Compressors FIAC FX 95
Valves Plate Kit for Air Compressors FIAC FX 95 Genuine part FIAC, Valves Plate Kit for air Compressors Self Lubricated FIAC - FX 95 - HP 1,5. Parts for the following compressors: -  Compressor Fiac FX 95 - HP 1,5 -...
Last items in stock €38.34
Details
Capacitor 25 mf for Air Compressors
FIAC spa SKU: 7310590000
Capacitor 25 mf for Air Compressors
Capacitor 25 mf for Air Compressors Original part FIAC, Capacitor 25 mf 450 V for Air Compressors 6-10-24-50 liters, with pumping units with electric motor 750-1300-1500W. Part for the following products: - For all types of...
AVAILABLE €26.97
Details
Motor Hood for Pump Unit FIAC GM 145
FIAC spa SKU: 7640060000
Motor Hood for Pump Unit FIAC GM 145
Motor Hood for Pump Unit FIAC GM 145 Genuine part FIAC, Motor Hood for Pump Unit GM 145 Validity date - from 17/09/2011 Parts for the following products: - Pump Unit Fiac GM 145 Validity date - from 17/09/2011 - Air Compressor Fiac...
AVAILABLE €27.79
Details
Single-Phase Pressure Switch with Built-in Start valve
FIAC spa SKU: 7250240000
Single-Phase Pressure Switch with Built-in Start valve
Single-Phase Pressure Switch with Built-in Start valve Genuine spare part Fiac, Single-Phase Pressure Switch for Air Compressors, FIAC AB 50 245-335 - CCS 100/245 - FX 95 - HP 1,5 - Fiac Pump Unit CCS 248-338 Part for the...
AVAILABLE €32.67
Details
Pressure Reducer for Air Compressor FIAC FX 95
FIAC spa SKU: 7100260000
Pressure Reducer for Air Compressor FIAC FX 95
Pressure Reducer for Air Compressor FIAC FX 95 Genuine part FIAC, Pressure Reducer for air compressors self lubricated FIAC ECU 201 HP 1.5 - FX 95 - HP 1,5. Part for the following products: -  Compressor Fiac ECU...
Last items in stock €37.78
Details
FIAC FX 250 Spacer
FIAC spa SKU: 7062720000
FIAC FX 250 Spacer
FIAC FX 250 Spacer Genuine part FIAC, Spacer for Air Compressors FIAC FX 250 - MAKITA AC1300. Parts for the following compressors: - Air Compressor FIAC FX 250 2 HP 03-02-14 - Air Compressor MAKITA AC1300 - Code: 1127060272...
AVAILABLE €8.53
Details
FIAC F114 Gaskets Kit
FIAC spa SKU: 4082610000
FIAC F114 Gaskets Kit
FIAC F114 Gaskets Kit Genuine replacement part FIAC, Gaskets Kit for Pump Unit F114 - Air Compressors FX95 - HP 1,5 - FX 250 2 HP. Part for the following products: - Fiac F114 - Fiac FX95 - HP 1,5 - Fiac FX 250 2 HP - Code :...
Last items in stock €13.95
Details
FIAC Air Compressor Ecu 201 Washer
FIAC spa SKU: 7030780000
FIAC Air Compressor Ecu 201 Washer
FIAC Washer for Air Compressor Ecu 201 Genuine replacement part FIAC, Head Bolt Washer for Air Compressor ECU201 - FB210. Part for the following products: -  Air Compressor Fiac ECU201-HP1,5F206 -  Air Compressor Fiac...
Usually Ships in: 7/10 Business Days Approx. €0.62
Details
Comments (0)
