FIAC spa

FIAC Spare Parts for Pump Unit VS 204 - 244 - 1122020520

SKU: Fiac VS204 - 244 - 1122020520
€1.48
VAT included

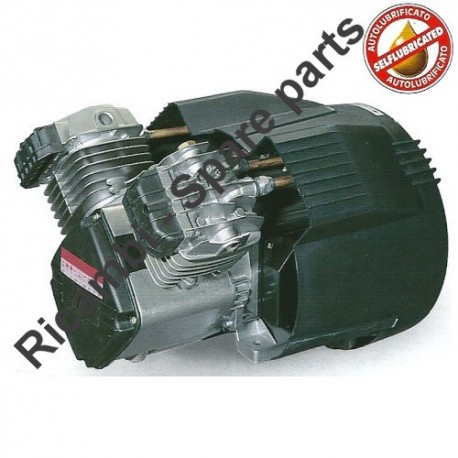

FIAC Spare Parts for Pump Unit  VS 204 - 244 (230V) 1122020520

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit,  VS 204 - 244 (230V) 1122020520 01/12/2017.

Fix Your Pump unit, VS 204 1122020520. All Spares are Ready For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
FIAC Spare Parts for Pump Unit VS 204 - 244 - 1122020520
  • FIAC Spare Parts for Pump Unit VS 204 - 244 - 1122020520
  • FIAC Spare Parts for Pump Unit VS 204 - 244 - 1122020520 - 1
FIAC spa

FIAC Spare Parts for Pump Unit VS 204 - 244 - 1122020520

SKU: Fiac VS204 - 244 - 1122020520 Condition: New
€1.48
VAT included

FIAC Spare Parts for Pump Unit  VS 204 - 244 (230V) 1122020520

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for Pump unit,  VS 204 - 244 (230V) 1122020520 01/12/2017.

Fix Your Pump unit, VS 204 1122020520. All Spares are Ready For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 45 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
43 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

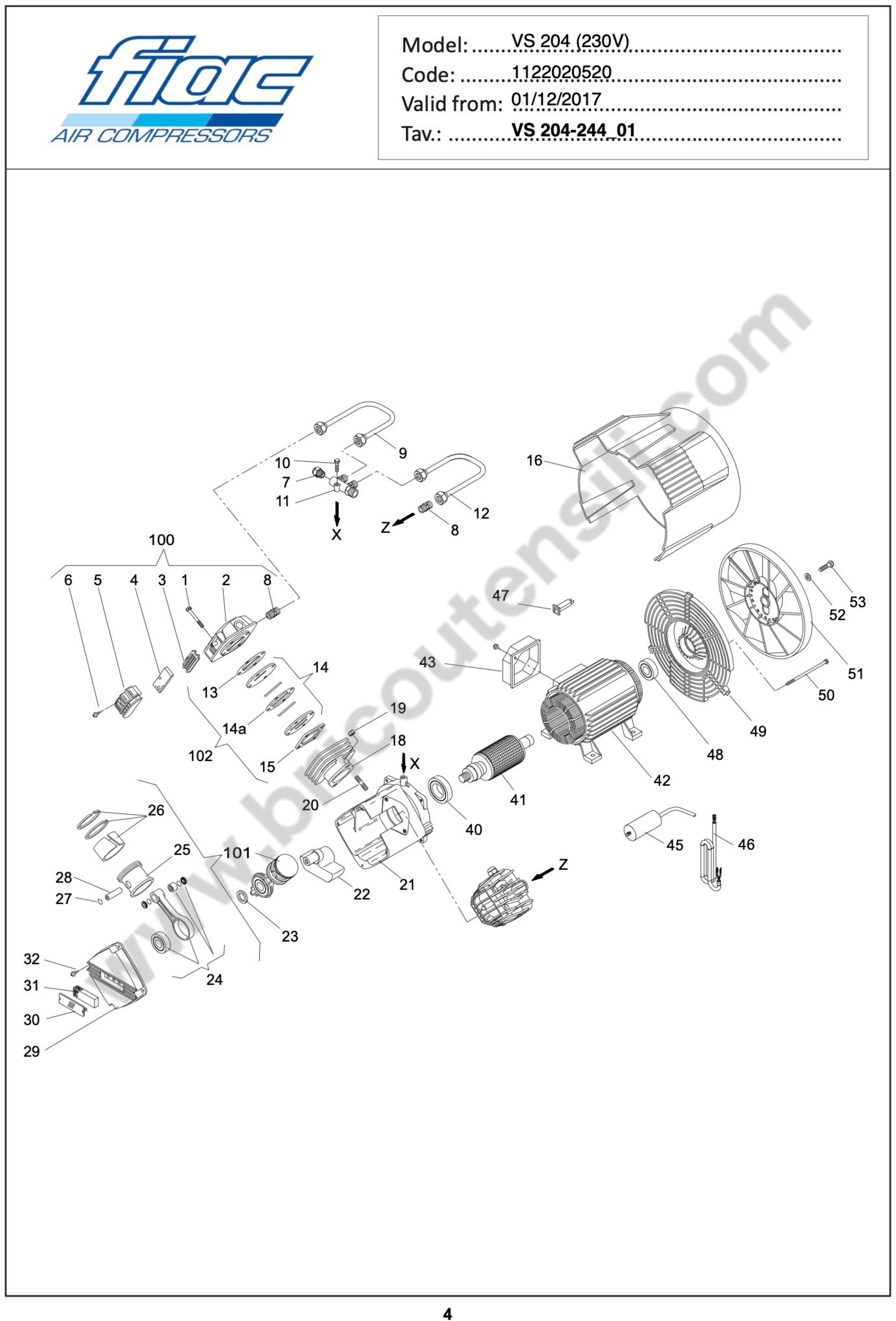

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 photo_cameraImage coming soon 5030250008 Head €57.22
3
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
 Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
6
 photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
7
 Start Valve M1/4" 1,5 B for Pump Unit Fiac VS 204 7196020000 Start Valve M1/4" 1,5 B for Pump Unit Fiac VS 204 €10.00
8
 photo_cameraImage coming soon 7081100000 3/8 " €8.35
9
 FIAC Pump Units VS Head Pipe L 7231770000 FIAC Pump Units VS Head Pipe L €25.96
10
 photo_cameraImage coming soon 7010120000 Screw M6X25 UNI-5931 €1.40
11
 photo_cameraImage coming soon 7089950000 Collector €25.04
12
 FIAC Pump Units VS Head Pipe R 7231760000 FIAC Pump Units VS Head Pipe R €25.96
14
 Fiac VS204 Valve Plate Kit 7459510000 Fiac VS204 Valve Plate Kit €77.90
16
 FIAC Motor Cover for Series VS-VX 7150370000 FIAC Motor Cover for Series VS-VX €36.88
18
 Fiac GMS 100 Pump Unit Cylinder 7575030000 Fiac GMS 100 Pump Unit Cylinder €158.15
19
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
20
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
21
 photo_cameraImage coming soon 5070160008 Sump €232.09
22
 photo_cameraImage coming soon 5041360008 Crank €69.32
23
 photo_cameraImage coming soon 7038070000 Washer Ø20,1X26X2 UNI-6593 €3.73
24
 photo_cameraImage coming soon 4190320000 Kit rod €104.77
25
 photo_cameraImage coming soon 7220300000 Piston €38.56
26
 Kit Rings for Pistons of Pump Units GMS-VS 4080043000 Kit Rings for Pistons of Pump Units GMS-VS €82.31
27
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
28
 photo_cameraImage coming soon 7050050000 Pin Ø12/8,5X46 "GMS" €4.35
29
 photo_cameraImage coming soon 7151030000 COVER CARTER GMVS €10.77
30
 Air Cleaner Cap for Pump Unit FIAC VS 244 7151040000 Air Cleaner Cap for Pump Unit FIAC VS 244 €1.49
31
 FIAC GMS 100 Air Filter 7210120000 FIAC GMS 100 Air Filter €3.32
32
 photo_cameraImage coming soon 7012020000 Screw Ø3,9X12,7 DIN-7981 €1.52
40
 photo_cameraImage coming soon 7060050000 6007 35-62-14-bearing 2RS1 SKF €38.94
41
 photo_cameraImage coming soon 4280770000 Rotor Kit €206.15
42
 photo_cameraImage coming soon 4010810000 HOUSING MOT GMVS 200 V220 / 50HZ S / MORS. €249.43
43
 photo_cameraImage coming soon 7382340000 Terminal cover €4.34
45
 photo_cameraImage coming soon 7310330000 Condenser MF.30 V450 €30.79
46
 photo_cameraImage coming soon 7329900000 Cable Pressure / Motor €15.66
47
 photo_cameraImage coming soon 7410470000 Prot. Thermal singl. 10A €7.17
48
 photo_cameraImage coming soon 7060090000 6204-2RS1-bearing SKF €26.97
50
 photo_cameraImage coming soon 7015100000 Guy M6X185 €1.44
51
 FIAC Pump Units VS-VX-GMS Fan 7200340000 FIAC Pump Units VS-VX-GMS Fan €29.81
52
 photo_cameraImage coming soon 7038020000 Washer Ø8X30X3 UNI-6593 €1.52
100
 photo_cameraImage coming soon 4020890000 Kit head €44.14
101
 Set Conrod-Piston for Pump Unit Fiac VS 204 4191140000 Set Conrod-Piston for Pump Unit Fiac VS 204 €111.51
102
 Fiac GMS 100 Pump Unit Set of Gaskets 4082090000 Fiac GMS 100 Pump Unit Set of Gaskets €10.74

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit  VS 204 - 244 (230V) 1122020520

Fix Your Pump unit,  VS 204 - 244 (230V) 1122020520 01/12/2017. All Spares are Ready For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table , look for the model of the pumping unit and the respective parts of the code.
VS 204 - 244 (230V) 1122020520

Model: VS 204 - 244 (230V) 1122020520 01/12/2017
# Part Num. Description
1 7011220000 SCREW
2 5030250008 HEAD
3 7458340000 PLATE
4 7210010000 FILTER CARTRIDGE
5 7210430000 FILTER COVER
6 7012010000 SCREW
7 7196020000 START VALVE
8 7081100000 FITTING
9 7231770000 PIPE
10 7010120000 SCREW
11 7089950000 MANIFOLD
12 7231760000 PIPE
13. GASKET
14 7459510000 VALVE PLATE KIT
14a. PLATE GASKET
15. GASKET
16 7150370000 PLASTIC SCHROUD
18 7575030000 CYLINDER
19 7020070000 NUT
20 7015020000 STUD BOLT
21 5070160008 CRANKCASE
22 5041360008 CRANK
23 7038070000 WASHER
24 4190320000 CON ROD KIT
25 7220300000 PISTON
26 4080043000 PISTON RING KIT
27 7041010000 INTERNAL SNAPRING
28 7050050000 GUDGEON PIN
29 7151030000 CASING COVER
30 7151040000 FILTER COVER
31 7210120000 FILTER
32 7012020000 SCREW
40 7060050000 BEARING
41 4280770000 KIT
42 4010810000 CASING
43 7382340000 BOX COVER
45 7310330000 CAPACITOR
46 7329900000 MOTOR CABLE
47 7410470000 THERMAL
48 7060090000 BEARING
49 7640010000 COVER
50 7015100000 TIE-ROD
51 7200340000 FAN
52 7038020000 WASHER
53 7011390000 SCREW
100 4020890000 HEAD KIT
101 4191140000 CON ROD-PISTON KIT
102 4082090000 SET OF GASKETS
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
