FIAC Parts for Silent Air Compressor SUPERSILENT 24 XS228

SKU: SUPERSILENT 24 XS228
€307.45
VAT included

FIAC Parts for Silent Air Compressor SUPERSILENT 24 XS228

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Silent Air Compressor SUPERSILENT 24 XS228 - 1129102961.
FIAC Parts for Silent Air Compressor SUPERSILENT 24 XS228
  • FIAC Parts for Silent Air Compressor SUPERSILENT 24 XS228
  • FIAC Parts for Silent Air Compressor SUPERSILENT 24 XS228

FIAC Parts for Silent Air Compressor SUPERSILENT 24 XS228

SKU: SUPERSILENT 24 XS228 Condition: New
€307.45
VAT included

FIAC Parts for Silent Air Compressor SUPERSILENT 24 XS228

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Silent Air Compressor SUPERSILENT 24 XS228 - 1129102961.
settings 22 spare parts

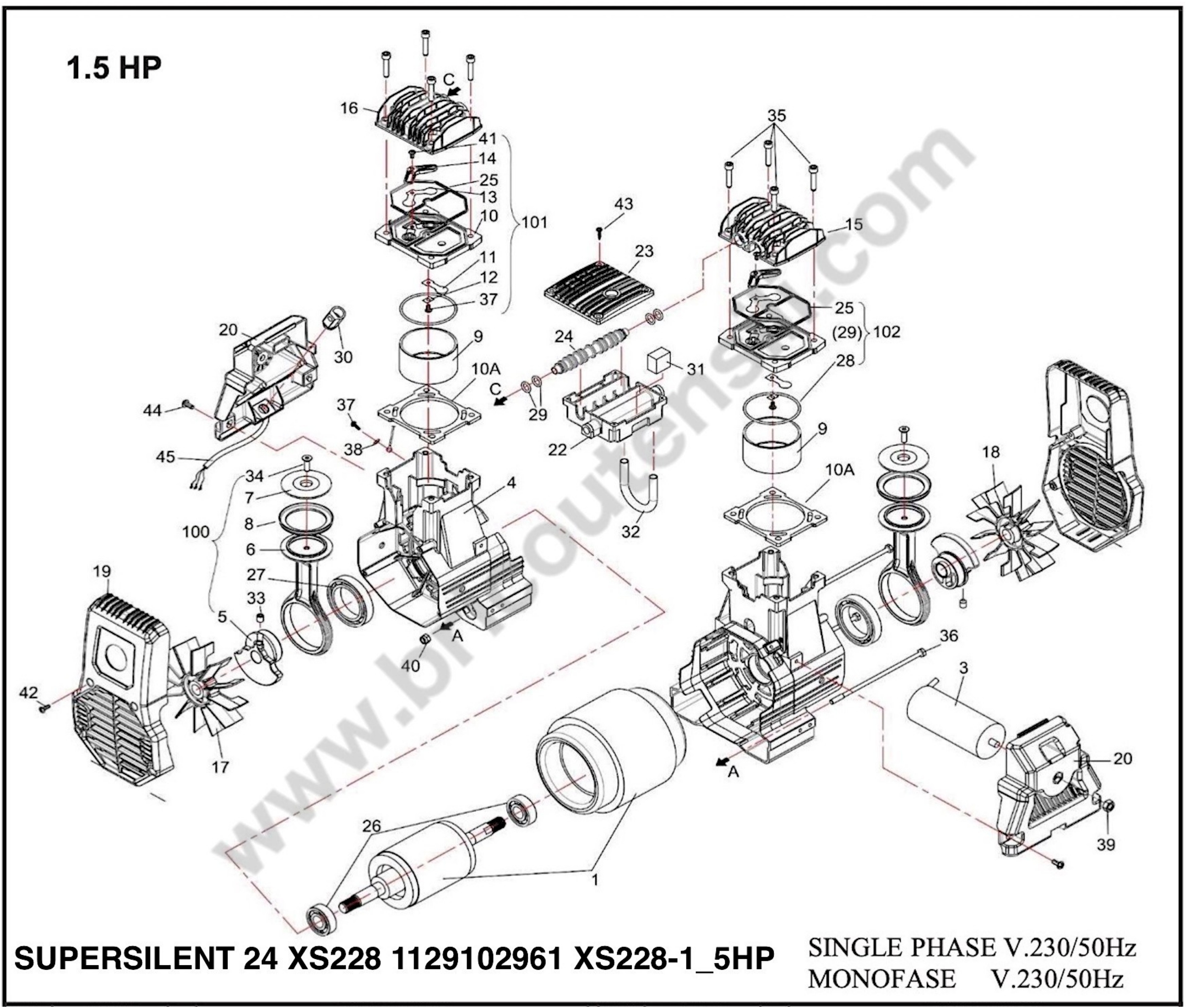

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

22 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 1129706476 Motor €284.13
3
Capacitor 25 mf for ABAC Air Compressors 1127310059 Capacitor 25 mf for ABAC Air Compressors €26.98
4
photo_cameraImage coming soon 1127670003 Cranckcase €27.30
9
photo_cameraImage coming soon 1129705177 Cylinder €29.15
10A
photo_cameraImage coming soon 1127060310 Gasket €16.66
15
Right Head for FIAC Silent Air Compressor SUPERSILENT 24 XS228 1127570011 Right Head for FIAC Silent Air Compressor SUPERSILENT 24 XS228 €22.18
16
Left Head for FIAC Silent Air Compressor SUPERSILENT 24 XS228 1127570012 Left Head for FIAC Silent Air Compressor SUPERSILENT 24 XS228 €22.18
17
Fiac COMPACT SILENT XS88 Left Fan 1127200130 Fiac COMPACT SILENT XS88 Left Fan €7.47
18
Fiac COMPACT SILENT XS88 Right Fan 1127200131 Fiac COMPACT SILENT XS88 Right Fan €7.47
19
photo_cameraImage coming soon 1127150003 Fan cover €5.93
20
photo_cameraImage coming soon 1127150004 Cover €8.42
22
photo_cameraImage coming soon 1127150044 Filter base €5.60
23
photo_cameraImage coming soon 1127150045 Filter cover €4.16
24
photo_cameraImage coming soon 1127570101 Connecting pipe €6.91
26
photo_cameraImage coming soon 1120010190 Bearing €36.53
30
photo_cameraImage coming soon 1127500105 Cable clip €4.16
31
photo_cameraImage coming soon 1127210448 Filtering element €12.40
32
photo_cameraImage coming soon 1127230213 Aluminum tube €3.77
45
photo_cameraImage coming soon 1127320904 Cable €75.35
100
photo_cameraImage coming soon 1129706174 Con rod kit €91.40
101
photo_cameraImage coming soon 1129706169 Valve plate kit €55.57
102
photo_cameraImage coming soon 1129706170 Seal kit €23.87

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Parts for Silent Air Compressor SUPERSILENT 24 XS228

Fiac Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Silent Air Compressor SUPERSILENT 24 XS228 - 1129102961.

In the following table, look for the type of the air compressor and the respective parts of the code.
SUPERSILENT 24 XS228
SILENT AIR COMPRESSOR SUPERSILENT 24 XS228 - 1129102961
# Part Num. Description
1 1129706476 Motor
3 1127310059 Capacitor
4 1127670003 Cranckcase
9 1129705177 Cylinder
10A 1127060310 Gasket
15 1127570011 Right Head
16 1127570012 Left Head
17 1127200130 Left Fan
18 1127200131 Right Fan
19 1127150003 Fan cover
20 1127150004 Cover
22 1127150044 Filter base
23 1127150045 Filter cover
24 1127570101 Connecting pipe
26 1120010190 Bearing
30 1127500105 Cable clip
31 1127210448 Filtering element
32 1127230213 Aluminum tube
45 1127320904 Cable
100 1129706174 Con rod kit
5 Counter weight
6 Connecting Rod
7 Ring Support
8 Piston Ring
27 Bearing
33 Screw
34 Screw
101 1129706169 Valve plate kit
10 Valve plate
11 Valve
12 Valve Stopped
13 Valve
14 Valve Stopped
25 Valve plate seal
28 O-Ring
37 Screw
41 Screw
102 1129706170 Seal kit
25 Valve plate seal
28 O-Ring
29 O-Ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SUPERSILENT 24 XS228
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing SUPERSILENT 24 XS228

Drawing SUPERSILENT 24 XS228

Download (401.24KB)
