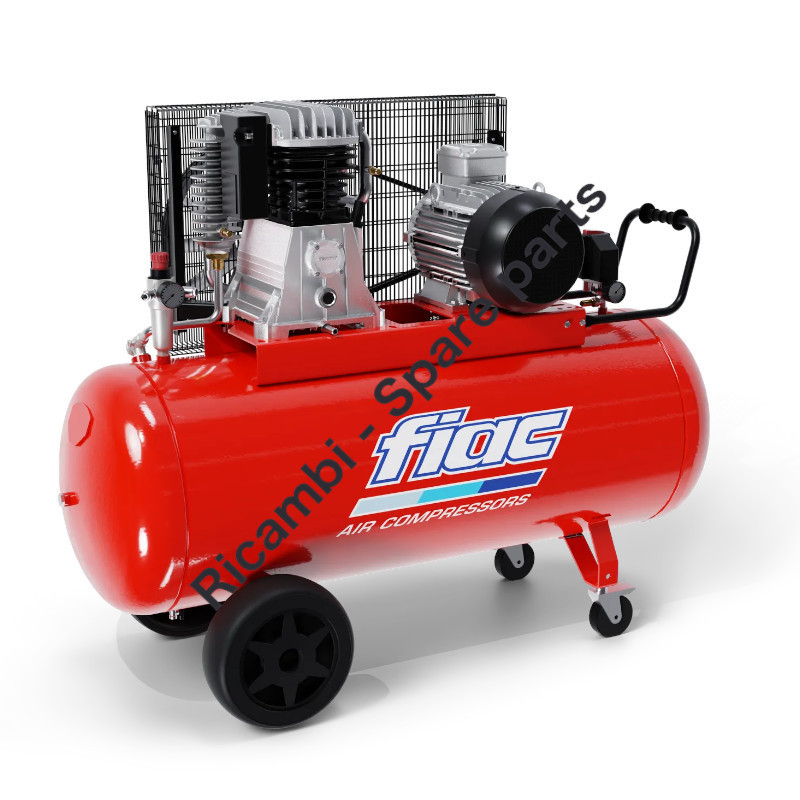

FIAC LLS 200-3 F Parts
€0.12
VAT included
FIAC LLS 200-3 F Spare Parts
Rely on our experience and professionalism. Take care of your Air Compressor FIAC LLS 200-3 F - 1121520200 by choosing original spare parts. Buy safely and choose guaranteed original parts for maintenance.
FIAC LLS 200-3 F Parts
€0.12
VAT included
FIAC LLS 200-3 F Spare Parts
Rely on our experience and professionalism. Take care of your Air Compressor FIAC LLS 200-3 F - 1121520200 by choosing original spare parts. Buy safely and choose guaranteed original parts for maintenance.
settings
59 Spare parts
description
2 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
59 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in 10 BUSYNESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 5150020008 Tank FIAC | €0.00 | Not available for order |
|
2
|
photo_cameraImage coming soon | 7130150000 MF ball valve 1/2 " | €13.85 | |
|
3
|
photo_cameraImage coming soon | 4083470000 Rubber foot kit FIAC | €0.00 | Not available for order |
|
4
|
photo_cameraImage coming soon | 7085000000 L-FITTING 1/4" QUICK-CONNECT FOR TUBE O.D. 8 - SWIVEL | €0.00 | Not available for order |
|
5
|
photo_cameraImage coming soon | 7230020000 Tube Rilsan Ø8X6 | €7.46 | |
|
6
|
photo_cameraImage coming soon | 7082830000 FEMALE ELBOW QUICK-CONNECT FITTING "L" 1/4"x8 F | €21.11 | Not available for order |
|
7
|
photo_cameraImage coming soon | 7082050000 Fitting "T" fourth FFM | €12.10 | |
|
8
|
photo_cameraImage coming soon | 7130440000 MF ball valve 1/4 " | €13.29 | |
|
9
|
photo_cameraImage coming soon | 7090070000 Cap M1/4" | €4.52 | |
|
10
|
photo_cameraImage coming soon | 7090030000 Cap M1/2" | €1.18 | |
|
11
|
photo_cameraImage coming soon | 7090080000 Stopper M3 / 8 " | €0.98 | |
|
12
|
|
7190190000 Check Valve 1/2" MM - Left for Air Compressors | €14.99 | |
|
13
|
|
7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac | €2.57 | |
|
14
|
photo_cameraImage coming soon | 7238600000 FEEDING TUBE | €52.81 | |
|
15
|
photo_cameraImage coming soon | 7081040000 Joint | €3.00 | |
|
16
|
|
1123020156 Pumping unit for air compressor Mod. AB 415/515 | €326.89 | |
|
17
|
photo_cameraImage coming soon | 7459670000 BRACKET | €16.81 | Not available for order |
|
18A
|
photo_cameraImage coming soon | 2901320473 PULLEY D112-1Z H24+DOWEL KIT | €27.90 | |
|
18
|
photo_cameraImage coming soon | 4151470000 Motor/pulley kit FIAC | €0.00 | Not available for order |
|
19
|
|
7370410000 FIAC V-Belt 3V 530 | €6.04 | |
|
20
|
photo_cameraImage coming soon | 7458860000 Belt guard bracket FIAC | €0.00 | Not available for order |
|
21
|
photo_cameraImage coming soon | 5010940008 BASE | €126.26 | Not available for order |
|
22
|
photo_cameraImage coming soon | 4052640000 Pressure switch kit FIAC | €0.00 | Not available for order |
|
22.1
|
|
7023050000 Fiac Locking Nut 3/8" | €4.06 | |
|
22.3
|
photo_cameraImage coming soon | 7085530000 Fitting 1/4 "-3/8" MF | €5.99 | |
|
22.2
|
|
7088060000 FIAC Reduction 3/8"-1/4" | €12.08 | |
|
22.5
|
|
7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX | €10.24 | |
|
22.4
|
|
7192090000 FIAC Safety Valve M3/8 10,4Bar | €6.65 | |
|
22.6
|
|
7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC | €24.81 | |
|
22.7
|
photo_cameraImage coming soon | 7329070000 Power Cord | €21.07 | |
|
23
|
photo_cameraImage coming soon | 4170130000 Belt guard kit | €124.60 | Not available for order |
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10 BUSYNESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
9105450240 Connecting Rod for Pump Unit Fiac AB 415 | €16.04 | |
|
11
|
|
4080070000 FIAC Pump Unit AB415 Piston Ring Kit | €31.90 | |
|
14
|
photo_cameraImage coming soon | 7041410000 Seeger 15 | €0.49 | Not available for order |
|
15
|
photo_cameraImage coming soon | 7050110000 Pin 015X55 | €4.23 | Not available for order |
|
16
|
|
7051510000 FIAC Woodruf Metric Key 5x7,5 | €3.42 | Not available for order |
|
17
|
|
7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 | €17.31 | Not available for order |
|
18
|
photo_cameraImage coming soon | 7060150000 bearing 6206 | €29.13 | Not available for order |
|
24
|
photo_cameraImage coming soon | 4080500000 SCREWS KIT | €16.91 | Not available for order |
|
26
|
|
7090090000 Brass Cap M1/4" for Pump Units Fiac | €3.00 | |
|
27
|
|
9700000408 FIAC Pump Unit AB268 Oil Sight Glass | €3.00 | |
|
29
|
|
7201010000 Flywheel for Pumping unit Fiac AB 410-510-512 | €76.36 | |
|
30
|
|
7210680000 FIAC AB415 Filter Element | €5.06 | |
|
31
|
|
7220090000 FIAC Pump Unit AB415 Piston D.65MM | €30.23 | |
|
32
|
photo_cameraImage coming soon | 9100270270 Aftercooler | €6.93 | |
|
34
|
photo_cameraImage coming soon | 9105450010 Crankcase | €102.81 | Not available for order |
|
35
|
|
9105450250 Crankshaft for Pump Unit Fiac AB 415 | €61.19 | Not available for order |
|
36
|
photo_cameraImage coming soon | 9105450060 Cylinder | €107.55 | Not available for order |
|
37
|
|
9105450070 FIAC Pump Unit AB415 Front Cover | €6.38 | Not available for order |
|
38
|
|
9105450080 Fiac AB415 Rear Cover | €7.79 | Not available for order |
|
39
|
photo_cameraImage coming soon | 9105450090 Carter cover | €14.32 | Not available for order |
|
44
|
|
9105450180 Fiac AB415 Head | €44.88 | |
|
45
|
|
7153140000 FIAC AB415-425-525 Air Conveyor | €7.05 | |
|
46
|
|
9700001377 Oil Filler Neck Komplett for Pump Units FIAC | €3.00 | |
|
100
|
photo_cameraImage coming soon | 4231260000 Valve plate kit | €52.35 | |
|
101
|
photo_cameraImage coming soon | 4291070000 Piston kit | €69.97 | |
|
102
|
|
4250130000 Air Filter Kit for Pump Unit Fiac AB 415 | €66.82 | |
|
103
|
|
4081990000 FIAC Pump Unit AB415 Gaskets Kit | €41.09 | |
|
104
|
photo_cameraImage coming soon | 4080480000 Screw kit | €16.99 | Not available for order |
Shipping and delivery information will be available shortly.
FIAC LLS 200-3 F Spare Parts
Rely on our experience and professionalism. Take care of your Air Compressor FIAC LLS 200-3 F - 1121520200 by choosing original spare parts. Buy safely and choose guaranteed original parts for maintenance.
In the following table, find the spare parts for the FIAC air compressor and their corresponding codes.
| FIAC LLS 200-3 F - 1121520200 Spare Parts | ||
| # | Part Num. | Description |
| 1 | 5150020008 | Tank |
| 2 | 7130150000 | Ball valve |
| 3 | 4083470000 | Rubber foot kit |
| 4 | 7085000000 | Fitting |
| 5 | 7230020000 | Rilsan tube |
| 6 | 7082830000 | Fitting |
| 7 | 7082050000 | Fitting |
| 8 | 7130440000 | Ball valve |
| 9 | 7090070000 | Plug |
| 10 | 7090030000 | Plug |
| 11 | 7090080000 | Plug |
| 12 | 7190190000 | Check valve |
| 13 | 7230010000 | Rilsan tube |
| 14 | 7238600000 | Supply pipe |
| 15 | 7081040000 | Fitting |
| 16 | 1123020156 | SP.AB415/515 D350 SINGLE NEUTR |
| 17 | 7459670000 | Belt guard bracket |
| 18 | 4151470000 | Motor/pulley kit |
| 19 | 7370410000 | Belt |
| 20 | 7458860000 | Belt guard bracket |
| 21 | 5010940008 | Base |
| 22 | 4052640000 | Pressure switch kit |
| 22.1 | 7023050000 | Lock nut |
| 22.2 | 7088060000 | Fitting |
| 22.3 | 7085530000 | Fitting |
| 22.4 | 7192090000 | Safety valve |
| 22.5 | 7110300000 | Pressure gauge |
| 22.6 | 7250740000 | Pressure switch |
| 22.7 | 7329070000 | Power cable |
| 23 | 4170130000 | Belt guard kit |
| 24 | 4080500000 | Screw kit |
| Motor Pump Page 2 | ||
| # | Part Num. | Description |
| 1 | 9105450240 | Connecting rod |
| 2 | X | Screw |
| 3 | X | Screw |
| 4 | X | Screw |
| 5 | X | Screw |
| 6 | X | Screw |
| 7 | X | Screw |
| 8 | X | Screw |
| 9 | X | Screw |
| 10 | X | Screw |
| 11 | 4080070000 | Piston ring kit |
| 12 | X | Washer |
| 13 | X | Washer |
| 14 | 7041410000 | Snap ring |
| 15 | 7050110000 | Piston pin |
| 16 | 7051510000 | Feather key |
| 17 | 7060060000 | Bearing |
| 18 | 7060150000 | Bearing |
| 19 | X | O-ring |
| 20 | X | O-ring |
| 21 | X | O-ring |
| 22 | X | Oil seal |
| 23 | X | Gasket |
| 24 | X | Gasket |
| 25 | X | Gasket |
| 26 | 7090090000 | Plug |
| 27 | 9700000408 | Oil sight glass |
| 29 | 7201010000 | Flywheel |
| 30 | 7210680000 | Filter element |
| 31 | 7220090000 | Piston |
| 32 | 9100270270 | Cooler |
| 33 | X | O-ring |
| 34 | 9105450010 | Crankcase |
| 35 | 9105450250 | Crankshaft |
| 36 | 9105450060 | Cylinder |
| 37 | 9105450070 | Front cover |
| 38 | 9105450080 | Rear cover |
| 39 | 9105450090 | Crankcase cover |
| 42 | X | Gasket |
| 44 | 9105450180 | Cylinder head |
| 45 | 7153140000 | Shroud |
| 46 | 9700001377 | Breather plug |
| 100 | 4231260000 | Valve plate kit |
| 101 | 4291070000 | Connecting rod/piston kit |
| 102 | 4250130000 | Intake filter kit |
| 103 | 4081990000 | Gasket kit |
| 104 | 4080480000 | Screw kit |
All product specifications in this catalog are based on information from official sources, including the official manufacturer’s FIAC websites. Official documents may contain mistakes or printing errors, and we cannot confirm that all data is precise. Manufacturers may change product specifications without notice. Please check important parameters with our sales team before purchasing. All content in this catalog is the intellectual property of www.bricoutensili.com. Reproduction without reference to the source is prohibited.
