FIAC Spare Parts for Piston Air Compressor AB 300 530-670-850

SKU: AB 300 530-670-850
€0.62
VAT included

FIAC Spare Parts for Piston Air Compressor AB 300 530-670-850

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 300 530-670-850 + Wheels validity date from 16/05/03.

FIAC Spare Parts for Piston Air Compressor AB 300 530-670-850
  • FIAC Spare Parts for Piston Air Compressor AB 300 530-670-850
  • FIAC Spare Parts for Piston Air Compressor AB 300 530-670-850

FIAC Spare Parts for Piston Air Compressor AB 300 530-670-850

SKU: AB 300 530-670-850 Condition: New
€0.62
VAT included

FIAC Spare Parts for Piston Air Compressor AB 300 530-670-850

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 300 530-670-850 + Wheels validity date from 16/05/03.

settings 50 spare parts

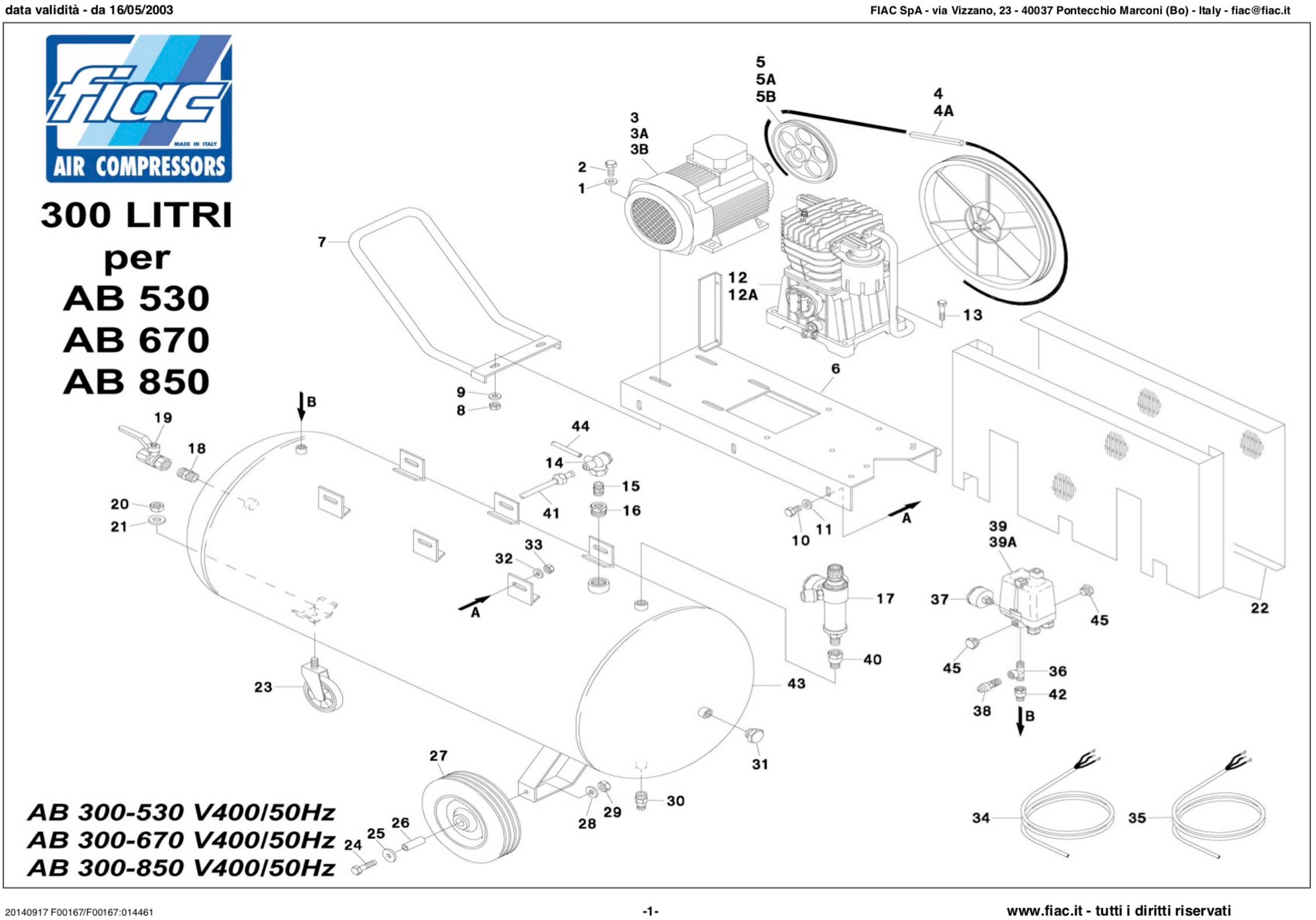

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 3020520000 Pumping unit AB 550 €657.36
1
photo_cameraImage coming soon 7030040000 Washer Ø10 UNI-6592 €1.45
2
photo_cameraImage coming soon 7011170000 Screw M10x35 UNI-5739 €1.44
003B
photo_cameraImage coming soon 7380120000 Three-phase motor €715.89
3
photo_cameraImage coming soon 7380840000 Three-phase motor €525.92
003A
photo_cameraImage coming soon 7380850000 Three-phase motor €648.89
004A
photo_cameraImage coming soon 7370140000 BELT €10.40
4
Belt for Air Compressors FIAC AB 300-480-550 7370230000 Belt for Air Compressors FIAC AB 300-480-550 €27.86
005A
photo_cameraImage coming soon 7408040000 Pulley Øp140-DE144 1-3V F28  -->> 2901320501 €46.00
5
photo_cameraImage coming soon 7408050000 Pulley Øp120 3V F28 €33.85
005B
photo_cameraImage coming soon 7408830000 Pulley €50.77
6
photo_cameraImage coming soon 5010460008 BASE €220.76
7
photo_cameraImage coming soon 5140140008 handle €52.77
8
photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
10
photo_cameraImage coming soon 7011160000 Screw M10x30 UNI-5739 €1.52
012A
photo_cameraImage coming soon 3020791000 Pumping unit AB 851 €649.91
12
photo_cameraImage coming soon 3020811000 Pump unit AB 671 €929.91
13
photo_cameraImage coming soon 7011120000 Screw M10x45 UNI-5739 €1.44
14
photo_cameraImage coming soon 7190150000 Check valve FM 1.2 " €38.30
15
photo_cameraImage coming soon 7232070000 EXTENSION TUBE €5.99
16
photo_cameraImage coming soon 7085110000 Fitting 1 "-1/2" MF €6.04
17
Pressure Regulator 950/2/Bayonet-M 1/2''-0/12 Bar 7100440000 Pressure Regulator 950/2/Bayonet-M 1/2''-0/12 Bar €51.79
18
photo_cameraImage coming soon 7081170000 Fitting 1/2 " €4.72
19
photo_cameraImage coming soon 7130150000 MF ball valve 1/2 " €23.60
21
photo_cameraImage coming soon 7030140000 Washer Ø12 UNI-6592 €4.23
22
photo_cameraImage coming soon 4170200000 BELT GUARD €179.57
23
photo_cameraImage coming soon 7260030000 Rotate pivot Ø100X24 €29.12
24
photo_cameraImage coming soon 7011230000 Screw M12x80 UNI-5739 €1.72
26
photo_cameraImage coming soon 7330010000 wheel spacer €4.09
27
photo_cameraImage coming soon 7260080000 Wheel Ø250X70 F20 €33.32
30
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
31
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
34
photo_cameraImage coming soon 7328690000 Cable Pressure Switch / Motor €28.67
35
photo_cameraImage coming soon 7328700000 power cable €30.04
36
photo_cameraImage coming soon 7082690000 A fitting "T" 8.3 MFM €13.84
37
FIAC Manometer for Air Compressor AB300 7110060000 FIAC Manometer for Air Compressor AB300 €21.31
38
FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
39
FIAC Pressure Switch MDR3 EA11 4-6,3A 7250490000 FIAC Pressure Switch MDR3 EA11 4-6,3A €103.54
039A
FIAC Pressure Switch MDR3-EA11-R3-16 7250500000 FIAC Pressure Switch MDR3-EA11-R3-16 €89.54
40
Joint 1/2"F-3/8"M for Air Compressor Fiac AB300/515 7085460000 Joint 1/2"F-3/8"M for Air Compressor Fiac AB300/515 €7.48
42
photo_cameraImage coming soon 7085020000 Fitting 1/2 "-3 / 8" MF €10.12
43
photo_cameraImage coming soon 5159560008 270lt tank €931.70
44
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
45
photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor AB 300 530-670-850

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 300 530-670-850 + Wheels validity date from 16/05/03.

In the following table, look for the type of the air compressor and the respective parts of the code .
Air Compressor AB 300 530-670-850 + Wheels validity date from 16/05/03.

AB 300 530-670-850 + Wheels validity date from 16/05/03
Rif. Cod. Descrizione
1 7030040000 Washer Ø10 UNI-6592
2 7011170000 Screw M10x35 UNI-5739
3 7380840000 Three-phase motor
4 7370230000 Strap SPZX 1637
5 7408050000 Pulley Øp120 3V F28
6 5010460008 basis
7 5140140008 handle
8 7020080000 Nut M10 UNI-5588
9 7030040000 Washer Ø10 UNI-6592
10 7011160000 Screw M10x30 UNI-5739
11 7030060000 Washer Ø10X30 UNI-6593
12 3020811000 Pump unit AB 671
3020500000 Pump unit AB 550
13 7011120000 Screw M10x45 UNI-5739
14 7190150000 Check valve FM 1.2"
15 7232070000 extension tube
16 7085110000 Fitting 1"-1/2" MF
17 7100440000 Pressure reducer
18 7081170000 Fitting 1/2"
19 7130150000 MF ball valve 1/2 "
20 7020100000 Nut M12 UNI-5588
21 7030140000 Washer Ø12 UNI-6592
22 4170200000 belt guard Kit
23 7260030000 Rotate pivot Ø100X24
24 7011230000 Screw M12x80 UNI-5739
25 7030200000 Washer Ø12X36X2,5 UNI-6593
26 7330010000 wheel spacer
27 7260080000 Wheel Ø250X70 F20
28 7030140000 Washer Ø12 UNI-6592
29 7020100000 Nut M12 UNI-5588
30 7130160000 Draining tap M3/8"
31 7090030000 Cap M1/2"
32 7030060000 Washer Ø10X30 UNI-6593
33 7020080000 Nut M10 UNI-5588
34 7328690000 Cable Pressure Switch / Motor
35 7328700000 power cable
36 7082690000 A fitting "T" 8.3 MFM
37 7110060000 manometer
38 7192090000 Valve Sic. 3.8" 10,4 BAR
39 7250490000 pressure Switch
40 7085460000 Fitting 1/2" F-3/8" M
41 7235620000 tube feeding
42 7085020000 Fitting 1/2"-3/8" MF
43 5159560008 270lt tank
44 7230010000 Rilsan tube Ø6X4
45 7090070000 Cap M1/4"
003A 7380850000 Three-phase motor
003B 7380120000 Three-phase motor
004A 7370140000 TRAP belt. A 68
005A 7408040000 Pulley Øp140-DE144 1-3V F28  -->> 2901320501
005B 7408830000 Pulley Øp180 2-A F28
012A 3020791000 Pumping unit AB 851
017A 7100230000 Pressure reducer Ted
017B 7100240000 Pressure reducer Orion
039A 7250500000 pressure Switch
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
