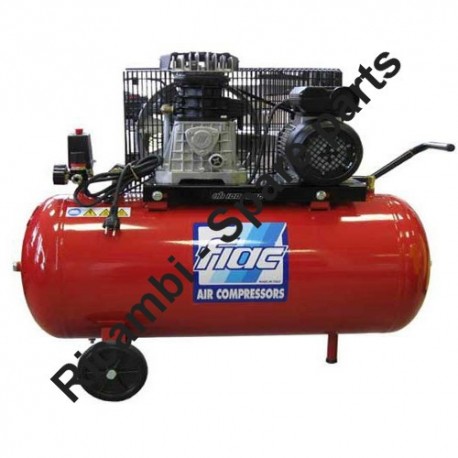

FIAC Spare Parts for Piston Air Compressor AB 300 510 + Wheels

SKU: Fiac AB 300 510 C/RUOTE
€110.94
VAT included

FIAC Spare Parts for Piston Air Compressor AB 300 510 + Wheels

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 300 510 + Wheels validity date from 16/05/2003.

FIAC Spare Parts for Piston Air Compressor AB 300 510 + Wheels
  • FIAC Spare Parts for Piston Air Compressor AB 300 510 + Wheels
  • FIAC Spare Parts for Piston Air Compressor AB 300 510 + Wheels

FIAC Spare Parts for Piston Air Compressor AB 300 510 + Wheels

SKU: Fiac AB 300 510 C/RUOTE Condition: New
€110.94
VAT included

FIAC Spare Parts for Piston Air Compressor AB 300 510 + Wheels

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 300 510 + Wheels validity date from 16/05/2003.

settings 42 spare parts

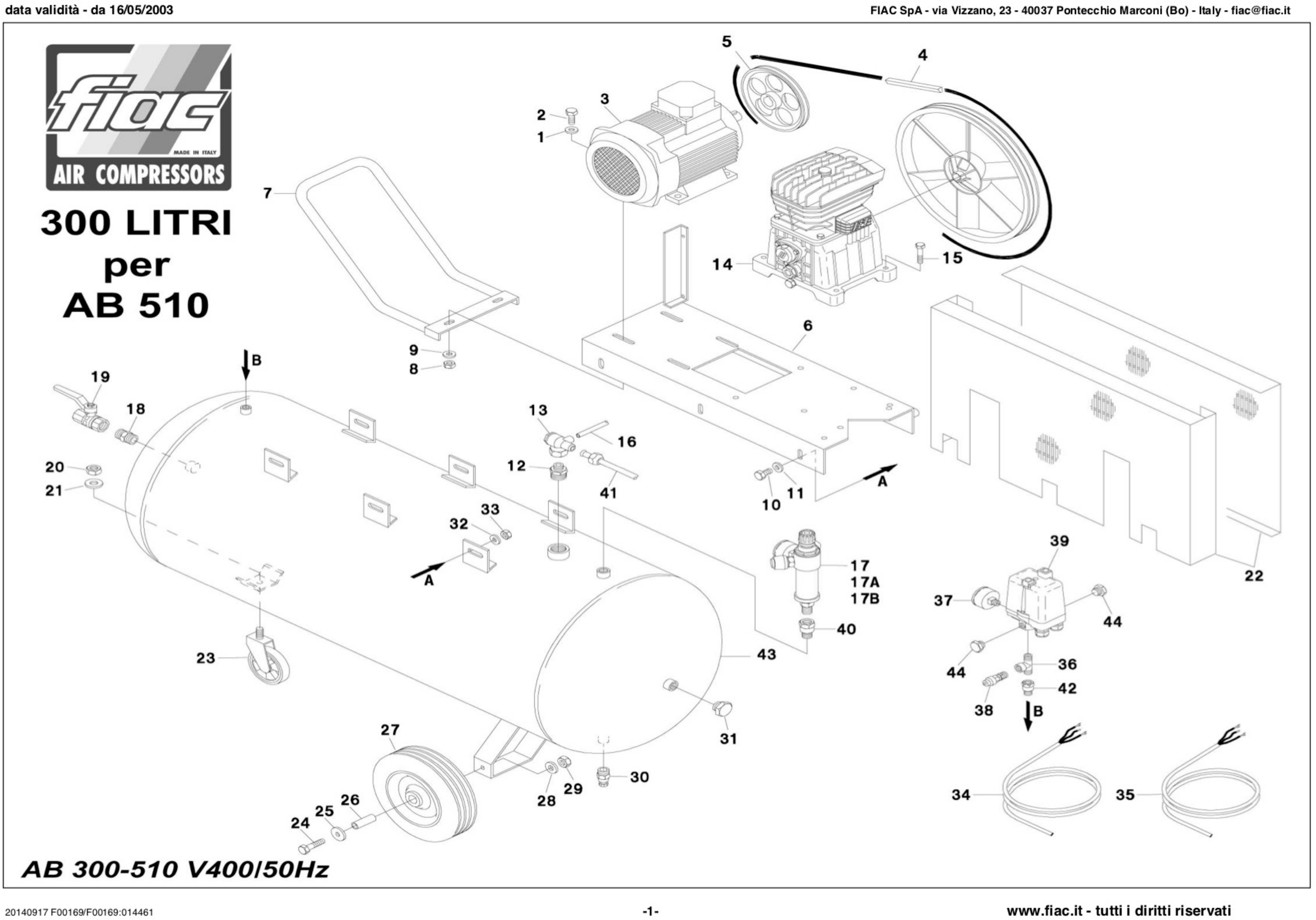

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

37 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 7030040000 Washer Ø10 UNI-6592 €1.45
2
photo_cameraImage coming soon 7011170000 Screw M10x35 UNI-5739 €1.44
3
photo_cameraImage coming soon 7380840000 Three-phase motor €525.92
4
FIAC V-Belt 3V 630 7370120000 FIAC V-Belt 3V 630 €11.73
5
FIAC Pulley 7408580000 DP.170 1-3V F28 7408580000 FIAC Pulley 7408580000 DP.170 1-3V F28 €87.31
6
photo_cameraImage coming soon 5010460008 BASE €220.76
7
photo_cameraImage coming soon 5140140008 handle €52.77
8
photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
10
photo_cameraImage coming soon 7011160000 Screw M10x30 UNI-5739 €1.52
12
photo_cameraImage coming soon 7085030000 Joint €9.72
13
Check Valve F-M 1/2''-1/2'' for Air Compressors 7190010000 Check Valve F-M 1/2''-1/2'' for Air Compressors €27.64
14
photo_cameraImage coming soon 3020400000 PUMPING UNIT AB 510 Substituited by AB515 1123020004 €351.02
14
Kit Adjustment for AB 515 - 300LT. for Pump Unit Fiac AB510 300LT. 3030050000 Kit Adjustment for AB 515 - 300LT. for Pump Unit Fiac AB510 300LT. €64.57
15
photo_cameraImage coming soon 7011120000 Screw M10x45 UNI-5739 €1.44
16
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
17
Pressure Regulator 950/2/Bayonet-M 1/2''-0/12 Bar 7100440000 Pressure Regulator 950/2/Bayonet-M 1/2''-0/12 Bar €51.79
18
photo_cameraImage coming soon 7081170000 Fitting 1/2 " €4.72
19
photo_cameraImage coming soon 7130150000 MF ball valve 1/2 " €23.60
21
photo_cameraImage coming soon 7030140000 Washer Ø12 UNI-6592 €4.23
22
photo_cameraImage coming soon 4170050000 Belt guard kit €199.42
23
photo_cameraImage coming soon 7260030000 Rotate pivot Ø100X24 €29.12
24
photo_cameraImage coming soon 7011230000 Screw M12x80 UNI-5739 €1.72
26
photo_cameraImage coming soon 7330010000 wheel spacer €4.09
27
photo_cameraImage coming soon 7260080000 Wheel Ø250X70 F20 €33.32
30
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
31
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
34
photo_cameraImage coming soon 7328690000 Cable Pressure Switch / Motor €28.67
35
photo_cameraImage coming soon 7328700000 power cable €30.04
36
photo_cameraImage coming soon 7082690000 A fitting "T" 8.3 MFM €13.84
37
FIAC Manometer for Air Compressor AB300 7110060000 FIAC Manometer for Air Compressor AB300 €21.31
38
FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
39
FIAC Pressure Switch MDR3 EA11 4-6,3A 7250490000 FIAC Pressure Switch MDR3 EA11 4-6,3A €103.54
40
Joint 1/2"F-3/8"M for Air Compressor Fiac AB300/515 7085460000 Joint 1/2"F-3/8"M for Air Compressor Fiac AB300/515 €7.48
41
photo_cameraImage coming soon 7235240000 Infeed hose €29.73
42
photo_cameraImage coming soon 7085020000 Fitting 1/2 "-3 / 8" MF €10.12
43
photo_cameraImage coming soon 5159560008 270lt tank €931.70
44
photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor AB 300 510 + Wheels

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 300 510 + Wheels validity date from 16/05/2003.

In the following table, look for the type of the Air Compressor and the respective parts of the code.
Air Compressor AB 300 510 + Wheels validity date from 16/05/2003.

AB 300 510 + Wheels validity date from 16/05/2003
Rif. Cod. Descrizione
1 7030040000 Washer Ø10 UNI-6592
2 7011170000 Screw M10x35 UNI-5739
3 7380840000 Three-phase motor
4 7370120000 3V V-630 Belt
5 7408580000 Pulley OP170 1"3V HOLE 28
6 5010460008 basis
7 5140140008 handle
8 7020080000 Nut M10 UNI-5588
9 7030040000 Washer Ø10 UNI-6592
10 7011160000 Screw M10x30 UNI-5739
11 7030060000 Washer Ø10X30 UNI-6593
12 7085030000 Fitting 1"-1/2 MM
13 7190010000 Check valve FM 1/2X1/2
14 3020400000 Pump unit AB 510 - Substituited by AB515 1123020004
14 3030050000 Kit Adjustment for AB 515 - 300LT. for Pump Unit Fiac AB510 300LT.
15 7011120000 Screw M10x45 UNI-5739
16 7230010000 Rilsan tube Ø6X4
17 7100440000 Pressure reducer
18 7081170000 Fitting 1/2"
19 7130150000 MF ball valve 1/2"
20 7020100000 Nut M12 UNI-5588
21 7030140000 Washer Ø12 UNI-6592
22 4170050000 belt guard Kit
23 7260030000 Rotate pivot Ø100X24
24 7011230000 Screw M12x80 UNI-5739
25 7030200000 Washer Ø12X36X2,5 UNI-6593
26 7330010000 wheel spacer
27 7260080000 Wheel Ø250X70 F20
28 7030140000 Washer Ø12 UNI-6592
29 7020100000 Nut M12 UNI-5588
30 7130160000 Draining tap M3/8"
31 7090030000 Cap M1/2"
32 7030060000 Washer Ø10X30 UNI-6593
33 7020080000 Nut M10 UNI-5588
34 7328690000 Cable Pressure Switch / Motor
35 7328700000 power cable
36 7082690000 A fitting "T" 8.3 MFM
37 7110060000 manometer
38 7192090000 Valve Sic. 3.8"10,4BAR
39 7250490000 pressure Switch
40 7085460000 Fitting 1/2"F-3/8" M
41 7235240000 tube feeding
42 7085020000 Fitting 1/2"-3/8" MF
43 5159560008 270lt tank
44 7090070000 Cap M1/4"
017A 7100230000 Pressure reducer Ted
017B 7100240000 Pressure reducer Orion
