FIAC Parts for Air Compressor CCS 200-248

SKU: Fiac CCS 200 248 1465721000
€0.11
VAT included

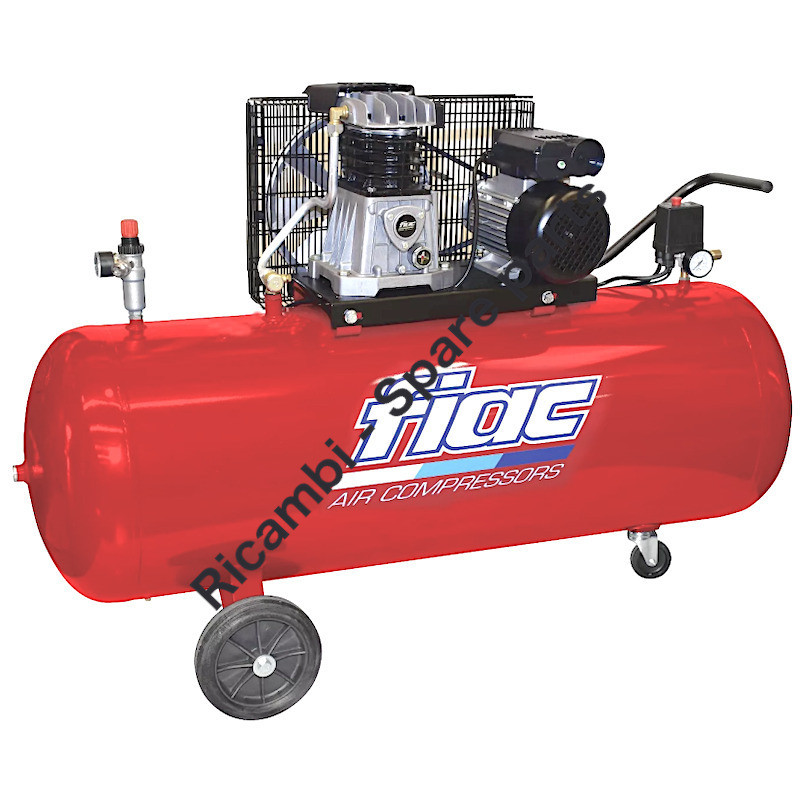

FIAC Spare Parts for Piston Air Compressor CCS 200-248

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor CCS 200 248 - 1465721000.

FIAC Spare Parts for Piston Air Compressor CCS 200 248
  • New
  • Out-of-Stock
  • FIAC Spare Parts for Piston Air Compressor CCS 200 248
  • Fiac CCS 200 248 Drawing
  • Fiac CCS 200 248 Drawing - 1
FIAC spa

FIAC Parts for Air Compressor CCS 200-248

SKU: Fiac CCS 200 248 1465721000 Condition: New
€0.11
VAT included

FIAC Spare Parts for Piston Air Compressor CCS 200-248

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor CCS 200 248 - 1465721000.

settings 87 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Air Compressor
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
87 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 9100040000 GROUP AB 248 WITHOUT/FLYWHEEL - NEW AB268 €237.74
2
 photo_cameraImage coming soon 4039020000 Hull plastic front €196.36
3
 photo_cameraImage coming soon 4039030000 Hull Plastic Back €256.32
4
 photo_cameraImage coming soon 5011070008 BASE €83.71
5
 photo_cameraImage coming soon 5159170008 Serbatoio 200lt €612.66
15
 photo_cameraImage coming soon 7015290000 ROD M6X130 €9.11
21
 FIAC Fan Washer for Pump Units CCS 7038080000 FIAC Fan Washer for Pump Units CCS €4.44
22
 photo_cameraImage coming soon 7051240000 Tab "A 5X5X22" UNI 6604-69 €1.18
24
 photo_cameraImage coming soon 7090030000 Cap M1/2" €1.18
25
 photo_cameraImage coming soon 7082700000 Fitting "T" 3 / 8F-1 / 2M.SV-1 / 2M €13.98
26
 ”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 7084240000 ”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 €3.00
27
 photo_cameraImage coming soon 7085190000 3/8 "-1/4" MF €15.97
28
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €17.87
29
 photo_cameraImage coming soon 7100700000 Pressure reducer €6.65
30
 FIAC Manometer for Air Compressor AB300 7110060000 FIAC Manometer for Air Compressor AB300 €17.87
31
 FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €6.65
32
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €7.05
33
 photo_cameraImage coming soon 7151130000 Carena plastic €9.54
34
 Spring A 693 for Pump Unit Fiac CCS 245 7160060000 Spring A 693 for Pump Unit Fiac CCS 245 €26.11
35
 Check Valve MM 1/2"-DX for Air Compressors 7190090000 Check Valve MM 1/2"-DX for Air Compressors €2.57
36
 Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS 7196010000 Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS €9.54
37
 Motor Fan for Pump Unit FIAC CCS 7200080000 Motor Fan for Pump Unit FIAC CCS €15.49
38
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €2.57
39
 photo_cameraImage coming soon 7230060000 Tube Rilsan Ø12X10 €10.80
40
 photo_cameraImage coming soon 7232871000 Tube feeding €8.08
43
 Capacitor 30 mf for Air Compressors 7310320000 Capacitor 30 mf for Air Compressors €15.49
46
 photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
47
 Notched Belt for Pumping Units CCS 245 7371090000 Notched Belt for Pumping Units CCS 245 €8.08
48
 Motor Fan Pulley for Pump Unit FIAC CCS 7408520000 Motor Fan Pulley for Pump Unit FIAC CCS €5.03
49
 Motor Fan Pulley for Pump Unit FIAC CCS 7408530000 Motor Fan Pulley for Pump Unit FIAC CCS €38.70 Not available for order
51
 photo_cameraImage coming soon 7458610000 Bracket pressure €5.99
70
 photo_cameraImage coming soon 7501050000 Cable locks €21.07
71
 photo_cameraImage coming soon 4052160000 Kit Pressure €92.77
72
 photo_cameraImage coming soon 7084220000 Fitting DIR.M1 / 4 "-6 QUICK €5.03
73
 photo_cameraImage coming soon 7085230000 Fitting 1/4 "-1/4" MF €4.34
74
 photo_cameraImage coming soon 7085530000 Fitting 1/4 "-3/8" MF €5.99
75
 Single-Phase Pressure Switch with Built-in Start valve 7250240000 Single-Phase Pressure Switch with Built-in Start valve €32.67
90
 photo_cameraImage coming soon 7329070000 Power Cord €21.07
92
 Motor Armature (Rotor) for Pump Unit FIAC CCS 245 4280710000 Motor Armature (Rotor) for Pump Unit FIAC CCS 245 €115.84 Not available for order
95
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €14.13
96
 photo_cameraImage coming soon 7500030000 CABLE GUIDE €4.05
97
 photo_cameraImage coming soon 7640070000 Cover - DISCONTINUED €20.90 Not available for order
98
 photo_cameraImage coming soon 7640080000 Cover €26.18 Not available for order
201
 photo_cameraImage coming soon 4083050000 Kit Wheel Pivot Ø80 €17.75
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 9700001075 Case €3.00
2
 FIAC AB268 Carter Cover 9700001076 FIAC AB268 Carter Cover €14.13
3
 photo_cameraImage coming soon 9700000531 Screw M5X18 UNI7687 €1.82
4
 Cylinder Carter Gasket for Pump Units FIAC AB 248-338 9700001077 Cylinder Carter Gasket for Pump Units FIAC AB 248-338 €4.34
5
 Crank Shaft for Pumping Units FIAC AB248-338-360 9100270140 Crank Shaft for Pumping Units FIAC AB248-338-360 €58.71 Not available for order
6
 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 7060180000 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 €2.31
7
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €6.72
8
 Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €3.00
9
 Front Cover for Pumping Units FIAC AB248-268-338-360 9100270160 Front Cover for Pumping Units FIAC AB248-268-338-360 €12.15
10
 Rear Cover for Pumping Units FIAC AB248-268-338-360 9100270170 Rear Cover for Pumping Units FIAC AB248-268-338-360 €17.13
11
 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 9100280010 O-Ring 144 139.69x3.53 for Pumping Units FIAC AB248-268-338-360 €4.34
12
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €20.94
13
 FIAC AB268 Flywheel Key 9100280020 FIAC AB268 Flywheel Key €0.98
14
 Conrod for Pumping unit FIAC AB248 9100280030 Conrod for Pumping unit FIAC AB248 €29.72
15
 Piston Pin for Pumping Unit FIAC AB 248-338-GM 193 9100020080 Piston Pin for Pumping Unit FIAC AB 248-338-GM 193 €3.01
17
 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 4080030000 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 €30.64
18
 Retaining Ring 13 mm for Piston Pin Pumping Unit FIAC AB 248-338-GM193 9100010580 Retaining Ring 13 mm for Piston Pin Pumping Unit FIAC AB 248-338-GM193 €9.10
19
 photo_cameraImage coming soon 7575230000 Cylinder €3.00
20
 photo_cameraImage coming soon 7012220000 Screw M8X 25 UNI-8112 €3.95
21
 Filter Plate for Pumping Uniti Fiac AB 248-338 9100280040 Filter Plate for Pumping Uniti Fiac AB 248-338 €1.83
22
 Air Filter Element for Pumping Unit Fiac AB 248-338-360 9100280050 Air Filter Element for Pumping Unit Fiac AB 248-338-360 €5.03
23
 Filter Cover for Pumpming Unit Fiac AB 248-338 9100280060 Filter Cover for Pumpming Unit Fiac AB 248-338 €4.88
24
 photo_cameraImage coming soon 7012730000 Screw M.4X45 €5.03
25
 photo_cameraImage coming soon 9100280070 Oil level warning €4.65
26
 photo_cameraImage coming soon 9100270180 O RING €3.00
27
 Cylinder Plate Gasket for Air Compressors FIAC AB248-360 9100270190 Cylinder Plate Gasket for Air Compressors FIAC AB248-360 €3.95
28
 Valves Plate Set for Pump unit FIAC AB248 9100280080 Valves Plate Set for Pump unit FIAC AB248 €4.06
30
 photo_cameraImage coming soon 9100280090 Valve €8.37 Not available for order
31
 photo_cameraImage coming soon 9100270210 GASKET €5.03
32
 Head for Pump Units FIAC AB 248-338 9100280100 Head for Pump Units FIAC AB 248-338 €0.98
33
 photo_cameraImage coming soon 7010080000 Screw M8x35 UNI-5931 €41.57
33A
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
34
 Air Conveyor for Pumping Units FIAC AB248-268-338-360 9100270220 Air Conveyor for Pumping Units FIAC AB248-268-338-360 €4.06
35
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €17.43
36
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €20.94
37
 Oil Cap for Pump Units Fiac AB 248-338 AB 360 9100280110 Oil Cap for Pump Units Fiac AB 248-338 AB 360 €58.34
38
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €0.98
39
 Flywheel for Pumping unit Fiac AB 248-338-360 9100270230 Flywheel for Pumping unit Fiac AB 248-338-360 €41.57
40
 photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.51
41
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.51
100
 Kit Valves Plate for Pump Unit FIAC AB 248-338 9100280210 Kit Valves Plate for Pump Unit FIAC AB 248-338 €54.50
101
 Gaskets Kit for Air Compressors Pump Unit FIAC AB248-360 9700000078 Gaskets Kit for Air Compressors Pump Unit FIAC AB248-360 €24.18
102
 photo_cameraImage coming soon 4291030000 Piston group €70.16
200
 photo_cameraImage coming soon 4083030000 Wheel kit €2.31

Shipping and delivery information will be available shortly.

FIAC Spare Parts for Piston Air Compressor CCS 200-248

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor CCS 200 248 - 1465721000.

In the following table, look for the type of the air compressor and the respective parts of the code .
Fiac CCS 200 248

Fiac CCS 200/248 1465721000
Air Compresso Pag.1
# Part Num. Description
1 9100040000 Pump unit
2 4039020000 Front Plastic schrouc
3 4039030000 Rear Plastic schrouc
4 5011070008 Tank
5 5159170008 Base
6 X Screw
7 X Screw
8 X Screw
9 X Screw
10 X Screw
11 X Screw
12 X Screw
13 X Screw
14 X Screw
15 7015290000 Tension rod
16 X Nut
17 X Nut
18 X Nut
19 X Washer
20 X Washer
21 7038080000 Washer
22 7051240000 Key
23 3040080000 Single phase Motor
24 7090030000 Plug
25 7082700000 Joint
26 7084240000 Joint
27 7085190000 Joint
28 7090090000 Plug
29 7100700000 Pressure reducer
30 7110060000 Pressure gauge
31 7192090000 Safety valve
32 7130160000 Discharge tap
33 7151130000 Plastic schroud
34 7160060000 Spring
35 7190090000 Non return valve
36 7196010000 START valve
37 7200080000 Fan
38 7230010000 Rilsan hose
39 7230060000 Rilsan hose
40 7232871000 Infeed hose
41 X Wheel
42 X Pivot
43 7310320000 Capacitor
44 7311000000 Capacitor cover
45 X Wheel spacer
46 7360020000 Rubber
47 7371090000 Belt
48 7408520000 Pulley
49 7408530000 Pulley
50 X Pressure switch Sup
51 7458610000 Cable clamp
70 7501050000 Press. Switch kit
71 4052160000 Joint
72 7084220000 Joint
73 7085230000 Joint
74 7085530000 Pressure switch
75 7250240000 Infeed cable
90 7329070000 Stator
91 4011610000 Rotor
92 4280710000 Tension rod
93 X Nut
94 X Bearing
95 7060010000 Fairlead
96 7500030000 Covering
97 7640070000 Covering
98 7640080000 Pivot wheel kit
200 4083030000 Wheel kit
201 4083050000 Pivot wheel kit
Pump Group Pag.2
# Part Num. Description
1 9700001075 Crahkcase
2 9700001076 Crahkcase cover
3 9700000531 Screw
4 9700001077 OR gasket
5 9100270140 Crankshaft
6 7060180000 Bearing
7 7060200000 Bearing
8 9100270150 Oil seal
9 9100270160 Front cover
10 9100270170 Rear cover
11 9100280010 OR gasket
12 7011460000 Screw
13 9100280020 Key
14 9100280030 Connection rod
15 9100020080 Piston pin
16 9100020120 Piston
17 4080030000 Piston rings kit
18 9100010580 Seeger
19 7575230000 Cylinder
20 7012220000 Screw
21 9100280040 Filter plate
22 9100280050 Filtering element
23 9100280060 Intake filter
24 7012730000 Screw
25 9100280070 Oil level sight glass
26 9100270180 OR gasket
27 9100270190 Gasket
28 9100280080 Valve plate
29 9100270200 Gasket
30 9100280090 Valve
31 9100270210 Gasket
32 9100280100 Head
33 7010080000 Screw
33A 7030030000 Washer
34 9100270220 Air conveyor
35 7012090000 Screw
36 7011460000 Screw
37 9100280110 Breather pipe plug
38 7030270000 Washer
39 9100270230 Flywheel
40 7011100000 Screw
41 7031010000 Toothed washer
100 9100280210 Valve plate unit
101 9700000078 Kit gaskets
102 4291030000 Piston group
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac CCS 200 248 1465721000

Data sheet

Machine Type
Air Compressor
SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

FIAC CCS 200 248 Drawing

FIAC CCS 200 248 Drawing

Download (1.03MB)

You might also like

Motor Fan for Pump Unit FIAC CCS
FIAC spa SKU: 7200080000
Motor Fan for Pump Unit FIAC CCS
Motor Fan for Pump Unit FIAC CCS Genuine spare part FIAC, Motor fan for Pump Units CCS 245 - CCS 335 Part for the following Items: - CCS 245 PER APOLLO 100 validity date - da 27/02/2003 - CCS 245 validity date - from...
AVAILABLE €15.49
Details
Motor Fan Pulley for Pump Unit FIAC CCS
FIAC spa SKU: 7408530000
Motor Fan Pulley for Pump Unit FIAC CCS
Motor Fan Pulley for Pump Unit FIAC CCS Original parts FIAC, Motor fan Pulley for pumping units : CCS 245 - CCS 335. Part for the following Items: - CCS 245 PER APOLLO 100 validity date - da 27/02/2003 - CCS 245 validity...
Out-of-Stock €38.70
Details
Head Gasket for Air Compressor Fiac ECU201-FB-210
FIAC spa SKU: 7078490000
Head Gasket for Air Compressor Fiac ECU201-FB-210
Head Gasket for Air Compressor Fiac ECU201-FB-210 Genuine spare part FIAC, Head Gasket, for self-lubricated air compressors FIAC ECU 201 HP 1.5 - F206 - FB-210 Part for the following products: -  Air Compressor ECU 201 HP...
AVAILABLE €7.98
Details
Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS
FIAC spa SKU: 7196010000
Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS
Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS Genuine part FIAC, Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS - GM - GMS. Parts for the following products: - Pumping Unit CCS 335 - da 01/01/2000 - Pumping Unit...
AVAILABLE €9.54
Details
Motor Fan Pulley for Pump Unit FIAC CCS
FIAC spa SKU: 7408520000
Motor Fan Pulley for Pump Unit FIAC CCS
Motor Fan Pulley for Pump Unit FIAC CCS Original replacement part FIAC, Motor fan Pulley for Pump Units : CCS 245 - CCS 335. Part for yhe following Items: - CCS 245 PER APOLLO 100 validity date - da 27/02/2003 - CCS 245 validity date...
AVAILABLE €5.03
Details
Capacitor 60 mf for Pump Units CCS 245 - 335
FIAC spa SKU: 7310360000
Capacitor 60 mf for Pump Units CCS 245 - 335
Capacitor 60 mf for Pump Units CCS 245 - 335 Original part FIAC, Capacitor 60 µF 400 V for Pump Units CCS 245 - 335 - CCS 245 For APOLLO - CCS 245-335 SILENT For...
AVAILABLE €39.93
Details
Single-Phase Pressure Switch with Built-in Start valve
FIAC spa SKU: 7250240000
Single-Phase Pressure Switch with Built-in Start valve
Single-Phase Pressure Switch with Built-in Start valve Genuine spare part Fiac, Single-Phase Pressure Switch for Air Compressors, FIAC AB 50 245-335 - CCS 100/245 - FX 95 - HP 1,5 - Fiac Pump Unit CCS 248-338 Part for the...
AVAILABLE €32.67
Details
Brass Cap M1/4" for Pump Units Fiac
FIAC spa SKU: 7090090000
Brass Cap M1/4" for Pump Units Fiac
Brass Cap M1/4" for Pump Units Fiac Genuine spare part FIAC, Chrome-Plated Brass Cap M1/4" for Pump Units, Engine Compressors, Air Compressors. Part for the following products: - Pump...
AVAILABLE €17.87
Details
Motor Armature (Rotor) for Pump Unit FIAC CCS 245
FIAC spa SKU: 4280710000
Motor Armature (Rotor) for Pump Unit FIAC CCS 245
Motor Armature (Rotor) for Pump Unit FIAC CCS 245 Original replacement part FIAC, Electrici Motor Armature (Rotor) for Pump Unit  CCS 245 - Air Compressor CCS 245 PER APOLLO 100 - CCS 100/245. Part for yhe following Items: - Pump Unit...
Out-of-Stock €115.84
Details
FIAC Fan Washer for Pump Units CCS
FIAC spa SKU: 7038080000
FIAC Fan Washer for Pump Units CCS
FIAC Fan Washer for Pump Units CCS Genuine Spare Parts FIAC, Fan Washer for Pump Units CCS. Part for the following products: - Pump Unit CCS 245 - APOLLO 100 - Pump Unit CCS 245 - Pump Unit CCS 245-335 SILENT - Pump Unit CCS...
on 7/10 Business Days Approx. €4.44
Details
ABAC Montecarlo L30P Capacitor 60Mf
FIAC spa SKU: 7310550000
FIAC CCS245 Capacitor 60Mf
FIAC CCS245 Capacitor 60Mf FIAC Genuine Part, Capacitor 60Mf for Pump Units FIAC CCS245. Part for the following products: - Fiac CCS245 PER APOLLO 100 - Fiac GM25 300 - Fiac CCS 100/245 - Fiac Apollo 100 - Fiac...
AVAILABLE €30.19
Details
FIAC Apollo 100 L Joint
FIAC spa SKU: 7080130000
FIAC Apollo 100 L Joint
FIAC L Joint for Air Compressor Apollo 100 Genuine replacement part FIAC, L Joint 1/2-3/8MF for Air Compressor Apollo 100 - CCS 100/245. Part for the following products: -  Air...
Usually Ships in: 7/10 Business Days Approx. €12.86
Details
FIAC Manometer for Air Compressor AB500/981
FIAC spa SKU: 7110060000
FIAC Manometer for Air Compressor AB300
FIAC Manometer for Air Compressor AB300 Genuine replacement part FIAC, Manometer 0-16 bar 1/4" for Air Compressor AB300 - CCS 100/245. Part for the following products: -  Pumping Unit Fiac CCS245 FOR APOLLO 100 -  Air Compressor...
Usually Ships in: 7/10 Business Days Approx. €17.87
Details
Comments (0)
No customer reviews for the moment.
