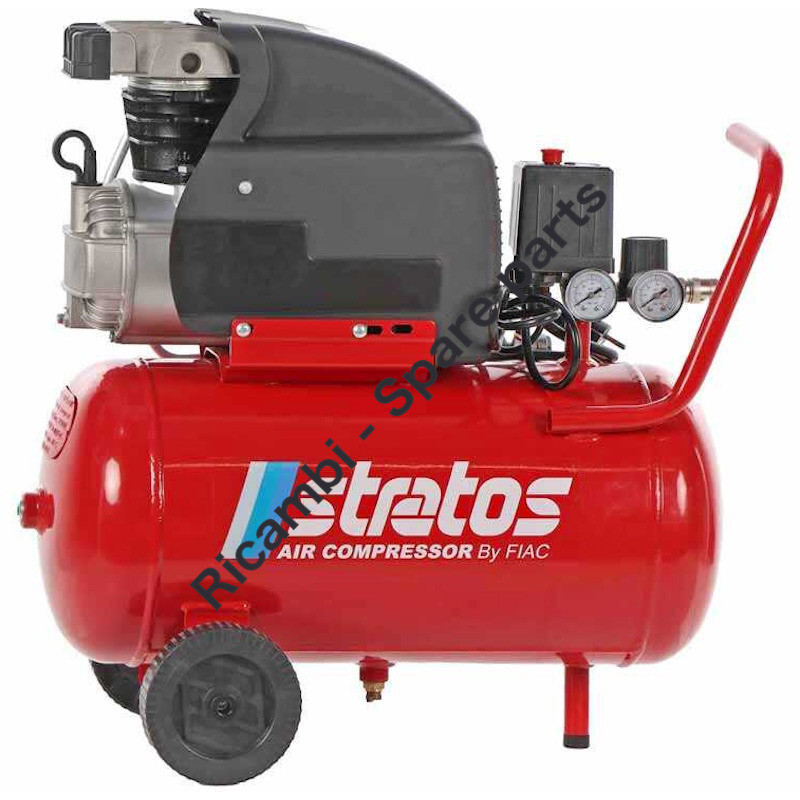

FIAC Parts for Compressor Stratos 24

SKU: Stratos 24 - 1129790382
€0.11
VAT included

FIAC Parts for Compressor Stratos 24 1129790382

FIAC genuine spare parts or replacement parts for to repair Air Compressor - STRATOS 24 - 1129790382 - V.23050HZ-CE

FIAC Parts for Compressor Stratos 24 1129790382
  • New
  • Out-of-Stock
  • FIAC Parts for Compressor Stratos 24 1129790382
  • FIAC Stratos 24 Drawing
FIAC spa

FIAC Parts for Compressor Stratos 24

SKU: Stratos 24 - 1129790382 Condition: New
€0.11
VAT included

FIAC Parts for Compressor Stratos 24 1129790382

FIAC genuine spare parts or replacement parts for to repair Air Compressor - STRATOS 24 - 1129790382 - V.23050HZ-CE

settings 52 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Air Compressor
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
52 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 photo_cameraImage coming soon 7084040000 Fitting "L" M3 / 8 " €9.84
3
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €0.98
4
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €1.63
5
 Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €3.01
6
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
9
 Head Gasket for Air Compressors FIAC COSMOS S 225-255 9101410080 Head Gasket for Air Compressors FIAC COSMOS S 225-255 €0.98
10
 photo_cameraImage coming soon 9100010240 plate €27.84
11
 Valves Plate Gasket for Pumping units FIAC GM 142-143 9100010080 Valves Plate Gasket for Pumping units FIAC GM 142-143 €9.82
12
 photo_cameraImage coming soon 9100010370 valve €7.83
13
 Cylinder Head Gasket for Air Compressors FIAC COSMOS S 225-255 9101410090 Cylinder Head Gasket for Air Compressors FIAC COSMOS S 225-255 €1.51
14
 photo_cameraImage coming soon 9101410060 cylinder €25.56
16
 photo_cameraImage coming soon 9100590060 Gasket 1.5mm €1.39
17
 Piston Rings for Pump Unit FIAC Series GM 4080010000 Piston Rings for Pump Unit FIAC Series GM €24.74
18
 photo_cameraImage coming soon 9100580050 piston €15.99
19
 photo_cameraImage coming soon 9100580090 pin €3.91
20
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €0.98
21
 Conrod for Pump Units FIAC GM-VX 5050150008 Conrod for Pump Units FIAC GM-VX €27.33
22
 photo_cameraImage coming soon 2234900043 Rear Cover €25.76
23
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €6.72
25
 photo_cameraImage coming soon 9101410050 crank €20.54
27
 BALMA Pump Unit GM194 MS20 Oil Dip Stick 1129700838 BALMA Pump Unit GM194 MS20 Oil Dip Stick €0.93
28
 photo_cameraImage coming soon 9101410020 crankcase cover €4.27
29
 photo_cameraImage coming soon 7012160000 screw €1.48
30
 photo_cameraImage coming soon 9700010187 screw M5x14 €1.44
31
 O-Ring (110,7X3,53) for Pump Unit FIAC GM 142 9700000016 O-Ring (110,7X3,53) for Pump Unit FIAC GM 142 €1.18
32
 Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €3.00
33
 photo_cameraImage coming soon 9700001865 Cranckcase €62.23
36
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
37
 Capacitor 30 mf for Air Compressors 7310320000 Capacitor 30 mf for Air Compressors €15.49
38A
 photo_cameraImage coming soon 9700010184 washer Ø8 €1.44
38
 photo_cameraImage coming soon 9700010188 nut M8 €0.24
40
 photo_cameraImage coming soon 9700001900 M6x110 guy €3.92
41
 Motor Fan for Pumping Units GM 142-192 9100010200 Motor Fan for Pumping Units GM 142-192 €6.72
42
 photo_cameraImage coming soon 1129702031 Screw ST4.2x9.5 €0.12
42A
 photo_cameraImage coming soon 9700010183 washer OD 4 €0.18
51
 Tank Cap for Pumping Unit Fiac Cosmos 225S-250S 9100010750 Tank Cap for Pumping Unit Fiac Cosmos 225S-250S €2.14
52
 Rubber Footh for Air Compressors Black & Decker CP 2525 - CP 5050 9100010380 Rubber Footh for Air Compressors Black & Decker CP 2525 - CP 5050 €0.33
54
 photo_cameraImage coming soon 1129706166 Plastic Wheel Kit D12 €3.88
58
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
59
 photo_cameraImage coming soon 1129701301 Infeed cable €34.24
61
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €2.57
62
 photo_cameraImage coming soon 9700000631 NUT €1.10
63
 Aluminium Pipe for Air Compressor FIAC COSMOS 225 S 9700000342 Aluminium Pipe for Air Compressor FIAC COSMOS 225 S €4.06
64
 Aluminium Pipe Nut M 10 for Air Compressor FIAC COSMOS 225-255 S 9700000325 Aluminium Pipe Nut M 10 for Air Compressor FIAC COSMOS 225-255 S €0.98
65
 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 7041070000 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 €0.76
66
 photo_cameraImage coming soon 9700000276 universal tap €7.09
68
 FIAC Joint for COSMOS 225 S 9700000330 FIAC Joint for COSMOS 225 S €0.73
69
 photo_cameraImage coming soon 1129701116 PRESSURE REDUCER €23.49
71
 photo_cameraImage coming soon 9700000276 universal tap €7.09
72
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €7.71
73
 photo_cameraImage coming soon 1127110008 PRESSURE GAUGE D40 X R1/4 AL €13.16
103
 Fiac Conrod-Piston Kit D.42MM 4190330000 Fiac Conrod-Piston Kit D.42MM €50.08

Shipping and delivery information will be available shortly.

FIAC Parts for Compressor Stratos 24 1129790382

FIAC genuine spare parts or replacement parts for to repair Air Compressor - STRATOS 24 - 1129790382 - V.23050HZ-CE

In the following table , look for the type of the Air Compressor and the respective parts of the code .
Stratos 24 - 1129790382

Fiac Stratos 24 - 1129790382
# Part Num. Description
1 7011220000 Screw M6X40X20
1A 9700010186 Washer M6
2 7084040000 Joint L X 3/8 M-M16 M Eco
3 7458340000 Filter Plate
4 7210010000 Filter Element Gm
5 7210430000 Filter Support Gm
6 7012100000 Screw St4.2X19
8 1129708454 Head Gm172
9 9101410080 O-Ring Head Gm172
10 9100010240 Valve Plate Gm192
11 9100010080 Gasket Valve Plate Gm12
12 9100010370 Valve Gm192
13 9101410090 Gasket-Cylinder/V Plat Gm14
14 9101410060 Cylinder Gm172
16 9100590060 Gasket-Crankcase/Cyl Gm17
17 4080010000 Piston Ring Kit
18 9100580050 Piston D42
19 9100580090 Piston Pin D12X34
20 7041010000 Snap Ring For Bore D12
21 5050150008 Con.Rod Gm192/244
22 2234900043 Rear Cover Gm145
23 7060200000 Bearing 6204
25 9101410050 Counter Weight Gm142/172
26 2234900028 Plastic Shroud Gm146-Stratos
27 1129700838 Oil fill plug
28 9101410020 Seal
29 7012160000 Screw M6X12
30 9700010187 Screw M5X14 Tsca
31 9700000016 O-Ring Carter Cover Gm142
32 9100270150 Oil Seal D20Xd47Xb7
33 9700001865 Crankcase
34 1129102056 Rotor Kit Gm146
35 9109250030 Stator Gm146 230V/50Hz-H40
36 7060010000 Bearing 6203 Z3-2Rz/Rs Eq
37 7310320000 Capacitor
38 9700010188 Nut M8
38A 9700010184 Washer D8
40 9700001900 Bolt
41 9100010200 Fan Gm192
42 1129702031 Screw St4.2X9.5
42A 9700010183 Washer D4
51 9100010750 1/2 End Plug
52 9100010380 Rubber Foot D20
53 1129708526 Drain tap
54 1129706166 Plastic Wheel Kit D12
58 7012290000 Screw St5X20
59 1129701301 Cable
60 1129708730 Non Return Valve Gm192 Zinc R
61 7230010000 Rilsan Hose
62 9700000631 Nut
63 9700000342 Pipe
64 9700000325 Nut
65 7041070000 Olive Gm192
66 9700000276 Universal Coupling
67 1129708456 Pressure switch
68 9700000330 Joint
69 1129701116 Pressure reducer
71 9700000276 Universal Coupling
72 7110240000 Pressure gauge
73 1127110008 Pressure gauge
103 4190330000 Piston & Con.Rod Kit D42
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Stratos 24 - 1129790382

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
Machine Type
Air Compressor
MORE INFO:
[email protected]

Specific References

New

Download

FIAC Stratos 24 Drawing

FIAC Stratos 24 Drawing

Download (563.31KB)
