FIAC spa

FIAC Spare Parts for Pumping Unit AB 851-901-951-981

SKU: AB 851 901 951 981 SA/SSA
€30.62
VAT included

FIAC Spare Parts for Pump Unit AB 851-901-951-981

Distribution and Sale at attractive prices of FIAC Air Compressors Original Spare Parts, low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Piston Air Compressors Pump Unit  AB 851 - AB 901 - AB 951 - AB 981 per SA/SSA.
FIAC Spare Parts for Pumping Unit AB 1000
  • FIAC Spare Parts for Pumping Unit AB 1000
  • FIAC Spare Parts for Pumping Unit AB 1000
FIAC spa

FIAC Spare Parts for Pumping Unit AB 851-901-951-981

SKU: AB 851 901 951 981 SA/SSA Condition: New
€30.62
VAT included

FIAC Spare Parts for Pump Unit AB 851-901-951-981

Distribution and Sale at attractive prices of FIAC Air Compressors Original Spare Parts, low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Piston Air Compressors Pump Unit  AB 851 - AB 901 - AB 951 - AB 981 per SA/SSA.
settings 95 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
95 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

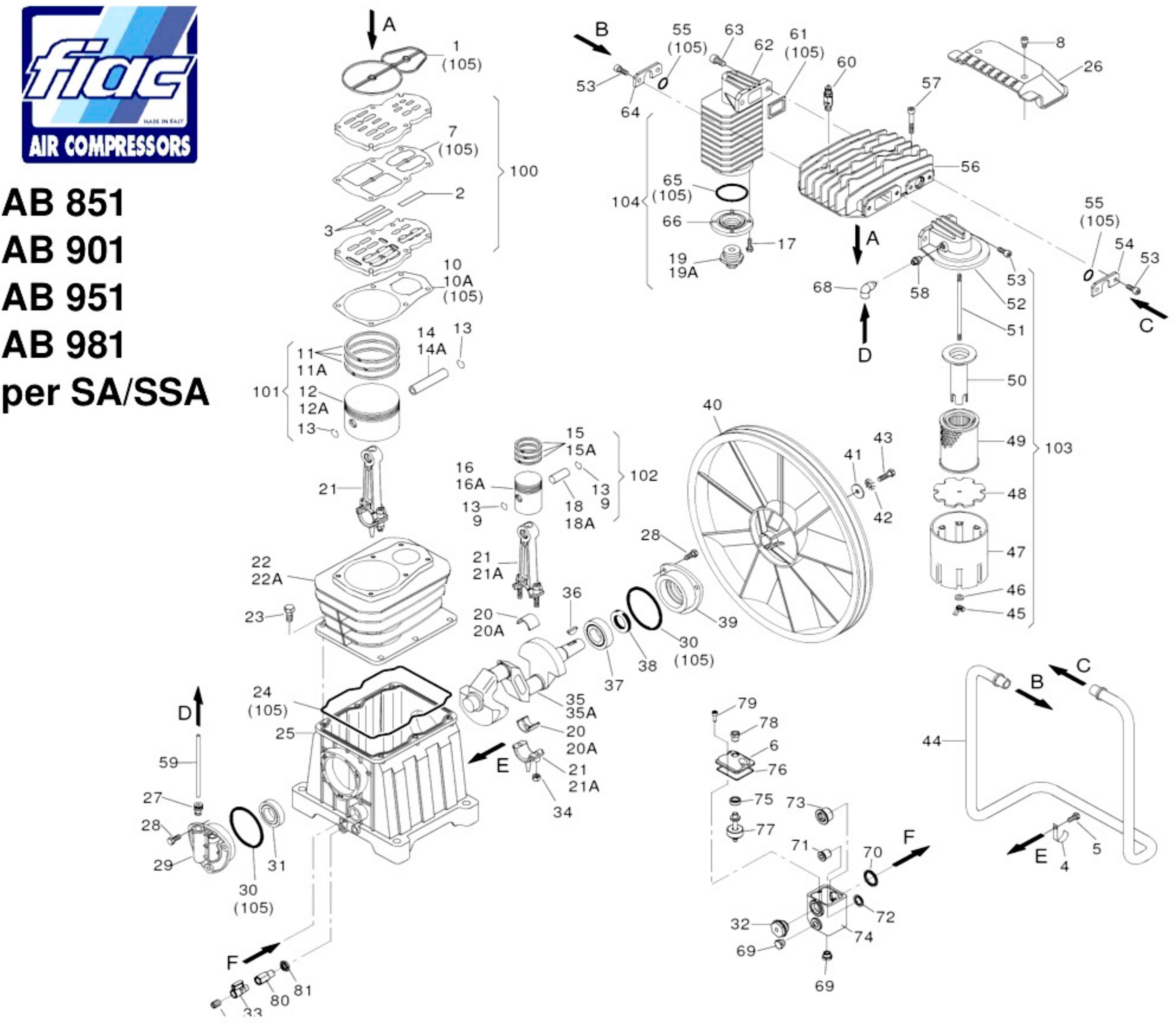

Esploso pagina 1
Pos. Item Price Buy
1
 Valves Plate-Head Gasket for Pump Units FIAC AB 671-851 7079610000 Valves Plate-Head Gasket for Pump Units FIAC AB 671-851 €11.91
2
 photo_cameraImage coming soon 7199130000 Valve €7.46
3
 photo_cameraImage coming soon 7199140000 Valve €8.87
4
 photo_cameraImage coming soon 7458910000 band €4.52
5
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
6
 photo_cameraImage coming soon 7650130000 Cover €4.56
7
 Valves Plate-Valves Plate Gasket for Pump Units FIAC AB 671-851 7079600000 Valves Plate-Valves Plate Gasket for Pump Units FIAC AB 671-851 €8.59
8
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
9
 photo_cameraImage coming soon 7040140000 Seeger Ø18 UNI-7437 €4.48
10
 Cylinder-Valves Plate Gasket for Pump Units FIAC AB 671-851 7079590000 Cylinder-Valves Plate Gasket for Pump Units FIAC AB 671-851 €16.23
10A
 photo_cameraImage coming soon 7079710000 Gasket (AB951) €18.64
11
 Piston Ring Set 105 mm for Pump Units FIAC AB 671-851 4080090000 Piston Ring Set 105 mm for Pump Units FIAC AB 671-851 €58.91
11A
 FIAC Pump Unit AB 901 Piston Ring Kit LP D.110 mm 4080220000 FIAC Pump Unit AB 901 Piston Ring Kit LP D.110 mm €65.59
12
 Piston LP for Pump Units FIAC AB 678-858 7220140000 Piston LP for Pump Units FIAC AB 678-858 €61.19
12A
 photo_cameraImage coming soon 7220250000 Piston LP D.110 mm €152.52
13
 photo_cameraImage coming soon 7040140000 Seeger Ø18 UNI-7437 €4.48
14
 Piston Pin 18x94 for Pump Units FIAC AB 678-858 7050150000 Piston Pin 18x94 for Pump Units FIAC AB 678-858 €9.91
14A
 Piston Pin 18x99 for Pump Unit FIAC AB851 7050200000 Piston Pin 18x99 for Pump Unit FIAC AB851 €9.56
15A
 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 4080030000 Piston Rings for Pumping Units FIAC AB 248-338 - AB 268 €30.64
15
 Piston Rings for Pumping Units FIAC AB 671-AB 851 4080080000 Piston Rings for Pumping Units FIAC AB 671-AB 851 €40.68
16
 FIAC AB858 HP Piston 7220120000 FIAC AB858 HP Piston €80.84
16A
 Piston 55 mm for Pumping Unit FIAC AB 901-981-998 7220240000 Piston 55 mm for Pumping Unit FIAC AB 901-981-998 €111.34
17
 photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
18
 Piston Pin 18x42 for Pump Unit FIAC AB 550 7050130000 Piston Pin 18x42 for Pump Unit FIAC AB 550 €10.67
18A
 photo_cameraImage coming soon 7050190000 Piston PIN Ø18X44 €6.67
19A
 photo_cameraImage coming soon 7080160000 Fitting "L" 1/2 €11.84
19
 photo_cameraImage coming soon 7085110000 Fitting 1 "-1/2" MF €6.04
20A
 Con-Rod Bearing for Pumping Units AB 901-981-AB 991-AB 998 7060530000 Con-Rod Bearing for Pumping Units AB 901-981-AB 991-AB 998 €44.47
20
 Connecting Rod Bearing for Air Pump Units Fiac AB 671 - AB 851 7062170000 Connecting Rod Bearing for Air Pump Units Fiac AB 671 - AB 851 €19.72
21
 Conrod Assy for Air Pump Units Fiac AB 671 - AB 851 4190370008 Conrod Assy for Air Pump Units Fiac AB 671 - AB 851 €83.03
21A
 Conrod Kit for Air Pumping Unit Fiac AB 901-981 4190390008 Conrod Kit for Air Pumping Unit Fiac AB 901-981 €106.02
22
 FIAC AB678 Cylinder 5060720008 FIAC AB678 Cylinder €229.24
22A
 photo_cameraImage coming soon 5060760008 cylinder €637.39
23
 photo_cameraImage coming soon 7011160000 Screw M10x30 UNI-5739 €1.52
24
 Fiac AB 671 Crankcase - Cylinder Gasket 7079410000 Fiac AB 671 Crankcase - Cylinder Gasket €11.85
25
 photo_cameraImage coming soon 5070310008 Carter - Carter €305.03
26
 Air Baffle for Pump Unit FIAC AB851 7153050000 Air Baffle for Pump Unit FIAC AB851 €9.90
27
 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 7091120000 Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901 €4.34
28
 photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
29
 FIAC AB678 Holder Oil Cap 5082090008 FIAC AB678 Holder Oil Cap €30.83
30
 O-Ring 82x2 for Pumping Units FIAC AB 671 - 851 - 901 7070290000 O-Ring 82x2 for Pumping Units FIAC AB 671 - 851 - 901 €1.52
31
 Crank Shaft Ball Bearing for Pumping Units FIAC AB 671-678 7060160000 Crank Shaft Ball Bearing for Pumping Units FIAC AB 671-678 €20.38
32
 Fiac AB598 Pump Unit Oil Sight Glass 7180060000 Fiac AB598 Pump Unit Oil Sight Glass €6.57
33
 photo_cameraImage coming soon 7130440000 MF ball valve 1/4 " €16.97
34
 photo_cameraImage coming soon 7022040000 Nut M8 DIN-980 €1.52
35
 Crank Shaft for Pump Unit FIAC AB 851 5041150008 Crank Shaft for Pump Unit FIAC AB 851 €208.18
35A
 photo_cameraImage coming soon 5041340008 Crankshaft (AB951 x SA HP) €218.14
36
 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 7051520000 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 €10.13
37
 photo_cameraImage coming soon 7060150000 bearing 6206 €41.13
38
 Oil Seal for Pumping Units FIAC AB 671-AB 901-981 7071130000 Oil Seal for Pumping Units FIAC AB 671-AB 901-981 €5.89
39
 FIAC AB678 Crankshaft Holder 5082050008 FIAC AB678 Crankshaft Holder €30.83
40
 photo_cameraImage coming soon 7201240000 flywheel €252.19
41
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
42
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
44
 Fiac AB670-850 Cooler Kit 7230750000 Fiac AB670-850 Cooler Kit €94.03
45
 photo_cameraImage coming soon 7024150000 A nut M6 GALLETTO €1.52
46
 photo_cameraImage coming soon 7031030000 Washer Ø6 UNI-3703 €1.52
47
 Air Filter Holder for Pumping Units Fiac AB 671 - AB 851 7210270000 Air Filter Holder for Pumping Units Fiac AB 671 - AB 851 €54.50 Not available for order
48
 Filter Element For Pumping Units FIAC AB 671-851-901-981 7210280000 Filter Element For Pumping Units FIAC AB 671-851-901-981 €10.43
49
 Air Filter For Pumping Units FIAC AB 671-851-901-981 7210260000 Air Filter For Pumping Units FIAC AB 671-851-901-981 €26.62
50
 Air Filter Sleeve For Pumping Units FIAC AB 671-851-901-981 7210290000 Air Filter Sleeve For Pumping Units FIAC AB 671-851-901-981 €7.53
51
 photo_cameraImage coming soon 7015160000 rod M6X160 €1.52
52
 photo_cameraImage coming soon 5130070008 collector €26.55
53
 photo_cameraImage coming soon 7010050000 Screw M8X20 UNI-5931 €1.52
54
 photo_cameraImage coming soon 7458460000 plate €7.46
55
 O-Ring 17.12 X 2.62 for Air Compressors Unit Fiac AB 450 - 550 - 800 7070260000 O-Ring 17.12 X 2.62 for Air Compressors Unit Fiac AB 450 - 550 - 800 €4.37
56
 Head for Pump Units FIAC AB 671-851-901 5030590008 Head for Pump Units FIAC AB 671-851-901 €83.48
57
 photo_cameraImage coming soon 7010060000 Screw M8x45 UNI-5931 €1.52
58
 photo_cameraImage coming soon 7085210000 Fitting 1 / 4-1 / 8 FM €5.60
59
 photo_cameraImage coming soon 7230020000 Tube Rilsan Ø8X6 €7.46
60
 Safety Valve M1/4-6 bar for Pumping Units Fiac 7192350000 Safety Valve M1/4-6 bar for Pumping Units Fiac €13.02
61
 FIAC AB851 Cooler Gasket 7079250000 FIAC AB851 Cooler Gasket €7.47
62
 photo_cameraImage coming soon 5130090008 cooler €58.10
63
 photo_cameraImage coming soon 7010220000 Screw M10x25 UNI-5931 €1.52
64
 photo_cameraImage coming soon 7458420000 plate €6.04
65
 FIAC AB851 O-Ring 4200 7070140000 FIAC AB851 O-Ring 4200 €2.59
66
 photo_cameraImage coming soon 5131030008 Reduction €23.81
68
 photo_cameraImage coming soon 7080970000 Fitting "L" M1 / ​​4 "-8 QUICK €16.10
69
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
70
 photo_cameraImage coming soon 7078730000 Gasket €5.07
71
 photo_cameraImage coming soon 7018270000 Pin €16.71
72
 photo_cameraImage coming soon 7078720000 Gasket €3.77
73
 photo_cameraImage coming soon 7018280000 Pin €19.07
74
 photo_cameraImage coming soon 5131210008 Tank €139.97
75
 photo_cameraImage coming soon 7062750000 Spacer €9.91
76
 photo_cameraImage coming soon 7079490000 Gasket €4.16
77
 photo_cameraImage coming soon 7432200000 Switch €94.22
78
 photo_cameraImage coming soon 7025040000 Nut €13.83
80
 photo_cameraImage coming soon 7087920000 Joint €22.23
81
 photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
100
 photo_cameraImage coming soon 7459540000 valve plate €202.68
101
 photo_cameraImage coming soon 4291110000 Kit rod / piston €182.57
102
 HP Piston Kit for Air Pump Units Fiac AB 671 - AB 851 4291150000 HP Piston Kit for Air Pump Units Fiac AB 671 - AB 851 €50.04
103
 Suction Filter Kit For Pumping Units FIAC AB 671-851-901-981 4250100000 Suction Filter Kit For Pumping Units FIAC AB 671-851-901-981 €54.50 Not available for order
104
 photo_cameraImage coming soon 4251150000 Kit cooler €128.82
105
 Gaskets Kit for Pump Units Fiac AB 851 - AB 901 4082480000 Gaskets Kit for Pump Units Fiac AB 851 - AB 901 €63.41

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit AB 851-901-951-891

Distribution and Sale at attractive prices of FIAC Air Compressors Original Spare Parts

. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Piston Air Compressors Pump Unit  AB 851 - AB 901 - AB 951 - AB 981 per SA/SSA.

In the following table, look for the type of the Pumping Unit and the respective parts of the code.
Pump Unit AB 851 - AB 901 - AB 951 - AB 981 per SA/SSA

AB 851 - AB 901 - AB 951 - AB 981 for SA/SSA
# Part Num. Description
1 7079610000 Gasket
2 7199130000 Flap Valve HP
3 7199140000 Flap Valve LP
4 7458910000 Clamp
5 7011460000 Screw
6 7650130000 Cover
7 7079600000 Gasket
8 7012090000 Screw
9 7040140000 Ring
10 7079590000 Gasket
10A 7079710000 Gasket (AB951)
11 4080090000 Low pres. piston ring (AB851)
11A 4080220000 Low pres. piston ring D.110 mm
12 7220140000 Low pres. Piston D. 105 mm (AB851)
12A 7220250000 Low pres. piston D.110 mm
13 7040140000 Clip
14 7050150000 Piston pin (AB851) 18x94
14A 7050200000 Piston pin 18x99 (AB851)
15 4080080000 High pres. piston ring
15A 4080030000 High pres. piston ring
16 7220120000 High pres. Piston (AB851)
16A 7220240000 HP Piston 55 mm + Kit Piston Rings
17 7011040000 Screw
18 7050130000 Piston pin (AB851)
18A 7050190000 Piston pin
19 7085110000 Joint
19A 7080160000 Joint (per SA)
20 7062170000 Bearing (AB851)
20A 7060530000 Bushing
21 4190370008 Con rod Assy (AB851)
21A 4190390008 Con rod Kit
22 5060720008 Cylinder (AB851)
22A 5060760008 Cylinder
23 7011160000 Screw
24 7079410000 Gasket
25 5070310008 Carter
26 7153050000 Air Baffle
27 7091120000 Plug
28 7011090000 Screw
29 5082090008 Support
30 7070290000 Gasket
31 7060160000 Bearing
32 7180060000 Oil level sight glass
33 7130440000 Oil discarge Tap
34 7022040000 Selflocking nut
35 5041150008 Crankshaft AB850 Worked
35A 5041340008 Crankshaft (AB951 x SA HP)
36 7051520000 Key
37 7060150000 Bearing
38 7071130000 Mim ring
39 5082050008 Support
40 7201240000 Flywheel
41 7030270000 Washer
42 7031010000 Toothed washer
43 7011110000 Screw
44 7230750000 Cooler ----> 1124080806 ex 1127230025 ex 7230750000
45 7024150000 Nut
46 7031030000 Washer
47 7210270000 Filter Holder Assy ----> 425010000
48 7210280000 Filtering element
49 7210260000 Filter
50 7210290000 Sleeve
51 7015160000 Tension rod
52 5130070008 Manifold
53 7010050000 Screw
54 7458460000 Stop plate
55 7070260000 OR ring
56 5030590008 Head
57 7010060000 Screw
58 7085210000 Joint
59 7230020000 Rilsan hose
60 7192350000 Safety valve
61 7079250000 Gasket
62 5130090008 Refrigerator
63 7010220000 Screw
64 7458420000 Stop plate
65 7070140000 O-Ring 4200
66 5131030008 Reduction
68 7080970000 Joint
69 7090090000 Plug
70 7078730000 Gasket
71 7018270000 Pin
72 7078720000 Gasket
73 7018280000 Pin
74 5131210008 Tank
75 7062750000 Spacer
76 7079490000 Gasket
77 7432200000 Switch
78 7025040000 Nut
79 7010350000 Screw
80 7087920000 Joint
81 7023040000 Blocker nut
100 7459540000 Valve plate group
101 4291110000 Low pres. Piston Set
102 4291150000 High pres. piston Set
103 4250100000 Filter group
104 4251150000 Refrigerator group
105 4082480000 Gaskets Kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AB 851 901 951 981 SA/SSA
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Fiac AB 851-901-951-981

Diagram Fiac AB 851-901-951-981

Download (188.96KB)

You might also like

Piston 55 mm for Pumping Unit FIAC AB 901-981-998
FIAC spa SKU: 7220240000
Piston 55 mm for Pumping Unit FIAC AB 901-981-998
Piston 55 mm for Pump Unit FIAC AB 901-981-998 Genuine part FIAC, HP Piston Kit Supplied + Kit Piston Ring, for pump units AB901-981-998. Parts for the following products: -  Pump unit AB 901-981 validity...
on 7/10 Business Days Approx €111.34
Details
Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901
FIAC spa SKU: 7091120000
Oil Venting Cap for Pumping Units FIAC AB 335-410-671-851-901
Oil Venting Cap for Pump Units FIAC AB 335-410-671-851-901 Genuine part FIAC, Oil Venting Cap for Pump Units  AB 335 - AB 410 - 510-512 - AB 671 - AB 678 - AB 851 - AB 858 - 901-981 AB - AB 998. Part for the following products: - Pump...
AVAILABLE €4.34
Details
Air Filter For Pumping Units FIAC AB 671-851-901-981
FIAC spa SKU: 7210260000
Air Filter For Pumping Units FIAC AB 671-851-901-981
Air Filter For Pumping Units FIAC AB 671-851-901-981 Genuine parts FIAC, Air Filter For Pumping Units FIAC AB 671 - AB 851 - AB 901-981. Parts for the following products: - Pumping unit FIAC AB 671 data validity - by...
on 7/10 Business Days Approx €26.62
Details
Air Filter Sleeve For Pumping Units FIAC AB 671-851-901-981
FIAC spa SKU: 7210290000
Air Filter Sleeve For Pumping Units FIAC AB 671-851-901-981
Air Filter Sleeve For Pumping Units FIAC AB 671-851-901-981 Genuine parts FIAC, Air Filter Sleeve For Pumping Units FIAC AB 671 - AB 851 - AB 901-981. Parts for the following products: - Pumping unit FIAC AB 671 data validity - by...
AVAILABLE €7.53
Details
Filter Element For Pumping Units FIAC AB 671-851-901-981
FIAC spa SKU: 7210280000
Filter Element For Pumping Units FIAC AB 671-851-901-981
Filter Element For Pumping Units FIAC AB 671-851-901-981 Genuine parts FIAC, Air Filter Element For Pumping Units FIAC AB 671 - AB 851 - AB 901-981. Parts for the following products: - Pumping unit FIAC AB 671 data validity - by...
AVAILABLE €10.43
Details
Piston Rings for Pumping Units FIAC AB 671-AB 851
FIAC spa SKU: 4080080000
Piston Rings for Pumping Units FIAC AB 671-AB 851
Piston Rings for Pumping Units FIAC AB 671-AB 851 Genuine Spare Part FIAC, Special Steel Piston Rings for Pump Units, AB 671 - AB 851 - AB 450 - 550 - 800 - AB 598 - AB 678 - AB 858. Part for the following products: - Pump  Unit FIAC...
AVAILABLE €40.68
Details
Safety Valve M1/4-6 bar for Pumping Units Fiac
FIAC spa SKU: 7192350000
Safety Valve M1/4-6 bar for Pumping Units Fiac
Safety Valve M1/4-6 bar for Pump Units Fiac Genuine Part Fiac, Safety valve for Air compressors, Safety Valve M1/4-6 bar for Pump Units Fiac AB 450 - 550 - 800 - AB 525 - AB 598...
AVAILABLE €13.02
Details
Con-Rod Bearing for Pumping Units AB 901-981-AB 991-AB 998
FIAC spa SKU: 7060530000
Con-Rod Bearing for Pumping Units AB 901-981-AB 991-AB 998
Con-Rod Bearing for Pumping Units AB 901-981-AB 991-AB 998 Genuine part FIAC, Connecting Rod Bearing for Pump Units for AB 901-981 - AB 991 - AB 998 Part for the following products: - Pumping Unit Fiac AB 901-981 data validità - da...
Last items in stock €44.47
Details
Oil Seal for Pumping Units FIAC AB 671-AB 901-981
FIAC spa SKU: 7071130000
Oil Seal for Pumping Units FIAC AB 671-AB 901-981
Oil Seal for Pumping Units FIAC AB 671-AB 901-981 Original part FIAC, Oil Seal MIM 30X47X7  for pumping units FIAC AB 671 - AB 901-981 Parts for the following products: - Pumping unit Fiac AB 671 validity date - from 05/03/2012 -...
AVAILABLE €5.89
Details
Crank Shaft Ball Bearing for Pumping Units FIAC AB 671-678
FIAC spa SKU: 7060160000
Crank Shaft Ball Bearing for Pumping Units FIAC AB 671-678
Crank Shaft Ball Bearing for Pumping Units FIAC AB 671-678 Original part FIAC, Crank Shaft Ball Bearing 6006 for pumping units FIAC AB 671 - AB 678 - AB 851 - AB 901-981 - AB 858 - AB 998 Parts for the following products: - Pumping...
AVAILABLE €20.38
Details
Conrod Kit for Air Pumping Unit Fiac AB 901-981
FIAC spa SKU: 4190390008
Conrod Kit for Air Pumping Unit Fiac AB 901-981
Conrod Kit for Air Pumping Unit Fiac AB 901-981 Genuine part FIAC, Conrod Kit for Pump Units Fiac AB 901-981 Part for the following Products: -  Pump Unit Fiac AB 901-981 -  Pump Unit Fiac AB 851 - AB 901 - AB 951 - AB 981 per SA/SSA...
Last items in stock €106.02
Details
Brass Cap M1/4" for Pump Units Fiac
FIAC spa SKU: 7090090000
Brass Cap M1/4" for Pump Units Fiac
Brass Cap M1/4" for Pump Units Fiac Genuine spare part FIAC, Chrome-Plated Brass Cap M1/4" for Pump Units, Engine Compressors, Air Compressors. Part for the following products: - Pump...
AVAILABLE €4.42
Details
Headt for Pump Units FIAC AB 671-851-901
FIAC spa SKU: 5030590008
Head for Pump Units FIAC AB 671-851-901
Head for Pump Units FIAC AB 671-851-901 Genuine replacement part FIAC, Head for Pump Units FIAC AB 671 - 851-901.  Part for the following compressors:  - Pump unit FIAC AB 671 data validity - by 05/03/2012  - Pump...
AVAILABLE €83.48
Details
Piston Ring Set 105 mm for Pump Units FIAC AB 671-851-901
FIAC spa SKU: 4080090000
Piston Ring Set 105 mm for Pump Units FIAC AB 671-851
Piston Ring Set 105 mm for Pump Units FIAC AB 671-851 Genuine replacement part FIAC, Piston Ring Set Diameter 105 mm for Pump Units FIAC AB 671 - 851 - 678 - 858.   Part for the following compressors: ...
AVAILABLE €58.91
Details
Crank Shaft for Pump Unit FIAC AB 851
FIAC spa SKU: 5041150008
Crank Shaft for Pump Unit FIAC AB 851
Crank Shaft for Pump Unit FIAC AB 851 Genuine part FIAC, Crank Shaft for Pump Units AB 850 - AB 851 - AB 858 - AB 671 - AB 678 Part for the following products: -  Pump Unit AB 851 da da 05/03/2012 -  Pump Unit AB 851 - AB 901 - AB...
Last items in stock €208.18
Details
Piston Pin 18x42 for Pump Unit FIAC AB 550
FIAC spa SKU: 7050130000
Piston Pin 18x42 for Pump Unit FIAC AB 550
Piston Pin 18x42 for Pump Unit FIAC AB 550 Genuine Part FIAC, Steel Piston Pin Diam.18x42 for Pump Units AB 550 - AB 660.  Part for the following products: -  Pump Unit AB 550 -  Pump Unit AB 660 -  Pump Unit AB 671 -  Pump Unit AB...
AVAILABLE €10.67
Details
Connecting Rod Bearing for Air Pump Units Fiac AB 671 - AB 851
FIAC spa SKU: 7062170000
Connecting Rod Bearing for Air Pump Units Fiac AB 671 - AB 851
Connecting Rod Bearing for Air Pump Units Fiac AB 671 - AB 851 Genuine part FIAC, Connecting Rod Bearing for Pump Units Fiac Fiac AB 671 - AB 851 - AB 951 - AB 981 x SA/SSA. Part for the following Products: -  Pump Unit AB 671 -...
AVAILABLE €19.72
Details
Gaskets Kit for Pump Units Fiac AB 851 - AB 901
FIAC spa SKU: 4082480000
Gaskets Kit for Pump Units Fiac AB 851 - AB 901
Gaskets Kit for Pump Units Fiac AB 851 - AB 901 Genuine part FIAC, Gaskets Kit for Pump Units Fiac Fiac AB 851 - AB 901 - AB 951 - AB 981 per SA/SSA. Part for the following Products: -  Pump Unit AB...
Last items in stock €63.41
Details
Piston Pin 18x99 for Pump Unit FIAC AB851
FIAC spa SKU: 7050200000
Piston Pin 18x99 for Pump Unit FIAC AB851
Piston Pin 18x99 for Pump Unit FIAC AB851 Genuine Part FIAC, Steel Piston Pin Diam.18x99MM for Pump Units AB 851 - AB 901. Part for the following products: -  Pump Unit AB 851 -  Pump Unit AB 901 - AB 981 - Code : 1127050020 ex...
on 7/10 Business Days Approx. €9.56
Details
Air Baffle for Pump Unit FIAC AB851
FIAC spa SKU: 7153050000
Air Baffle for Pump Unit FIAC AB851
Air Baffle for Pump Unit FIAC AB851 Genuine Part FIAC, Air Baffle for Pump Units AB 671 - 851 - 901 - 678 - 858 - 998. Part for the following products: -  Pump Unit AB 671 -  Pump Unit AB 851 -  Pump Unit AB 851 - AB 901 - AB 951 -...
on 7/10 Business Days Approx. €9.90
Details
Piston LP for Pump Units FIAC AB 678-858
FIAC spa SKU: 7220140000
Piston LP for Pump Units FIAC AB 678-858
Piston LP for Pump Units FIAC AB 678-858 Genuine Part FIAC, Piston LP D.105 mm for Pump Units FIAC AB 678 - AB 858 - 1123020111. Ricambio per i seguenti prodotti: -  Pump Unit AB 858 - 1123020111 -  Pump Unit...
AVAILABLE €61.19
Details
Piston Pin 18x94 for Pump Units FIAC AB 678-858
FIAC spa SKU: 7050150000
Piston Pin 18x94 for Pump Units FIAC AB 678-858
Piston Pin 18x94 for Pump Units FIAC AB 678-858 Genuine Part FIAC, Piston Pin 18x94 mm for Pump Units FIAC AB 678 - AB 858. Ricambio per i seguenti prodotti: -  Pump Unit AB 858 -  Pump Unit...
AVAILABLE €9.91
Details
FIAC AB858 HP Piston
FIAC spa SKU: 7220120000
FIAC AB858 HP Piston
FIAC AB858 HP Piston Genuine part FIAC, HP Piston D.52 H 65 SP.18 for Pump Units AB 850 - AB 851 - AB 858 - AB 671 - AB 678 Part for the following products: - Pump Unit AB 851 da da 05/03/2012 - Pump...
AVAILABLE €80.84
Details
Fiac AB 671 Crankcase - Cylinder Gasket
FIAC spa SKU: 7079410000
Fiac AB 671 Crankcase - Cylinder Gasket
Fiac AB 671 Crankcase - Cylinder Gasket Genuine part FIAC, Crankcase - Cylinder Gasket for Pump Units Fiac Fiac AB 671 - AB 851 - AB 951 - AB 981 x SA/SSA. Part for the following Products:...
AVAILABLE €11.85
Details
FIAC AB851 Cooler Gasket
FIAC spa SKU: 7079250000
FIAC AB851 Cooler Gasket
FIAC AB851 Cooler Gasket Genuine Part FIAC, Cooler Gasket for Pump Units AB 671 - 851 - 901. Part for the following products: -  Pump Unit AB 851 - FIAC AB1000 - FIAC AB1500 -  Pump...
on 7/10 Business Days Approx. €7.47
Details
FIAC AB851 O-Ring 4200
FIAC spa SKU: 7070140000
FIAC AB851 O-Ring 4200
FIAC AB851 O-Ring 4200 (50,39*3,53) Genuine Part FIAC, O-Ring 4200 (50,39*3,53) for Pump Units AB 671 - 851 - 901. Part for the following products: -  Pump Unit AB 851 - FIAC AB1000 - FIAC...
on 7/10 Business Days Approx. €2.59
Details
FIAC Pump Unit AB 901 Piston Ring Kit LP D.110 mm
FIAC spa SKU: 4080220000
FIAC Pump Unit AB 901 Piston Ring Kit LP D.110 mm
FIAC Pump Unit AB 901-981 Piston Ring Kit LP D.110 mm Genuine part FIAC, Piston Ring Kit LP D.110 mm, for pump units AB901-981. Parts for the following products: -  Pump unit AB 901-981 validity date - from 05/03/2012 - ...
AVAILABLE €65.59
Details
Fiac AB670-850 Cooler Kit
FIAC spa SKU: 7230750000
Fiac AB670-850 Cooler Kit
Fiac AB670/850 Cooler Kit Genuine part FIAC, Cooler Kit for Pump Units Fiac AB670-850 - Fiac AB 851 901 951 981 SA/SSA. Part for the following Products: - Fiac AB 851 901 951 981 SA/SSA - Fiac AB500/981 - Fiac...
AVAILABLE €94.03
Details
FIAC Pumping Unit AB678 Crankshaft Holder
FIAC spa SKU: 5082050008
FIAC AB678 Crankshaft Holder
FIAC Holder for Pump Unit AB678 Genuine replacement part FIAC, Crankshaft Holder for Pump Unit AB678 - AB858. Part for the following products: -  Pump Unit Fiac AB851 from 05/03/2012 -  Pump Unit Fiac AB678 -  Pump Unit Fiac AB858...
Usually Ships in: 7/10 Business Days Approx. €30.83
Details
FIAC Pumping Unit AB858 Holder Oil Cap
FIAC spa SKU: 5082090008
FIAC AB678 Holder Oil Cap
FIAC Holder Oil Cap for Pump Unit AB678 Genuine replacement part FIAC, Crankshaft and Oil Cap Holder for Pump Unit AB678 - AB858. Part for the following products: -  Pump Unit Fiac AB851 from 05/03/2012 -  Pump Unit Fiac AB678 -...
Usually Ships in: 7/10 Business Days Approx. €30.83
Details
Comments (0)
