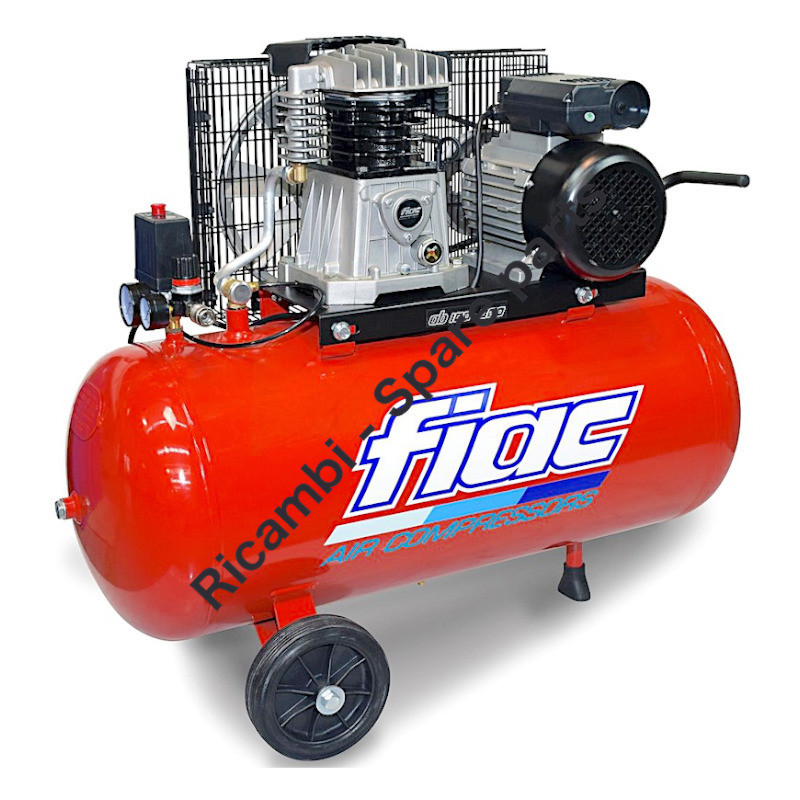

  • FIAC Spare Parts for Piston Air Compressor CCS 100-360 M
  • Fiac AB 100-360 MC-ROSSO Esploso
  • Fiac AB 100-360 MC-ROSSO Esploso - 1
  • Fiac AB 100-360 MC-ROSSO Esploso - 2
FIAC spa

FIAC Spare Parts for Piston Air Compressor AB 100-360 MC-RED

SKU: Fiac AB 100-360 MC-ROSSO 1121480318 Condition: New
€0.11
VAT included

FIAC Spare Parts for Piston Air Compressor AB 100-360 MC-RED

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 100-360 MC-RED - 1121480318.

settings 43 Spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Air Compressor
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
43 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
029
 Flywheel for Pumping unit Fiac AB 248-338-360 9100270230 Flywheel for Pumping unit Fiac AB 248-338-360 €41.57
035
 photo_cameraImage coming soon 7012220000 Screw M8X 25 UNI-8112 €0.98
036
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €0.98
099
 photo_cameraImage coming soon 1129740084 PUMP UNIT €267.49
100
 photo_cameraImage coming soon 7090030000 Cap M1/2" €1.18
103
 photo_cameraImage coming soon 7360500000 RUBBER FOOT €4.06
105
 BALMA Non Return Valve 1/2+M 1/2+M R 6210719000 BALMA Non Return Valve 1/2+M 1/2+M R €14.99
106
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
107
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €3.93
108
 Pressure Regulator for ABAC Air Compressors 25/50 lt 1127100064 Pressure Regulator for ABAC Air Compressors 25/50 lt €8.11
109
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €10.24
116
 photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
118
 FIAC Reduction 3/8"-1/4" 7088060000 FIAC Reduction 3/8"-1/4" €12.08
119
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €8.14
125
 photo_cameraImage coming soon 7409050000 Motor pulley €34.27
126
 photo_cameraImage coming soon 7370060000 V-Belt A 46 €6.95
127
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €2.57
131
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €24.81
132
 photo_cameraImage coming soon 7329070000 Power Cord €21.07
135
 FIAC Motor MEC90 A24 3HP 50HZ 230V 1127380796 FIAC Motor MEC90 A24 3HP 50HZ 230V €467.65
142
 photo_cameraImage coming soon 4170160000 BELT GUARD KIT €100.37
145
 Air Supply Hose mm 14 for Pumping Unit FIAC AB 360 7234620000 Air Supply Hose mm 14 for Pumping Unit FIAC AB 360 €38.89
180
 photo_cameraImage coming soon 4054720000 PRESS. SWITCH KIT €118.92
181
 photo_cameraImage coming soon 4083020000 Kit Wheel Ø175 €38.78
183
 photo_cameraImage coming soon 4151110000 Motor/pulley kit €439.20
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
002
 photo_cameraImage coming soon 9100270080 Cylinder €50.26
003
 photo_cameraImage coming soon 9100270100 Top €25.13
004
 Crank Shaft for Pumping Units FIAC AB248-338-360 9100270140 Crank Shaft for Pumping Units FIAC AB248-338-360 €58.71 Not available for order
005
 FIAC AB268 Carter Cover 9700001076 FIAC AB268 Carter Cover €14.13
024
 photo_cameraImage coming soon 9700002651 Cooler €7.05
026
 Front Cover for Pumping Units FIAC AB248-268-338-360 9100270160 Front Cover for Pumping Units FIAC AB248-268-338-360 €12.15
027
 Rear Cover for Pumping Units FIAC AB248-268-338-360 9100270170 Rear Cover for Pumping Units FIAC AB248-268-338-360 €12.15
030
 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 7060180000 Crank Shaft Ball Bearing 6203 for Pump Unit FIAC AB 360 €2.31
031
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €6.72
032
 FIAC Pump Unit AB268 Oil Sight Glass 9700000408 FIAC Pump Unit AB268 Oil Sight Glass €3.00
033
 Oil Vent Cap for Air Compressor Pump Unit FIAC AB 268 9700000300 Oil Vent Cap for Air Compressor Pump Unit FIAC AB 268 €7.99
034
 Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €3.00
305
 photo_cameraImage coming soon 9700001902 INTAKE FILTER KIT €11.42
325
 Valves Plate kit for Air Compressor Pump Unit FIAC AB 268 9700003272 Valves Plate kit for Air Compressor Pump Unit FIAC AB 268 €21.66
355
 FIAC AB360 Conrod-Piston Kit 9700010170 FIAC AB360 Conrod-Piston Kit €29.96
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
PK1
 photo_cameraImage coming soon 1124080912 Performance kits €82.17
305
 photo_cameraImage coming soon 9700001902 INTAKE FILTER KIT €11.42
325
 Valves Plate kit for Air Compressor Pump Unit FIAC AB 268 9700003272 Valves Plate kit for Air Compressor Pump Unit FIAC AB 268 €21.66
330
 photo_cameraImage coming soon 1124080915 Upgrade kits €44.46
335
 FIAC AB360 Gasket Kit 9700002932 FIAC AB360 Gasket Kit €22.59

Shipping and delivery information will be available shortly.

FIAC Spare Parts for Piston Air Compressor AB 100-360 MC-RED

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB 100-360 MC-RED - 1121480318.

In the following table, look for the type of the air compressor and the respective parts of the code .
Fiac AB 100-360 MC-RED

Fiac AB 100-360 MC-RED - 1121480318
Pag.1
Air Compressor Group
# Part Num. Description
029 9100270230 Flywheel
035 7012220000 Screw
036 7030270000 Washer
099 1129740084 Pump
100 7090030000 Plug-receiver
103 7360500000 Rubber foot
105 6210719000 Check valve
106 7130570000 Coupling
107 7130160000 Drain tap
108 1127100064 Pressure reducer
109 7110300000 Pressure gauge
110 7192190000 Safety valve
116 7360020000 Rubber foot
118 7088060000 Spacing
119 7110240000 Pressure gauge
125 7409050000 Pulley
126 7370060000 Belt
127 7230010000 Rilsan tube
131 7250740000 Pressure Switch
132 7329070000 Infeed cable
135 1127380796 MOT.3HP 230V/50HZ MEC90-A24
142 4170160000 Belt guard kit
145 7234620000 Delivery pipe
180 4054720000 Pressure switch kit
181 4083020000 Wheel kit
183 4151110000 Motor with pulley
Pag.2
Pump Group
# Part Num. Description
002 9100270080 Cylinder
003 9100270100 Head
004 9100270140 Crankshaft
005 9700001076 Crankcase Cover
024 9700002651 Aftercooler
026 9100270160 Bearing Cover
027 9100270170 Cover Flywheel Side
030 7060180000 Bearing 6203
031 7060200000 Bearing 6204
032 9700000408 Oil sight glass
033 9700000300 Oil fill plug
034 9100270150 Oil seal
305 9700001902 Air filter
325 9700003272 Valve Plate kit
355 9700010170 Piston conrod kit
366 1129701266 Crankcase kit
Pag.3
Kit
# Part Num. Description
305 9700001902 Air filter
325 9700003272 Valve Plate kit
330 1124080915 Upgrade kit
335 9700002932 All gasket kit
KMI 1124080911 Easy kit
PK1 1124080912 Performance kit
HDK 1124080916 Heavy duty kit
