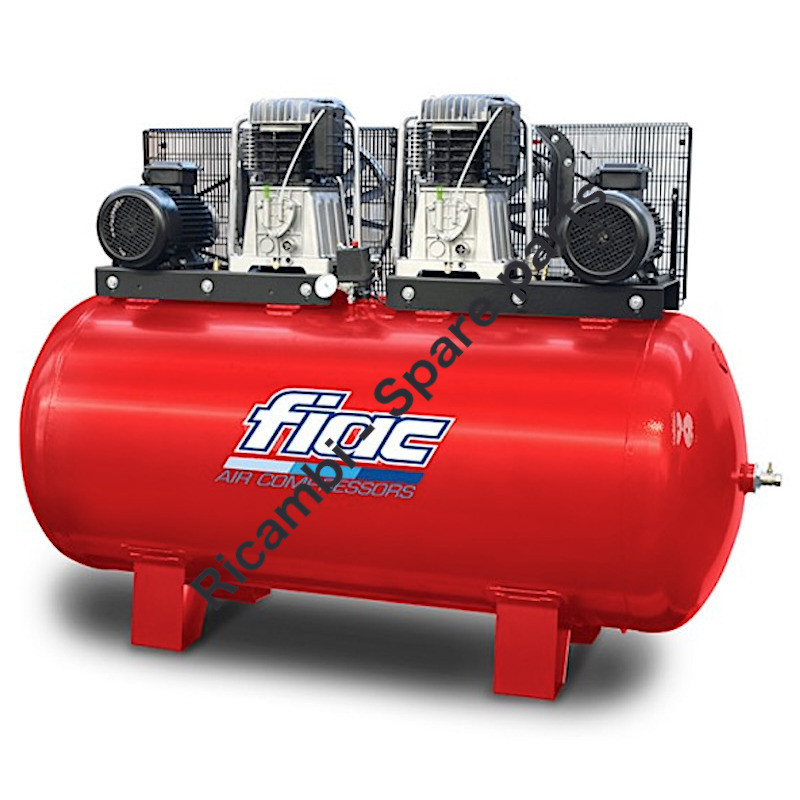

FIAC Spare Parts for Piston Air Compressor ABT 500-996

SKU: Fiac ABT 500-996
€0.11
VAT included

FIAC Spare Parts for Piston Air Compressor ABT 500-996

Fiac Genuine spare parts or replacement parts fo to repair Piston Air Compressor ABT 500-996/1121550951.

FIAC Spare Parts for Piston Air Compressor ABT 500-996
  • Out-of-Stock
  • FIAC Spare Parts for Piston Air Compressor ABT 500-996
  • Fiac ABT 500-996 Drawing
  • Fiac ABT 500-996 Drawing - 1
FIAC spa

FIAC Spare Parts for Piston Air Compressor ABT 500-996

SKU: Fiac ABT 500-996 Condition: New
€0.11
VAT included

FIAC Spare Parts for Piston Air Compressor ABT 500-996

Fiac Genuine spare parts or replacement parts fo to repair Piston Air Compressor ABT 500-996/1121550951.

settings 58 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Air Compressor
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
58 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

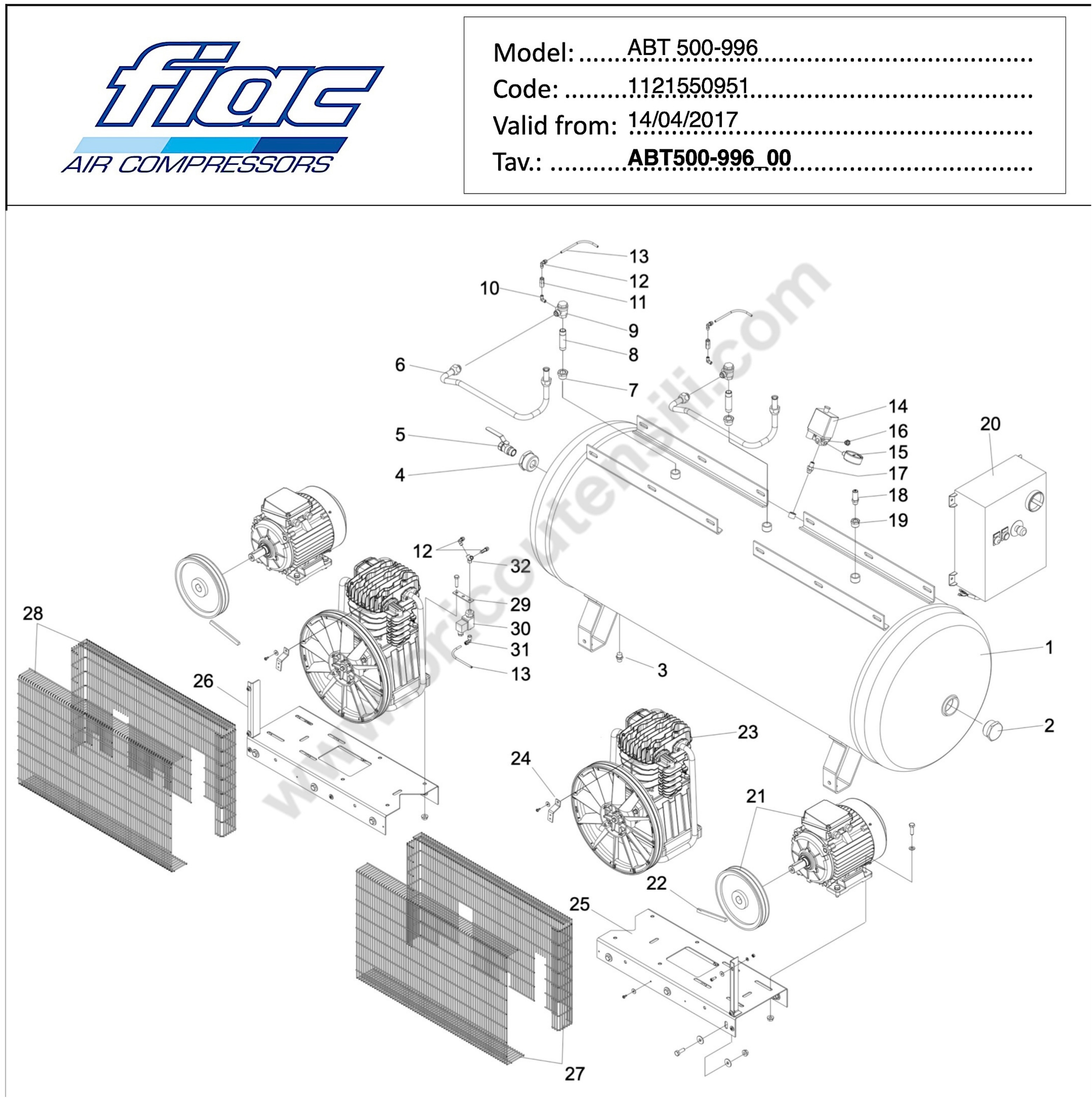

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 7090050000 Plug €22.17
3
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €7.05
4
 FIAC 2'-3/4' MF Reduction Galvanized 7085390000 FIAC 2'-3/4' MF Reduction Galvanized €15.08
5
 TAP 7130460000 TAP €15.30
7
 photo_cameraImage coming soon 7085070000 JOINT €8.03
8
 photo_cameraImage coming soon 7232070000 EXTENSION TUBE €5.99
9
 Check valve FM 1.2 " 7190150000 Check valve FM 1.2 " €26.11
10
 photo_cameraImage coming soon 7080070000 JOINT €4.92
11
 photo_cameraImage coming soon 7191010000 RETAINING VALVE €8.03
12
 photo_cameraImage coming soon 7080560000 Joint €7.46
13
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €2.57
14
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €24.81
15
 photo_cameraImage coming soon 7110250000 PRESSURE GAUGE €31.00
16
 photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
17
 photo_cameraImage coming soon 7082040000 Fitting 1/4 M €11.86
18
 FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €6.65
21
 photo_cameraImage coming soon 4151330000 KIT €567.36
22
 Belt for Air Compressors FIAC AB 300-480-550 7370230000 Belt for Air Compressors FIAC AB 300-480-550 €18.14
23
 Pumping Unit for air Compressor Mod. AB 598 1123020158 Pumping Unit for air Compressor Mod. AB 598 €703.72
24
 photo_cameraImage coming soon 1127450619 BELT GUARD SUPPORT €17.92
25
 photo_cameraImage coming soon 5010860008 BASE PLATE €164.80
26
 photo_cameraImage coming soon 5010850008 basis €177.37
27
 photo_cameraImage coming soon 4170110000 BELT GUARD KIT €162.01
28
 photo_cameraImage coming soon 4170100000 belt guard Kit €149.04
29
 photo_cameraImage coming soon 7458900000 SUPPORT €7.91
30
 photo_cameraImage coming soon 7194200000 ELECTRIC VALVE €113.37
31
 photo_cameraImage coming soon 7080200000 JOINT €6.51
32
 photo_cameraImage coming soon 7082060000 JOINT €7.23
Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

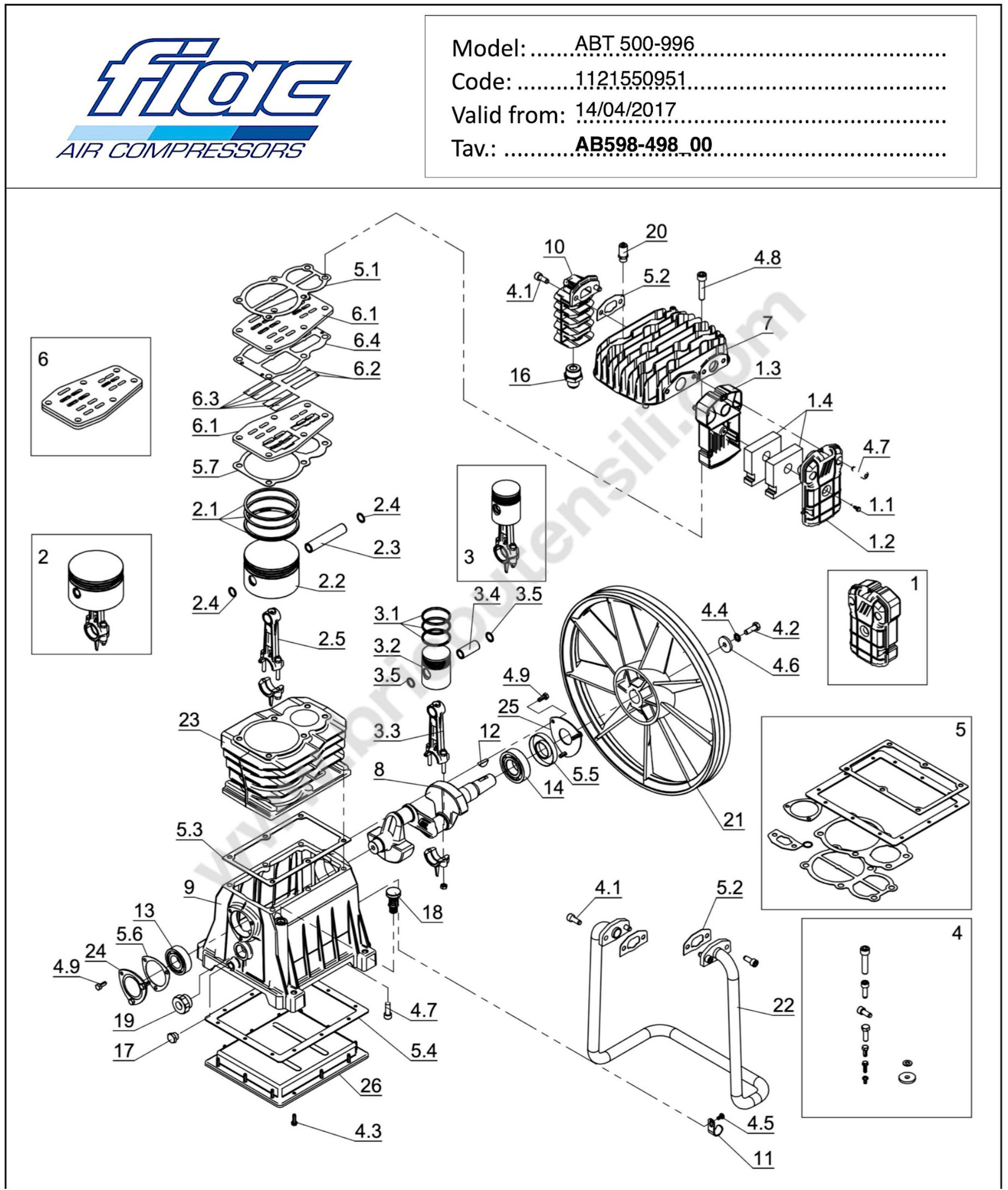

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Fiac AB598 Intake Filter Kit 4080290000 Fiac AB598 Intake Filter Kit €11.60
1.4
 FIAC AB598 Filter Element 7210690000 FIAC AB598 Filter Element €5.06
2.1
 photo_cameraImage coming soon 4080840000 Low pression ring kit €29.00
2
 Fiac AB598 Conrod-Piston Kit LP 4080850000 Fiac AB598 Conrod-Piston Kit LP €69.60
2.5
 photo_cameraImage coming soon 4190190005 High press. Conn.rod €54.01
2.2
 photo_cameraImage coming soon 7220340000 Piston €76.48
3.1
 Piston Rings for Pumping Units FIAC AB 671-AB 851 4080080000 Piston Rings for Pumping Units FIAC AB 671-AB 851 €29.00
3
 Fiac AB598 Conrod-Piston Kit HP 4080860000 Fiac AB598 Conrod-Piston Kit HP €54.13
3.3
 photo_cameraImage coming soon 4190190005 High press. Conn.rod €54.01
3.4
 Piston Pin 18x42 for Pump Unit FIAC AB 550 7050130000 Piston Pin 18x42 for Pump Unit FIAC AB 550 €4.06
3.2
 FIAC AB858 HP Piston 7220120000 FIAC AB858 HP Piston €80.84
4
 photo_cameraImage coming soon 4080920000 Screw kit €21.31
5
 Fiac AB598 Pump Unit Gasket Kit 4082280000 Fiac AB598 Pump Unit Gasket Kit €50.90
6
 Valves Plate Set for Pumping Units FIAC AB AB 450-550-800 4231230000 Valves Plate Set for Pumping Units FIAC AB AB 450-550-800 €69.78
7
 Fiac AB598 Pump Unit Head 5030610008 Fiac AB598 Pump Unit Head €80.78
9
 Fiac AB598 Pump Unit Crankcase 5071020008 Fiac AB598 Pump Unit Crankcase €179.76
10
 Fiac AB598 Aftercooler 5130110008 Fiac AB598 Aftercooler €43.17
11
 photo_cameraImage coming soon 7458910000 band €4.52
12
 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 7051520000 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 €5.77
13
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
14
 photo_cameraImage coming soon 7060150000 bearing 6206 €41.13
16
 photo_cameraImage coming soon 7081190000 Joint €10.05
17
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €17.87
18
 Fiac AB598 Breather Pipe Plug Kit 4086830000 Fiac AB598 Breather Pipe Plug Kit €3.00
20
 Safety Valve M1/4-6 bar for Pumping Units Fiac 7192350000 Safety Valve M1/4-6 bar for Pumping Units Fiac €5.78
21
 Flywheel for Pumping unit Fiac AB 450-550-800 7201050000 Flywheel for Pumping unit Fiac AB 450-550-800 €106.34
22
 Fiac AB598 Intermediate Aftercooler 7232220000 Fiac AB598 Intermediate Aftercooler €50.26
23
 Fiac AB598 Cylinder 7575460000 Fiac AB598 Cylinder €158.53
24
 Fiac AB598 Pump Unit Rear Cover 7650070000 Fiac AB598 Pump Unit Rear Cover €7.18
25
 Fiac AB598 Pump Unit Front Cover 7650080000 Fiac AB598 Pump Unit Front Cover €7.18
26
 Fiac AB598 Crankcase Lover Cover 7650090000 Fiac AB598 Crankcase Lover Cover €39.72

Shipping and delivery information will be available shortly.

FIAC Spare Parts for Piston Air Compressor ABT 500-996

Fiac Genuine spare parts or replacement parts fo to repair Piston Air Compressor ABT 500-996/1121550951.

In the following table, look for the type of the Air Compressor and the respective parts of the code.
Fiac ABT 500-996

Fiac ABT 500-996 - 1121550951
# Part Num. Description
1 5159440008 TANK
2 7090050000 PLUG
3 7130160000 DISCHARGE TAP
4 7085390000 FITTING
5 7130460000 BALL COCK
6 7230660000 INFEED HOSE
7 7085070000 FITTING
8 7232070000 PIPE
9 7190150000 CHECK VALVE
10 7080070000 FITTING
11 7191010000 CHECK VALVE
12 7080560000 FITTING
13 7230010000 RILSAN TUBE
14 7250740000 PRESSURE SWITCH
15 7110250000 PRESSURE GAUGE
16 7090070000 PLUG
17 7082040000 FITTING
18 7192090000 RELIEF VALVE
19 7085010000 FITTING
20 7430630000 ELECTRIC CABINET
21 4151330000 MOTOR/PULLEY KIT
22 7370230000 BELT
23 1123020158 PUMP UNIT
24 1127450619 BELT GUARD SUPPORT
25 5010860008 BASE PLATE
26 5010850008 BASE PLATE
27 4170110000 BELT GUARD KIT
28 4170100000 BELT GUARD KIT
29 7458900000 SUPPORT
30 7194200000 SOLENOID VALVE
31 7080200000 FITTING
32 7082060000 FITTING
33 4080530000 SCREWS KIT
Pag.2
# Part Num. Description
1 4080290000 INTAKE FILTER KIT
1.1. x SCREW
1.2. x FILTER COVER
1.3. x BASE PLATE
1.4 7210690000 FILTER CARTRIDGE
2 4080850000 CON ROD-PISTON KIT
2.1 4080840000 PISTON RING KIT
2.2 7220340000 PISTON
2.3 x GUDGEON PIN
2.4. x SEEGER RING
2.5 4190190005 CONNECTING ROD
3 4080860000 CON ROD-PISTON KIT
3.1 4080080000 PISTON RING KIT
3.2 7220120000 PISTON
3.3 4190190005 CONNECTING ROD
3.4 7050130000 GUDGEON PIN
3.5. x SEEGER RING
4 4080920000 SCREWS KIT
4.1. x SCREW
4.2. x SCREW
4.3. x SCREW
4.4. x WASHER
4.5. x SCREW
4.6. x WASHER
4.7. x SCREW
4.8. x SCREW
4.9. x SCREW
5 4082280000 GASKETS KIT
5.1. x GASKET
5.2. x GASKET
5.3. x GASKET
5.4. x GASKET
5.5. x OIL SEAL
5.6. x GASKET
5.7. x GASKET
6 4231230000 VALVE PLATE
6.1. x PLATE
6.2. x VALVE
6.3. x VALVE
6.4. x GASKET
7 5030610008 HEAD
8 5041490008 CRANKSHAFT
9 5071020008 CRANKCASE
10 5130110008 COOLER
11 7458910000 BRACKET
12 7051520000 FEATHER
13 7060060000 BEARING
14 7060150000 BEARING
16 7081190000 FITTING
17 7090090000 PLUG
18 4086830000 KIT
19 1127180006 OIL LIGHT
20 7192350000 RELIEF VALVE
21 7201050000 FLYWHEEL
22 7232220000 COOLER
23 7575460000 CYLINDER
24 7650070000 COVER
25 7650080000 COVER
26 7650090000 LOWER COVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac ABT 500-996

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Air Compressor
MORE INFO:
[email protected]

Specific References

New

Download

ABT 500-996 Drawing

ABT 500-996 Drawing

Download (1.25MB)
