FIAC spa

FIAC Spare Parts for Piston Air Compressor AB 150-200 510

SKU: Fiac AB150-200 510_05-2003
€75.32
VAT included

FIAC Spare Parts for Piston Air Compressor AB150-200 510

We are FIAC Air Comressors original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor AB150-200 510_05-2003.
FIAC Spare Parts for Piston Air Compressor AB 150-200 510
  • FIAC Spare Parts for Piston Air Compressor AB 150-200 510
  • FIAC Spare Parts for Piston Air Compressor AB 150-200 510
FIAC spa

FIAC Spare Parts for Piston Air Compressor AB 150-200 510

SKU: Fiac AB150-200 510_05-2003 Condition: New
€75.32
VAT included

FIAC Spare Parts for Piston Air Compressor AB150-200 510

We are FIAC Air Comressors original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor AB150-200 510_05-2003.
settings 43 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
40 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

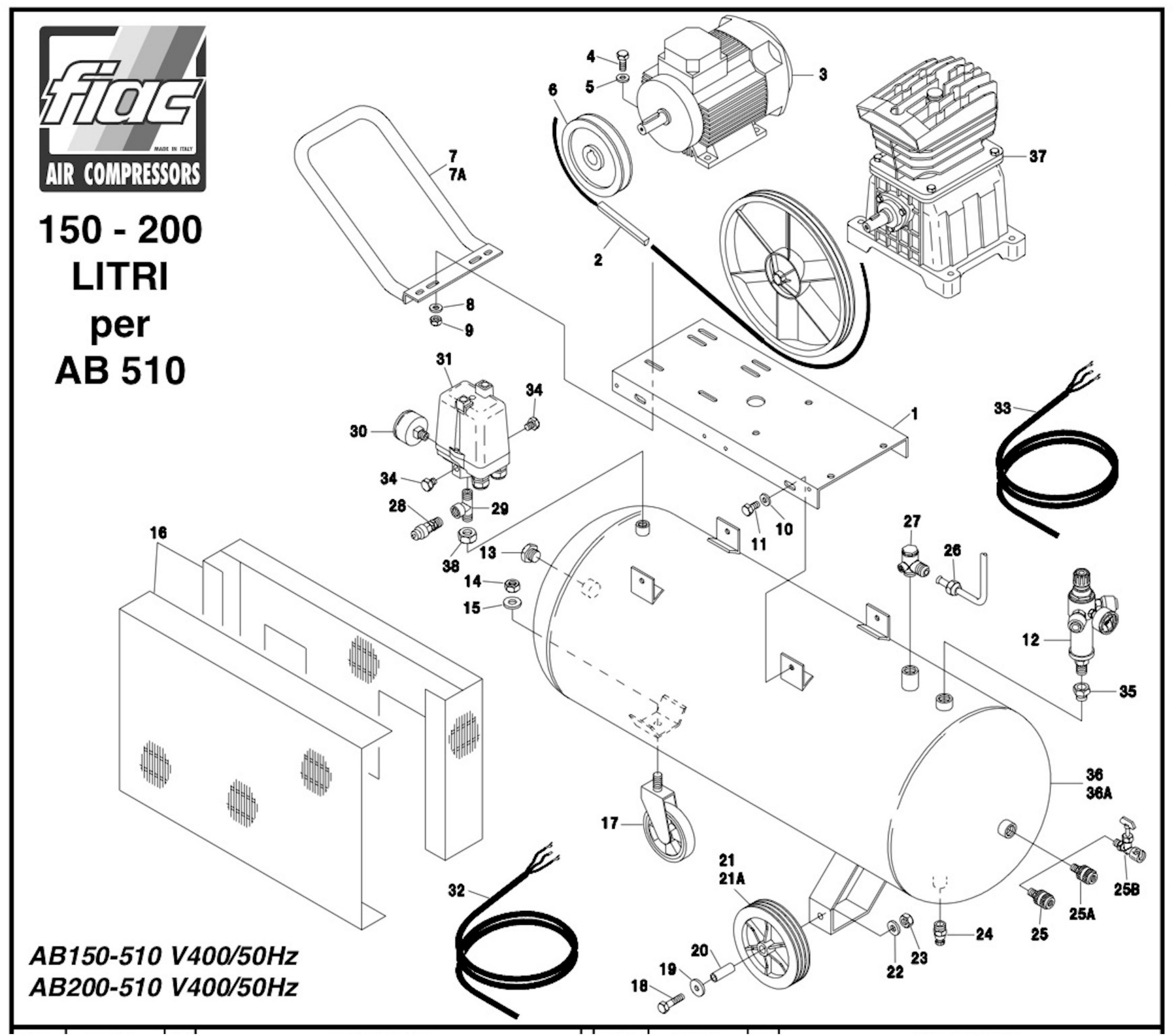

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5010140008 Base - Base €73.14
2
 photo_cameraImage coming soon 7370510000 TRAP BELT. 3V 560 €29.53
3
 photo_cameraImage coming soon 7380840000 Three-phase motor €525.92
4
 photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
5
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
6
 FIAC Pulley 7408580000 DP.170 1-3V F28 7408580000 FIAC Pulley 7408580000 DP.170 1-3V F28 €87.31
7A
 photo_cameraImage coming soon 5140090008 HANDLE €59.03
7
 photo_cameraImage coming soon 5140270008 Handle - Handle (150 Lt.) €44.92
8
 photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
9
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
10
 photo_cameraImage coming soon 7030040000 Washer Ø10 UNI-6592 €1.45
11
 photo_cameraImage coming soon 7011140000 Screw M10x20 UNI-5739 €1.25
12
 Pressure Regulator 950/2 Bayonet-M 1/2''-0/12 Bar 7100690000 Pressure Regulator 950/2 Bayonet-M 1/2''-0/12 Bar €63.19
13
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
15
 photo_cameraImage coming soon 7030140000 Washer Ø12 UNI-6592 €4.23
16
 photo_cameraImage coming soon 4170130000 Belt guard kit €124.60
17
 photo_cameraImage coming soon 7260110000 Wheel pivot Ø80X21 €27.49
18
 photo_cameraImage coming soon 7011230000 Screw M12x80 UNI-5739 €1.72
20
 photo_cameraImage coming soon 7330010000 wheel spacer €4.09
21
 photo_cameraImage coming soon 7260060000 Wheel Ø175X45 F20 €18.53
21
 photo_cameraImage coming soon 7260070000 Wheel - Ruota €20.87
22
 photo_cameraImage coming soon 7030140000 Washer Ø12 UNI-6592 €4.23
24
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
25A
 photo_cameraImage coming soon 7130050000 German type T ap - Rubinetto rapido T ed €14.54
25
 photo_cameraImage coming soon 7130080000 Faucet M1 / 2 " €25.27
25B
 photo_cameraImage coming soon 7130350000 Orion T ap - Rubinetto rapido Orion €14.54
26
 FIAC AB150-200 Infeed Hose 7235230000 FIAC AB150-200 Infeed Hose €25.69
27
 Check Valve 1/2" MM - Left for Air Compressors 7190190000 Check Valve 1/2" MM - Left for Air Compressors €27.64
28
 photo_cameraImage coming soon 7192050000 Valve Sic. M3/8 to 10.5 Bar €21.10
29
 A fitting "T" 8.3 MFM 7082690000 A fitting "T" 8.3 MFM €13.84
30
 FIAC Manometer for Air Compressor AB300 7110060000 FIAC Manometer for Air Compressor AB300 €21.31
31
 FIAC Pressure Switch MDR3 EA11 4-6,3A 7250490000 FIAC Pressure Switch MDR3 EA11 4-6,3A €103.54
32
 photo_cameraImage coming soon 7328690000 Cable Pressure Switch / Motor €28.67
33
 photo_cameraImage coming soon 7328700000 power cable €30.04
34
 photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
35
 Joint 1/2"F-3/8"M for Air Compressor Fiac AB300/515 7085460000 Joint 1/2"F-3/8"M for Air Compressor Fiac AB300/515 €7.48
36A
 photo_cameraImage coming soon 5159170008 Serbatoio 200lt €612.66
36
 photo_cameraImage coming soon 5159670008 Serbatoio 150lt €564.46
37
 photo_cameraImage coming soon 3020400000 PUMPING UNIT AB 510 Substituited by AB515 1123020004 €351.02
38
 Fiac Locking Nut 3/8" 7023050000 Fiac Locking Nut 3/8" €6.42

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor AB150-200 510

We are FIAC Air Comressors original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Air Compressor AB150-200 510_05-2003.

In the following table, look for the type of the air compressor and the respective parts of the code .
Fiac AB 150-200 510_05-2003

Air Compressor AB150-200 510_05-2003
# Part Num. Description
1 5010140008 Base - Base
2 7370510000 Belt - Cinghia
3 7380840000 3HP Electric Motor V400/50Hz - Motore Elettrico HP3 V400/50Hz
4 7011100000 Screw - Vite
5 7030030000 Washer - Rondella
6 7408580000 Pulley - Puleggia
7 5140270008 Handle - Manico (150 Lt.)
7A 5140090008 Handle - Manico (200 Lt.)
8 7030030000 Washer - Rondella ø8 UNI 6592
9 7020070000 Nut - Dado M8 UNI 5587
10 7030040000 Washer - Rondella ø10 UNI 6592
11 7011140000 Screw - Vite T.E. M10x20 UNI 5739
12 7100690000 Pressure reducer - Riduttore di pressione
13 7090030000 Plug - T appo
14 7020100000 Nut - Dado M12 UNI 5588
15 7030140000 Washer - Rondella ø12 UNI 6592
16 4170130000 Belt guard Kit - Kit paracinghia
17 7260110000 Wheel - Ruota
18 7011230000 Screw - Vite T.E. M12x80 UNI 5737
19 7030200000 Washer - Rondella ø12 UNI 6593
20 7330010000 Spacer Wheel - Distanziale ruota
21 7260060000 Wheel - Ruota (150 Lt.)
21A 7260070000 Wheel - Ruota (200 Lt.)
22 7030140000 Washer - Rondella ø12 UNI 6592
23 7020100000 Nut - Dado M12 UNI 5588
24 7130160000 Discharge tap - Rubinetto spurgo 3/8" G
25 7130080000 T ap - Rubinetto
25A 7130050000 German type T ap - Rubinetto rapido T ed
25B 7130350000 Orion T ap - Rubinetto rapido Orion
26 7235230000 Infeed tube - Tubo alimentazione
27 7190190000 Non return valve - Valvola ritegno 1/2" MM Left
28 7192050000 Safety valve - Valvola di sicurezza
29 7082690000 Joint - Raccordo
30 7110060000 Pressure gauge - Manometro
31 7250490000 Pressure switch - Pressostato
32 7328690000 Pressure switch/Electric motor cable - Cavo Pressostato/Motore
33 7328700000 Infeed cable - Cavo alimentazione
34 7090070000 Plug - T appo
35 7085460000 Joint - Raccordo (200 Lt.)
36 5159670008 Tank - Serbatoio (150 Lt.)
36A 5159170008 Tank - Serbatoio (200 Lt.)
37 3020400000 Pump unit - Gruppo pompante Substituited by AB515 1123020004
38 7023050000 Blocking nut - Controdado
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB150-200 510_05-2003
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Drawing Fiac AB 150-200 510

Drawing Fiac AB 150-200 510

Download (407.73KB)
