FIAC spa

FIAC Spare Parts for Pump Unit AB 550 1123020052

SKU: Fiac AB550 - 1123020052
€71.21
VAT included

FIAC Spare Parts for Pump Unit AB 550 1123020052

Genuine Parts FIAC for piston Air Compressors and spare parts for to repair components for Pump Unit AB 550 2001-05-2003 1123020052.
FIAC Spare Parts for Pump Unit AB 550 1123020052
  • FIAC Spare Parts for Pump Unit AB 550 1123020052
  • FIAC Spare Parts for Pump Unit AB 550 1123020052
FIAC spa

FIAC Spare Parts for Pump Unit AB 550 1123020052

SKU: Fiac AB550 - 1123020052 Condition: New
€71.21
VAT included

FIAC Spare Parts for Pump Unit AB 550 1123020052

Genuine Parts FIAC for piston Air Compressors and spare parts for to repair components for Pump Unit AB 550 2001-05-2003 1123020052.
settings 74 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
60 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

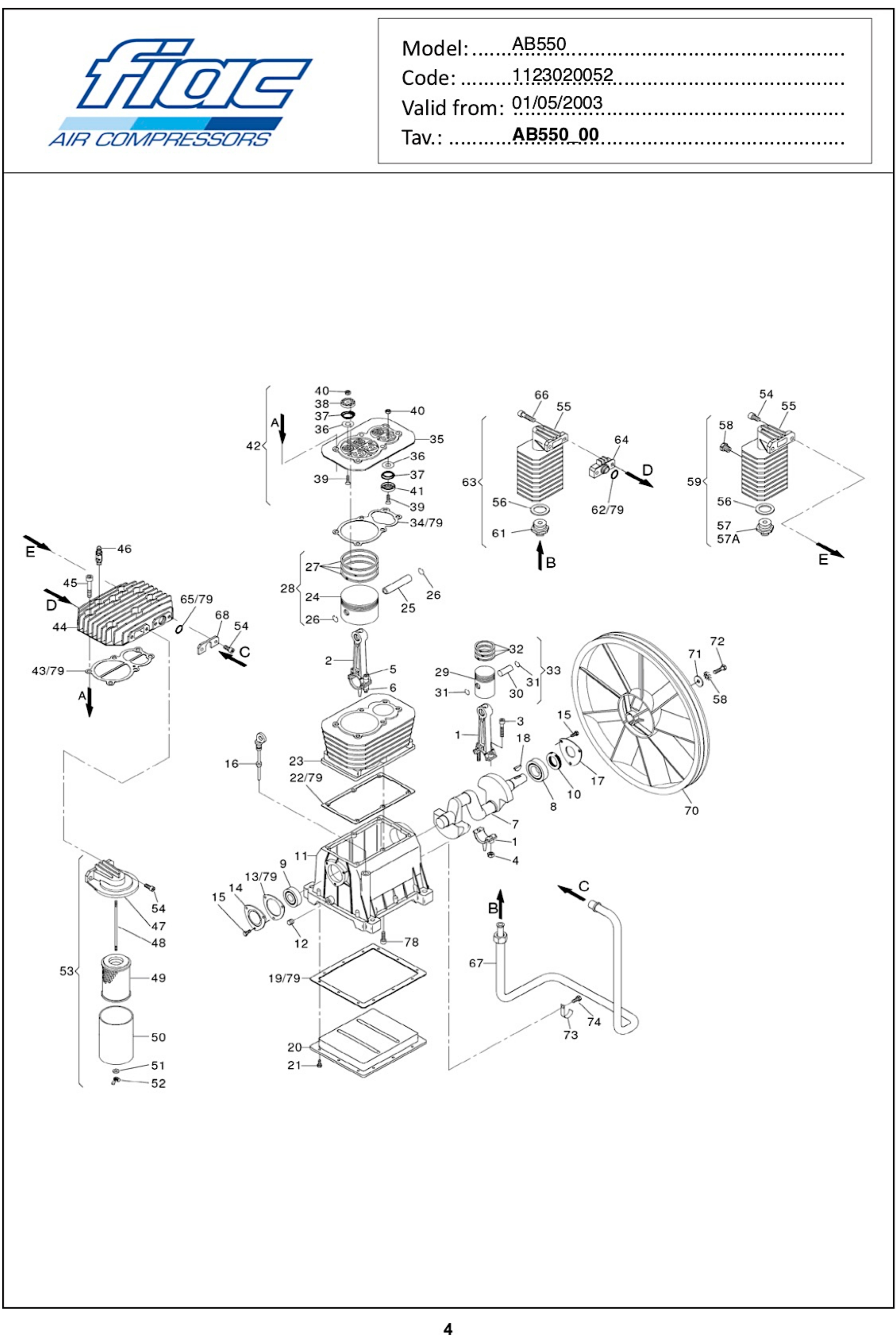

Esploso pagina 1
Pos. Item Price Buy
1
 Conrod for Pumping unit FIAC AB450-550-800 - A/P 4190190008 Conrod for Pumping unit FIAC AB450-550-800 - A/P €71.22
2
 Conrod for Pumping unit FIAC AB450-550-800 - B/P 4190200008 Conrod for Pumping unit FIAC AB450-550-800 - B/P €19.06
4
 photo_cameraImage coming soon 7022040000 Nut M8 DIN-980 €1.52
5
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
7
 Crankshaft for Pump Unit FIAC AB 550 5041030008 Crankshaft for Pump Unit FIAC AB 550 €182.91
8
 photo_cameraImage coming soon 7060150000 bearing 6206 €41.13
9
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
10
 Fiac AB550 Oil Seal 3062/10 7071060000 Fiac AB550 Oil Seal 3062/10 €8.58
11
 Fiac AB598 Pump Unit Crankcase 5071020008 Fiac AB598 Pump Unit Crankcase €179.76
12
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
13
 Fiac AB550 Rear Cover Gasket 7079160000 Fiac AB550 Rear Cover Gasket €1.48
14
 Fiac AB598 Pump Unit Rear Cover 7650070000 Fiac AB598 Pump Unit Rear Cover €7.18
15
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
16
 photo_cameraImage coming soon 7181100000 Dipstick €12.54
17
 Fiac AB598 Pump Unit Front Cover 7650080000 Fiac AB598 Pump Unit Front Cover €7.18
18
 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 7051520000 Flywheel Woodruf Metric Key for Pumping Unit FIAC AB 598-678-858-998 €10.13
19
 Fiac AB550 Cranckcase Cover Gasket 7079190000 Fiac AB550 Cranckcase Cover Gasket €9.91
20
 Fiac AB598 Crankcase Lover Cover 7650090000 Fiac AB598 Crankcase Lover Cover €39.72
22
 Fiac AB598 Crankcase-Cylinder Gasket 7079150000 Fiac AB598 Crankcase-Cylinder Gasket €14.38
23
 photo_cameraImage coming soon 7575260000 cylinder €134.15
24
 photo_cameraImage coming soon 7220110000 piston €116.39
25
 photo_cameraImage coming soon 7050120000 Piston pin 16x84 €13.14
27
 Piston Rings for Pumping Unit FIAC AB 450 - 550 - 800 4080100000 Piston Rings for Pumping Unit FIAC AB 450 - 550 - 800 €60.07
28
 photo_cameraImage coming soon 4291080000 Piston kit 95 €181.54
29
 FIAC AB858 HP Piston 7220120000 FIAC AB858 HP Piston €80.84
30
 Piston Pin 18x42 for Pump Unit FIAC AB 550 7050130000 Piston Pin 18x42 for Pump Unit FIAC AB 550 €10.67
31
 photo_cameraImage coming soon 7040140000 Seeger Ø18 UNI-7437 €4.48
32
 Piston Rings for Pumping Units FIAC AB 671-AB 851 4080080000 Piston Rings for Pumping Units FIAC AB 671-AB 851 €40.68
33
 photo_cameraImage coming soon 4291090000 Piston kit 52 €130.21
34
 Cylinder Plate Gasket for Pumping Units FIAC AB 450-550-800 7079170000 Cylinder Plate Gasket for Pumping Units FIAC AB 450-550-800 €26.63
35
 Genuine FIAC Valve Plate for AB 550 - 450 - 800 Compressors 4231100000 Genuine FIAC Valve Plate for AB 550 - 450 - 800 Compressors €155.92
39
 photo_cameraImage coming soon 7014140000 Screw €4.23
43
 Head-Plate Gasket for Pumping Unit FIAC AB 550 7079180000 Head-Plate Gasket for Pumping Unit FIAC AB 550 €30.09
44
 photo_cameraImage coming soon 5030530008 head €124.28
46
 Safety Valve M1/4-6 bar for Pumping Units Fiac 7192350000 Safety Valve M1/4-6 bar for Pumping Units Fiac €13.02
47
 photo_cameraImage coming soon 5130020008 collector €15.51
49
 Air Filter for Pump Unit AB 450-550-800 7210240000 Air Filter for Pump Unit AB 450-550-800 €15.49
51
 photo_cameraImage coming soon 7031030000 Washer Ø6 UNI-3703 €1.52
52
 photo_cameraImage coming soon 7024150000 A nut M6 GALLETTO €1.52
53
 Complete Air Filter Holder for Pumping Units Fiac AB 450-550-800 4250020000 Complete Air Filter Holder for Pumping Units Fiac AB 450-550-800 €46.42 Not available for order
54
 photo_cameraImage coming soon 7010050000 Screw M8X20 UNI-5931 €1.52
55
 Fiac Pumping Unit AB 678 Aftercooler 5130010008 Fiac Pumping Unit AB 678 Aftercooler €41.59
57
 photo_cameraImage coming soon 5131000008 junction €23.60
57A
 photo_cameraImage coming soon 7085580000 Fitting 1 X1 / 2 €27.55
58
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
59
 photo_cameraImage coming soon 4251080000 Kit cooler €65.06
60
 photo_cameraImage coming soon 7079100000 Gasket €4.05
61
 photo_cameraImage coming soon 7081220000 Joint €46.30
62
 O-Ring 18.77X1.78 for Air Compressor Units Fiac AB 450 - 550 - 800 7070120000 O-Ring 18.77X1.78 for Air Compressor Units Fiac AB 450 - 550 - 800 €2.74
63
 photo_cameraImage coming soon 4251060000 Kit cooler €89.74
64
 photo_cameraImage coming soon 7458430000 adapter €12.15
65
 O-Ring 17.12 X 2.62 for Air Compressors Unit Fiac AB 450 - 550 - 800 7070260000 O-Ring 17.12 X 2.62 for Air Compressors Unit Fiac AB 450 - 550 - 800 €4.37
67
 Fiac AB550 Cooler Pipe 7230700000 Fiac AB550 Cooler Pipe €81.26
68
 photo_cameraImage coming soon 7458420000 plate €6.04
70
 Flywheel for Pumping unit Fiac AB 450-550-800 7201050000 Flywheel for Pumping unit Fiac AB 450-550-800 €193.41
71
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
72
 photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
73
 photo_cameraImage coming soon 7043050000 Stirrup €4.00
78
 photo_cameraImage coming soon 7010090000 Screw M8X25 UNI-5931 €2.22
79
 Gaskets Set for Air Compressors Pump Unit Fiac AB550 4082550000 Gaskets Set for Air Compressors Pump Unit Fiac AB550 €76.21

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit AB 550 1123020052

Genuine Parts FIAC for piston Air Compressors and spare parts for to repair components for Pump Unit AB 550 2001-05-2003 1123020052.

In the following table, look for the model of the pumping unit and the respective parts code.
Fiac AB550 - 1123020052

FIAC AB 550 2001-05-2003 1123020052
# Part Num. Description
1 4190190008 HIGHT PRESSURE CONROD
2 4190200008 LOW PRESSURE CONROD
3 7011680000 SCREW T.E. M8X45 UNI5737
4 7022040000 SELF-LOCKING NUT M8 DIN980
5 7011220000 SCREW T.E. M6X40 UNI 5737
6 7022030000 SELF-LOCKING NUT
7 5041030008 CRANKSHAFT
8 7060150000 BEARING 6206
9 7060060000 BEARING 6205
10 7071060000 OIL SEAL SMIM 32X62X10
11 5071020008 CARTER
12 7090090000 PLUG M1 / ​​4 - BRASS
13 7079160000 GASKET
14 7650070000 CRACKCASE REAR COVER
15 7011460000 SCREW M6 × 16
16 7181100000 DIPSTICK
17 7650080000 CRANCKCASE FRONT COVER
18 7051520000 KEY 6X9
19 7079190000 GASKET
20 7650090000 LOWER COVER
21 7011440000 SCREW M5X18 UNI 8111
22 7079150000 GASKET
23 7575260000 CYLINDER
24 7220110000 PISTON LOWER PRESSION
25 7050120000 PIN
26 7040130000 RING
27 4080100000 PISTON RING KIT LOWER PRESSION
28 4291080000 PISTON GROUP LOWER PRESSION
29 7220120000 PISTON
30 7050130000 PISTON PIN Ø18
31 7040140000 SEEGER Ø18 UNI-7437
32 4080080000 PISTON RING SET HP
33 4291090000 PISTON GROUP HIGH PRESSION
34 7079170000 CYLINDER PLATE GASKET
35 4231100000 VALVE PLATE KIT - EX 4231230000 NEW 1124230123
36 7199100000 FLAP VALVE
37 7160160000 SPRING
38 7458920000 VALVE GUIDE
39 7014140000 SCREW T.S.C.E. M6X22 UNI5933
40 7022030000 SELF-LOCKING NUT
41 7458930000 VALVE GUIDE
42 4231100000 VALVE PLATE GROUP - EX 4231230000 NEW 1124230123
43 7079180000 HEAD PLATE GASKET
44 5030530008 HEAD
45 7010430000 SCREW
46 7192350000 SAFETY VALVE M1 / ​​4-6BAR
47 5130020008 MANIFOLD
48 7015150000 ROD
49 7210240000 FILTER
50 7210250000 FILTER CASE - DISCONTINUED - BUY 4250020000
51 7031030000 WASHER Ø6 UNI3703
52 7024150000 NUT M6 UNI5448 / 71
53 4250020000 FILTER CASE ASSEMBLY
54 7010050000 SCREW T.C.C.E. M8X20 UNI5931
55 5130010008 COOLER
56 7079090000 SEAL
57 5131000008 FITTING
58 7031010000 TOOTHER WASHER
59 4251080000 REFRIGERATOR GROUP
60 7079100000 SEAL
61 7081220000 FITTING
57A 7085580000 FITTING (FOR SA)
62 7070120000 RING OR 2075
63 4251060000 REFRIGERATOR GROUP
64 7458430000 ADAPTER
65 7070260000 RING OR 3068 NBR 70SH
66 7010070000 SCREW T.C.C.E. M8X40 UNI5931
67 7230700000 REFRIGERATOR PIPE
68 7458420000 PLATE
70 7201050000 THEY FLY
71 7030270000 WASHER 8.5 × 30 × 4
72 7011100000 SCREW
73 7043050000 BRACKET
74 7012280000 SCREW M5X10 - UNI8112
78 7010090000 SCREW TCEI M8X25 - UNI5931
79 4082550000 GASKETS KIT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB550 - 1123020052
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Fiac AB 550

Drawing Fiac AB 550

Download (431.97KB)
