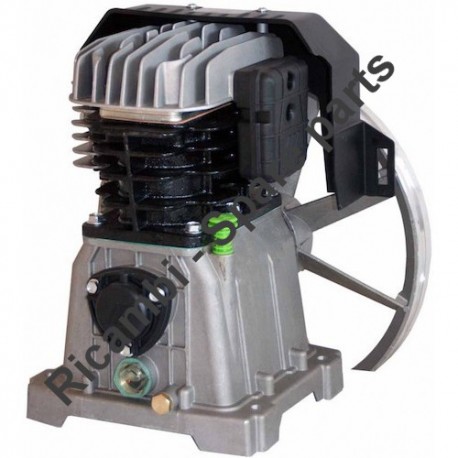

FIAC Spare Parts for Pump Unit AB 515 1123020017-2013

SKU: Fiac AB515 - 1123020017
€24.04
VAT included

FIAC Spare Parts for Pump Unit AB 515 1123020017-2013

FIAC Genuine Spare Parts or replacements parts for to repair components for piston Air Compressors Pump Unit AB 515 1123020017-2013.

FIAC Spare Parts for Pump Unit AB 515 1123020017-2013
  • FIAC Spare Parts for Pump Unit AB 515 1123020017-2013
  • FIAC Spare Parts Drawing for Pump Unit AB 515 1123020017-201
FIAC spa

FIAC Spare Parts for Pump Unit AB 515 1123020017-2013

SKU: Fiac AB515 - 1123020017 Condition: New
€24.04
VAT included

FIAC Spare Parts for Pump Unit AB 515 1123020017-2013

FIAC Genuine Spare Parts or replacements parts for to repair components for piston Air Compressors Pump Unit AB 515 1123020017-2013.

settings 27 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Pump
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
27 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

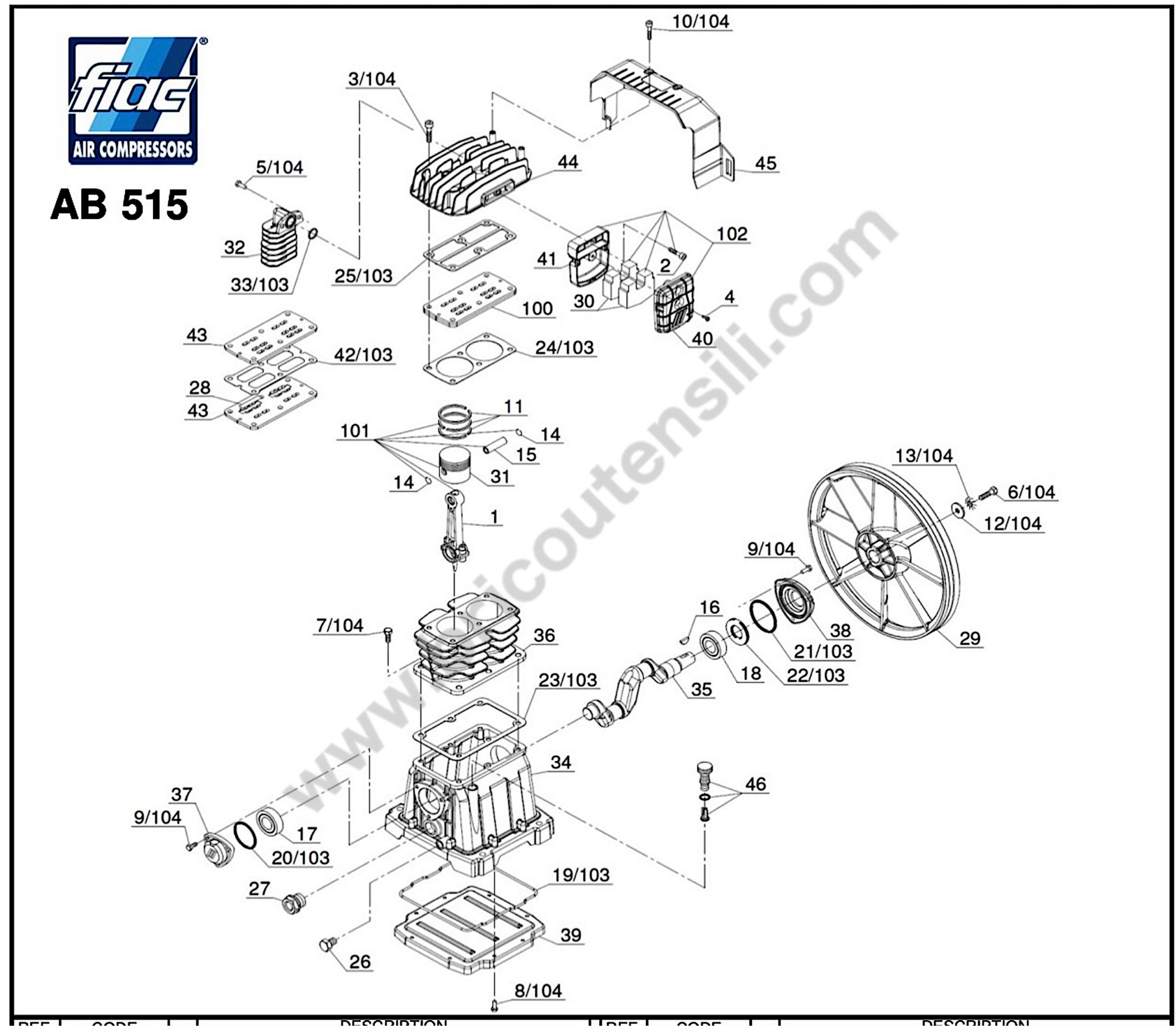

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Connecting Rod for Pump Unit Fiac AB 415 9105450240 Connecting Rod for Pump Unit Fiac AB 415 €16.04
11
 FIAC Pump Unit AB415 Piston Ring Kit 4080070000 FIAC Pump Unit AB415 Piston Ring Kit €31.90
14
 photo_cameraImage coming soon 7041410000 Seeger 15 €0.49 Not available for order
15
 photo_cameraImage coming soon 7050110000 Pin 015X55 €4.23 Not available for order
16
 FIAC Woodruf Metric Key 5x7,5 7051510000 FIAC Woodruf Metric Key 5x7,5 €3.42 Not available for order
17
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31 Not available for order
18
 photo_cameraImage coming soon 7060150000 bearing 6206 €29.13 Not available for order
26
 photo_cameraImage coming soon 1127090009 Plug €3.00
27
 photo_cameraImage coming soon 1127180006 Oil level gauge €0.11 Not available for order
29
 Flywheel for Pumping unit Fiac AB 410-510-512 7201010000 Flywheel for Pumping unit Fiac AB 410-510-512 €76.36
31
 FIAC Pump Unit AB415 Piston D.65MM 7220090000 FIAC Pump Unit AB415 Piston D.65MM €30.23
31A
 FIAC Pump Unit AB415 Piston Kit 9700002940 FIAC Pump Unit AB415 Piston Kit €31.97
32
 photo_cameraImage coming soon 9100270270 Aftercooler €6.93
34
 photo_cameraImage coming soon 9105450010 Crankcase €102.81 Not available for order
35
 Crankshaft for Pump Unit Fiac AB 415 9105450250 Crankshaft for Pump Unit Fiac AB 415 €61.19 Not available for order
36
 photo_cameraImage coming soon 9105450060 Cylinder €107.55 Not available for order
37
 FIAC Pump Unit AB415 Front Cover 9105450070 FIAC Pump Unit AB415 Front Cover €6.38 Not available for order
38
 Fiac AB415 Rear Cover 9105450080 Fiac AB415 Rear Cover €7.79 Not available for order
39
 photo_cameraImage coming soon 9105450090 Carter cover €14.32 Not available for order
44
 Fiac AB415 Head 9105450180 Fiac AB415 Head €44.88
45
 FIAC AB415-425-525 Air Conveyor 7153140000 FIAC AB415-425-525 Air Conveyor €7.05
46
 Oil Filler Neck Komplett for Pump Units FIAC 9700001377 Oil Filler Neck Komplett for Pump Units FIAC €3.00
100
 photo_cameraImage coming soon 4231260000 Valve plate kit €52.35
101
 photo_cameraImage coming soon 4291070000 Piston kit €69.97
102
 Air Filter Kit for Pump Unit Fiac AB 415 4250130000 Air Filter Kit for Pump Unit Fiac AB 415 €66.82
103
 FIAC Pump Unit AB415 Gaskets Kit 4081990000 FIAC Pump Unit AB415 Gaskets Kit €41.09
104
 photo_cameraImage coming soon 4080480000 Screw kit €16.99 Not available for order

Shipping and delivery information will be available shortly.

FIAC Spare Parts for Pump Unit AB 515 1123020017-2013

FIAC Genuine Spare Parts or replacements parts for to repair components for piston Air Compressors Pump Unit AB 515 1123020017-2013.
In the following table, look for the model of the pumping unit and the respective parts code.
piston Air Compressors Pump Unit AB 515 1123020017-2013

PUMP UNIT FIAC AB 515 1123020017-2013
# Part Num. Description
1 9105450240 Connecting rod AB415
2 X Screw
3 X Screw
4 X Screw
5 X Screw
6 X Screw
7 X Screw
8 X Screw
9 X Screw
10 X Screw
11 4080070000 Piston rings kit
12 x Washer
13 x Washer
14 7041410000 Internal snapring
15 7050110000 Piston pin
16 7051510000 Key Round 5x7,5
17 7060060000 Bearing
18 7060150000 Bearing
19 X O-ring
20 X O-ring
21 X O-ring
22 X Oil seal
23 X Gasket
24 X Gasket
25 X Gasket
26 1127090009 Plug
27 1127180006 Oil level gauge
28 x Valve
29 7201010000 Flywheel Volano
30 x Filtering element
31 7220090000 Piston 65MM
31A 9700002940 Piston Kit AB415 - AB515
32 9100270270 Aftercooler
33 x O-ring
34 9105450010 Crankcase
35 9105450250 Crankshaft
36 9105450060 Cylinder
37 9105450070 Front cover
38 9105450080 Rear cover
39 9105450090 Carter cover
40 X Filter cover
41 X Filter support
42 X Gasket
43 X Valve plate
44 9105450180 Head
45 7153140000 Conveyor
46 9700001377 Oil Filler Neck Komplett
100 4231260000 Valve plate Kit
101 4291070000 Con rod/Piston Kit
102 4250130000 Intake filter kit
103 4081990000 Gaskets kit
104 4080480000 Screw kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB515 - 1123020017
6 Items

Data sheet

Machine Type
Pump
MORE INFO:
[email protected]
SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

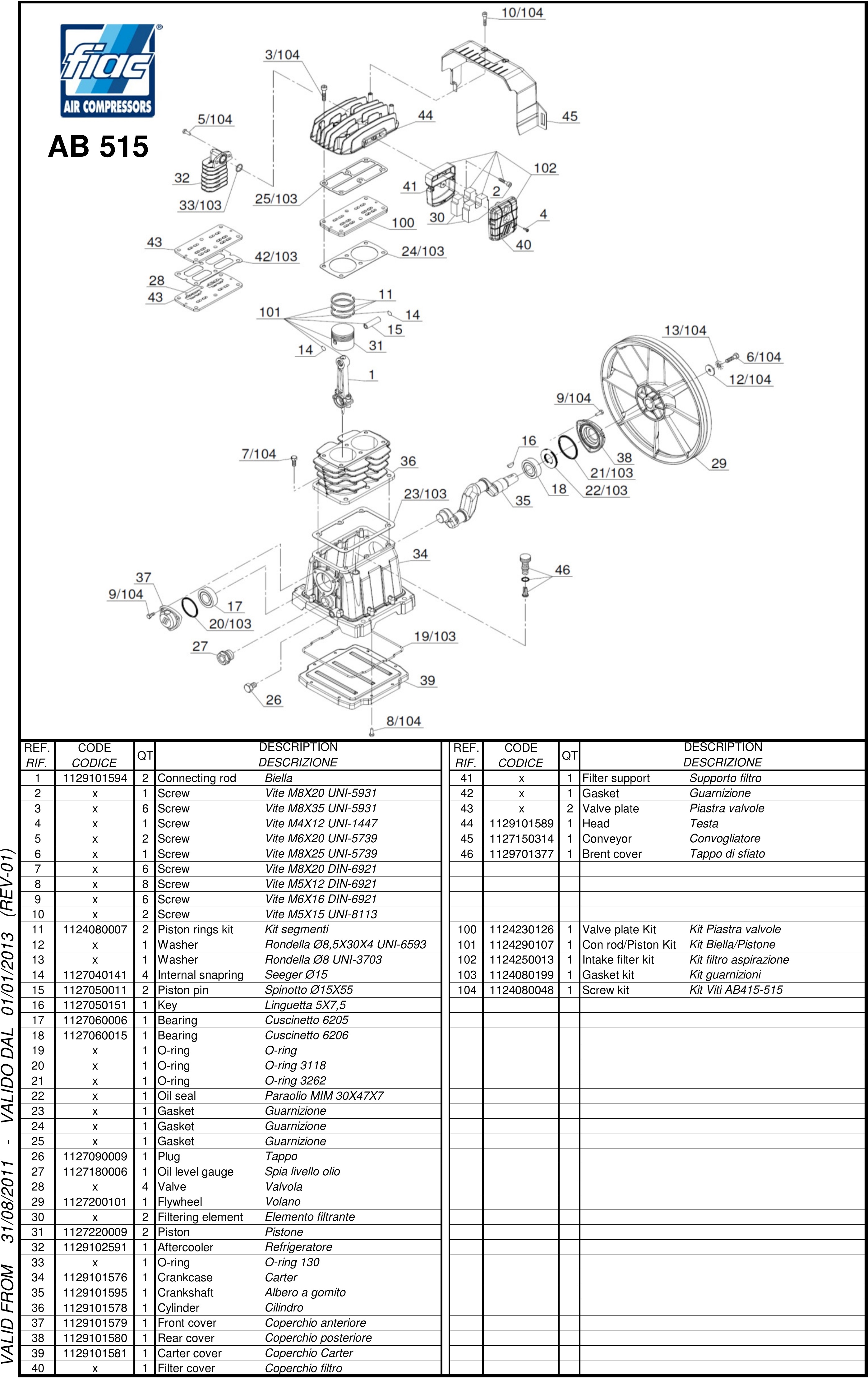

Fiac AB 515 Parts Drawing

Fiac AB 515 Parts Drawing

Download (758.84KB)
