FIAC Spare Parts for Piston Air Compressor AB300/510

SKU: FIAC AB300/510
€103.53
VAT included

FIAC Spare Parts for Piston Air Compressor AB300/510

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB300/510.
FIAC Spare Parts for Piston Air Compressor AB300/510
  • FIAC Spare Parts for Piston Air Compressor AB300/510
  • FIAC Spare Parts for Piston Air Compressor AB300/510

FIAC Spare Parts for Piston Air Compressor AB300/510

SKU: FIAC AB300/510 Condition: New
€103.53
VAT included

FIAC Spare Parts for Piston Air Compressor AB300/510

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB300/510.
settings 30 spare parts

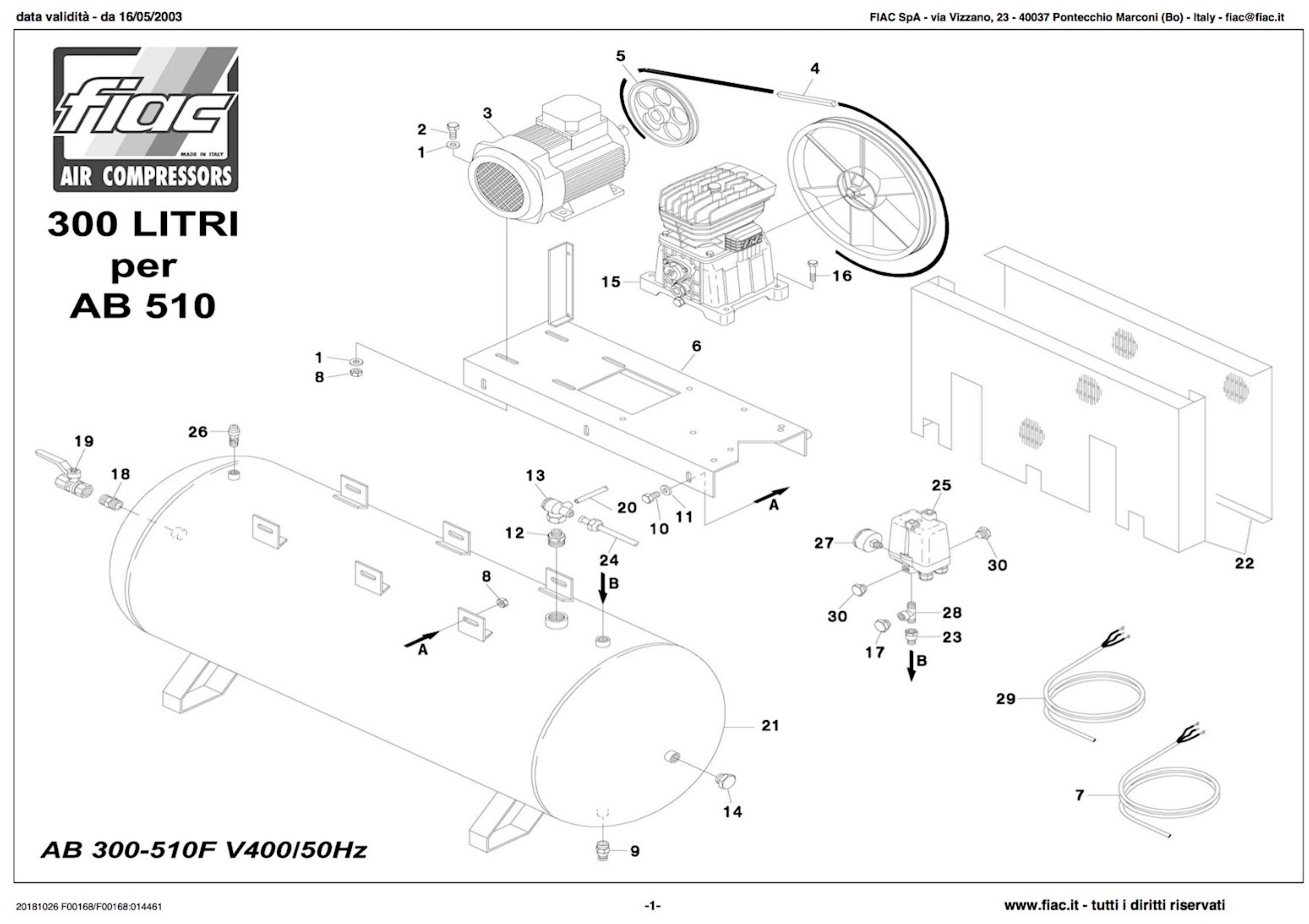

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

29 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
Kit Adjustment for AB 515 - 300LT. for Pump Unit Fiac AB510 300LT. 3030050000 Kit Adjustment for AB 515 - 300LT. for Pump Unit Fiac AB510 300LT. €64.57
1
photo_cameraImage coming soon 7030040000 Washer Ø10 UNI-6592 €1.45
2
photo_cameraImage coming soon 7011170000 Screw M10x35 UNI-5739 €1.44
3
photo_cameraImage coming soon 7380840000 Three-phase motor €525.92
4
FIAC V-Belt 3V 630 7370120000 FIAC V-Belt 3V 630 €11.73
5
FIAC Pulley 7408580000 DP.170 1-3V F28 7408580000 FIAC Pulley 7408580000 DP.170 1-3V F28 €87.31
6
photo_cameraImage coming soon 5010460008 BASE €220.76
7
photo_cameraImage coming soon 7328690000 Cable Pressure Switch / Motor €28.67
9
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
10
photo_cameraImage coming soon 7011160000 Screw M10x30 UNI-5739 €1.52
12
photo_cameraImage coming soon 7085030000 Joint €9.72
13
Check Valve F-M 1/2''-1/2'' for Air Compressors 7190010000 Check Valve F-M 1/2''-1/2'' for Air Compressors €27.64
14
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
15
photo_cameraImage coming soon 3020400000 PUMPING UNIT AB 510 Substituited by AB515 1123020004 €351.02
16
photo_cameraImage coming soon 7011120000 Screw M10x45 UNI-5739 €1.44
17
photo_cameraImage coming soon 7090080000 Stopper M3 / 8 " €1.50
18
photo_cameraImage coming soon 7081170000 Fitting 1/2 " €4.72
19
photo_cameraImage coming soon 7130150000 MF ball valve 1/2 " €23.60
20
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
21
photo_cameraImage coming soon 5159180008 Tank €1,327.10
22
photo_cameraImage coming soon 4170050000 Belt guard kit €199.42
23
photo_cameraImage coming soon 7085020000 Fitting 1/2 "-3 / 8" MF €10.12
24
photo_cameraImage coming soon 7235240000 Infeed hose €29.73
25
photo_cameraImage coming soon 1127250049 Pressure switch AB510 MDR3 EA11 4-6,3A ex 7250490000 €100.52
26
FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
27
FIAC Manometer for Air Compressor AB300 7110060000 FIAC Manometer for Air Compressor AB300 €21.31
28
photo_cameraImage coming soon 7082690000 A fitting "T" 8.3 MFM €13.84
29
photo_cameraImage coming soon 7328700000 power cable €30.04
30
photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor AB300/510

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type Air Compressor AB300/510.

In the following table, look for the type of the air compressor and the respective parts of the code .
Air Compressor AB300/510

Air Compressor AB300/510
# Part Num. Description
1 7030040000 Washer
2 7011170000 Screw
3 7380840000 Three phase Motor
4 7370120000 Belt
5 7408580000 Pulley
6 5010460008 Base
7 7328690000 Pres.switch/Motor cable
8 7020250000 Nut
9 7130160000 Discharge tap
10 7011160000 Screw
11 7030040000 Washer
12 7085030000 Joint
13 7190010000 Non return valve
14 7090030000 Tank plug
15 3020400000 Pump unit Substituited by AB515 1123020004
3030050000 Kit Adjustment for AB 515 - 300LT. for Pump Unit Fiac AB510 300LT.
16 7011120000 Screw
17 7090080000 Plug
18 7081170000 Joint
19 7130150000 Tap
20 7230010000 Rilsan hose
21 5159180008 Tank
22 4170050000 Belt guard kit
23 7085020000 Joint
24 7235240000 Infeed hose
25 1127250049 Pressure switch ex 7250490000
26 7192090000 Safety valve
27 7110060000 Pressure gauge
28 7082690000 Joint
29 7328700000 Infeed cable
30 7090070000 Plug
