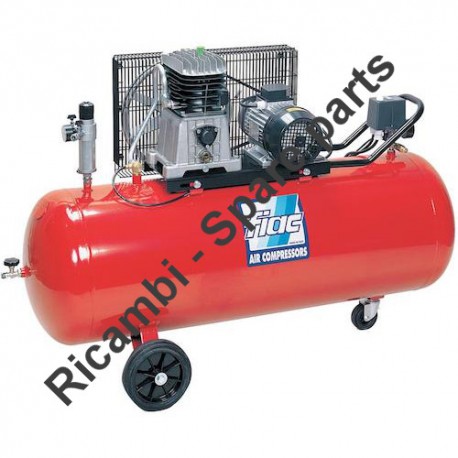

FIAC Spare Parts for Piston Air Compressor AB200/338

SKU: Fiac AB200/338
€372.81
VAT included

FIAC Spare Parts for Piston Air Compressor AB200/338

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor Model AB200/338.
FIAC Spare Parts for Piston Air Compressor AB200/338
  • FIAC Spare Parts for Piston Air Compressor AB200/338
  • FIAC Spare Parts for Piston Air Compressor AB200/338

FIAC Spare Parts for Piston Air Compressor AB200/338

SKU: Fiac AB200/338 Condition: New
€372.81
VAT included

FIAC Spare Parts for Piston Air Compressor AB200/338

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor Model AB200/338.
settings 36 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

36 spare parts

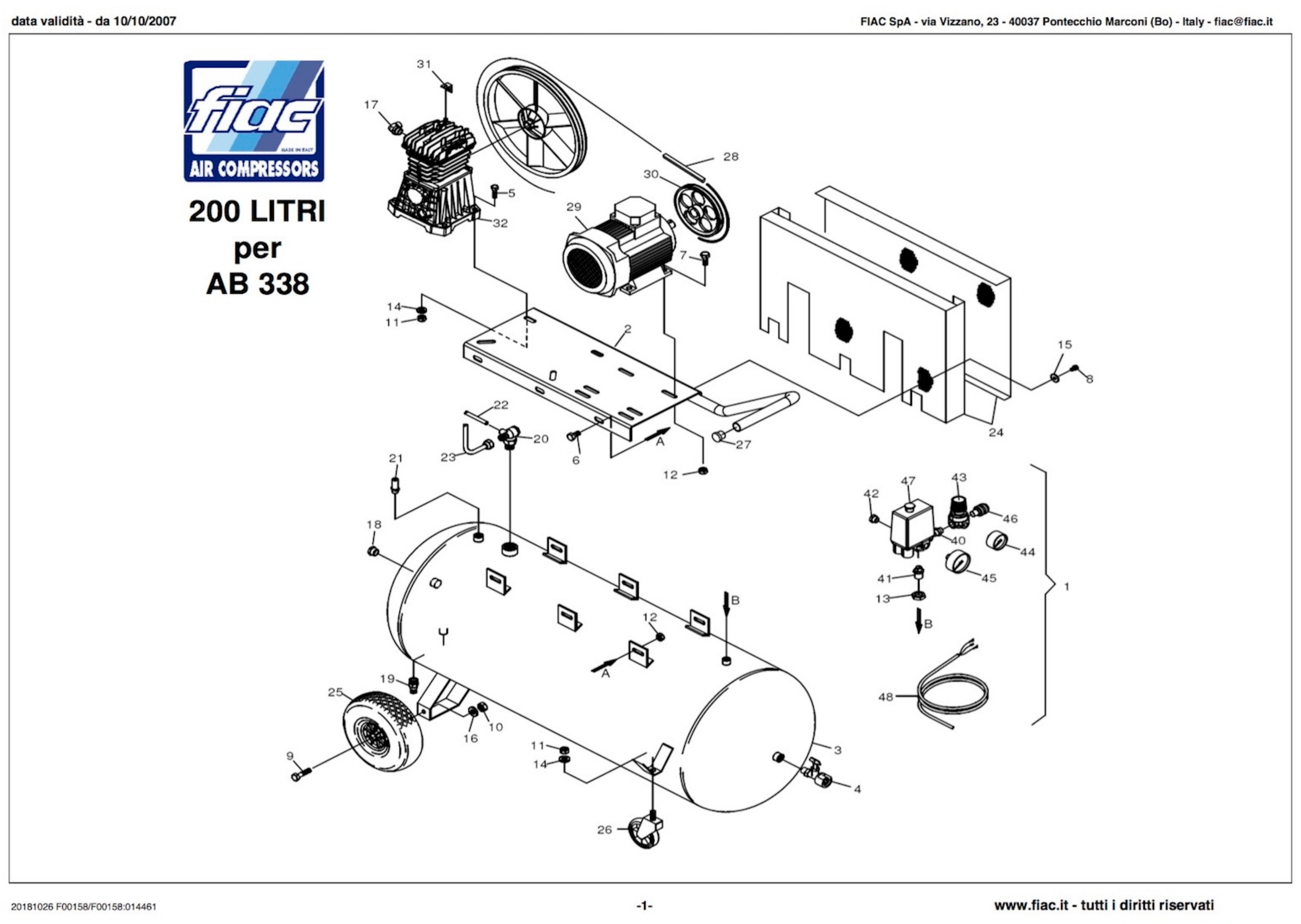

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 4056690000 Press. Switch kit €372.81
2
photo_cameraImage coming soon 5011290008 BASE PLATE €98.21
3
photo_cameraImage coming soon 5159170008 Serbatoio 200lt €612.66
4
photo_cameraImage coming soon 1126000138 Joint €15.80
5
photo_cameraImage coming soon 7011100000 Screw M8X25 UNI-5739 €1.52
6
photo_cameraImage coming soon 7011120000 Screw M10x45 UNI-5739 €1.44
7
photo_cameraImage coming soon 7011410000 Screw M10x20 DIN 6921 €2.03
8
photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
9
Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
13
Fiac Locking Nut 3/8" 7023050000 Fiac Locking Nut 3/8" €6.42
14
photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
16
photo_cameraImage coming soon 7030140000 Washer Ø12 UNI-6592 €4.23
17
photo_cameraImage coming soon 7080160000 Fitting "L" 1/2 €11.84
18
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
19
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
20
Check Valve MM 1/2 DX for Air Compressors 1127190009 Check Valve MM 1/2 DX for Air Compressors €29.61
21
FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
22
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
23
photo_cameraImage coming soon 7237560000 tube feeding €16.95
24
photo_cameraImage coming soon 7240220000 Belt Guard RT 51 AB 200-240-300 DX €81.41
25
photo_cameraImage coming soon 7260050000 Wheel Ø150X30 F15 €7.55
26
photo_cameraImage coming soon 7260360000 Pivot €15.25
28
photo_cameraImage coming soon 7370060000 V-Belt A 46 €13.48
29
Single-Phase Motor KW 2.2 RPM 2770 for Compressors Fiac 7384870000 Single-Phase Motor KW 2.2 RPM 2770 for Compressors Fiac €307.27
30
photo_cameraImage coming soon 7408390000 Pulley Øp130 1 "A" HOLE 19 €38.95
31
photo_cameraImage coming soon 7458510000 Belt Guard Bracket €5.44
32
photo_cameraImage coming soon 9100280000 Pump unit AB268 EX AB248 €198.06
40
photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
41
photo_cameraImage coming soon 7088050000 Joint €9.62
42
Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
43
Pressure Regulator for ABAC Air Compressors 25/50 lt 1127100064 Pressure Regulator for ABAC Air Compressors 25/50 lt €25.39
44
Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
45
Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
46
photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
47
Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
48
photo_cameraImage coming soon 7329070000 Power Cord €29.80

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor AB200/338

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor Model AB200/338.

In the following table, look for the type of the air compressor and the respective parts of the code .
Fiac AB200/338

Air Compressor AB200/338
# Part NUm. Description
1 4056690000 Press. Switch kit
2 5011290008 Base
3 5159170008 Tank
4 1126000138 Joint
5 7011100000 Screw
6 7011120000 Screw
7 7011410000 Screw
8 7012090000 Screw
9 7018290000 Wheel pin
10 7020100000 Nut
11 7020240000 Nut
12 7020250000 Nut
13 7023050000 Locking nut
14 7030030000 Washer
15 7030050000 Washer
16 7030140000 Washer
17 7080160000 Joint
18 7090030000 Tank plug
19 7130160000 Discharge tap
20 1127190009 Non return valve
21 7192090000 Safety valve
22 7230010000 Rilsan hose
23 7237560000 Infeed hose
24 7240220000 Belt guard
25 7260050000 Wheel
26 7260360000 Pivot
27 7360070000 Rubber
28 7370060000 Belt
29 7384870000 Single phase Motor
30 7408390000 Pulley
31 7458510000 Belt guard Support
32 9100280000 Pump unit
40 7081090000 Joint
41 7088050000 Joint
42 7090090000 Plug
43 1127100064 Pressure reducer
44 7110240000 Pressure gauge
45 7110300000 Pressure gauge
46 7130570000 Universal Tap
47 7250740000 Pressure switch
48 7329070000 Power cable

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac AB200/338
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Fiac AB200/338

Diagram Fiac AB200/338

Download (219.43KB)
