FIAC Spare Parts for Piston Air Compressor Stratos 24

SKU: Fiac Stratos 24 - 9995150000
€5.56
VAT included

FIAC Spare Parts for Piston Air Compressor Stratos 24

FIAC genuine spare parts or replacement parts for to repair Air Compressor STRATOS 24 9995150000 - data validità - da 06/09/2013.
FIAC Spare Parts for Piston Air Compressor Stratos 24
  • FIAC Spare Parts for Piston Air Compressor Stratos 24
  • FIAC Spare Parts for Piston Air Compressor Stratos 24

FIAC Spare Parts for Piston Air Compressor Stratos 24

SKU: Fiac Stratos 24 - 9995150000 Condition: New
€5.56
VAT included

FIAC Spare Parts for Piston Air Compressor Stratos 24

FIAC genuine spare parts or replacement parts for to repair Air Compressor STRATOS 24 9995150000 - data validità - da 06/09/2013.
settings 34 spare parts

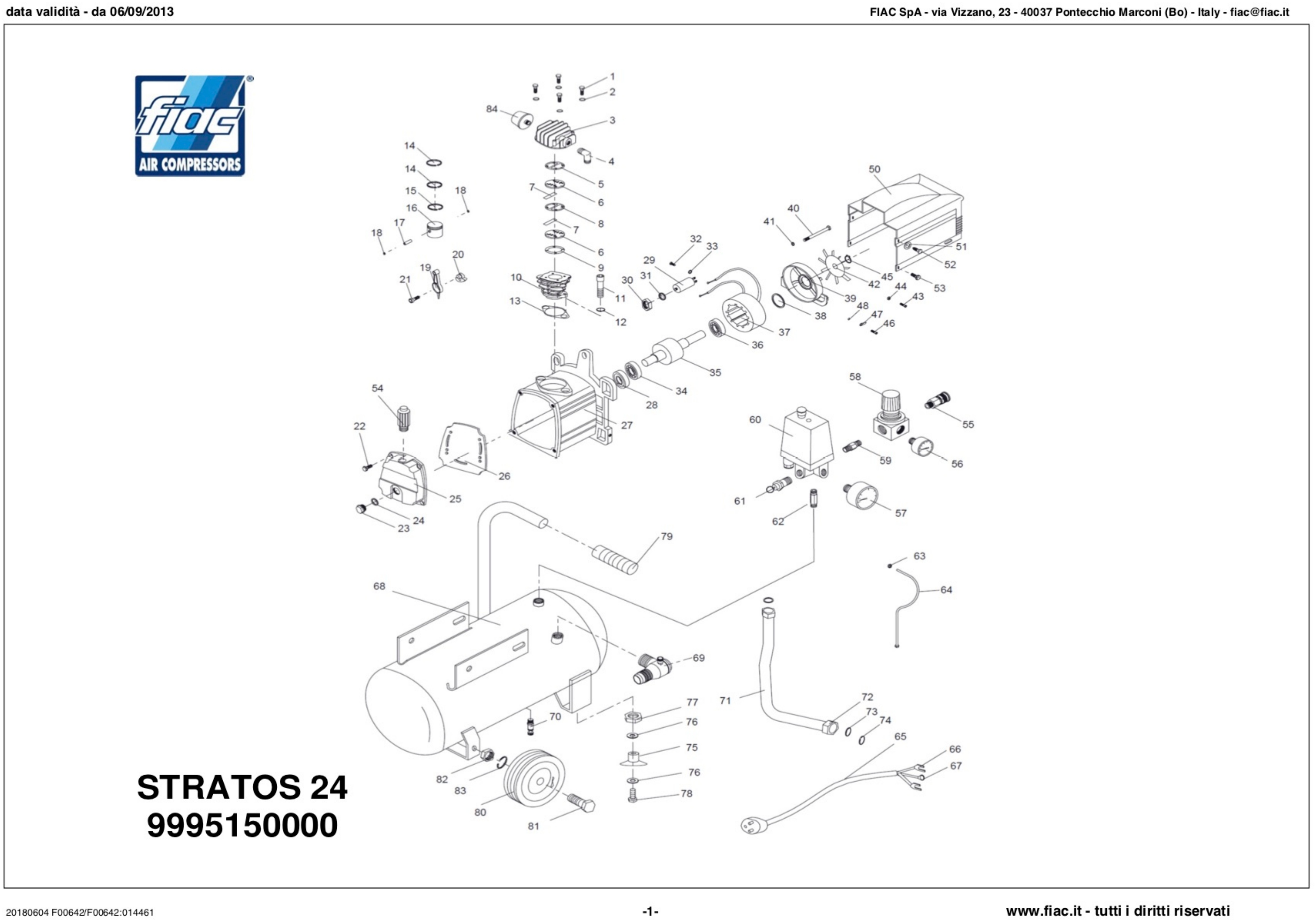

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

34 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
4
Fitting L 1/4"-1/4" for Compressor Fiac Stratos 24 9995270021 Fitting L 1/4"-1/4" for Compressor Fiac Stratos 24 €5.57
6
photo_cameraImage coming soon 9995150029 Valve complete €9.32
7
photo_cameraImage coming soon 9995270051 Valve plate €2.81
13
Crankcase-Cylinder Gasket for FIAC Stratos 24 9995270027 Crankcase-Cylinder Gasket for FIAC Stratos 24 €4.34
15
photo_cameraImage coming soon 9995270037 Piston Ring €6.24
19
Conrod for Air Compressor FIAC Stratos 24 9993820180 Conrod for Air Compressor FIAC Stratos 24 €19.95
20
FIAC Air Compressor Stratos 24 Crankshaft 9995270016 FIAC Air Compressor Stratos 24 Crankshaft €18.83
26
photo_cameraImage coming soon 9995270015 Oil seal CARTER €19.19
27
photo_cameraImage coming soon 9995270013 CARTER €44.65
28
photo_cameraImage coming soon 9995270035 Seal €4.41
29
photo_cameraImage coming soon 9995150007 Capacitor €18.39
34
photo_cameraImage coming soon 9995270003 Bearing €7.42
35
photo_cameraImage coming soon 9995150023 Armature - Rotor €58.18
36
photo_cameraImage coming soon 9995270004 Bearing €7.42
37
photo_cameraImage coming soon 9995150027 Stator €101.91
54
photo_cameraImage coming soon 9995150005 Vent plug €8.73
55
photo_cameraImage coming soon 9995150021 Rapid connection €18.71
56
photo_cameraImage coming soon 9995270040 Pressure gauge €9.32
57
photo_cameraImage coming soon 9995270041 Pressure gauge €11.15
58
photo_cameraImage coming soon 9995270045 Pressure regulator €21.68
59
photo_cameraImage coming soon 9995150010 Copper connector €34.73
60
photo_cameraImage coming soon 9995270042 Pressure switch €27.74
61
photo_cameraImage coming soon 9995150025 Safety valve €18.72
62
photo_cameraImage coming soon 9995150011 Connector €8.76
64
photo_cameraImage coming soon 9995150028 Pressure switch tube €13.09
65
photo_cameraImage coming soon 9995150006 Power cable €20.30
69
FIAC Stratos 24 Check Valve 9995150008 FIAC Stratos 24 Check Valve €16.12
70
FIAC Stratos 24 Drain Valve 9995270019 FIAC Stratos 24 Drain Valve €12.00
71
photo_cameraImage coming soon 9995150015 Drain pipe €18.86
75
FIAC Stratos 24 Rubber Foot 9995150024 FIAC Stratos 24 Rubber Foot €6.36
77
photo_cameraImage coming soon 9995150004 Screw €1.84
79
photo_cameraImage coming soon 9995270028 Handle €4.44
80
photo_cameraImage coming soon 9995150030 Wheel €8.04
84
photo_cameraImage coming soon 9995150001 Air filter €6.70

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor Stratos 24

FIAC genuine spare parts or replacement parts for to repair Air Compressor STRATOS 24 9995150000 - data validità - da 06/09/2013.

In the following table , look for the type of the Air Compressor and the respective parts of the code .
Fiac Stratos 24 - 9995150000
FIAC STRATOS 24 9995150000 - validity date - da 06/09/2013
# Part Num. Description
3 9995150014 Cylinder head
4 9995270021 Fitting
5 9995150016 seal
6 9995150029 Valve complete
7 9995270051 Valve plate
8 9995150017 seal
9 9995150018 seal
10 9995150013 Cylinder
13 9995270027 Crankcase-Cylider Gasket
15 9995270037 Piston Ring
16 9995270036 Piston
17 9995270038 Piston Pin
18 9995270039 Piston Clip
19 9993820180 Conrod NEW 1129990174
20 9995270016 Crankshaft
24 9995150019 Oil level check Gasket
25 9995150012 Carter cover
26 9995270015 Oil seal CARTER
27 9995270013 Carter
28 9995270035 Seal
29 9995150007 Capacitor
30 9995270029 Nut
34 9995270003 Bearing
35 9995150023 Armature - Rotor
36 9995270004 Bearing
37 9995150027 Stator
39 9995150022 Rear CASING
40 9995150003 Screw
42 1120037974 Heating FAN
45 9995150009 Cable tie
47 1120037972 Mass sticker
50 9995150026 Hull
54 9995150005 Vent plug
55 9995150021 Rapid connection
56 9995270040 Pressure gauge
57 9995270041 Pressure gauge
58 9995270045 Pressure regulator
59 9995150010 Copper connector
60 9995270042 Pressure switch
61 9995150025 Safety valve
62 9995150011 Connector
64 9995150028 Pressure switch tube
65 9995150006 Power cable
68 9995150002 Tank
69 9995150008 Check valve
70 9995270019 Drain Valve 3/8"
71 9995150015 Drain pipe
75 9995150024 Rubber foot
77 9995150004 Screw
79 9995270028 Handle
80 9995150030 Wheel
84 9995150001 Air filter
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac Stratos 24 - 9995150000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Fiac Stratos 24

Diagram Fiac Stratos 24

Download (200.87KB)
