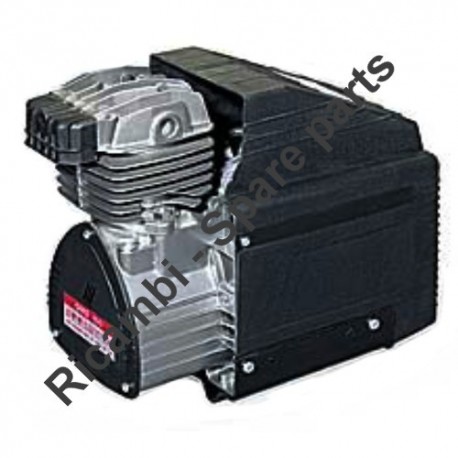

FIAC Spare Parts for Pump Unit GMS 100 Compact

SKU: Fiac GMS100 Compact
€340.99
VAT included

FIAC Spare Parts for Pump Unit GMS 100 Compact

We are Dealers of FIAC original spare parts for piston Air Compressors, at low at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pump Unit GMS 100 Compact.
FIAC Spare Parts for Pump Unit GMS 100 Compact
  • FIAC Spare Parts for Pump Unit GMS 100 Compact
  • FIAC Spare Parts for Pump Unit GMS 100 Compact

FIAC Spare Parts for Pump Unit GMS 100 Compact

SKU: Fiac GMS100 Compact Condition: New
€340.99
VAT included

FIAC Spare Parts for Pump Unit GMS 100 Compact

We are Dealers of FIAC original spare parts for piston Air Compressors, at low at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pump Unit GMS 100 Compact.
settings 40 spare parts

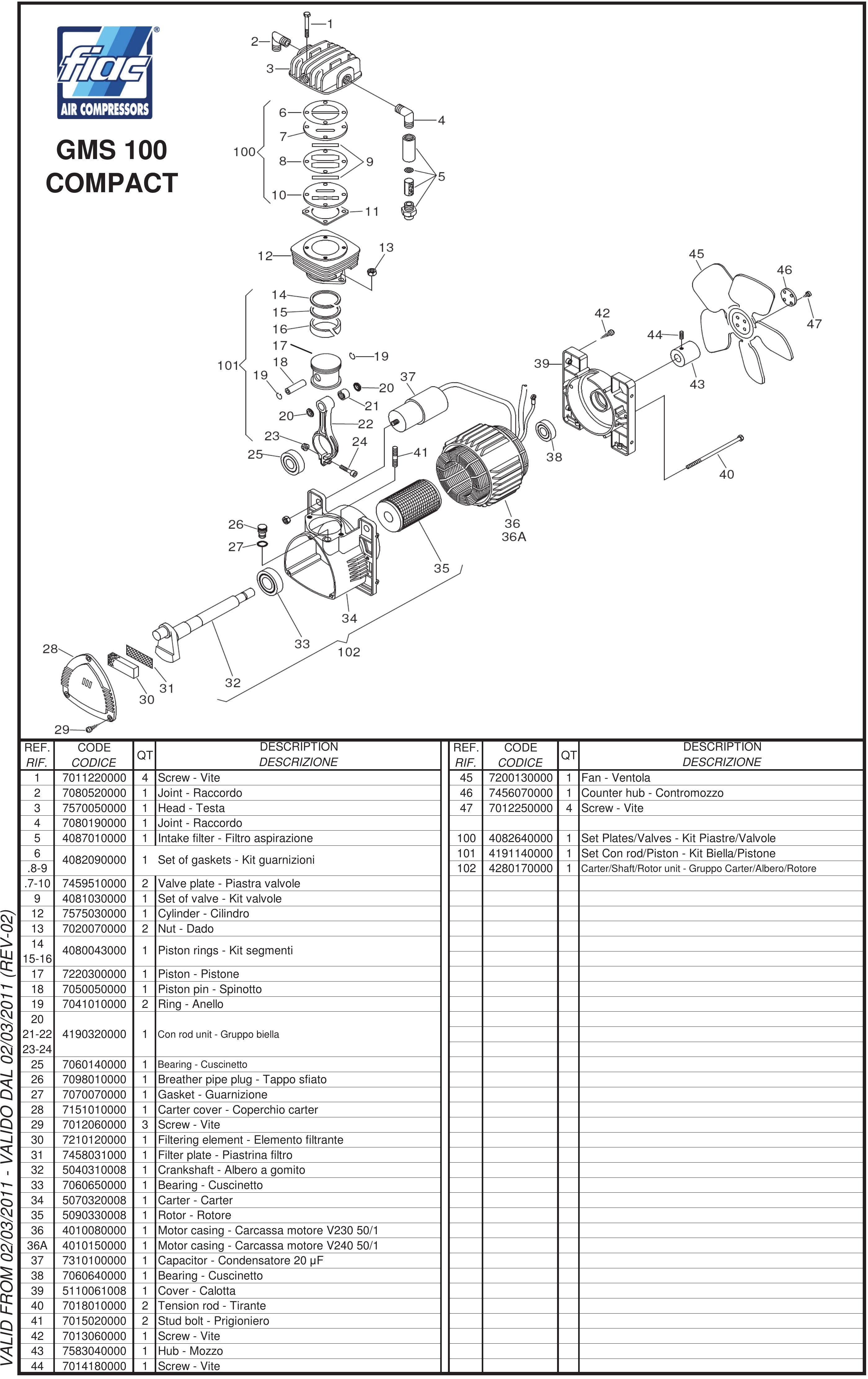

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

40 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
"L" Joint 3/8" MM for Flexi Hose Pump Unit Fiac GMS 100 Compact 7080520000 "L" Joint 3/8" MM for Flexi Hose Pump Unit Fiac GMS 100 Compact €18.92
3
photo_cameraImage coming soon 7570050000 Head €21.64
4
"L" Joint 3/8" MM  for Pump Unit Fiac GMS 100 Compact 7080190000 "L" Joint 3/8" MM for Pump Unit Fiac GMS 100 Compact €7.80
5
photo_cameraImage coming soon 4087010000 INTAKE FILTER VS204S-VS254S €25.83
6.8-9
Fiac GMS 100 Pump Unit Set of Gaskets 4082090000 Fiac GMS 100 Pump Unit Set of Gaskets €10.74
7-10
Fiac VS204 Valve Plate Kit 7459510000 Fiac VS204 Valve Plate Kit €77.90
9
photo_cameraImage coming soon 4081030000 VALVE KIT LAMEL.10PZ SP.0,20 INOX €21.15
12
Fiac GMS 100 Pump Unit Cylinder 7575030000 Fiac GMS 100 Pump Unit Cylinder €158.15
13
photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
14-15-16
Kit Rings for Pistons of Pump Units GMS-VS 4080043000 Kit Rings for Pistons of Pump Units GMS-VS €82.31
17
photo_cameraImage coming soon 7220300000 Piston €38.56
18
photo_cameraImage coming soon 7050050000 Pin Ø12/8,5X46 "GMS" €4.35
19
Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
20-21-22-23-24
photo_cameraImage coming soon 4190320000 Kit rod €104.77
25
photo_cameraImage coming soon 7060140000 Bearing 6204-2RS2 / HT-22-C3 SKF €23.84
26
photo_cameraImage coming soon 7098010000 Cork €10.26
27
photo_cameraImage coming soon 7070070000 O-ring 3187 €3.31
28
photo_cameraImage coming soon 7151010000 COVER CARTER GMS €7.02
29
photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
30
FIAC GMS 100 Air Filter 7210120000 FIAC GMS 100 Air Filter €3.32
31
photo_cameraImage coming soon 7458031000 Filter plate €5.87
32
photo_cameraImage coming soon 5040310008 CRANKSHAFT X AC1300 €55.70
33
photo_cameraImage coming soon 7060650000 Bearing - Cuscinetto €27.92
34
photo_cameraImage coming soon 5070320008 Sump €60.63
35
photo_cameraImage coming soon 5090330008 Rotor €78.48
36
photo_cameraImage coming soon 4010080000 HOUSING STATOR GM 110 V230/50HZ-4 POLES €343.10
36A
photo_cameraImage coming soon 4010150000 HOUSING STATOR GM 4P 110 V 240 €310.86
37
Capacitor 20 mf for Air Compressors 7310100000 Capacitor 20 mf for Air Compressors €22.94
38
photo_cameraImage coming soon 7060640000 Bearing - Cuscinetto €9.18
39
photo_cameraImage coming soon 5110061008 Cover €29.96
40
photo_cameraImage coming soon 7018010000 Screw M6x139 UNI-5737 €1.73
41
Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
42
photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
43
photo_cameraImage coming soon 7583040000 Hub - Mozzo €79.32
45
photo_cameraImage coming soon 7200130000 Fan €6.36
46
photo_cameraImage coming soon 7456070000 Counter hub - Contromozzo €3.72
100
photo_cameraImage coming soon 4082640000 Valve plate kit €80.06
101
Set Conrod-Piston for Pump Unit Fiac VS 204 4191140000 Set Conrod-Piston for Pump Unit Fiac VS 204 €111.51
102
photo_cameraImage coming soon 4280170000 Housing/Shaft/Rotor unit - Gruppo Housing/Shaft/Rotore €211.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit GMS 100 Compact

We are Dealers of FIAC original spare parts for piston Air Compressors, at low at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Pump Unit GMS 100 Compact.

In the following table, look for the type of the Air Compressor and the respective parts of the code.
Fiac GMS 100 Compact

Pump Unit GMS 100 Compact
# Part Num. Description
1 7011220000 Screw - Vite
2 7080520000 Joint - Raccordo
3 7570050000 Head - Testa
4 7080190000 Joint - Raccordo
5 4087010000 Intake filter - Filtro aspirazione
6.8-9 4082090000 Set of gaskets - Kit guarnizioni
7-10 7459510000 Valve plate - Piastra valvole
9 4081030000 Set of valve - Kit valvole
12 7575030000 Cylinder - Cilindro
13 7020070000 Nut - Dado
14-
15-16
4080043000 Piston rings - Kit segmenti
17 7220300000 Piston - Pistone
18 7050050000 Piston pin - Spinotto
19 7041010000 Ring - Anello
20-21
-22-23
-24
4190320000 Con rod unit - Gruppo biella
25 7060140000 Bearing - Cuscinetto
26 7098010000 Breather pipe plug - Tappo sfiato
27 7070070000 Gasket - Guarnizione
28 7151010000 Carter cover - Coperchio carter
29 7012060000 Screw - Vite
30 7210120000 Filtering element - Elemento filtrante
31 7458031000 Filter plate - Piastrina filtro
32 5040310008 Crankshaft - Albero a gomito
33 7060650000 Bearing - Cuscinetto
34 5070320008 Carter - Carter
35 5090330008 Rotor - Rotore
36 4010080000 Motor casing - Carcassa motore V230 50/1
36A 4010150000 Motor casing - Carcassa motore V240 50/1
37 7310100000 Capacitor - Condensatore 20 F
38 7060640000 Bearing - Cuscinetto
39 5110061008 Cover - Calotta
40 7018010000 Tension rod - Tirante
41 7015020000 Stud bolt - Prigioniero
42 7013060000 Screw - Vite
43 7583040000 Hub - Mozzo
44 7014180000 Screw - Vite
45 7200130000 Fan - Ventola
46 7456070000 Counter hub - Contromozzo
47 7012250000 Screw - Vite
100 4082640000 Set Plates/Valves - Kit Piastre/Valvole
101 4191140000 Set Con rod/Piston - Kit Biella/Pistone
102 4280170000 Carter/Shaft/Rotor unit - Gruppo Carter/Albero/Rotore
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
