FIAC spa

FIAC Spare Parts for Piston Air Compressor Pump Unit CCS 335

SKU: Fiac CCS335
€542.73
VAT included

FIAC Spare Parts for Piston Air Compressor Pump Unit CCS 335

Fiac Genuine parts or replacement parts for to repair Piston Air Compressor Pump Unit CCS 335 validity date - from 01/01/2000.
FIAC Spare Parts for Piston Air Compressor Pump Unit CCS 335
  • FIAC Spare Parts for Piston Air Compressor Pump Unit CCS 335
  • FIAC Spare Parts for Piston Air Compressor Pump Unit CCS 335
FIAC spa

FIAC Spare Parts for Piston Air Compressor Pump Unit CCS 335

SKU: Fiac CCS335 Condition: New
€542.73
VAT included

FIAC Spare Parts for Piston Air Compressor Pump Unit CCS 335

Fiac Genuine parts or replacement parts for to repair Piston Air Compressor Pump Unit CCS 335 validity date - from 01/01/2000.
settings 44 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

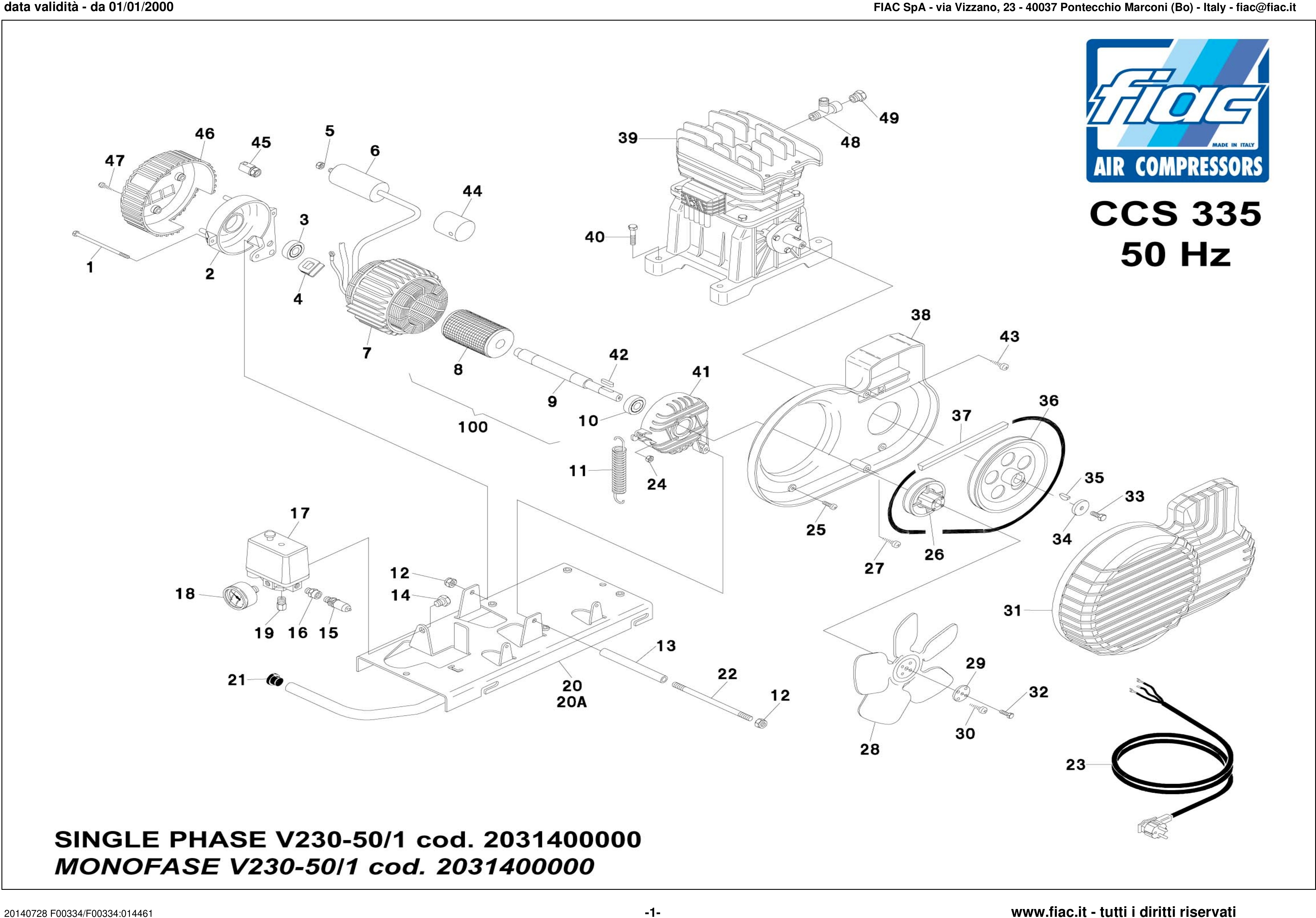

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 7640080000 Cover €26.18
3
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
4
 photo_cameraImage coming soon 7500030000 CABLE GUIDE €4.05
5
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
6
 Capacitor 60 mf for Pump Units CCS 245 - 335 7310360000 Capacitor 60 mf for Pump Units CCS 245 - 335 €39.93
7
 photo_cameraImage coming soon 4012880000 Stator €396.26
8
 photo_cameraImage coming soon 7660190000 Armature €66.25
9
 photo_cameraImage coming soon 7580160000 SHAFT ELETTR.CCS 335 3HP. €40.56
10
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
11
 Spring A 693 for Pump Unit Fiac CCS 245 7160060000 Spring A 693 for Pump Unit Fiac CCS 245 €8.80
13
 photo_cameraImage coming soon 7230060000 Tube Rilsan Ø12X10 €10.80
14
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
15
 photo_cameraImage coming soon 7192050000 Valve Sic. M3/8 to 10.5 Bar €21.10
16
 photo_cameraImage coming soon 7085530000 Fitting 1/4 "-3/8" MF €7.98
17
 photo_cameraImage coming soon 7250360000 Pressure Switch €38.56
18
 FIAC Manometer for Air Compressor AB300 7110060000 FIAC Manometer for Air Compressor AB300 €21.31
19
 photo_cameraImage coming soon 7084220000 Fitting DIR.M1 / 4 "-6 QUICK €6.64
20
 photo_cameraImage coming soon 5011060008 BASE €99.32
020A
 photo_cameraImage coming soon 5011070008 BASE €83.71
21
 photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
22
 photo_cameraImage coming soon 7018470000 Guy ENGINE CCS 335 HP.3 €13.70
23
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
24
 photo_cameraImage coming soon 7020200000 Nut M6 UNI-5587 €1.48
25
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
26
 photo_cameraImage coming soon 7409580000 Pulley OP90 1-Z F16 €66.25
28
 Motor Fan for Pump Unit FIAC CCS 7200080000 Motor Fan for Pump Unit FIAC CCS €35.55
29
 FIAC Fan Washer for Pump Units CCS 7038080000 FIAC Fan Washer for Pump Units CCS €4.44
30
 photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
31
 photo_cameraImage coming soon 7151060000 Carena plastic top €23.70
32
 photo_cameraImage coming soon 7011420000 Screw M6X16 UNI-5739 €1.52
33
 photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
34
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
35
 photo_cameraImage coming soon 7051500000 Tab 4X6,5 €1.48
36
 Motor Fan Pulley for Pump Unit FIAC CCS 7408520000 Motor Fan Pulley for Pump Unit FIAC CCS €39.88
37
 photo_cameraImage coming soon 7370640000 Belt SPZX 787-NOTCHED €19.67
38
 photo_cameraImage coming soon 7151070000 Plastic bottom HOUSING €23.70
39
 photo_cameraImage coming soon 3020460000 Pumping unit AB 335 €420.18
40
 photo_cameraImage coming soon 7012200000 Screw M8x35 UNI-8112 €1.23
41
 photo_cameraImage coming soon 7640070000 Cover - DISCONTINUED €20.90
43
 photo_cameraImage coming soon 7012240000 Screw M5X15 UNI-8112 €5.34
45
 photo_cameraImage coming soon 7501050000 Cable locks €4.48
46
 photo_cameraImage coming soon 7151130000 Carena plastic €10.23
47
 photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
48
 photo_cameraImage coming soon 7082700000 Fitting "T" 3 / 8F-1 / 2M.SV-1 / 2M €13.98
49
 Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS 7196010000 Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS €10.13
100
 photo_cameraImage coming soon 4280720000 Kit Shaft / Rotor (single phase) €103.15
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

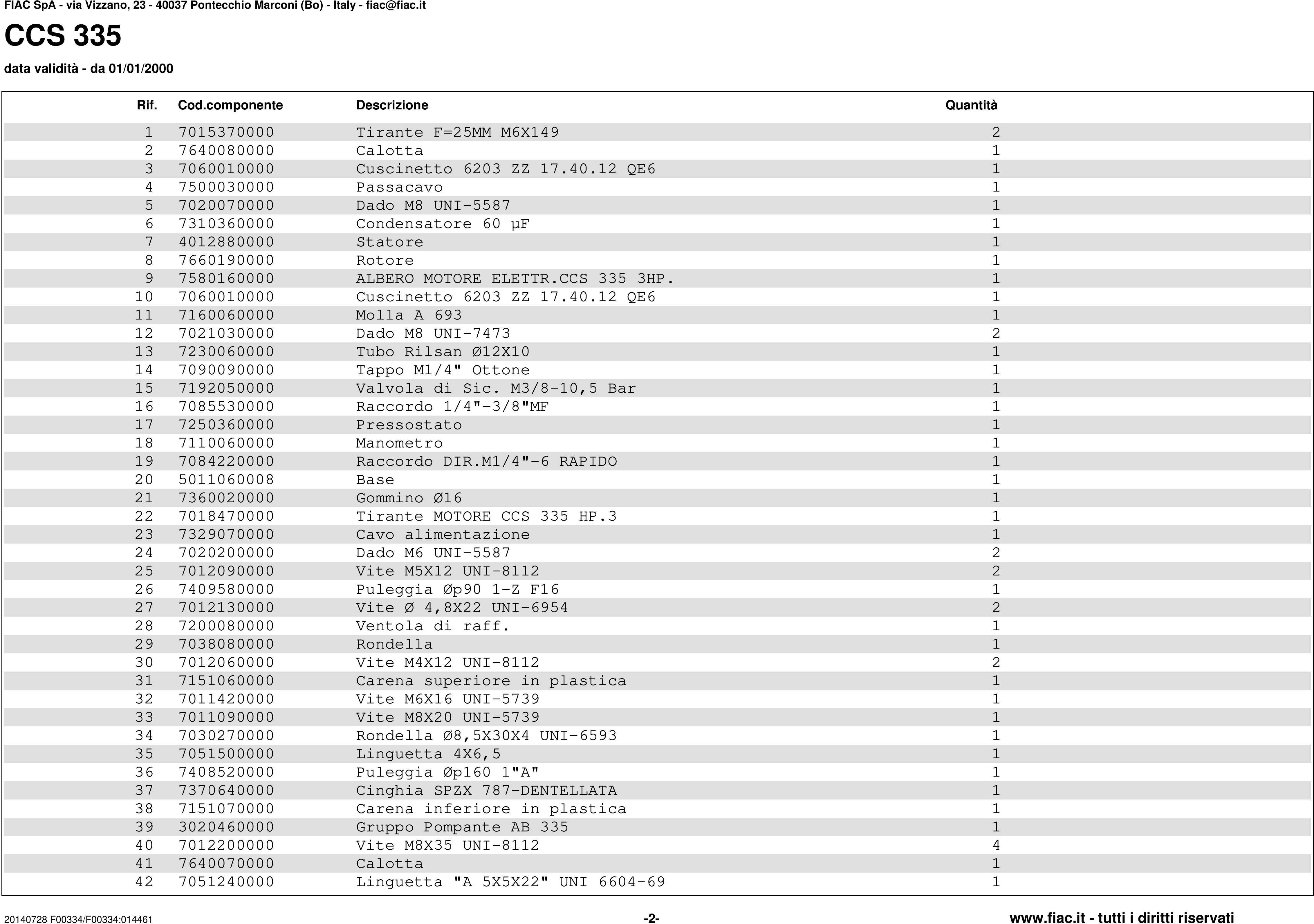

Esploso pagina 2
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

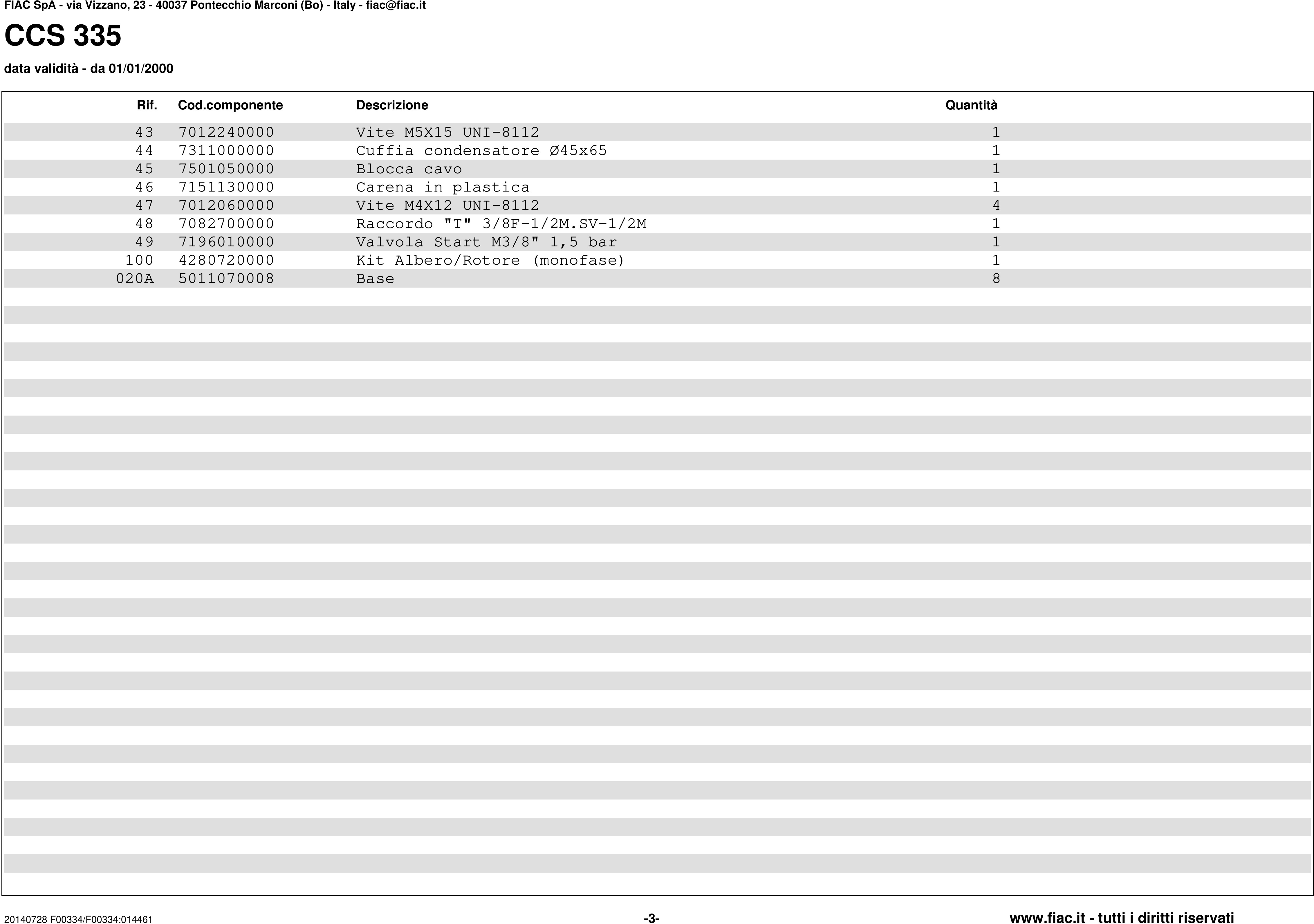

Esploso pagina 3
Pos. Item Price Buy
020A
 photo_cameraImage coming soon 5011070008 BASE €83.71

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor Pump Unit CCS 335

Fiac Genuine parts or replacement parts for to repair Piston Air Compressor Pump Unit CCS 335 validity date - from 01/01/2000.

In the following table , look for the model of the pumping unit and the respective parts of the code.
Fiac CCS 335

Pump Unit CCS 335 validity date - from 01/01/2000
# Part Num. Description
1 7015370000 ROD F = 25MM M6X149
2 7640080000 Cover
3 7060010000 Bearing 6203 ZZ 17:40:12 QE6
4 7500030000 Fairlead
5 7020070000 Nut M8 UNI-5587
6 7310360000 60 uF capacitor - Repl. by 7310550000
7 4012880000 Stator
8 7660190000 Rotor
9 7580160000 CRANKSHAFT ELETTR.CCS 335 3HP.
10 7060010000 Bearing 6203 ZZ 17:40:12 QE6
11 7160060000 Spring A 693
12 7021030000 Nut M8 UNI-7473
13 7230060000 Tube Rilsan Ø12X10
14 7090090000 Cap M1 / ​​4 "Brass
15 7192050000 Valve Sic. M3 / 8 to 10.5 Bar
16 7085530000 Fitting 1/4 "-3/8" MF
17 7250360000 Pressure Switch
18 7110060000 Manometer
19 7084220000 Fitting DIR.M1 / 4 "-6 QUICK
20 5011060008 Basis
21 7360020000 Rubber Ø16
22 7018470000 Guy ENGINE CCS 335 HP.3
23 7329070000 Power cable
24 7020200000 Nut M6 UNI-5587
25 7012090000 Screw M5X12 UNI-8112
26 7409580000 Pulley OP90 1 Z-F16
27 7012130000 Screw Ø 4,8X22 UNI-6954
28 7200080000 Cooler Fan
29 7038080000 Fan Washer
30 7012060000 Screw M4X12 UNI-8112
31 7151060000 Carena plastic top
32 7011420000 Screw M6X16 UNI-5739
33 7011090000 Screw M8X20 UNI-5739
34 7030270000 Washer Ø8,5X30X4 UNI-6593
35 7051500000 Tab 4X6,5
36 7408520000 Pulley Øp160 1 "A"
37 7370640000 Belt SPZX 787-SERRATED
38 7151070000 Plastic bottom HOUSING
39 3020460000 Pumping unit AB 335
40 7012200000 Screw M8x35 UNI-8112
41 7640070000 Cover
42 7051240000 Tab "A 5X5X22" UNI 6604-69
43 7012240000 Screw M5X15 UNI-8112
44 7311000000 Headset condenser Ø45x65
45 7501050000 Block Cable
46 7151130000 Plastic HOUSING
47 7012060000 Screw M4X12 UNI-8112
48 7082700000 Fitting "T" 3 / 8F-1 / 2M.SV-1 / 2M
49 7196010000 Valve Start M3 / 8 "1.5 bar
100 4280720000 Kit Shaft / Rotor (single phase)
020A 5011070008 Base
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
