FIAC Spare Parts for Piston Air Compressor Unit CCS 245-335 SILENT

SKU: Fiac CCS 245-335 SILENT
€339.90
VAT included

FIAC Spare Parts for Piston Air Compressor Unit CCS 245-335 SILENT

Fiac Genuine parts or replacement parts for to repair Piston Air Compressor Pump Unit CCS 245-335 SILENT validity date - from 02/05/2003.
FIAC Spare Parts for Piston Air Compressor Unit CCS 245-335 SILENT
  • FIAC Spare Parts for Piston Air Compressor Unit CCS 245-335 SILENT

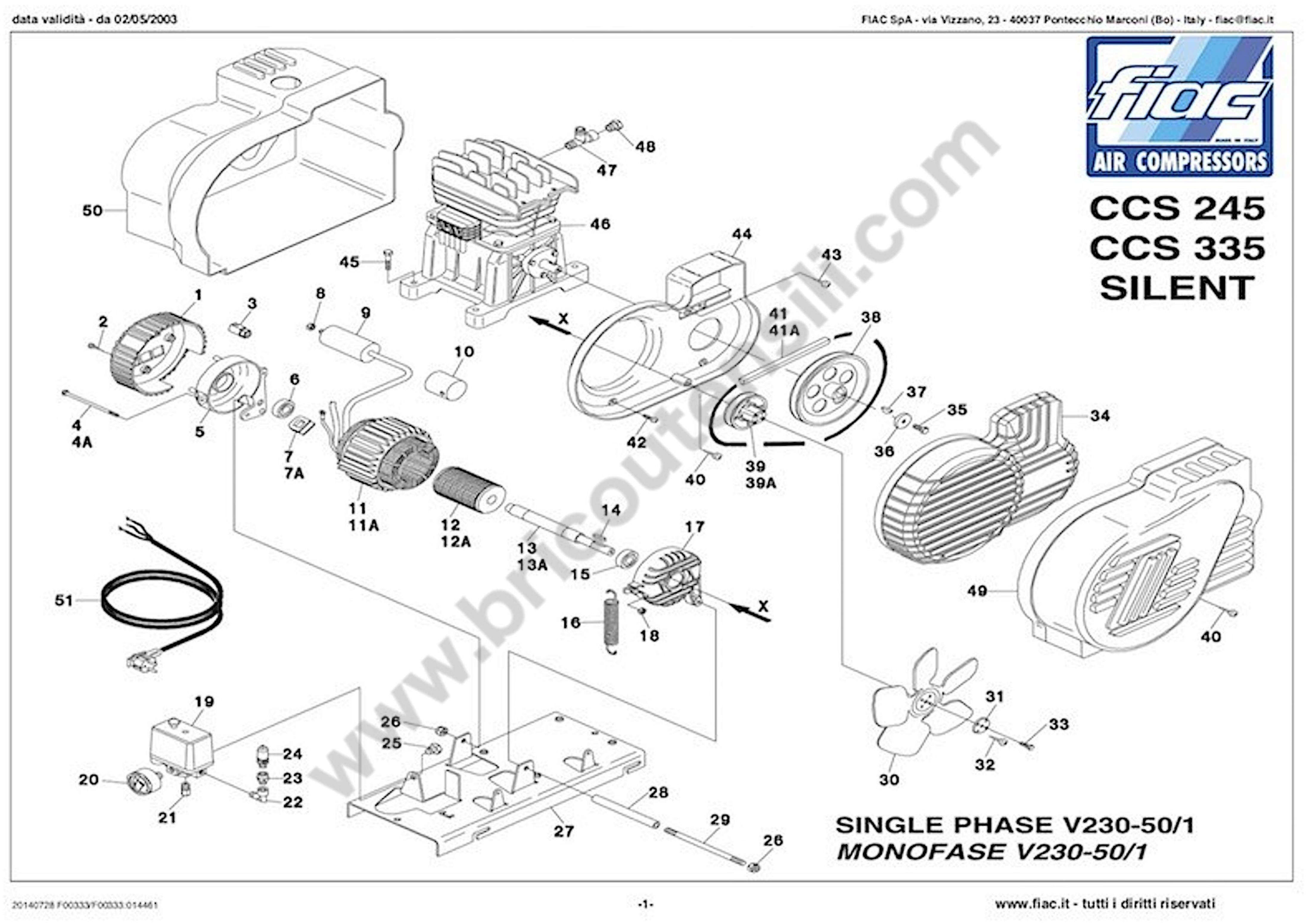

  • FIAC Spare Parts for Piston Air Compressor Unit CCS 245-335 SILENT - Drawing

FIAC Spare Parts for Piston Air Compressor Unit CCS 245-335 SILENT

SKU: Fiac CCS 245-335 SILENT Condition: New
€339.90
VAT included

FIAC Spare Parts for Piston Air Compressor Unit CCS 245-335 SILENT

Fiac Genuine parts or replacement parts for to repair Piston Air Compressor Pump Unit CCS 245-335 SILENT validity date - from 02/05/2003.
settings 50 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 7151130000 Carena plastic €10.23
2
photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
3
photo_cameraImage coming soon 7501050000 Cable locks €4.48
4
photo_cameraImage coming soon 7015290000 ROD M6X130 €9.11
5
photo_cameraImage coming soon 7640080000 Cover €26.18
6
photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
007A
photo_cameraImage coming soon 7500030000 CABLE GUIDE €4.05
7
photo_cameraImage coming soon 7501050000 Cable locks €4.48
8
photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
9
Capacitor 60 mf for Pump Units CCS 245 - 335 7310360000 Capacitor 60 mf for Pump Units CCS 245 - 335 €39.93
011A
photo_cameraImage coming soon 4012880000 Stator €396.26
11
photo_cameraImage coming soon 4012930000 Stator €463.16
12
photo_cameraImage coming soon 7660120000 Rotor €70.25
012A
photo_cameraImage coming soon 7660190000 Armature €66.25
13
photo_cameraImage coming soon 7580150000 ELECTRIC CRANKSHAFT HP.2 €43.99
013A
photo_cameraImage coming soon 7580160000 SHAFT ELETTR.CCS 335 3HP. €40.56
15
photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
16
Spring A 693 for Pump Unit Fiac CCS 245 7160060000 Spring A 693 for Pump Unit Fiac CCS 245 €8.80
17
photo_cameraImage coming soon 7640070000 Cover - DISCONTINUED €20.90
18
photo_cameraImage coming soon 7020200000 Nut M6 UNI-5587 €1.48
19
photo_cameraImage coming soon 7250360000 Pressure Switch €38.56
20
FIAC Manometer for Air Compressor AB300 7110060000 FIAC Manometer for Air Compressor AB300 €21.31
21
photo_cameraImage coming soon 7084220000 Fitting DIR.M1 / 4 "-6 QUICK €6.64
22
”L” joint for RILSAN hose (M) D.6 for Air Compressor Michelin MCX 6 7080140000 ”L” joint for RILSAN hose (M) D.6 for Air Compressor Michelin MCX 6 €9.07
23
photo_cameraImage coming soon 7085530000 Fitting 1/4 "-3/8" MF €7.98
24
photo_cameraImage coming soon 7192050000 Valve Sic. M3/8 to 10.5 Bar €21.10
25
Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
27
photo_cameraImage coming soon 5011240008 base €61.92
28
photo_cameraImage coming soon 7230060000 Tube Rilsan Ø12X10 €10.80
29
photo_cameraImage coming soon 7018470000 Guy ENGINE CCS 335 HP.3 €13.70
30
Motor Fan for Pump Unit FIAC CCS 7200080000 Motor Fan for Pump Unit FIAC CCS €35.55
31
FIAC Fan Washer for Pump Units CCS 7038080000 FIAC Fan Washer for Pump Units CCS €4.44
32
photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
33
photo_cameraImage coming soon 7011420000 Screw M6X16 UNI-5739 €1.52
34
photo_cameraImage coming soon 7151060000 Carena plastic top €23.70
35
photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
36
photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
37
photo_cameraImage coming soon 7051500000 Tab 4X6,5 €1.48
38
Motor Fan Pulley for Pump Unit FIAC CCS 7408520000 Motor Fan Pulley for Pump Unit FIAC CCS €39.88
39
Motor Fan Pulley for Pump Unit FIAC CCS 7408530000 Motor Fan Pulley for Pump Unit FIAC CCS €38.70 Not available for order
039A
photo_cameraImage coming soon 7409580000 Pulley OP90 1-Z F16 €66.25
041A
photo_cameraImage coming soon 7370640000 Belt SPZX 787-NOTCHED €19.67
41
photo_cameraImage coming soon 7370900000 Belt SPAX 1320 €168.03
42
photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
43
photo_cameraImage coming soon 7012240000 Screw M5X15 UNI-8112 €5.34
44
photo_cameraImage coming soon 7151070000 Plastic bottom HOUSING €23.70
45
photo_cameraImage coming soon 7012200000 Screw M8x35 UNI-8112 €1.23
46
photo_cameraImage coming soon 3040150000 MOT.HP.3 CCS 335 V.230 / 50HZ-P.100 €250.64
47
photo_cameraImage coming soon 7082700000 Fitting "T" 3 / 8F-1 / 2M.SV-1 / 2M €13.98
48
Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS 7196010000 Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS €10.13
49
photo_cameraImage coming soon 7151280000 HOUSING.ASPIR.CCS SILENT-SP.6MM. €112.48
50
photo_cameraImage coming soon 7151290000 HOUSING.POST.CCS SILENT-SP.7MM. €158.06
51
photo_cameraImage coming soon 7329070000 Power Cord €29.80

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor Unit CCS 245-335 SILENT

Fiac Genuine parts or replacement parts for to repair Piston Air Compressor Pump Unit CCS 245-335 SILENT validity date - from 02/05/2003.

In the following table , look for the model of the pumping unit and the respective parts of the code.
Fiac CCS 245-335 SILENT

CCS 245-335 SILENT validity date - from 02/05/2003
# Part Num. Description
1 7151130000 Plastic HAUSING
2 7012060000 Screw M4X12 UNI-8112
3 7501050000 Block Cable
4 7015290000 Guy
5 7640080000 Cover
6 7060010000 Bearing 6203 ZZ 17:40:12 QE6
7 7501050000 Block Cable
8 7020070000 Nut M8 UNI-5587
9 7310360000 60 uF capacitor - Repl. by 7310550000
10 7311000000 Headset condenser Ø45x65
11 4012930000 Stator
12 7660120000 Rotor
13 7580150000 TREE ELECTRIC MOTOR HP.2 BRAND.
14 7051240000 Tab "A 5X5X22" UNI 6604-69
15 7060010000 Bearing 6203 ZZ 17:40:12 QE6
16 7160060000 spring A 693
17 7640070000 Cover - DISCONTINUED
18 7020200000 Nut M6 UNI-5587
19 7250360000 Pressure Switch
20 7110060000 Manometer
21 7084220000 Fitting DIR.M1 / 4 "-6 QUICK
22 7080140000 Fitting 1/8 M ATT TUBE D6
23 7085530000 Fitting 1/4 "-3/8" MF
24 7192050000 Valve Sic. M3 / 8 to 10.5 Bar
25 7090090000 Cap M1 / ​​4 "Brass
26 7021030000 Nut M8 UNI-7473
27 5011240008 Base
28 7230060000 Tube Rilsan Ø12X10
29 7018470000 Guy ENGINE CCS 335 HP.3
30 7200080000 Cooler Fan
31 7038080000 Fan Washer
32 7012060000 Screw M4X12 UNI-8112
33 7011420000 Screw M6X16 UNI-5739
34 7151060000 Carena plastic top
35 7011090000 Screw M8X20 UNI-5739
36 7030270000 Washer Ø8,5X30X4 UNI-6593
37 7051500000 Tab 4X6,5
38 7408520000 Pulley Øp160 1 "A"
39 7408530000 Pulley Øp75 1 "A" F.16 - DISCONTINUED
40 7012130000 Screw Ø 4,8X22 UNI-6954
41 7370900000 Belt SPAX 1320
42 7012090000 Screw M5X12 UNI-8112
43 7012240000 Screw M5X15 UNI-8112
44 7151070000 Plastic bottom HOUSING
45 7012200000 Screw M8x35 UNI-8112
46 3040150000 MOT.HP.3 CCS 335 V.230 / 50HZ-P.100
47 7082700000 Fitting "T" 3 / 8F-1 / 2M.SV-1 / 2M
48 7196010000 Valve Start M3 / 8 "1.5 bar
49 7151280000 HOUSING.ASPIR.CCS SILENT-SP.6MM.
50 7151290000 HOUSING.POST.CCS SILENT-SP.7MM.
51 7329070000 Power cable
004A 7015370000 Guy F = 25MM M6X149
007A 7500030000 Fairlead
011A 4012880000 Stator
012A 7660190000 Rotor
013A 7580160000 CRANKSHAFT ELETTR.CCS 335 3HP.
039A 7409580000 Pulley OP90 1 Z-F16
041A 7370640000 Belt SPZX 787-SERRATED
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac CCS 245-335 SILENT
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

CCS 245-335 SILENT Drawing

CCS 245-335 SILENT Drawing

Download (380.11KB)
