FIAC spa

Spare Parts for Pump Unit FIAC GM 244

SKU: GM 244 - da 18/05/2007
€31.97
VAT included

Spare Parts for Pump Unit FIAC GM 244

Genuine Parts FIAC for piston Air Compressors and spare parts for to repair or replacement of components for direct driven lubricared pump unit GM 244 data validità - from 18/05/2007.
Spare Parts for Pump Unit FIAC GM 244
  • Spare Parts for Pump Unit FIAC GM 244
  • Spare Parts for Pump Unit FIAC GM 244
FIAC spa

Spare Parts for Pump Unit FIAC GM 244

SKU: GM 244 - da 18/05/2007 Condition: New
€31.97
VAT included

Spare Parts for Pump Unit FIAC GM 244

Genuine Parts FIAC for piston Air Compressors and spare parts for to repair or replacement of components for direct driven lubricared pump unit GM 244 data validità - from 18/05/2007.
settings 48 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
41 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

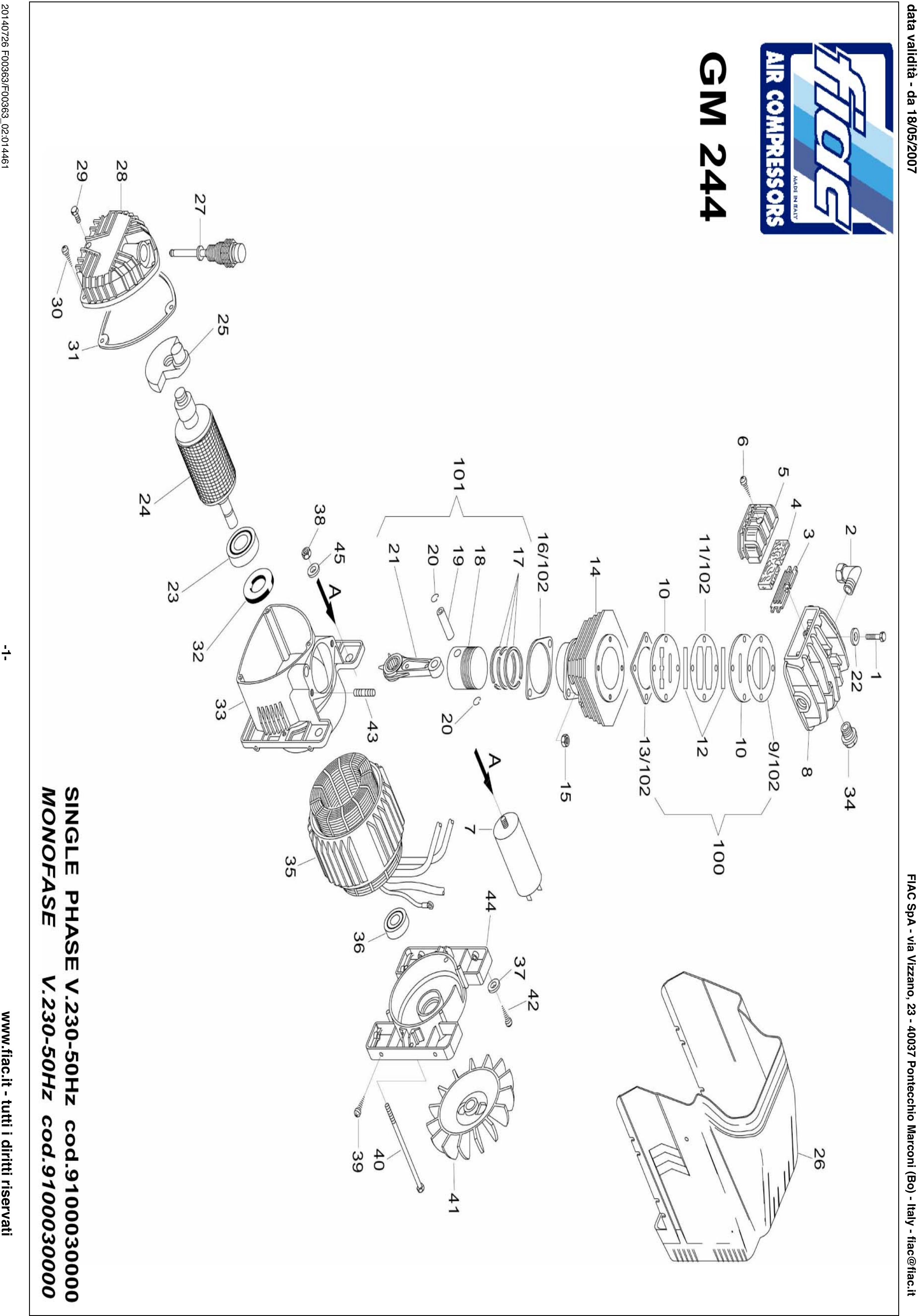

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 Fitting M3/8-Tube 10 for Compressors Head 9100010470 Fitting M3/8-Tube 10 for Compressors Head €14.34
3
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
 Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
6
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
7
 Capacitor 30 mf for Air Compressors 7310320000 Capacitor 30 mf for Air Compressors €26.02
8
 Head Without Start Valve for Pump Unit Fiac GM 244 9100030080 Head Without Start Valve for Pump Unit Fiac GM 244 €26.44
10
 photo_cameraImage coming soon 9100010240 plate €27.84
12
 photo_cameraImage coming soon 9100010370 valve €4.23
14
 photo_cameraImage coming soon 9100030010 CILIN.D.50 X-GM244-CAST €25.27
15
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
17
 Piston Ring Set for Pump Unit FIAC GM 244 9100010790 Piston Ring Set for Pump Unit FIAC GM 244 €14.37
18
 Piston D.50 MM for Pump Units FIAC Series VX - GM 7220020000 Piston D.50 MM for Pump Units FIAC Series VX - GM €26.96
19
 photo_cameraImage coming soon 9100010070 Pin €4.11
20
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
21
 Conrod for Pump Units FIAC GM-VX 5050150008 Conrod for Pump Units FIAC GM-VX €27.33
23
 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360 €17.31
25
 photo_cameraImage coming soon 9100030030 CRANK GM244 €18.73
26
 Pump Unit PVC Cover for Air Compressors Fiac Cosmos 225-255 S 9100030090 Pump Unit PVC Cover for Air Compressors Fiac Cosmos 225-255 S €31.27
27
 Dipstick level Oil for Pump Unit and Compressors GM-Cosmos 9100010170 Dipstick level Oil for Pump Unit and Compressors GM-Cosmos €10.47
28
 photo_cameraImage coming soon 7650020000 crankcase cover €17.43
30
 photo_cameraImage coming soon 9700010187 screw M5x14 €1.44
31
 Motor Cover Gasket for Pumping Units Fiac GM 110-242 7078460000 Motor Cover Gasket for Pumping Units Fiac GM 110-242 €5.16
32
 photo_cameraImage coming soon 9100010430 Oil Seal €4.05
33
 photo_cameraImage coming soon 5070320008 Sump €60.63
34
 Start Valve for Pumping Units GM 9100010190 Start Valve for Pumping Units GM €7.89
35
 photo_cameraImage coming soon 9100030100 crankcase Field WRAPPED GM244 €192.72
36
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
39
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
41
 photo_cameraImage coming soon 9010010200 FAN D.160 12 BLADES €5.34
42
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
43
 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S 9100010050 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S €1.28
44
 photo_cameraImage coming soon 9100030070 Rear Cover GM244 €24.45
45
 photo_cameraImage coming soon 9700010184 washer Ø8 €1.44
100
 Valves Plate Kit for Puming Units Fiac GM 191 4082670000 Valves Plate Kit for Puming Units Fiac GM 191 €31.97
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

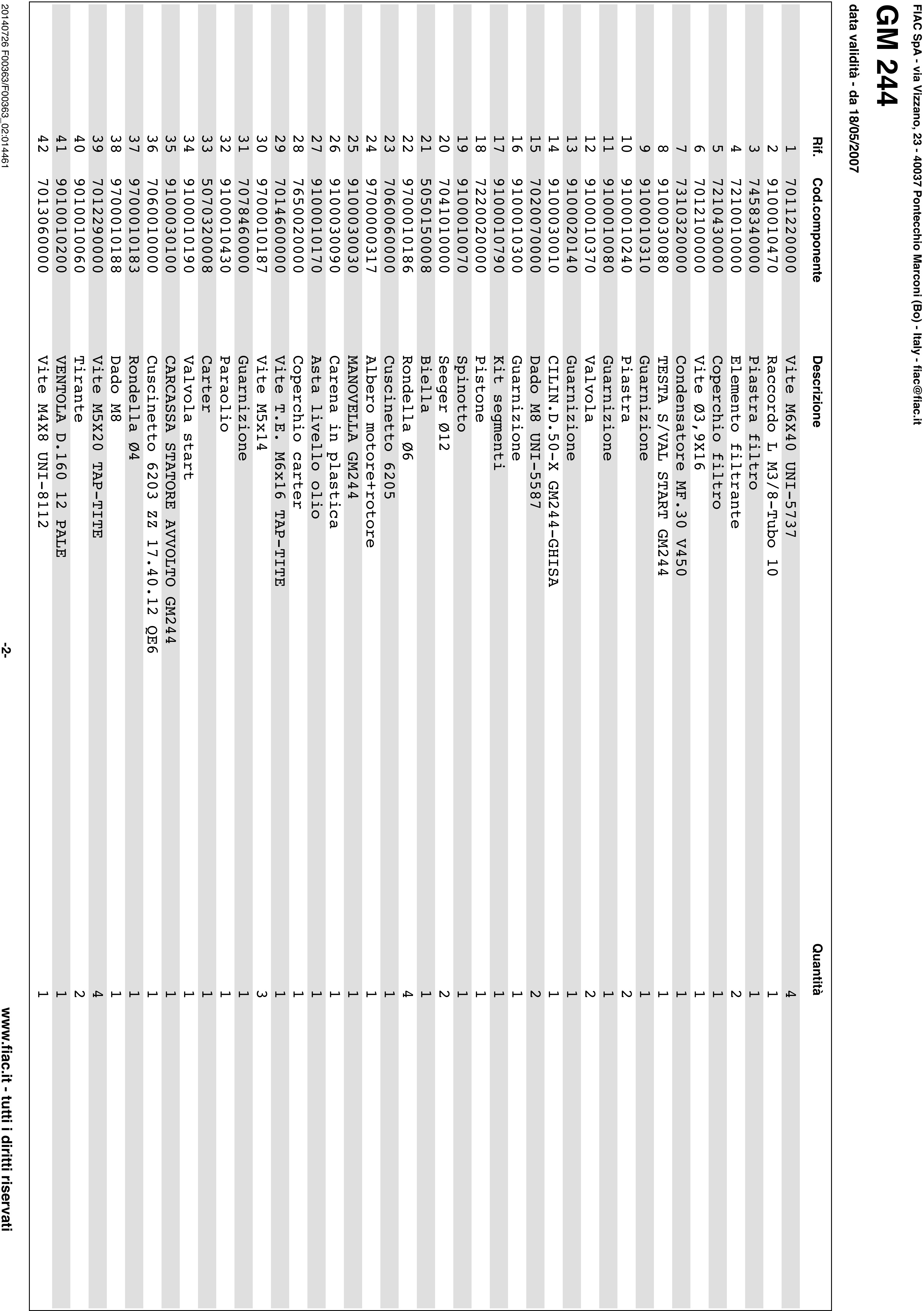

Esploso pagina 2
Pos. Item Price Buy
9
 Head Plate Gasket for Pumping Units Fiac GM 192-193-244 9100010310 Head Plate Gasket for Pumping Units Fiac GM 192-193-244 €4.34
11
 Valves Plate Gasket for Pumping units FIAC GM 142-143 9100010080 Valves Plate Gasket for Pumping units FIAC GM 142-143 €4.34
13
 Cylinder/Plate Gasket for Pumping Unit FIAC GM 193-244 9100020140 Cylinder/Plate Gasket for Pumping Unit FIAC GM 193-244 €4.34
16
 Cylinder Gasket for Pumping Unit FIAC GM 192 9100010300 Cylinder Gasket for Pumping Unit FIAC GM 192 €4.45
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
102
 Gasket Set for Pumping Units FIAC GM 192 4082450000 Gasket Set for Pumping Units FIAC GM 192 €21.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Spare Parts for Pump Unit FIAC GM 244

Genuine Parts FIAC for piston Air Compressors and spare parts for to repair or replacement of components for direct driven lubricared pump unit GM 244 data validità - from 18/05/2007.

In the following table , look for the model of the pumping unit and the respective parts of the code .
direct driven lubricared pump unit GM 244

GM 244 data validità - from 18/05/2007
# Part Num. Description
1 7011220000 Screw M6x40 UNI-5737
2 9100010470 Fitting L M 3/8 10-Tube
3 7458340000 filter plate
4 7210010000 filter element
5 7210430000 filter cover
6 7012100000 screw Ø3,9X16
7 7310320000 Condenser MF.30 V450
8 9100030080 HEAD S / VAL START GM244
9 9100010310 gasket
10 9100010240 Plate
11 9100010080 gasket
12 9100010370 Valve
13 9100020140 gasket
14 9100030010 CILIN.D.50 X-GM244-CAST
15 7020070000 Nut M8 UNI-5587
16 9100010300 gasket
17 9100010790 Piston Ring Set
18 7220020000 Piston
19 9100010070 Piston pin
20 7041010000 Clip Ø12
21 5050150008 Connecting rod
22 9700010186 washer Ø6
23 7060060000 bearing 6205
24 9700000317 Crankshaft + rotor
25 9100030030 CRANK GM244
26 9100030090 Plastic fairing
27 9100010170 Dipstick
28 7650020000 crankcase cover
29 7014600000 Screw T.E. M6x16 TAP-TITE
30 9700010187 screw M5x14
31 7078460000 gasket
32 9100010430 Oil seal
33 5070320008 crankcase
34 9100010190 valve start
35 9100030100 crankcase Field WRAPPED GM244
36 7060010000 Bearing 6203 ZZ 17:40:12 QE6
37 9700010183 washer Ø4
38 9700010188 nut M8
39 7012290000 Screw M5X20 TAP-TITE
40 9010010060 Tie Rod
41 9010010200 FAN D.160 12 BLADES
42 7013060000 Screw M4X8 UNI-8112
43 9100010050 Stud
44 9100030070 Rear Cover GM244
45 9700010184 washer Ø8
100 4082670000 Valve plate kit
101 9700100049 Kit piston / Connecting rod
102 4082450000 Gasket Kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
GM 244 - da 18/05/2007
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Fiac GM244

Diagram Fiac GM244

Download (294.03KB)
